HOWO Off Road 371HP AWD 6X6 Tractor Truck
Engine:SINOTRUK 371HP engine;
Driving model:LHD or RHD
Gear box:10-speed forward and 2 reverses
Tire:12R22.5
Model: 4x4
and 6x6 for optional.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo off road 371hp awd 6x6 tractor truck in China. If you're going to buy high quality howo off road 371hp awd 6x6 tractor truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Off Road Tractor Truck(also called Off Road Tractor Head, Off Road Truck Head, All wheel drive Tractor Truck, 4x4 Tractor Truck and 6x6 Tractor Truck) is used for transporting different kinds of semi trailer.
--Off Road Tractor Truck can be divided into various types as follows,
1) according to truck brands,there are SINOTRUK HOWO and Dongfeng Off Road Tractor Truck;
2) according to driving model: 4X4 and 6X6 Off Road Tractor Truck;
Feature
--Specified design for transporting different kinds of semi trailer in off road condition;
--50/90(2 inch/3.5 inch) Fifth wheel for optional;
--Emission standard: Euro2/Euro3/Euro4/Euro5/Euro6 for optional.

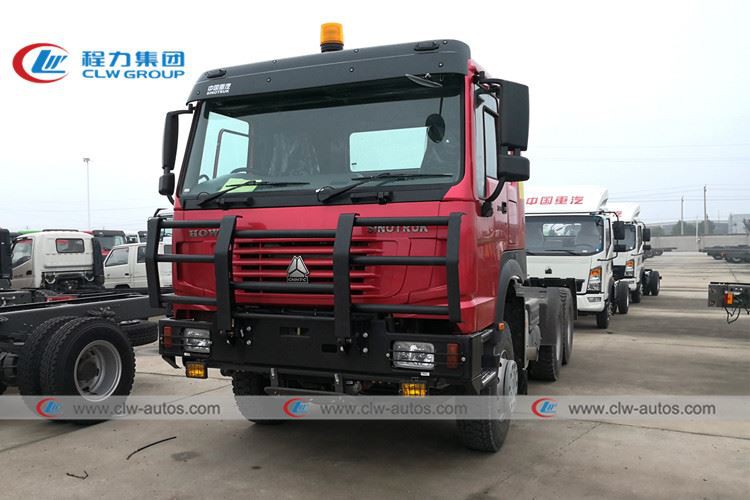

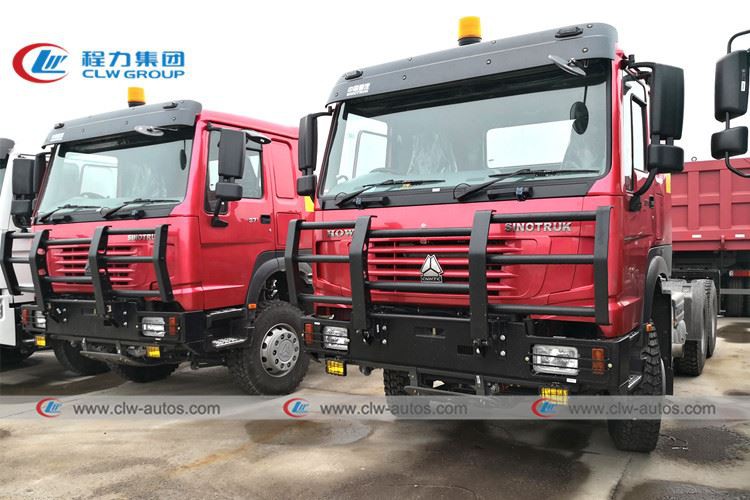

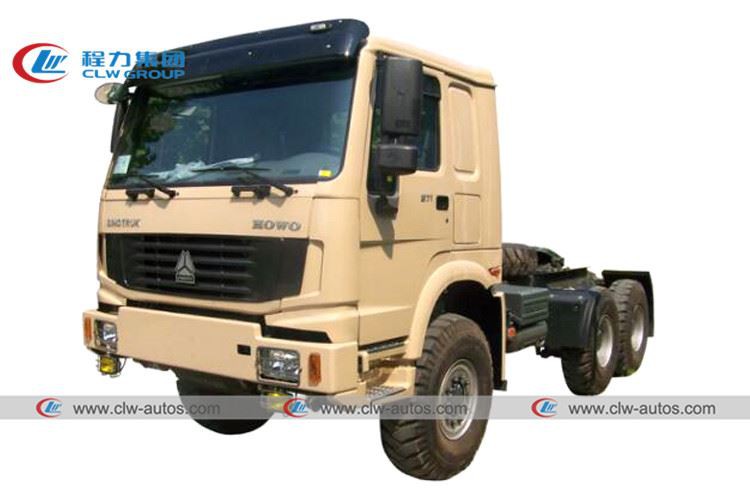

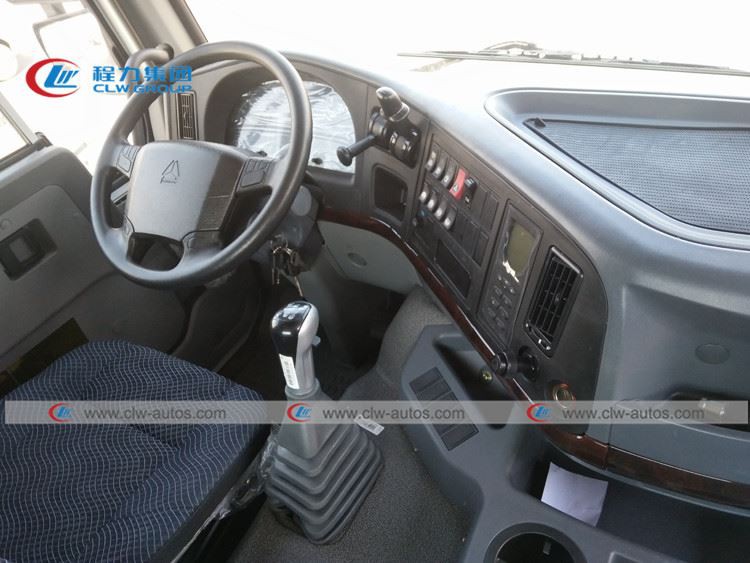

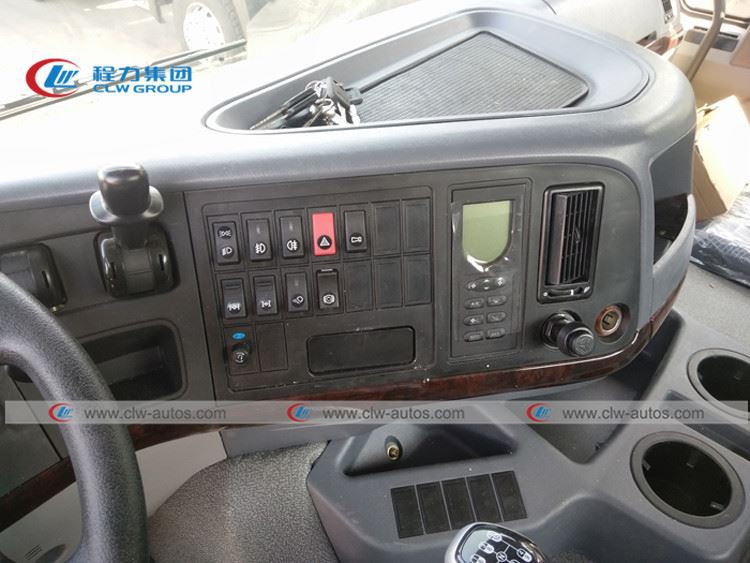

Reference picture
Specification
Cabin | Driving type 6x6(Left hand drive)
| ||
HOWO 76 Standard cab, with two bunks, one bed, with air conditioner.70°hydraulically tillable to the front as attached photo for reference | |||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6800x2496x3268 | |
Wheel base (mm) | 3225+1350 | ||
Wheel track (front/rear) (mm) | 2022/1830 | ||
Approach/Departure angle(°) | 16/70 | ||
Weight in KGS | Tare Weight | 9180 | |
Front axles loading capacity | STR 1x6500 | ||
Rear axles loading capacity | ST16 2x16000 | ||
Max. driving speed（km/h） | 80 | ||
Engine | Brand | SINOTRUK | |
Model | WD615.47 | ||
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power（HP) | 371 HP | ||
Emission standard | Euro Ⅱ | ||
Gearbox | Manual Transmission, 10 Forwards & 2 reverses | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 12R22.5 Tubeless tire,11 pieces including one spare | ||
Brakes
| Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
