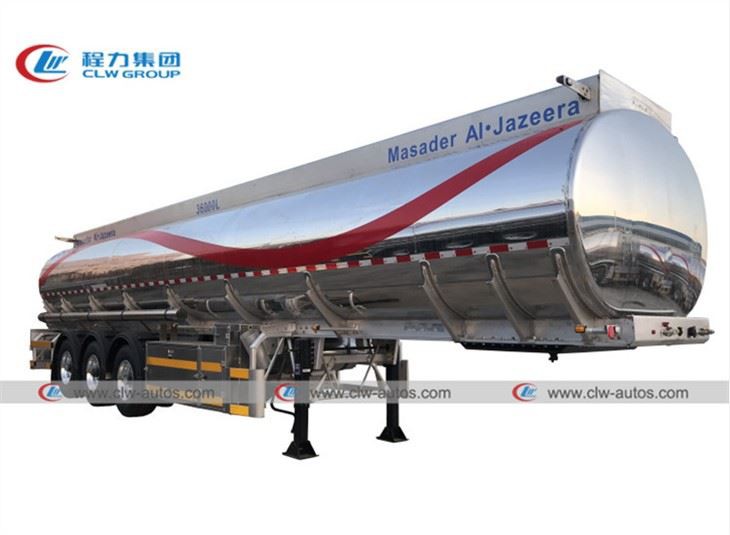

SASO ADR 3 Axle 42M3 Aluminum Alloy Fuel Tank Trailer
3 Axle 36M3 Aluminum Alloy Fuel Tank Trailer Tank material: 5454 Aluminum Alloy. For Saudi Arabia Market.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of saso adr 3 axle 42m3 aluminum alloy fuel tank trailer in China. If you're going to buy high quality saso adr 3 axle 42m3 aluminum alloy fuel tank trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
Aluminum ALLOY 5454 - 42000 Liters Fuel Tank Semi Trailer
This Trailer use aluminum alloy 5454 material , with mirror surface , 42000 Liters fuel storage tank , with A-D-R certificated parts , All design and production are in line with A-D-R standard inspection.
Parameters for SASO ADR Aluminum alloy oil tanker trailer air suspension 42000liter fuel tank trailer 3 Axles customize:
| Model :CLW9408GYY | |
| Design standard | According to ADR standard |
| Name | 42000Liters aluminum alloy fuel tank semi trailer 3 axles |
| Loading medium | Diesel / Kerosene / Gasoline / Aviation Fuel |
| Loading system | Top loading / bottom loading |
| Overall dimensions(mm) | 12210x2490x3310 |
| GVW(kg) | 40000 |
| Curb weight(kg) | 5980 ± 3% |
| Rated loading(kg) | 31000 |
| Tank | |
| Actual loading capacity | 42000liters(Volume filled with water) |
| Tank section | Square circle ( goose neck) |
| Tank material /thickness | Aluminum alloy 5454 confirming ADR,5.28mm |
| End /thickness | Aluminum alloy 5454 confirming ADR,6mm |
| Spurnwater /thickness | Aluminum alloy 5454 confirming ADR,6mm |
| Pipeline and accessories | |
| Manhole and quantity | EN NORMS 2PCS |
| Breather valve | Aluminum alloy,2sets |
| Discharging port | Bottom unloading |
| Oil and gas recovery | With Oil and gas recovery system |
| Anti-overflow | With Anti-overflow system |

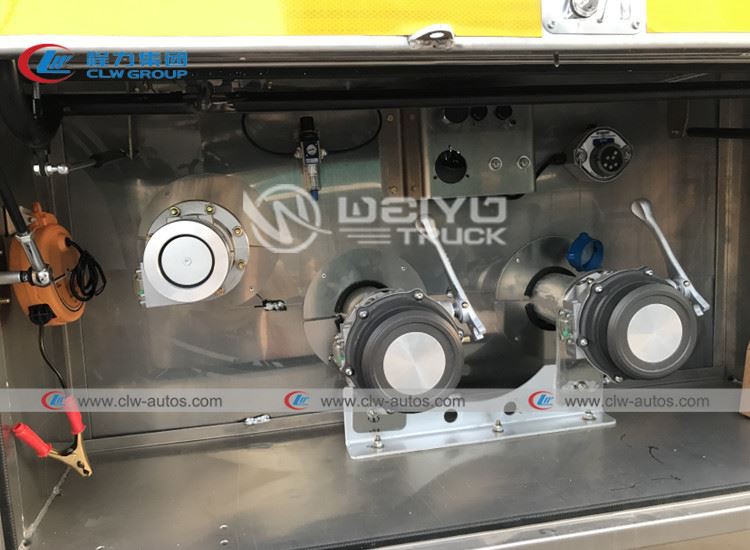

| Unloading system | Through from 4” API couplin single line free discharge collector pipe install to single point outlet speedly discharge. |
| Accessories | |
| Tank roof guardrail | Segmented lifting guardrail, roof anti-skid net |
| Hose storage box | Stainless steel hose case, 1pcs of each on left and right |
| Unloading hose | L=6000, 3-inch steel wire discharge pipe |
| Tank climbing ladder | Tank interior climbing ladder, External climbing ladder |
| Tool box | aluminum alloy |
| Spare wheel carrier | Tire carrier manuel type |
| mudguard | Factory standard Aluminum alloy integral |
| side guard | Factory standard Aluminum alloy |
| Rear bumper | Factory standard Aluminum alloy |
| fire control unit | 8kgs fire extinguisher,6pcs |
| Antistatic device | Conductive electrostatic trawl 1pcs, conductive electrostatic connection disk 1pcs |
| Others | Dip stick for leveling, water tank 50L |
| Chassis | |
| Axles | BPW 9Tons axles, first axle lift |
| Axles number | 3pcs |
| Suspension | BPW air bag suspension |
| Tire | 385/65R22.5 (Brand : Michelin),7pcs |
| Steel ring | 22.5x11.75 steel ring, 7pcs |
| Lifting legs | JOST Linkage leg |
| Kingpin | JOST |
| Circuitry | |
| Lamps | 24Vsystem,7 core socket,LED lamp |
| Circuitry | Explosion-proof junction box |
Rear bumpers are fitted with turn lights, brake lights, reversing lights, driving lights and fog lights, respectively | |
| Wire | All wires are sealed with bellows |
| Brake system | |
| Relay valve | WABCO |
| ABS | WABCO |
| Others | Factory standard |
| Anti corrosive protection | |
| Tank inner surface | Clean |
| painting | customized |
| Label | |
| Nameplate | customized |
| Logo | customized |
| Tank label | Orange reflector belt, tank sides and tail |
| Red and white reflective label | 3M Reflective paste |
| Company label | CLW |
| Files, tools with fuel tanker | |
| Tools | 1 set |

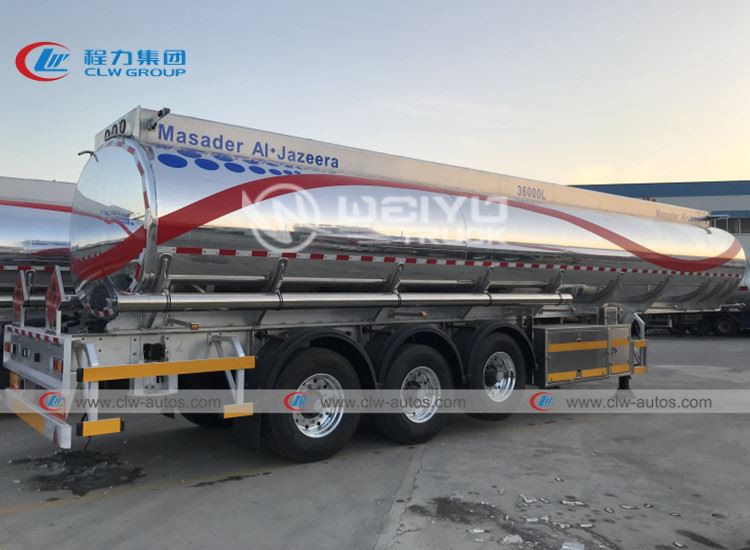

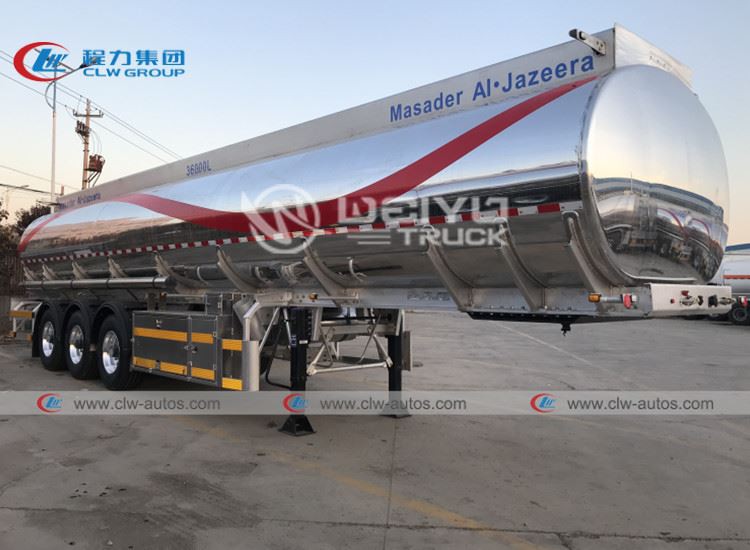

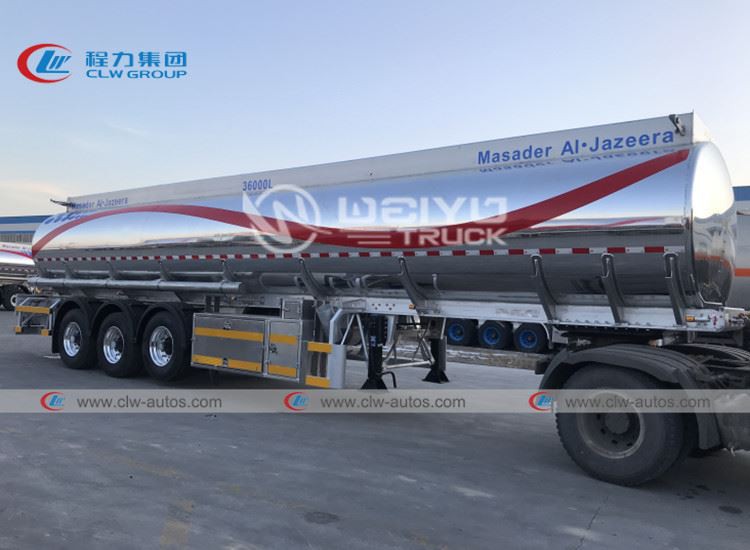

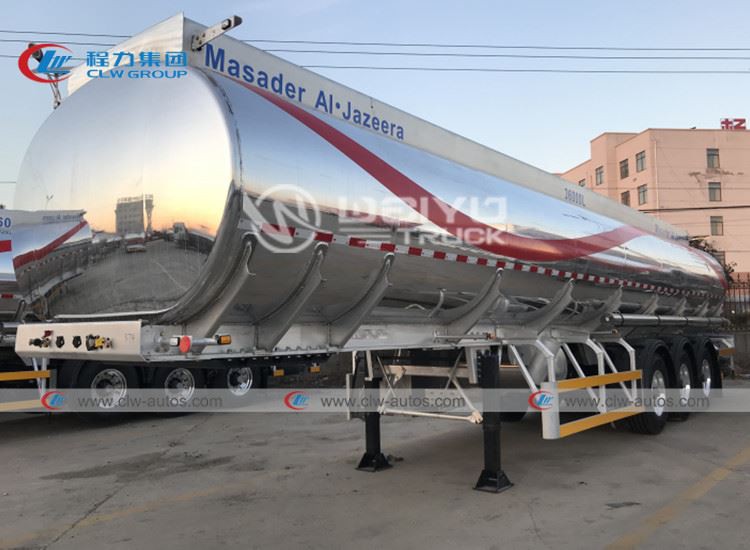

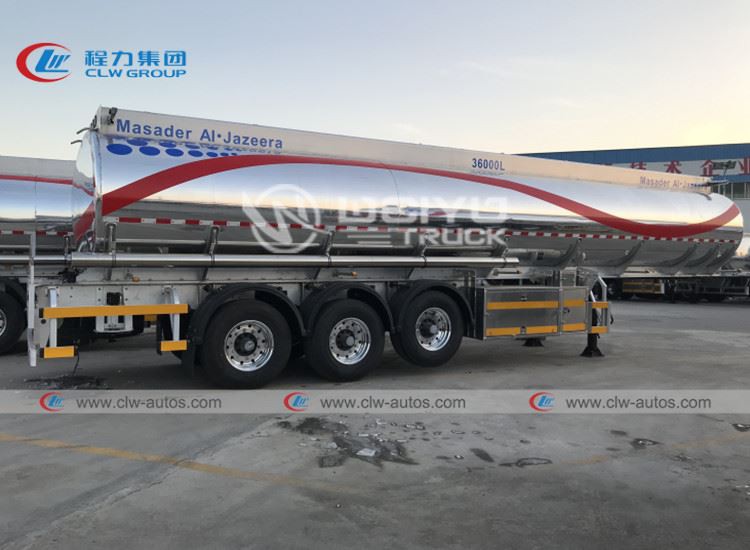

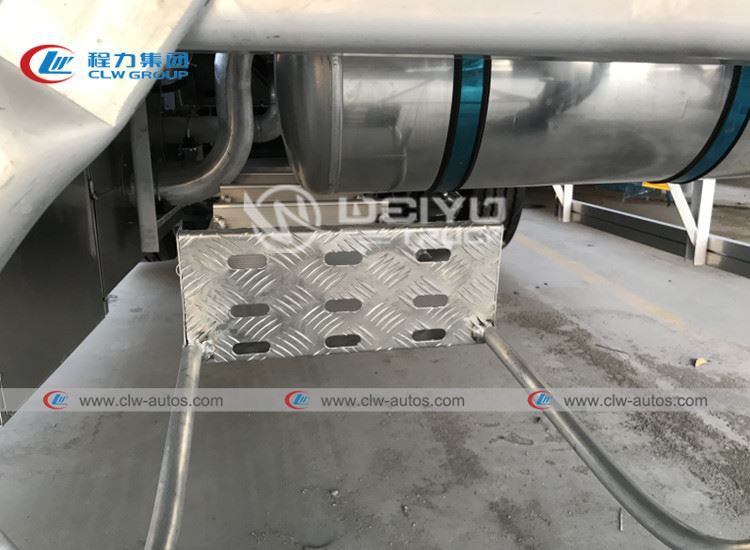

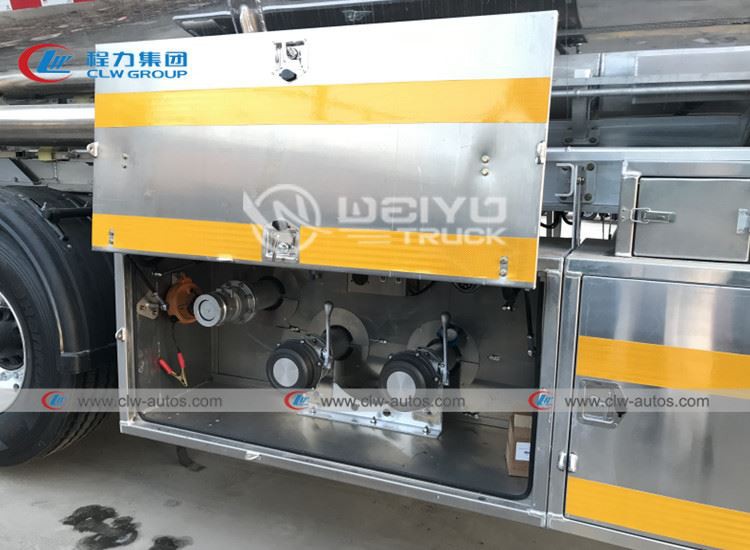

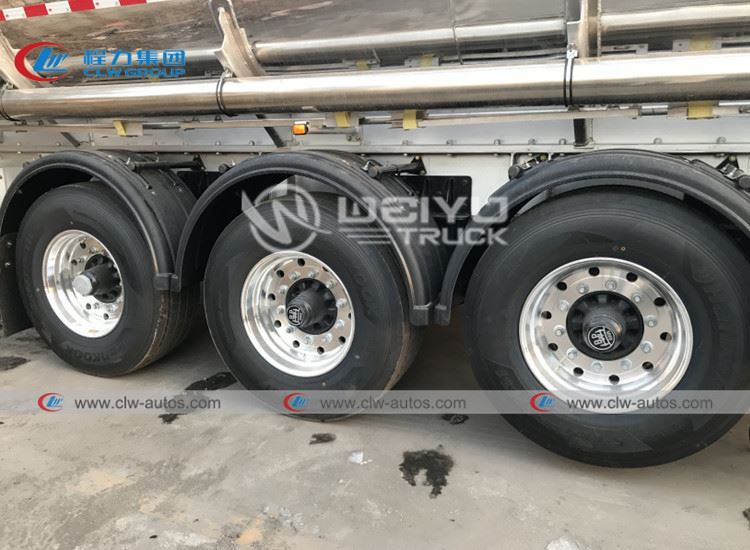

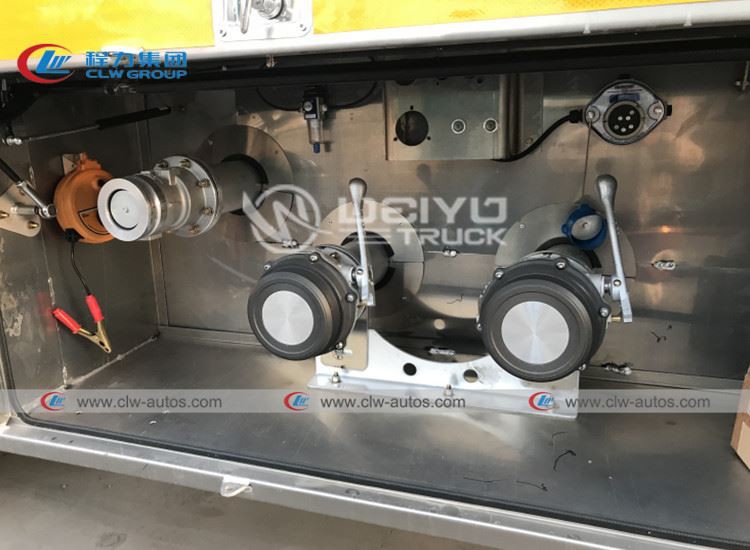

More Pictures for SASO ADR Aluminum alloy oil tanker trailer air suspension 42000liter fuel tank trailer 3 Axles customize:
