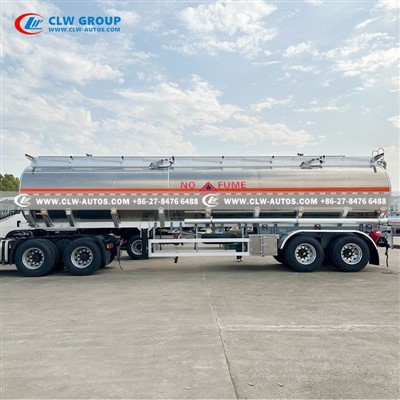

38000L Aluminum Fuel Tanker Trailer
Dongfeng 6x4 Tractor Head
2-Axle Semi Trailer
Aluminum alloy fuel tanker
38,000L Fuel Tanker
Transport gasoline, diesel, kerosene
Divided into 3 compartments
14,000L + 10,000L + 14,000L
Air suspension
Automatic tire inflation and deflation
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 38000l aluminum fuel tanker trailer in China. If you're going to buy high quality 38000l aluminum fuel tanker trailer, welcome to get more information from our factory. For price consultation, contact us.

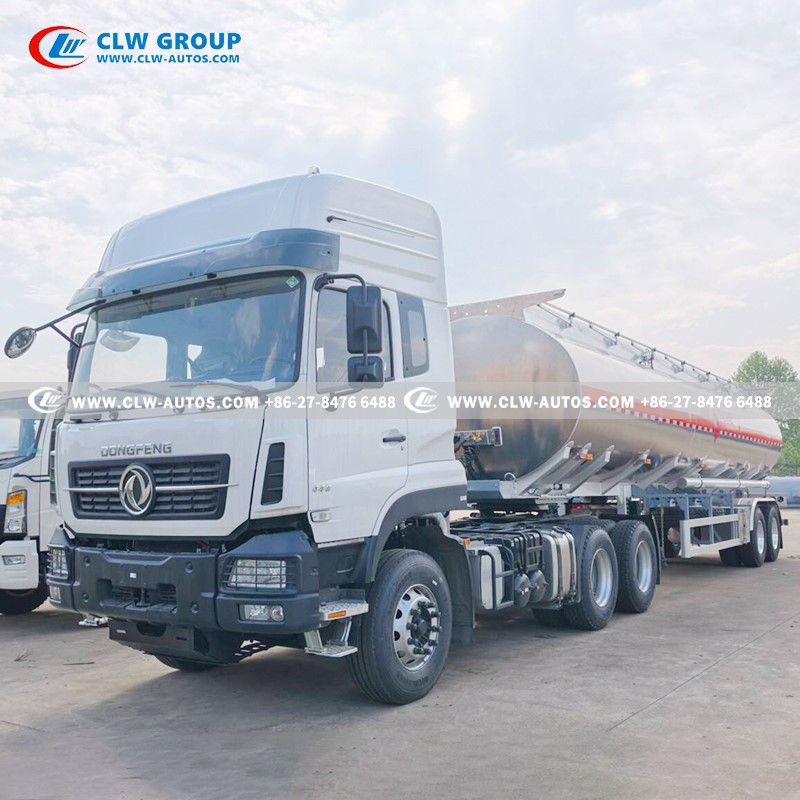

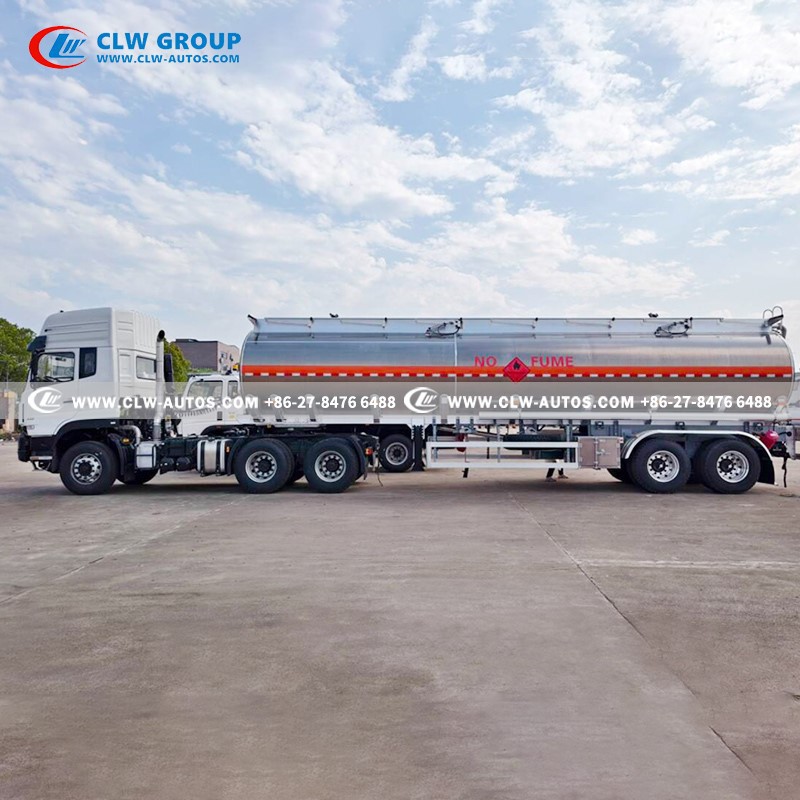

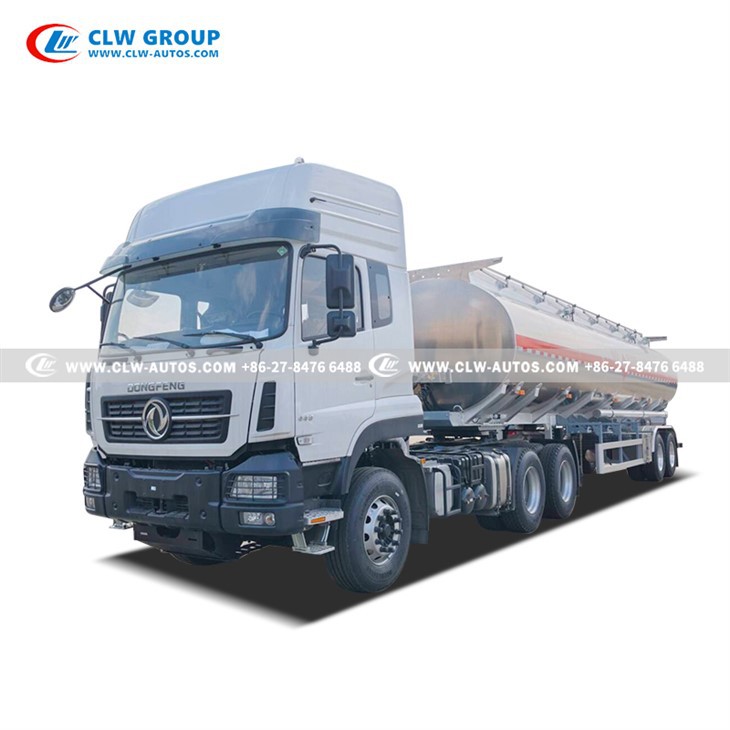

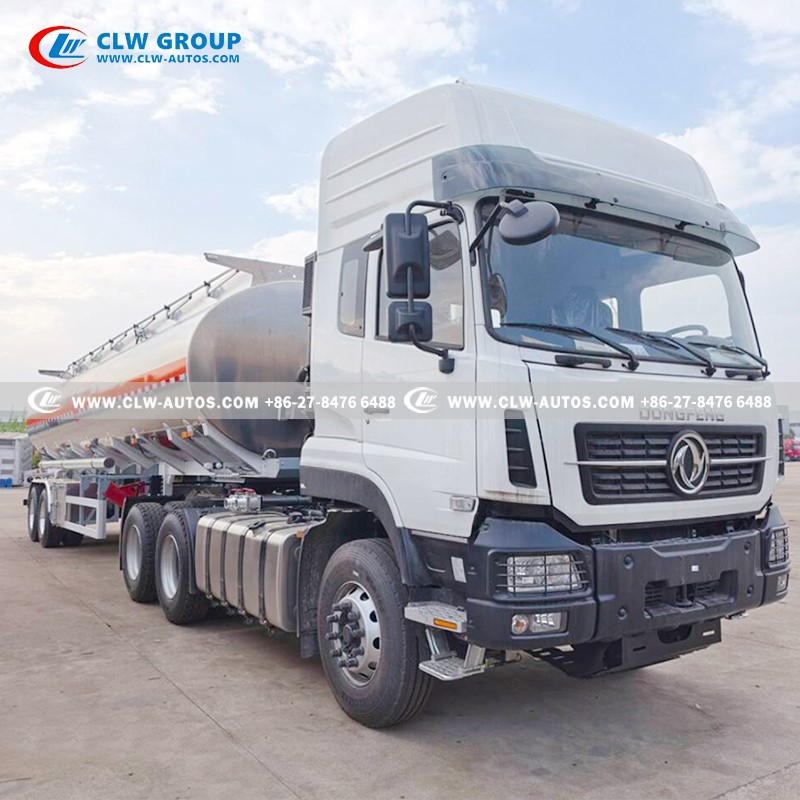

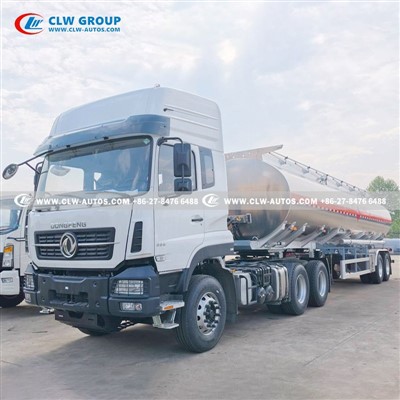

Dongfeng 6x4 Tractor Head + 2-Axle 38,000L Fuel Tanker Trailer
3-compartment design allows simultaneous transport of different fuels!
Products Description
1.Material & Lightweighting: Aluminum VS Carbon Steel
- Ultralight Curb Weight: Both the tank body and chassis of our trailer are constructed from high-grade aluminum alloy. Compared to conventional carbon steel tankers, we've reduced the deadweight by 2–3 tons. This allows our truck to carry an extra 2–3 tons of payload within the same gross vehicle weight limits, making it a true "profit generator."
- Superior Corrosion Resistance: Aluminum is naturally corrosion-resistant. Unlike carbon steel tanks, our tank requires no internal anti-corrosion coating or external rust-proof painting. This ensures a higher purity of the fuel transported, with zero risk of rust contamination.
2.Loading & Unloading: Sealed Bottom Loading VS Open Top Loading
- Safety & Efficiency: While standard tankers still rely on operators climbing ladders for top-loading, our trailer is equipped with a complete Bottom Loading System.
- Ground-Level Operation: Our drivers perform all loading and unloading via side-mounted API valves at ground level. This eliminates the risk of falls and significantly enhances operator safety.
- Vapor Recovery: Equipped with advanced vapor recovery adaptors and vent valves, our system achieves zero emissions during loading. This makes our operations both environmentally friendly and fire-safe.
3. Suspension & Chassis: Premium Components
- High-Capacity 2-Axle Design: For this 38,000L capacity, our trailer utilizes a high-strength 2-axle configuration, typically paired with air suspension or high-performance lightweight leaf springs for a smoother ride.
- Aluminum Wheels: Our truck is fitted with aluminum alloy rims. Beyond the premium aesthetic, they offer superior heat dissipation compared to steel wheels, effectively reducing brake fade and increasing tire life.
Key Vehicle Specifications:

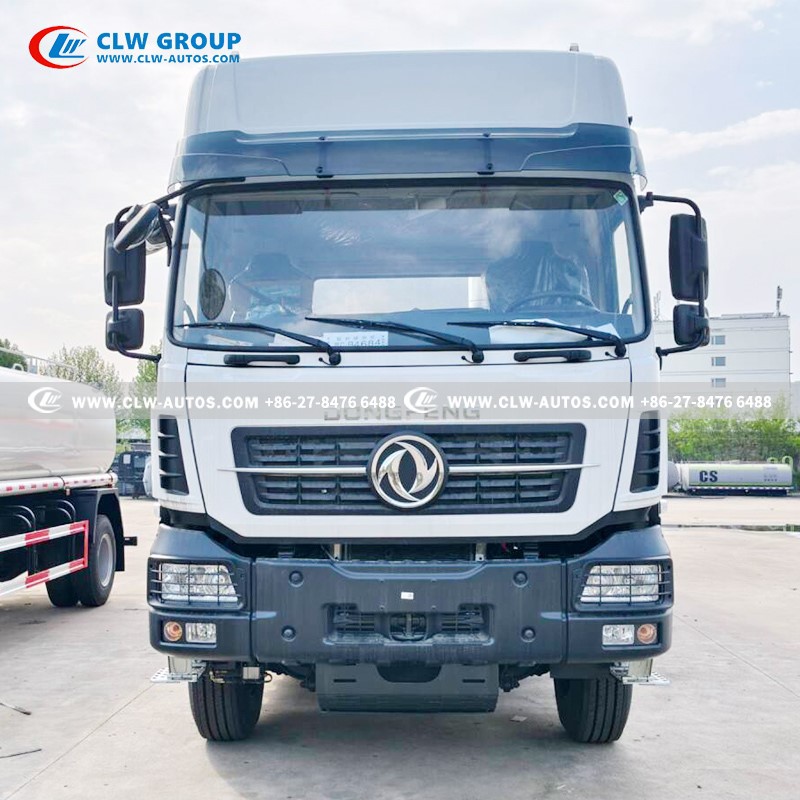

Product Name: Dongfeng 6x4 Tractor Head
Application: Specifically for hazardous goods transport
Advantages: Compliant with international ADR safety standards

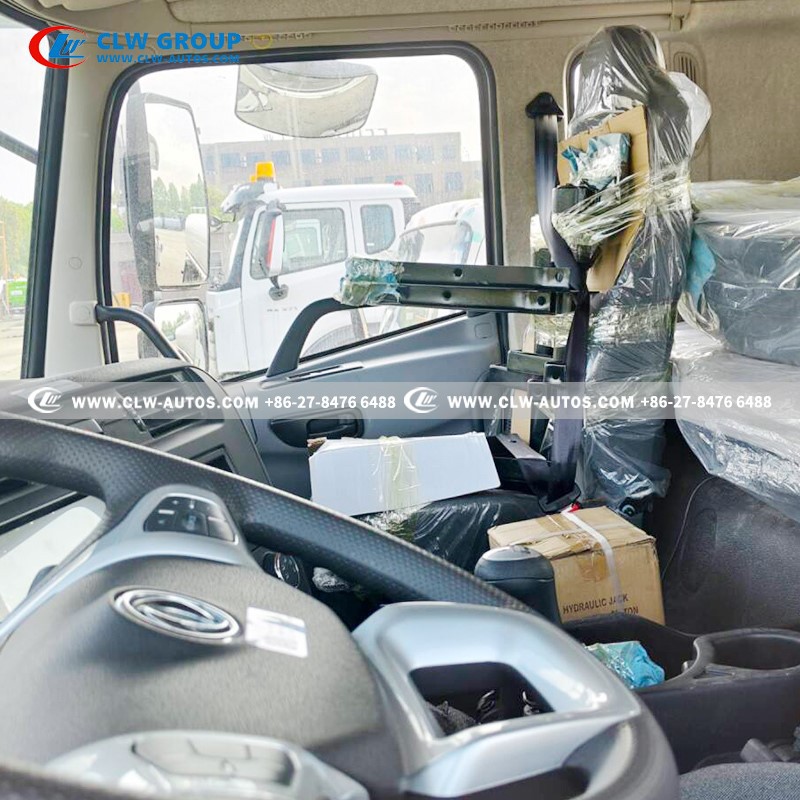

Cab: One row and half cabin, LHD, A/C
Wheelbase: 4200 mm
Engine: ISF3.8S3168
Horsepower: 168HP
Emission standard: Euro III
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 12000 kg
Front/Rear Axle loading: 3600kg /8000kg
Tires: 315/80R22.5, 10 pcs with one spare
Related Operational Video
The Main Applications
Products Parameters
|
2-Axle 38,000L Fuel Tanker Semi Trailer |
|
|
Tank Volume |
38m³/ 38000L Fuel tank |
|
Tanker Body Material |
6mm aluminum alloy 5182 |
|
End Plate |
6mm aluminum alloy 5182 |
|

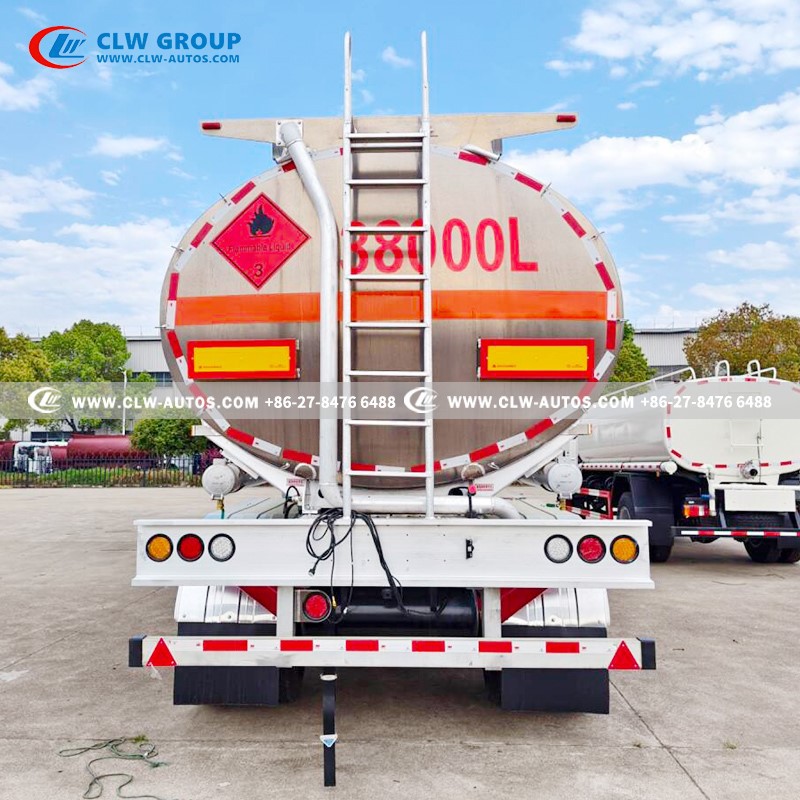

Lifting Ladder |
Including Top walkway and backside steel material |
|
Manhole Cover |
3 manhole covers, DN500mm 3 sets with 3 breather valves |
|
Bottom Valve |
1 sets of API Pneumatic Bottom Valve |
|
Top Safety Rail |
1 Set |
|
Discharging Valve |
3 set DN100mm discharging valves |
|
No. Of Compartment |
3(14000liters+10000liters+14000 liters) |
|
Discharging Pipe |
4"rubber hose, 2 pc, 6m long |
|
Trailer Chassis |
|
|
Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
|
Axle No. |
2 axles x 10 Ton |
| Axle Brand | DANA Brand |
|

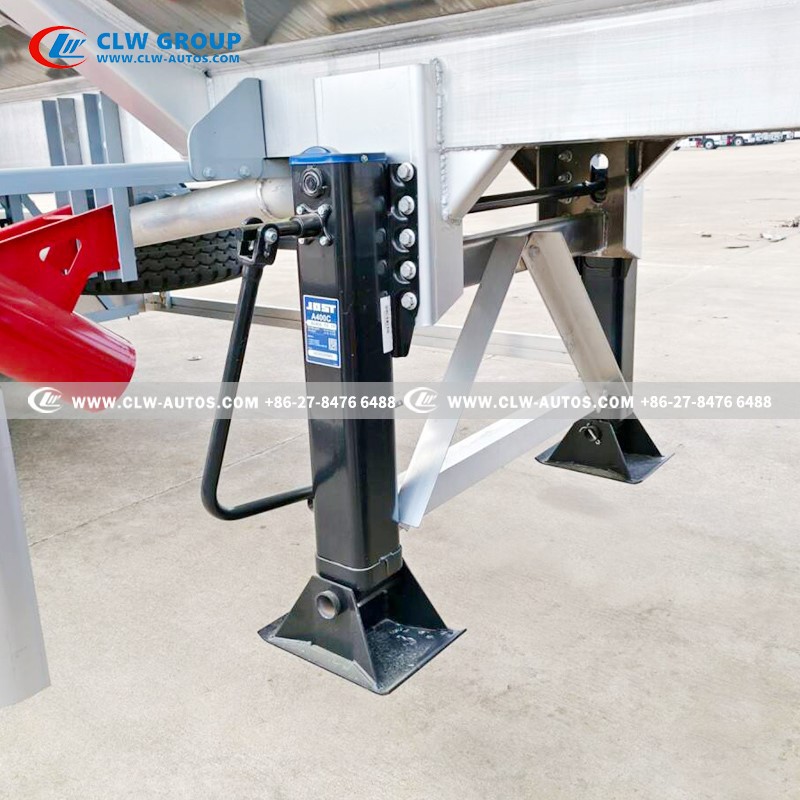

Landing leg |
JOST brand / 28 Ton |
|
|
Linkage manual operating |
|
King Pin |
JOST brand 2" bolt-in king pin |
|

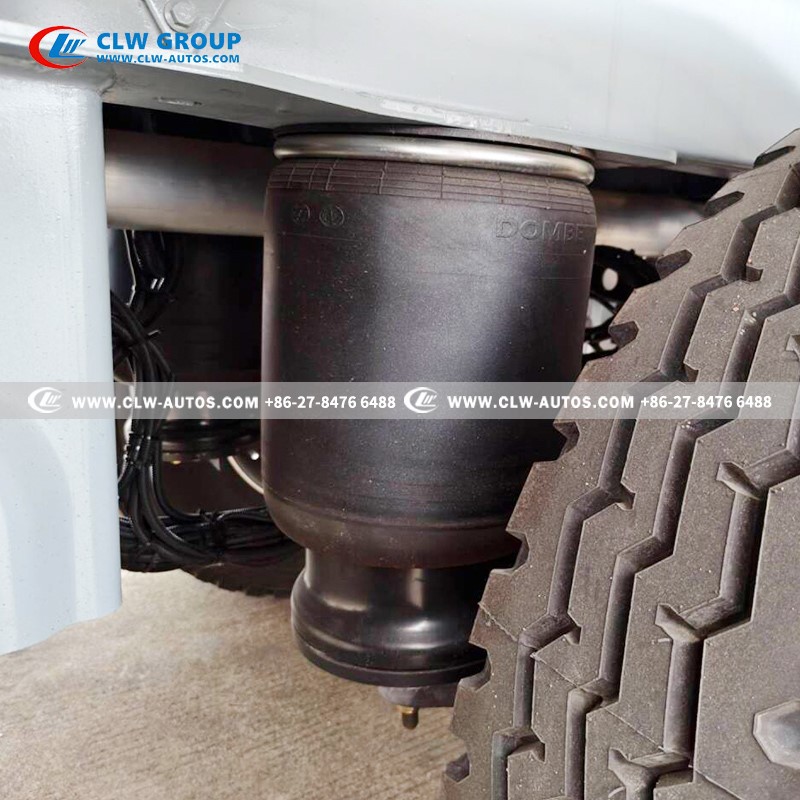

Suspension |
Air suspension |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
Wheel rim |
Equipped with Automatic Tire Inflation System |
|
Tire |
315/80R22.5,12 pcs with one spare tire |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |

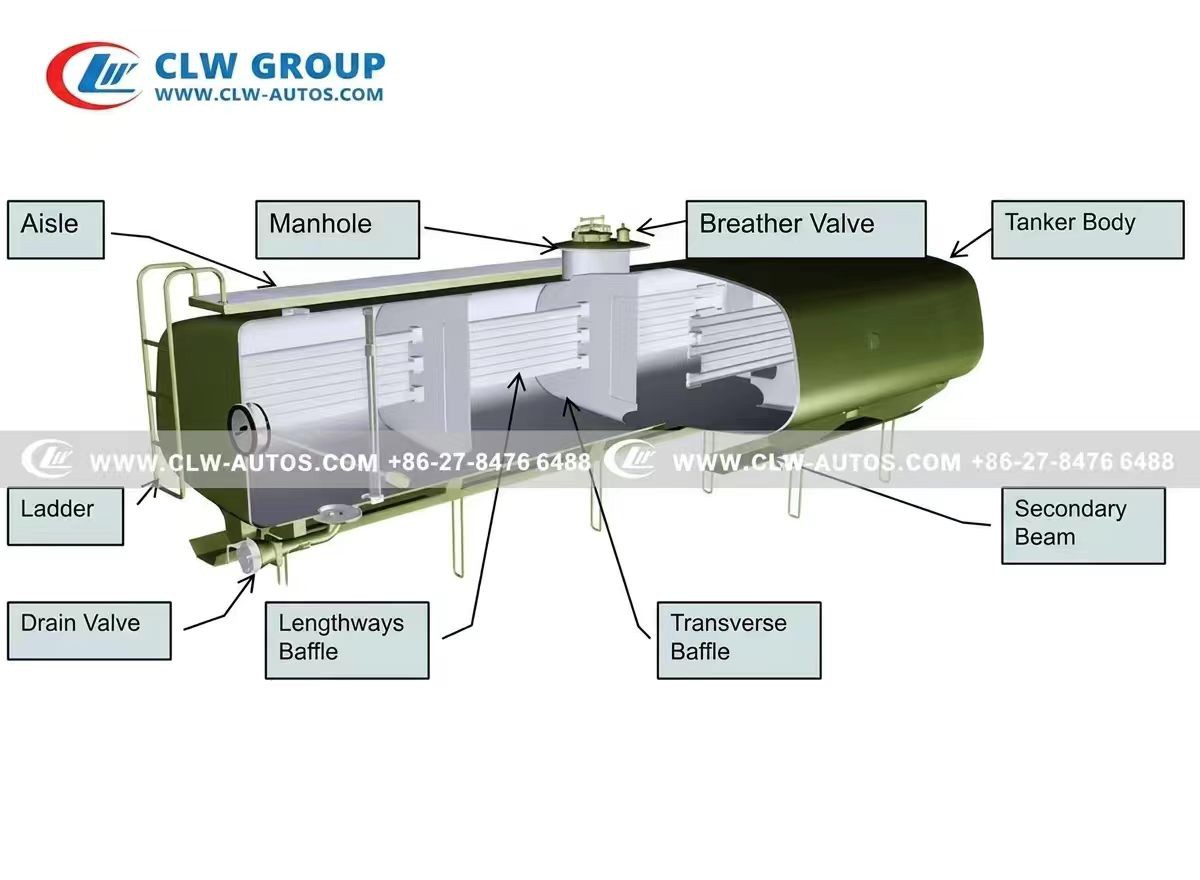

Tanker Structures

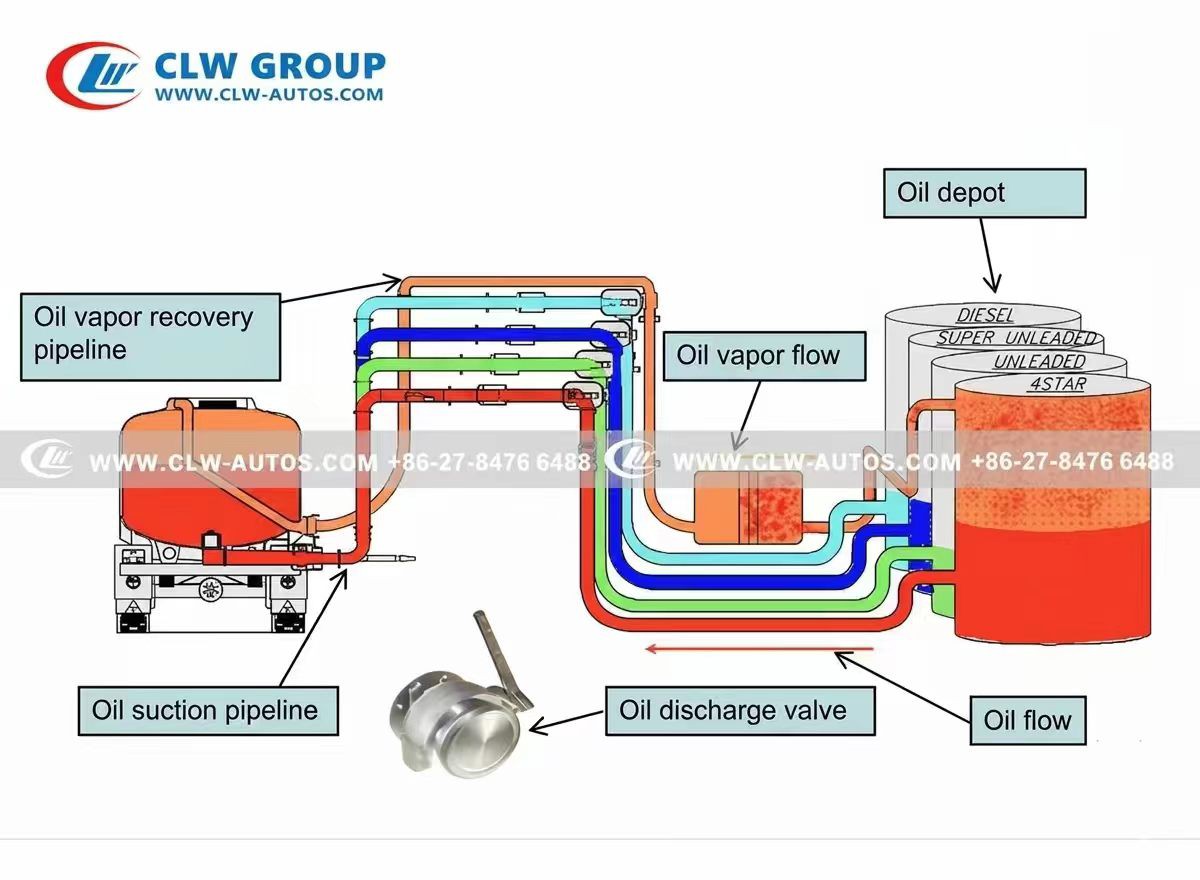

Filling Process
Product Features
Direct factory sales, eliminating intermediate links, providing cost-effective solutions for customers!

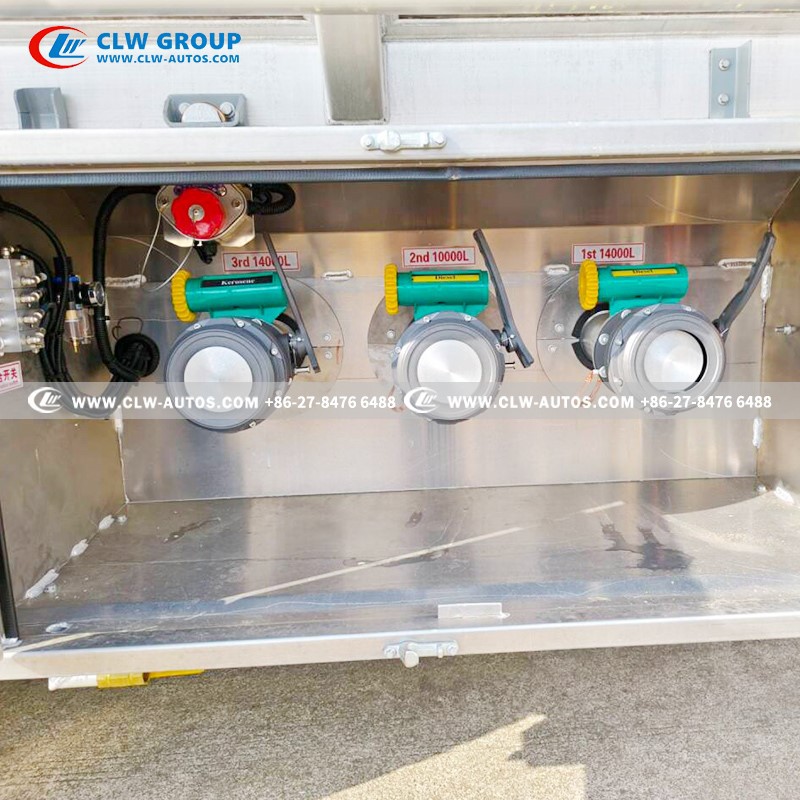

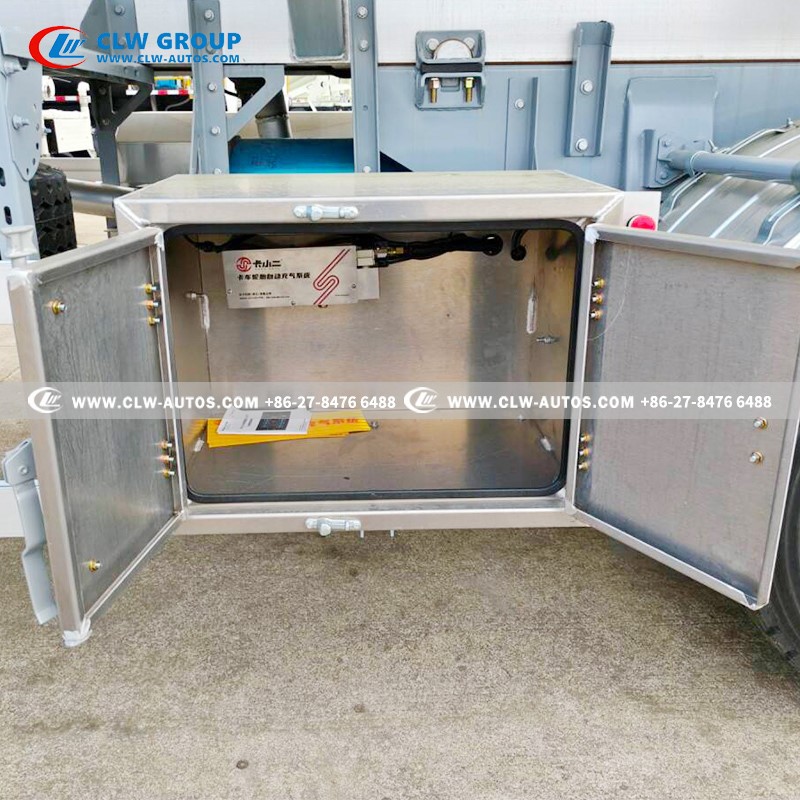

valve box
API safety filling valves
38000L Massive capacity
14000L+10000L+14000L
3 compartment for multi-fuel
Gasoline/Petrol, diesel, kerosene
Integrated bottom drain for cleaning
Color coded fuel identification labels

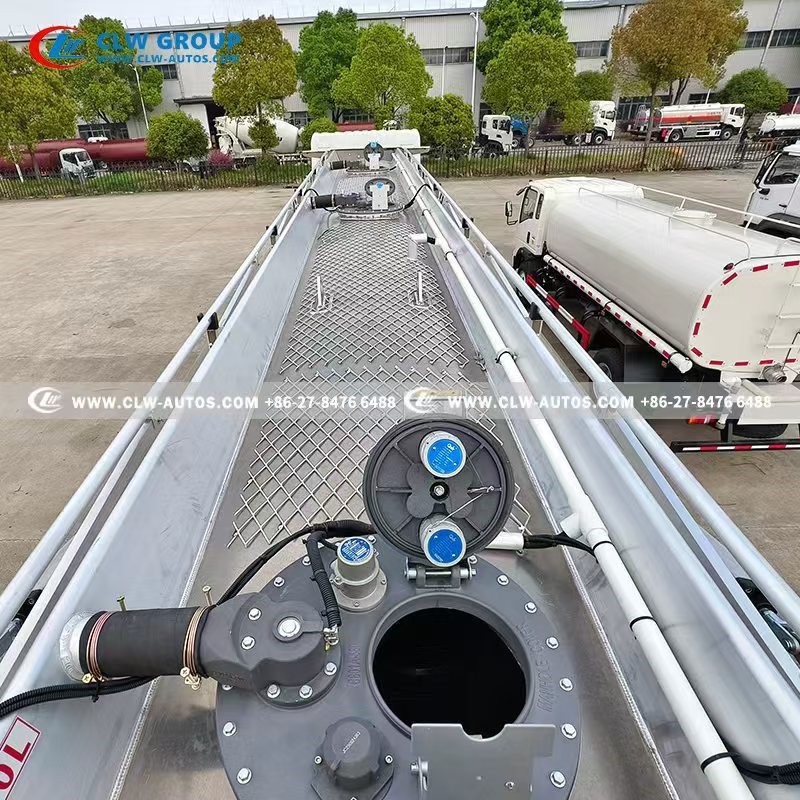

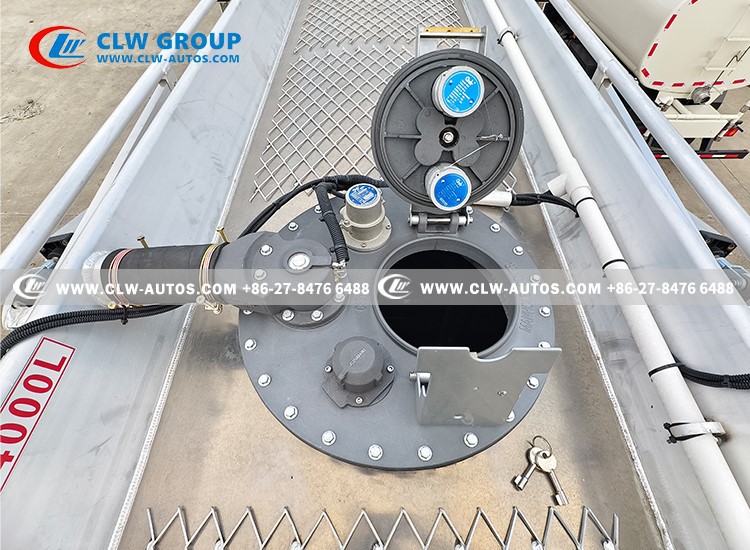

API manhole
3pcs safety API manhole
Integrated vapor recovery system
Overfill prevention sensor included
Emergency pressure relief valve
Anti-slip walkway for safety
Hydraulic guardrail

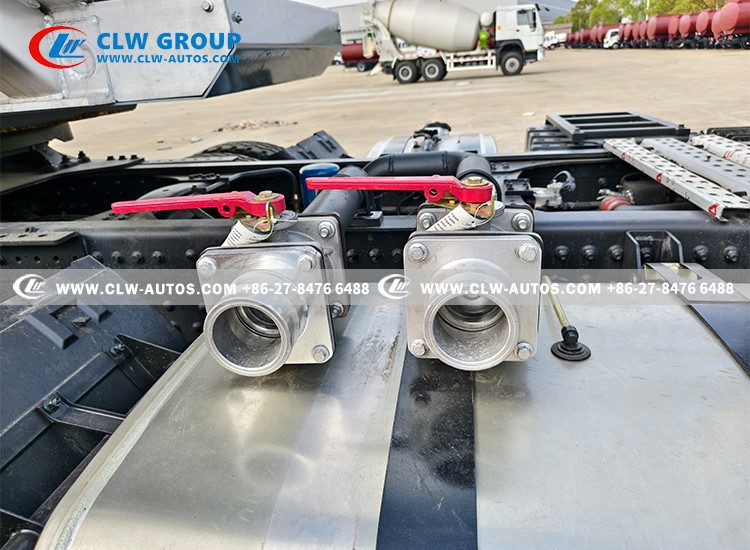

Dual manual Ball valve
Self-unloading, refueling, cross-compartments circulation
Secure quick release couplings
Precise fluid flow control
Durable aluminum alloy housing
Ergonomic red lever handles

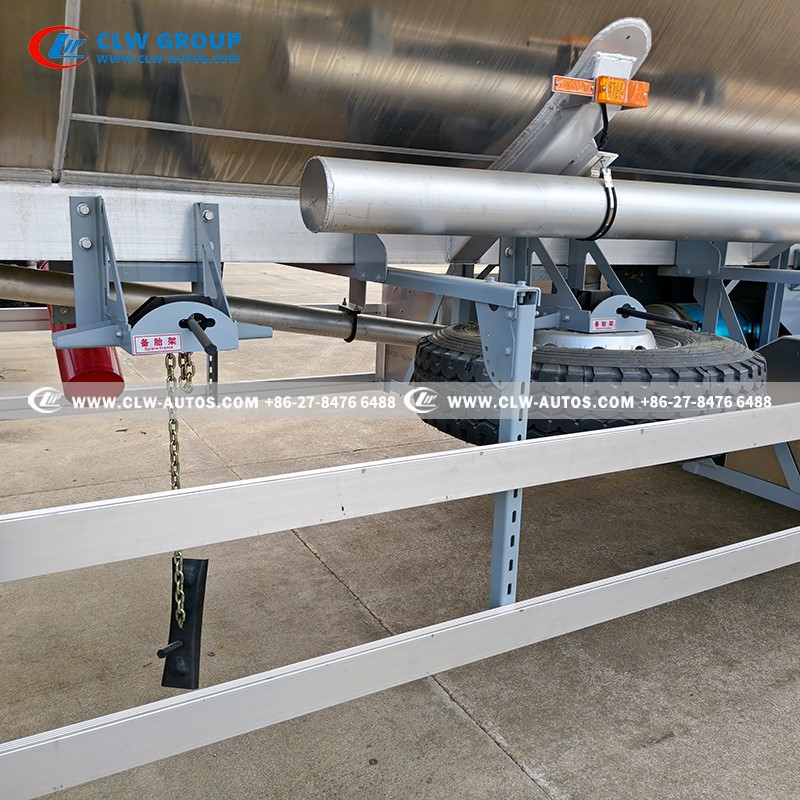

Mounted on tractor for backup
Oil & gas recovery interface

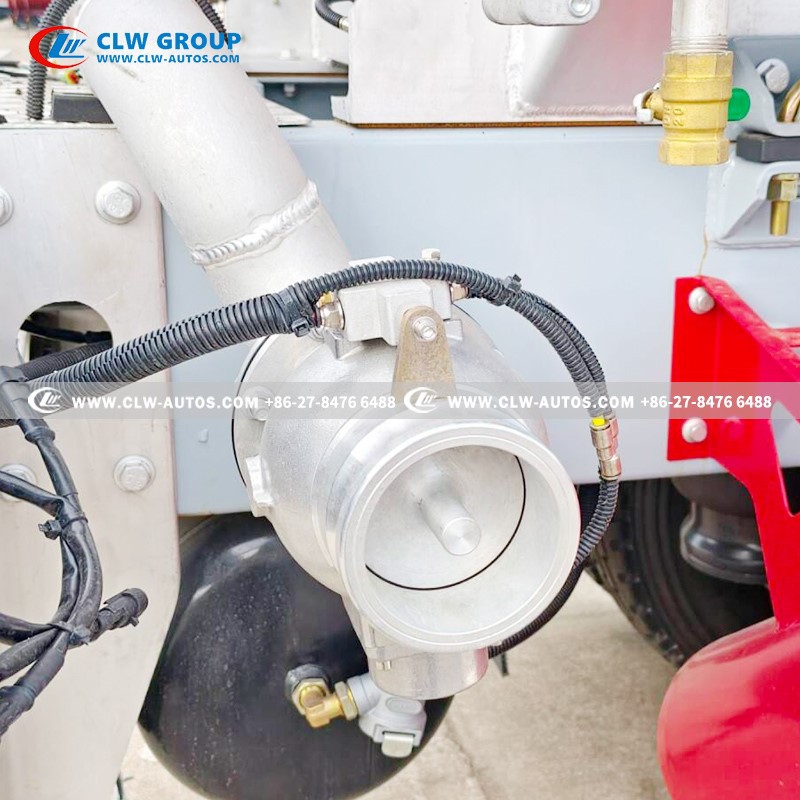

Standard API bottom loading
Reliable pneumatic control interlock
Advanced vapor recovery connection
Lightweight aluminum piping system
Durable spill prevention sensor
High flow discharge efficiency
More Reference Pictures
