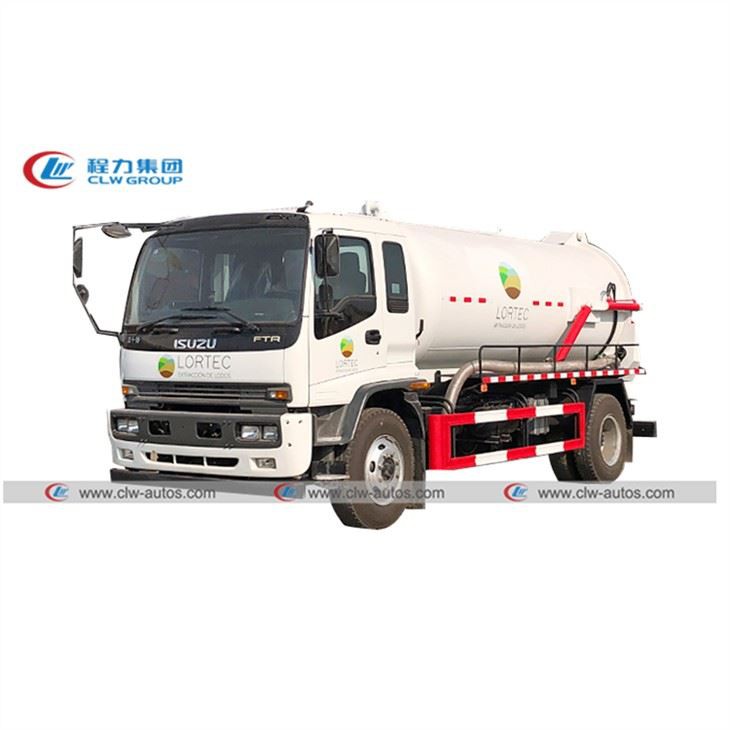

Stainless Steel ISUZU FTR 10Tons Vacuum Sludge Cleaning Truck
Truck brand:ISUZU FTR;
Engine:diesel engine 205HP;
Driving model:LHD;
Gear box:MLD 6-speed forward and 1 reverse
Sewage pump:Italy or Chinese brand
Tank size:10cbm/10,000Liters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of stainless steel isuzu ftr 10tons vacuum sludge cleaning truck in China. If you're going to buy high quality stainless steel isuzu ftr 10tons vacuum sludge cleaning truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Vacuum sludge truck(also called vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Vacuum sludge truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.
Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Feature
Vacuum sludge truck tanker material optional for carbon steel Q345 or stainless steel 304;
--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump or Italy brand BP,Jurop,Keiser Moro imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--horizontal suction distance: within 80 meters;
--Vertical suction depth:within 9 meters;
--Large horsepower ISUZU Euro V truck chassis,enviromental friendly;

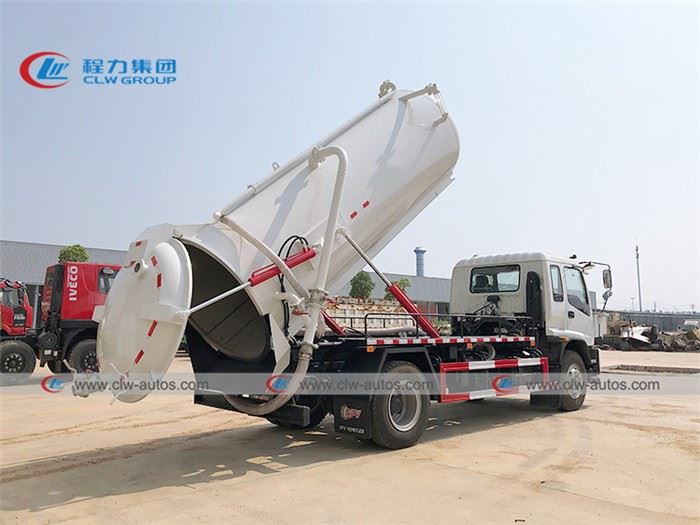

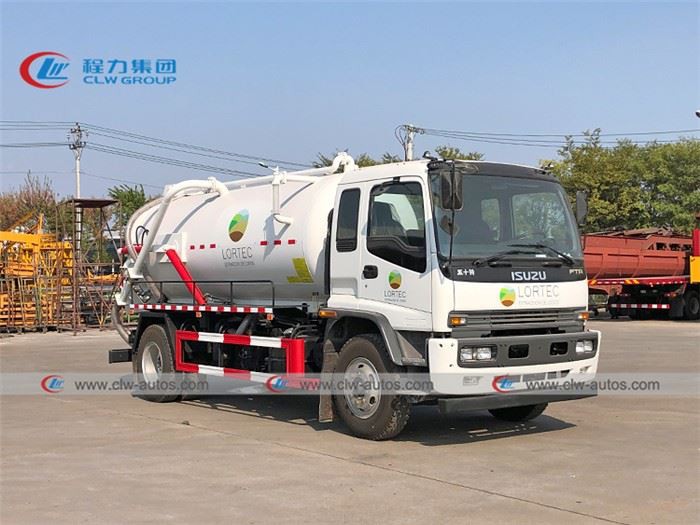

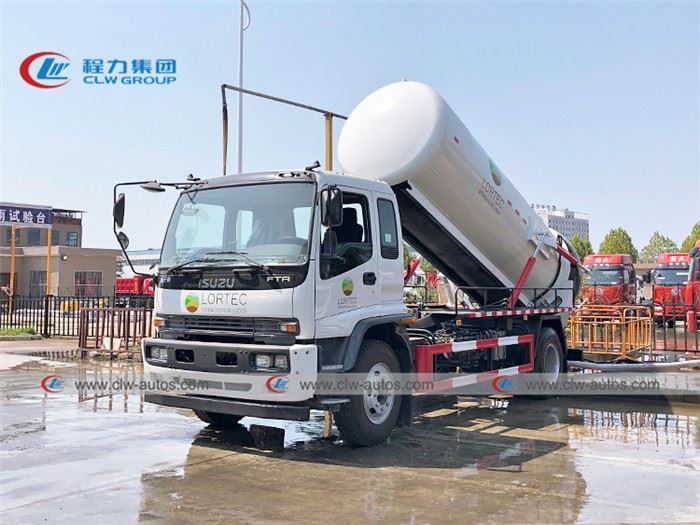

Pictures
| The Parameters of ISUZU vacuum sludge truck | |
| Overview | |
| Name | Vacuum sludge truck |
| Dimension(LxWxH) | 8990X2500X3380(mm) |
| Total Mass | 16050Kg |
| Rated Payload | 8000Kg |
| Kerb Weight | 8050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU/QINGLING |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 4500 mm/4700mm |
| Gearbox | MLD Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 10.00R20 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| The Paremeters of Engine | |
| Manufacturer/Model | ISUZU/4HK1-TC50 |
| Rated Power | 205hp/139kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5193mL |
| Emission Standard | Euro 5 |
| Cylinder | 510N.m |
| Velocity | 2600rpm |
| The Parameters of Equipment | |
| Tank Capacity | 10,000liters |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full sucktion | <5min |
| Common Accessories | Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc. |
