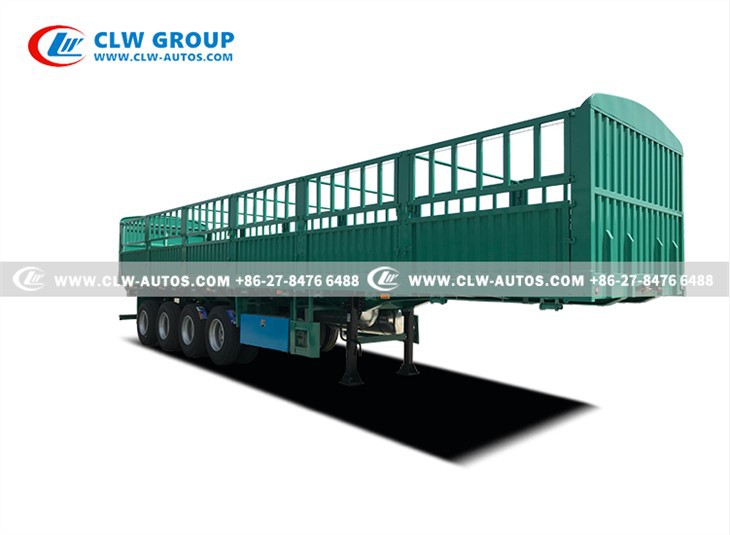

4 Axle 80Tons Fence Stake Side Wall Semitrailer
Heavy Duty Fence Semitrailer;Stake semitrailer;Side Wall semi-trailer;Storehosue semi trailer; Warehouse semi trailer for Cargo or container Transport
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 80tons fence stake side wall semitrailer in China. If you're going to buy high quality 4 axle 80tons fence stake side wall semitrailer, welcome to get more information from our factory. For price consultation, contact us.
Goods description:
- L1 13tons Axle, 4 peices, Front axle liftable.
- Mechanical Suspension Total 4 sets, First set with air bag, other 3 sets with leaf spring
- JOST 28tons Two-Speed Landing Gear, JOST King Pin.
- Fence/Side Wall size: 1500mm (1000+500mm) or customized.
- Trailer length: 13000mm, with 12 nos. twist locks for container loading.
- Tire: 12R22.5, 16 pieces with one spare.
For detailed information, please contact: Ms. Helen Jiang,
WhatsApp: +86 135 5419 5719; Email: helen@clw-autos.com
Parameters for 4 Axle 80Tons Fence Stake Side Wall Semitrailer:
| size | 13000x2500x3250mm |
| payload | 60 tons, or 80tons. |
| tare weight | 10000kg |
| axle | 3x13ton/14ton/16ton/20ton BPW, FUWA, L1, HJ, CLW brand can be opentional |
| suspension | mechanical suspension/air suspension/american type/germany type can be opentional |
| tire | 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional |
| wheel rim | 8.25/9.0/8.0/8.5 |
| kingpin | 2"/3.5" |
| I beam | up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B |
| landing gear | jost c200 /fuwa two speed 28ton |
| floor/side board | floor:4mm/board:3mm |
| twist lock | (opentional) |
| spare tire carrier | 2 pcs |
| tool box | 1 or more can be opentional |
| air wiring | doule air line ; |
| electricity wiring | 6 core wiring;24v or 12v ;LED lamp; |
| brake system | wabco relay valve;drum brake;t30/30 brake chamber |
| paiting | complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2 coats of final paiting |
| cylinder | 130#/140# 5pcs/6pcs opentional |
| accessories | brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp |

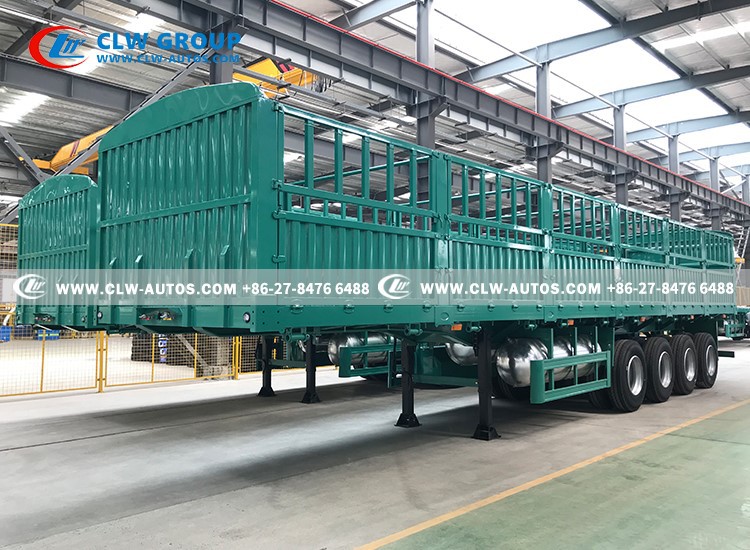

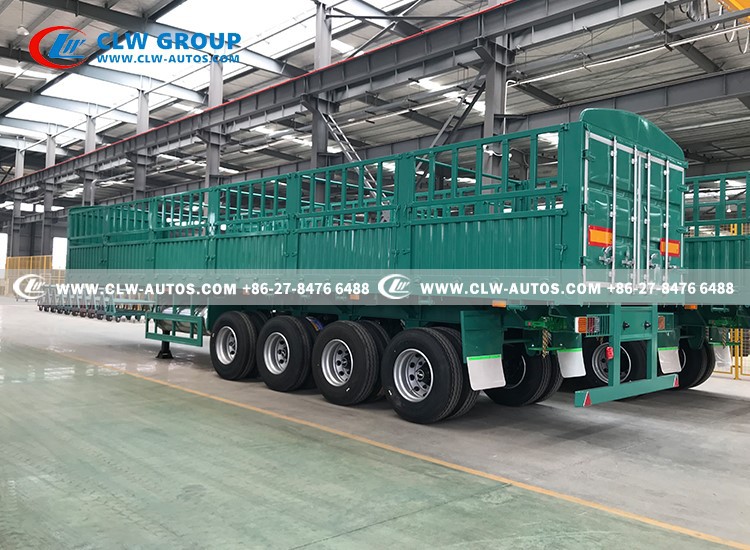

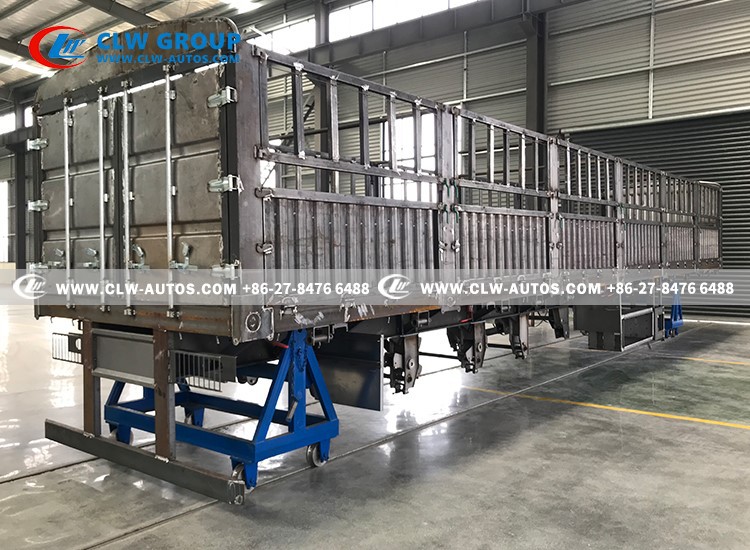

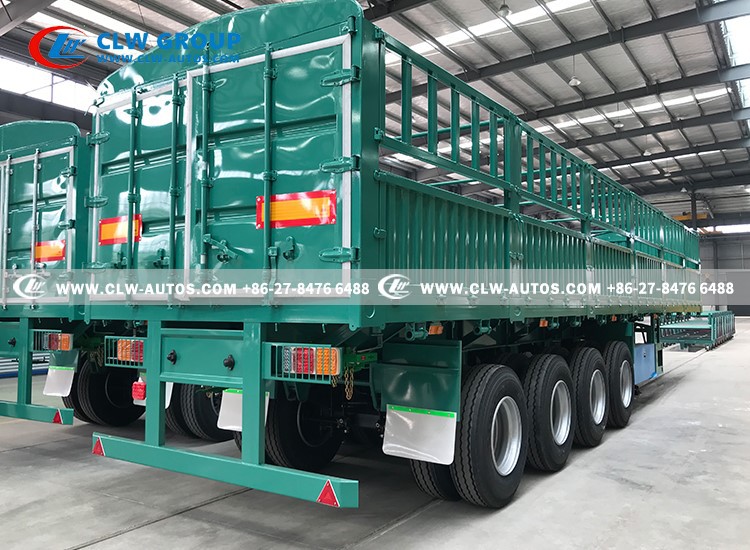

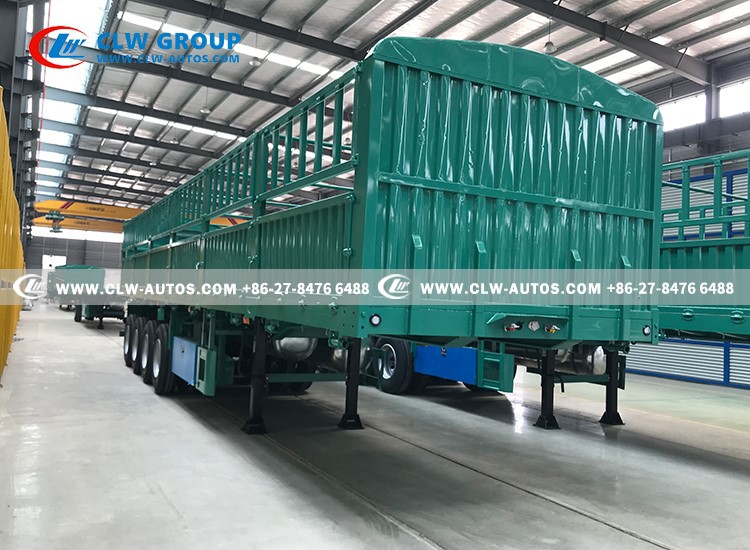

More Pictures for 4 Axle 80Tons Fence Stake Side Wall Semitrailer:

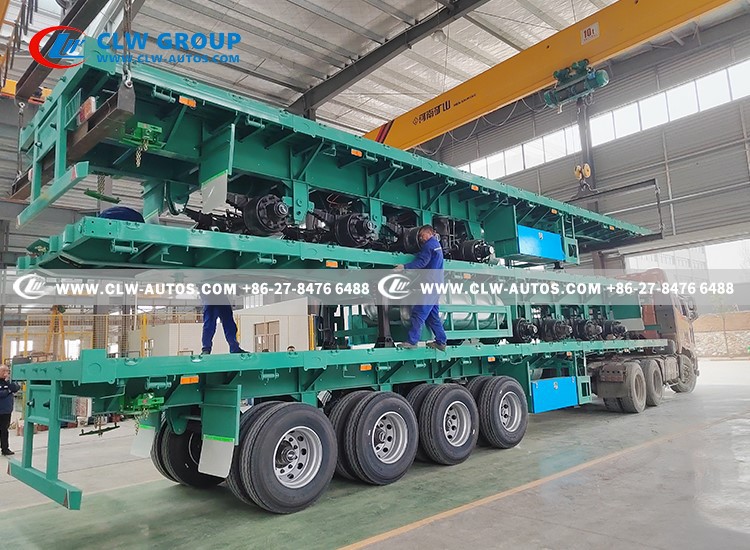

3 units put into one package for bulk ship to save some freight.
Product Featurers:
1. Cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2. Welding
after steel cutting process the next step is welding .this process the main work is beam welding.
the top plate-bottom plate and the middle plate will be welding together . this process will be use submerged
arc welding process. This type of welding is very special. Its exclusively used in I beam welding .after this welding
process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric
arc welding-manual welding-gas welding and so on
3. Blasting
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4. Electrophoresis coating
this process use for more detail surface cleanness
5. Epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting
6. Assembly
after all the process we have mationed .the last procedure of the trailer is assembly.
this process all the parts will be assemly.
it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity
wiring-brake system and so on
7. Packing
The last process is packing .all the trailer use different packing way as customer requirment.
