3 Axle 60Tons Storehouse Warehouse Fence Cargo Trailer
It has the side wall,and the length can be as requirement. Cargo container loading Capacity: 40Tons,50Tons,60Tons.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 60tons storehouse warehouse fence cargo trailer in China. If you're going to buy high quality 3 axle 60tons storehouse warehouse fence cargo trailer, welcome to get more information from our factory. For price consultation, contact us.
Products Description
Warehouse Semitrailer also called Fence Semi Trailer
Fence Semi Trailer are very widely used for medium and long-distance transportation of normal and heavy goods and bulk goods. Its diverse applicability has made it the first choice for medium and long-distance freight vehicles.
The trailer body is made of high-quality steel and advanced technology under strict production standard. It has practical structure, reliable performance, simple operation and refined appearance.
The frame of cargo semi trailer is of through beam structure, and the longitudinal beam adopts straight type or gooseneck type. The middle plate is welded with manganese, and the longitudinal beam is welded with automatic submerged welding. The frame is shot peened, and the transverse beam penetrates into the longitudinal beam and is welded as a whole.
The suspension adopts non-independent steel plate stamping, which is made of series steel plate spring and suspension support. This structure is practical and has strong rigidity and strength, which is used to support the load and reduce impact during transportation and loading.
whatsapp: +86 135 5419 5719. Ms. Helen Jiang
Parameters:
| Tare Weight | About 8.5-9T |
| Dimension | 12500-13000×2500×3550mm (side wall :800+1200mm) |
| Loading Capacity | ≤ 60T |
| Axle | 13T/16T FUWA / BPW/ WODELI (brand) |
| Rim | 9.00-22.5 / 8.0-20 / 8.25-20 / 8.25-22.5 |
| Tire | 12R22.5 / 11.00R20 / 12.00R20 / 315/80R22.5 295/70R22.5 (TRINAGLE, DOUBLE COIN , LINGLONG) |
| Suspension | Mechanical suspension or Air suspension |
| Spring leaf | 90(Width)mm×13(Thickness)mm×10(Layer) |
| King pin | 2.0 or 3.5inch bolts type |
| Support leg | FUWA 28Tons or JOST 24T (Double speed) |
| Main beam | Height: 450mm-500mm, upper plate thickness is 12mm, middle plate thickness is 8mm, down plate thickness is 14mm; Material is Q345 Carbon Steel.The floor is 3 mm , Material is Q235 carbon steel. |
| Side beam | 16mm channel steel |
| Side wall & floor | Side wall thickness is 2mm , the floor thickness is 3 mm , Material is Q235 carbon steel. |
| Door | 13pairs(12 pair on the right and left side,1 pair rear door); |
| Brake chamber | Dual line ,air brake, piggyback spring on all axles; six unit of T30/30 spring brake chamber; two units of reliable local brand 52L air tank; two units of reliable local brand standard coppery air-connector. |
| Light | LED light |
| Electrical System | 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable |
| Tool box | Two piece, 11m long-large size(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints. |

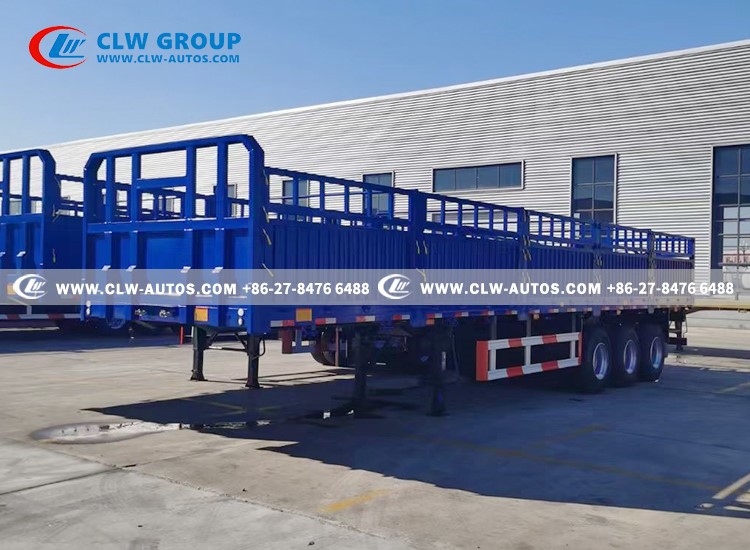

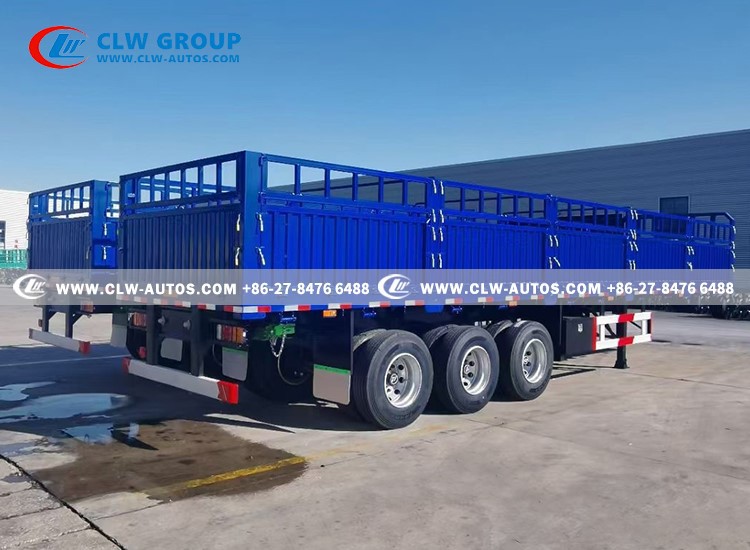

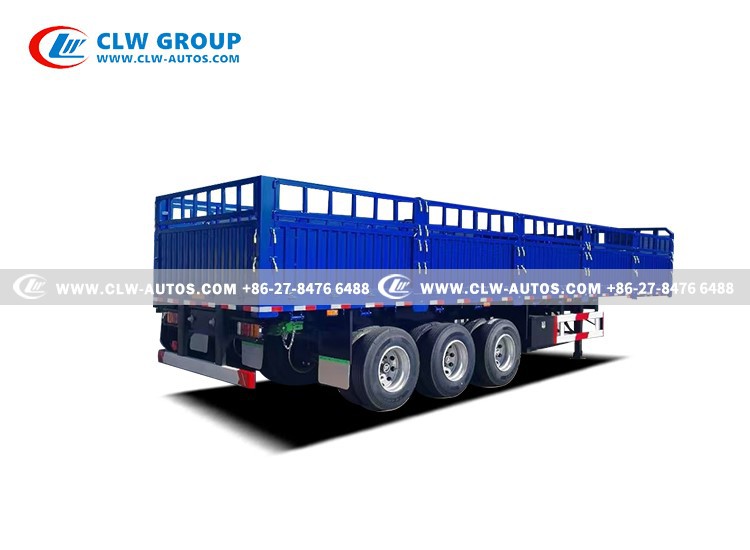

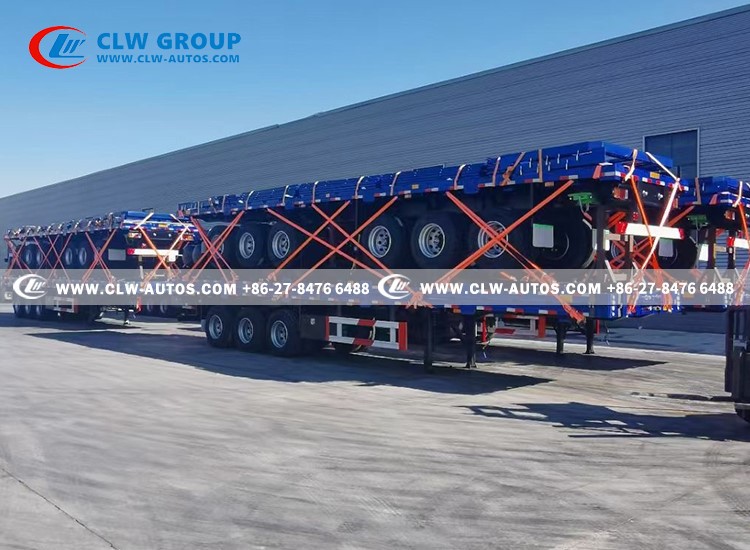

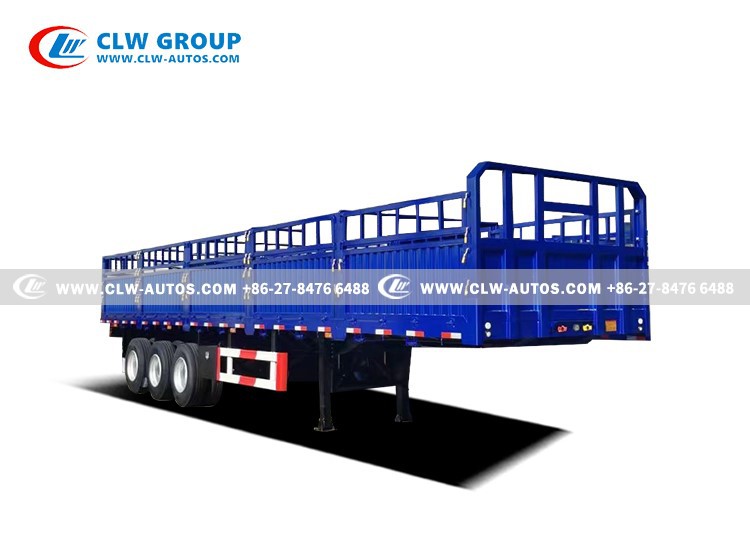

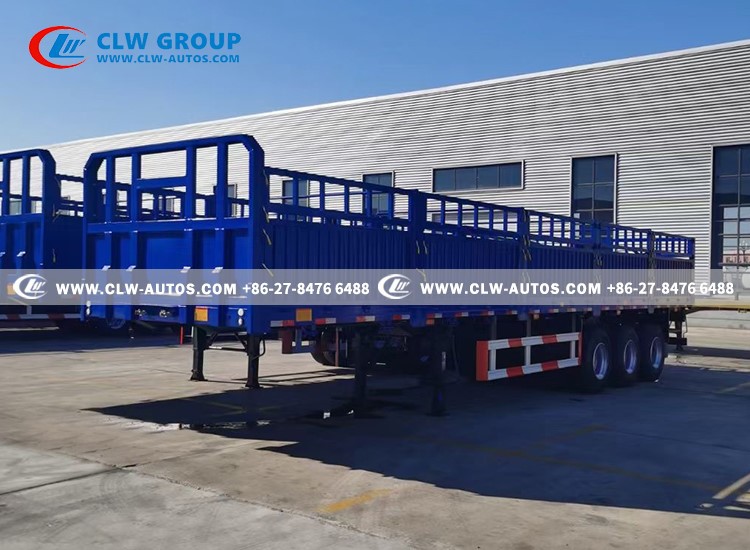

More Pictures:
