25 Tons LPG Station Skid
25 MT LPG Skid Stationn
50m3 Propane Tank Station
Cooking Gas Filling Plant
25000kg lpg cylinder filling station
Completed lpg filling station price
2 sets of lpg pumps and motors,LPG compressor,LPG cylinder filling scales
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25 tons lpg station skid in China. If you're going to buy high quality 25 tons lpg station skid, welcome to get more information from our factory. For price consultation, contact us.

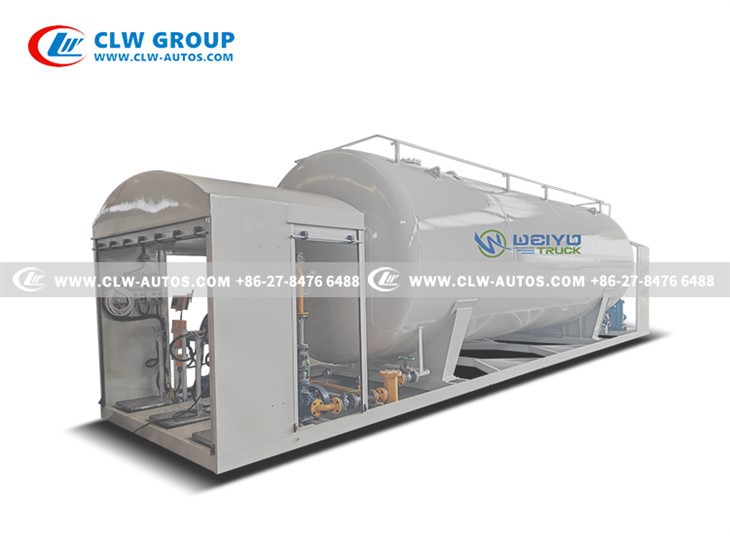

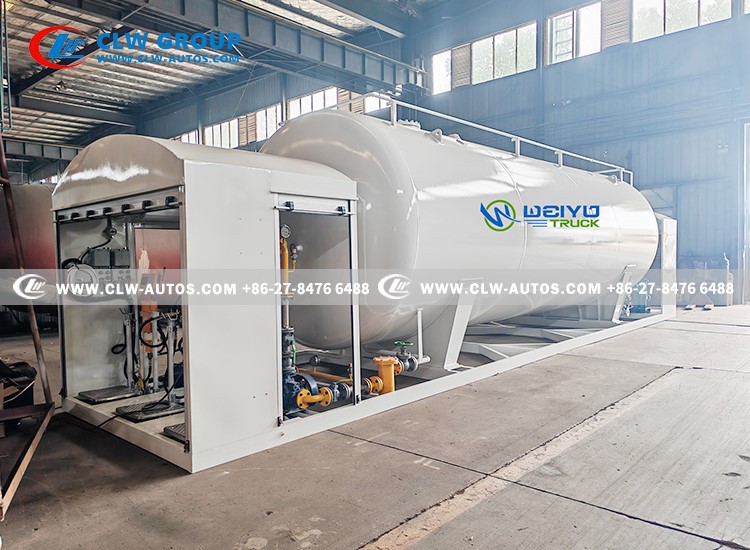

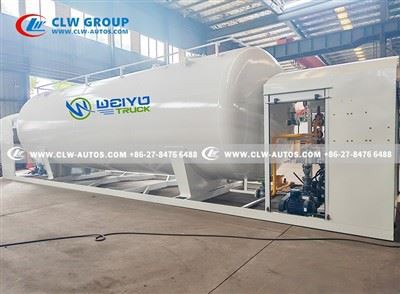

25 Tons LPG Station Skid 50000 liters 50m3 completed skid mounted lpg plan
with 2 pumps,1 compressor, 3 filling machines
LPG Skid Station key Spec.
What is a Skid-Mounted LPG Station?
-
Large Storage Capacity:
50,000-liter (50m³) storage tank constructed from high-strength Q345R carbon steel, ensuring durability and compliance with pressure vessel standards.
-
Robust Tank Thickness: Shell: 14mm, End Dish: 16mm, designed to withstand design pressures up to 1.77 MPa and temperatures from -19°C to 50°C

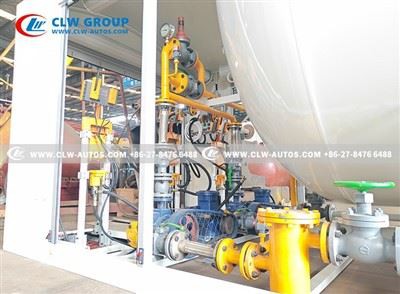

Complete Filling and Safety Accessories

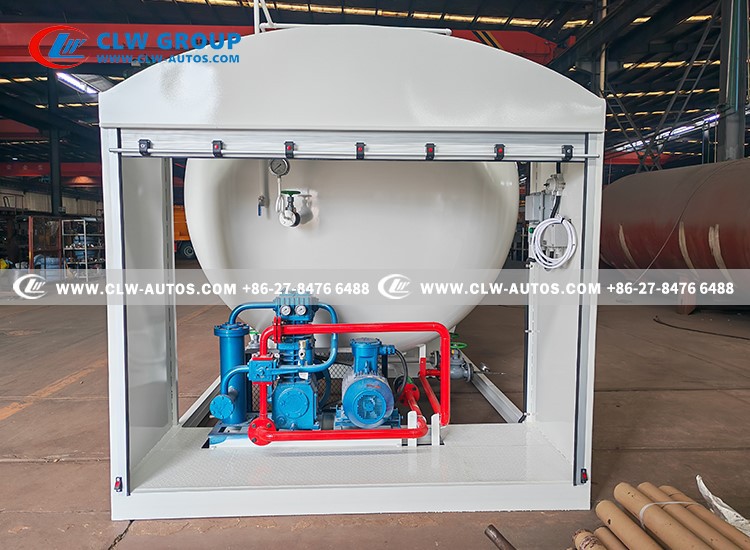

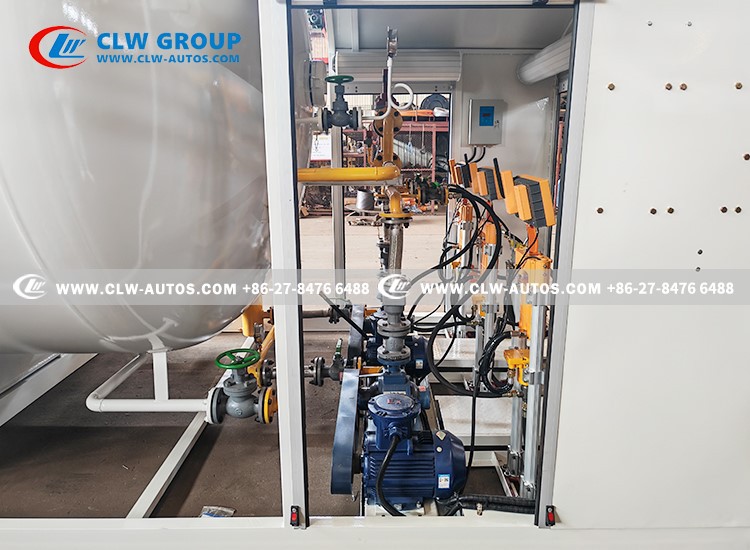

2 sets of pumps with explosion-proof motors for efficient transfer of LPG.

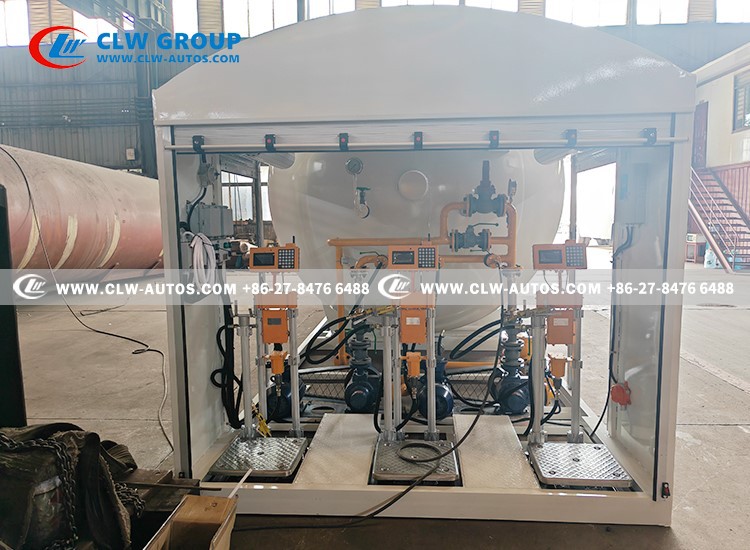

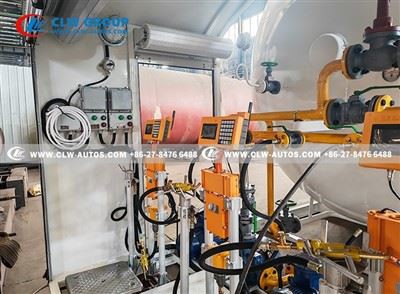

3 sets of filling scales with 4G data transmission for remote monitoring, inventory management, and transaction recording.
1 LPG compressor for tank loading/unloading and pressure management.
Integrated safety systems: Prinkler system, tank and pipeline safety valves, stop valves, pressure gauges, thermometer, strainer valve, float-ball level gauge, and gas leakage detectors.
3 cylinder filling nozzles and 2 LPG discharge hoses for similtaneous multi-cylinder operations.
Plug-and-Play Design:
- Dimensions: 12,200mm (L) × 2,728mm (W) × 3,400mm (H).

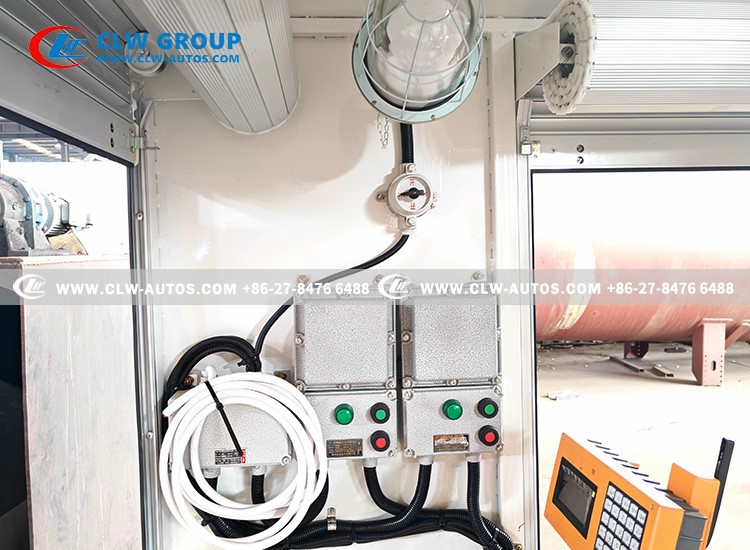

- Includes an aluminum alloy roll-off filling room, LED lighting, and an electrical control box for all-weather operation.
- Pre-wired and pre-piped, reducing on-site installation time and costs.
Applications of Skid-Mounted LPG Stations
- Cooking Gas Distribution: Ideal for LPG bottle filling plants in urban or remote areas where pipeline gas is unavailable.
- Industrial Fuel Supply: Used in manufacturing plants, warehouses, or mining sites to fuel machinery, heaters, or forklifts.
- Automotive LPG Refueling: Can be adapted for vehicle refueling stations (e.g., taxis, buses) when equipped with appropriate dispensers.
- Emergency and Temporary Supply: Deployed rapidly for disaster relief, construction sites, or seasonal demand surges.
- Agricultural Use: Supply LPG for grain drying, greenhouse heating, or irrigation pumps in rural farms.
For quick inquiry, please contact Ms. Shirley Fu:
WhatsApp/ Wechat: +86 135 4506 4324
Email: shirley@clw-autos.com.
Why do you Choose Us for Your LPG Skid Station?
- Compliance with International Standards:
- Our stations are designed and manufactured according to GB150/ASME standards for pressure vessels and comply with safety regulations such as China's Pressure Vessel Safety Technical Supervision Regulations. All welds undergo 100% radiographic and magnetic particle inspection to ensure leak-free integrity.
- Turnkey Solution with Advanced Technology:
- We provide a fully integrated system with 4G-enabled filling scales for real-time data transmission, allowing operators to monitor fill volumes, track inventory, and generate reports remotely. The station includes automated safety shutdowns and leakage detection to prevent accidents.
- Fast Deployment and Cost Savings:
- Unlike traditional built-in-place LPG stations, our skid-mounted solution reduces construction time by months. It arrives pre-assembled and can be operational within days after placement on a level concrete foundation. This minimizes labor costs and site disruption.
- Proven Reliability and After-Sales Support:
- CLW Group offers a 1-year warranty and provides technical support, spare parts, and training. Our stations are built with premium components (e.g., Q345R steel, explosion-proof motors) for long service life even in harsh environments.
- Customization and Scalability:
- We offer stations from 5m³ to 200m³ capacity and can customize configurations for specific flow rates, pressure requirements, or climate conditions (e.g., cold weather packages)
- 10 years + experience of supplying lpg skid station in Africa with good feedback
Chassis Pictures
Products Specification
|
Specification |
|||
|
Overall dimension of skid station(length*width*height) |
12200*2728*3284 mm |
||
|
Volume of Tank |
50 CBM/50,000L |
||
|
Filling Weight |
25000 kg/25 Tons |
||
|
Tank Weight |
11500 kg |
||
|
Thickness of Shell (mm) |
14 mm |
||
|
Thickness of End plate (mm) |
16 mm |
||
|
Tank Diameter (mm) |
2700 mm |
||
|
Tank Dimensions (mm) (length x width x height) |
9182X2724X3290mm |
||
|
Material of Tank |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.71 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420 kg/ cbm (50 ℃) |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification/ mm |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Other tank accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
|
LPG Skid Parts List |
||
|
Item |
Model Number |
Quantity |
|
LPG Tank |
1 piece |
|
|
LPG compressor |
1 piece |
|
|
Pump |
2" inlet & 2" outlet |
2 Pieces |
|
Explosive-proof Motor |
380V with 220V adapter |
3 Pieces |
|
Cylinder filling scale with 4G data transmission |
/ |
3 Pieces |
|
Pipes |
/ |
1 Set |
|
DN50 Check Valve |
/ |
5 pc |
|
DN50 Ball Valve |
/ |
8 pcs |
|
DN15 Ball Valve |
/ |
2 pcs |
|
Strainer |
/ |
1 pc |
|
DN50 Non-return Valve |
/ |
2 pcs |
|
DN50 Steel Anti-shock Pipe |
/ |
4 pcs |
|
Pipeline Safety Valve |
/ |
2 pc |
|
Control box |
/ |
1 pc |
|
Gas Leakage Detector and panel |
/ |
1 pc |
|
Explosive Proof Lamp |
/ |
2 pc |
|
Level Gauge |
Float ball type/Chinese brand |
1 Unit |
|
Fire extinguisher |
1 Unit |
|
Company Introduction
Hubei ChengLi special Automobile Co., Ltd
Hubei ChengLi Special Automobile Co., Ltd. is the core enterpriset Chengli Automobile Group and a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles. It is located in Suizhou City, Hubei Province, with production bases in the southern suburbs of Zengdu District and the Zengdu Economic and Technological Development Zone.
The company currently has total assets of early 10 billion yuan, covering an area of over 1,000 acres, and employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers. The company has an annual production capacity of 70,000 special vehicles it has signed industry-university-research cooperation agreements with universities such as Huazhong University of Science and Technology, Wuhan University of Technology, and Wuhan University of Science and Technology. Through professional vocational technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
