JAC V6 4x2 4Tons 4T Freezer Truck
Engine:diesel Yunnei engine;
Driving model:LHD or RHD
Gear box:,6 Forwards and 1 reverse
Tire:7.50R16
Box Size:4015*2300*2300 mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jac v6 4x2 4tons 4t freezer truck in China. If you're going to buy high quality jac v6 4x2 4tons 4t freezer truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Freezer truck(also called cooling van truck,refrigerated truck,refrigerator truck,refrigerator wagon,refrigerated box car,freezer wagon,temperature controlled vehicle,preservation vehicle) is used to deliver and transport perishable stuff at specific temperature.
--The refrigerated unit brand is optional,such as
themo king,carrier,chinese brand hanxue,huatai and so on.
--according to power supplying method,one type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.
--The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel and 80mm PU foam in middle to ensure perfect insulation.
-- Freezer truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc,jac freezer truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 freezer truck;
3) according to temperature request during delivery,there are fresh transport freezer truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .
Feature
--high quality JAC truck chassis;
--Spacious truck cabin with A/C;
--Powerful engine for tough road with reliable performance;
--high quality temperature preservation van body;
--Reliable chinese or USA brand refrigerated unit;
Reference picture

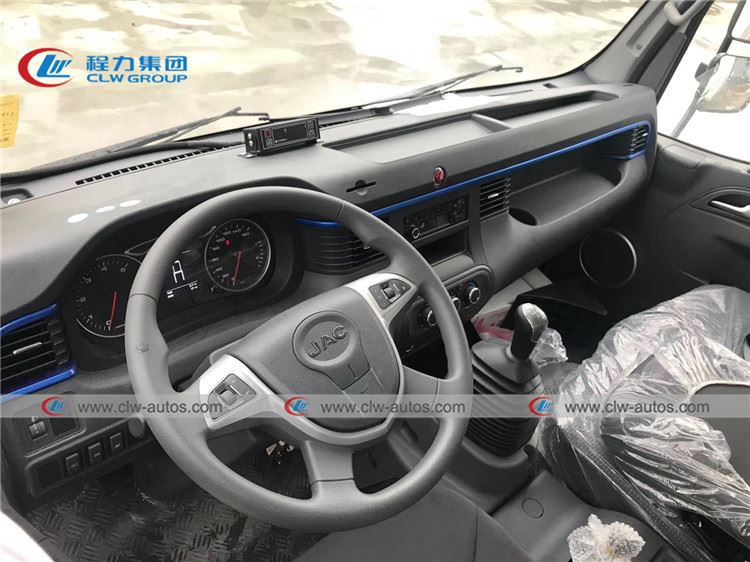

★Cabin of JAC V6 4x2 4Tons 4T Freezer Truck

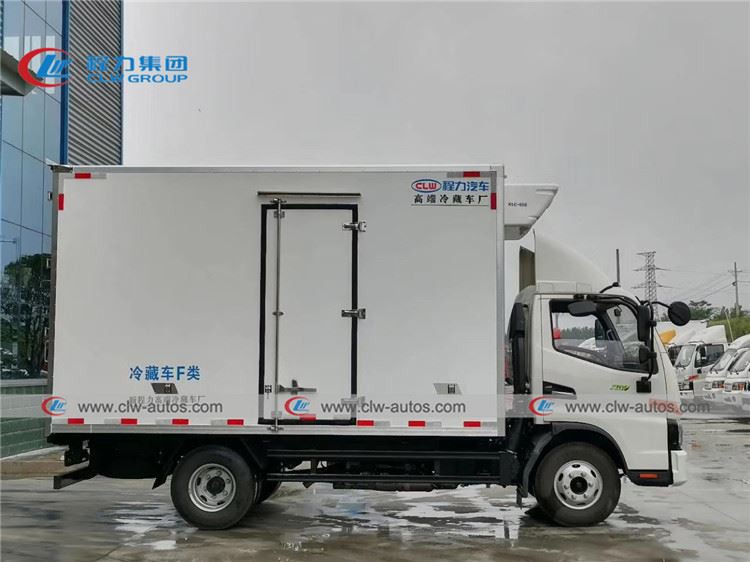

★optional for side door of JAC V6 4x2 4Tons 4T Freezer Truck
Specification
Condition | New condition/LHD or RHD/4x2/with A/C | ||
Chassis | Brand | JAC | |
Curb weight(kg) | 3200 kg | ||
Payload(kg) | 1100kg | ||
Wheelbase(mm) | 3365 mm | ||
Dimensions(mm) | 5995*2400*3190 mm | ||
Front/Rear axle loading(kg) | 2400/4500 kg | ||
Front/Rear overhang(mm) | 1160/1545 mm | ||
Wheel track (front/rear) (mm) | 1605/1555 mm | ||
Approach/Departure angle(°) | 18/18 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Hydraulic oil brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 7.50R16 for 5Tons; | ||
Transmission | Manual type, WLY6T46,6 Forwards and 1 reverse | ||
Engine | Brand | Yunnei Engine | |
Model | D25TCIF1 | ||
Fuel type | Diesel | ||
Displacement(ml) | 2500ml | ||
Power(kw) | 110 kw | ||
Horsepower(HP) | 150 HP | ||
Maximum torque(N.m) | 220 N.m | ||
Maximum torque speed(rpm) | 1700 rpm | ||
Minimum fuel consumption under full load | ≤224g/kW.h | ||
Cylinder number | 4 pcs | ||
Emission standard | Euro III,IV,V | ||
| |||
Box of | 1. Box Size: 4100*1740*1750 mm; 2. Box Material: glass epoxy in the surface; Foam in the middle . 3.Thickness of side ,top ,front ,rear 80mm; 4.Inside bottom: Aluminum pattern plate | ||
Refrigerating System | 1. Working temperature range:-18℃ -0℃ 2. Refrigerating unit brand and model: USA brand Thermo King KV300 ; | ||
Remarks | Color is optional | ||
Key word: freezer,refrigerator truck,refrigerated truck,cooling van truck,freezer truck,jac freezer,jac refrigerated truck,4tons refrigerated truck,thermo king
