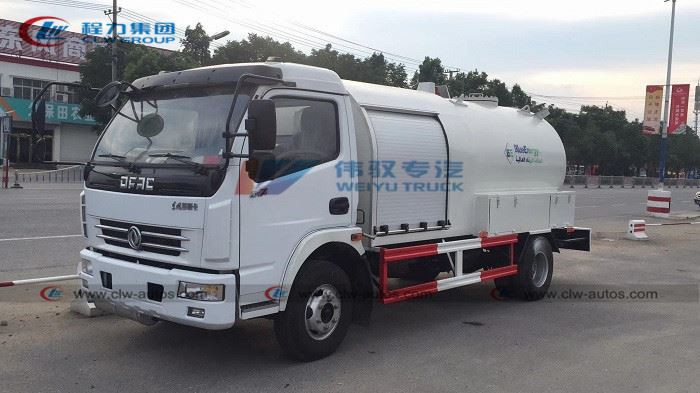

Dongfeng 5000Liters LPG Refueling Mobile Tanker Truck
Cabin:Howo L2W cabin with A/C
Engine:YN4102QBZL,116HP
F/R axle:2.4/4.2Tons
Tire:7.50R16
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 5000liters lpg refueling mobile tanker truck in China. If you're going to buy high quality dongfeng 5000liters lpg refueling mobile tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails
3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
Product Specification
Items | Descriptions | Specifications and Types |
General | Truck Name | LPG dispenser truck |
Truck Model | CS | |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 7495 | |
Curb Weight (kg) | 4990 | |
Overall Dimensions(mm) | 5900*2045*2600 mm | |
Engine | Engine Brand | Chao Chai |
Modle | CY4100Q | |
Fuel Type | Diesel | |
Power | 95HP/70KW | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | Diesel Engine,Water cooled, Four Stroke, ,4 Cylinder in line. | |
Chassis | Cab | Single row cab |
Tire | 7Nos x 7.00-16 tire | |
Wheelbase (mm) | 3300 | |
Axle No. | 2 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | Left hand drive with power-assisted | |
Tank | Filling Medium | LPG(Propane) |
Tank Volume(L) | 5000 | |
Filling Mass(KG) | 2500 | |
Cylinder Design Thickness(mm) | 10 | |
Head Design Thickness(mm) | 10 | |
Tank Material | Q345R high tension carbon steel, 8mm Thickness Tank Body. | |
Density of Medium(kg/m3) | 420(50°) | |
Design Pressure(Mpa) | 1.77 | |
Hydrostatic Test Pressure(Mpa) | 2.66 | |
Equipment for the tank | pressure gauge, thermometer ,discharge valve, Safety Valve, Level Gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. | |
Refilling system | ||
Pump | Medium:Liquid petroleum gas | |
Dispenser | Directly Fill Cylinder or Tanker | |
Filling gun with pipe | 1 unit filling gun, 15m filling pipe | |
Reference Photos

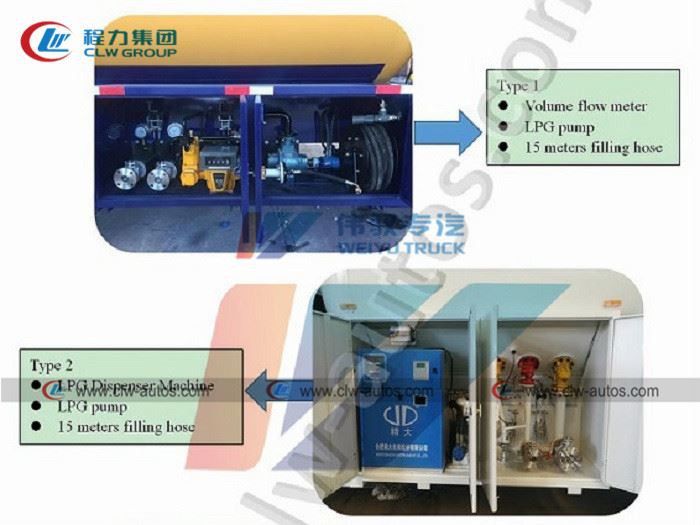

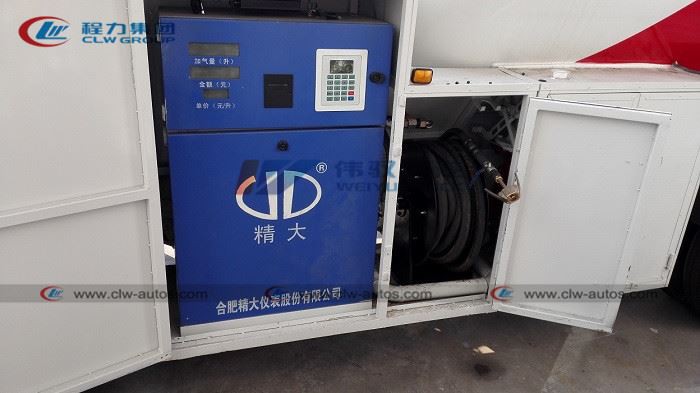

Two Types of Dispenser Method on the LPG Truck
Key Words: LPG bobtail truck, 5cbm lpg truck, 5000L liquid propane gas truck, 2.5mt lpg bobtail, 2.5tons liquid petroleum gas dispenser truck, lpg dispenser machine, lpg refueling truck, lpg dispensing truck, etc.
