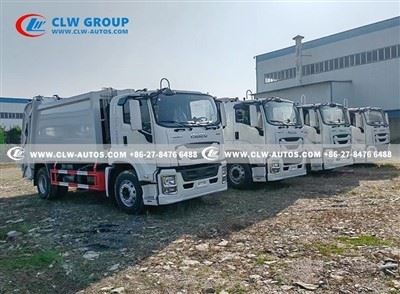

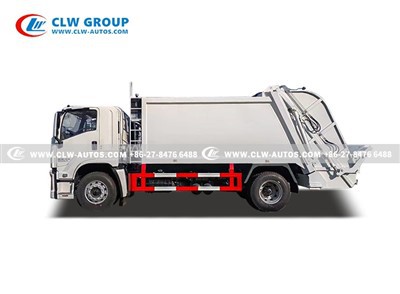

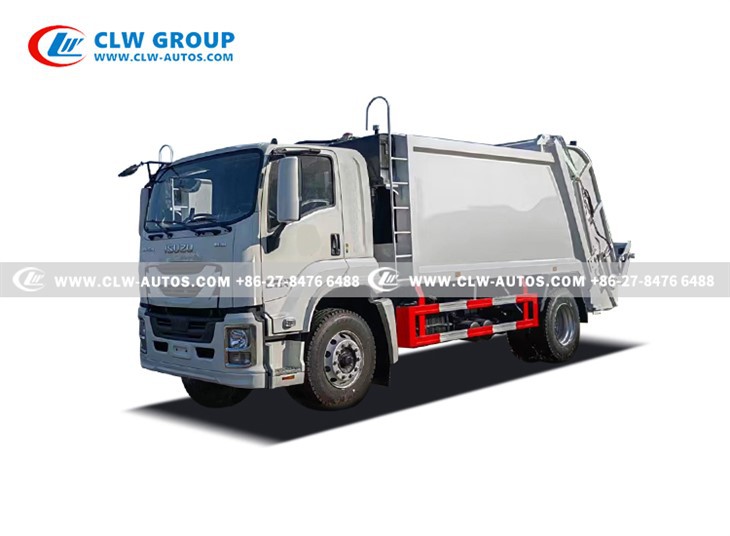

ISUZU GIGA 14cbm Garbage Compactor Truck For Russia

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 14cbm garbage compactor truck for russia in China. If you're going to buy high quality isuzu giga 14cbm garbage compactor truck for russia, welcome to get more information from our factory. For price consultation, contact us.



ISUZU GIGA 14cbm Garbage Compactor Truck for Russia





Products Descriptin

• Truck brand: ISUZU, HOWO, Dongfeng, Faw, Foton,Shacman,JAC, JMC etc.
• Garbage tank size varies from 3cbm, 4cbm, 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm, 24cbm etc. And garbage tank semi trailer from 30-45cbm.
• Lift up structure can be design to loading up 120L/240L/660L garbage bins or customzied as per customer's request.



Waste compression truck feature:

* The garbage tank is made by high intense Q235b carbon steel, 5mm thickness

* The compression mechanism consists of a pressure plate welded with steel plates and channel steel, a guide wheel, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the chamber. Compression cycle time: 20-25s, compression density: 0.7 t/m3.

* The unloading mechanism is composed of a unloading oil cylinder and a unloading push plate. The unloading push plate is welded from a steel plate and a bracket, positioned by a guide groove, and pushed out by the extension of the oil cylinder to discharge garbage.  unloading garbage is: less than 40s

* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin





ISUZU GIGA 14cbm garbage compactor truck for Russia
Condition	New condition/Left hand drive/4X2
Chassis	Brand		ISUZU GIGA
	Curb weight(kg)		9850kg
	Wheelbase(mm)		4500mm
	Overall Dimensions(mm)		8250*2500*3250 mm
	Axle Load(kg)		6300/13000 kg
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		air brake
	Steering Gear		Power assistant
	Tire	Number	6pcs with one spare tire
		Specifications	295/80R22.5
Transmission	Manual type, ISUZU MLD, 6 Forwards and 1 Reverses
Cabin	it can accomdate 3 passengers, with Heating and cooling air conditioning, steering assistance, central locking, electric doors and windows, multifunctional steering Disc, multifunctional LCD instrument panel with ABS, air brake.
Engine	Brand		ISUZU
	Model		4HK1-TC60
	Horsepower/(HP)		205HP
	Displacement		5.193L
	Emission standard		Euro 6
Super structure
Item No.	Parameters
Volume Capacity(Garbage)	14.0 CBM
Thickness of the tank	5mm for the bottom and 5mm for the side carbon steel
Sewage tanker(one at side of the truck, one at rear side of the truck)	200 L & 500L
Tail gate volume(L)	700L(Filling structure)
	Rated Pressure of Hydraulic system: 16 Mpa
	Filling time of loading system: 8-10 s
Specification	Working cycle of Loading system: 50-60 s
	Working cycle of the unloading system: 30-40 s
	Compress ratio:0.6:0.7
	Equipped with hermetic dustbin, hydraulic system and operating system.
	Automatic compress and uninstall, sewage can be collected by the sewage tank.
Equipment	Control system: China top brand operate system.
Painting and Logo	As customer's requirement
Other detail	China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder,
	Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder.
Optional devices	1. four way monitor camera with lcd screen at driver cabin. 2.  Emergency tripod 3. First aid kit





More size for your choice

Contact Alice for quick inquiry  +86 180 7154 2196(whats app)

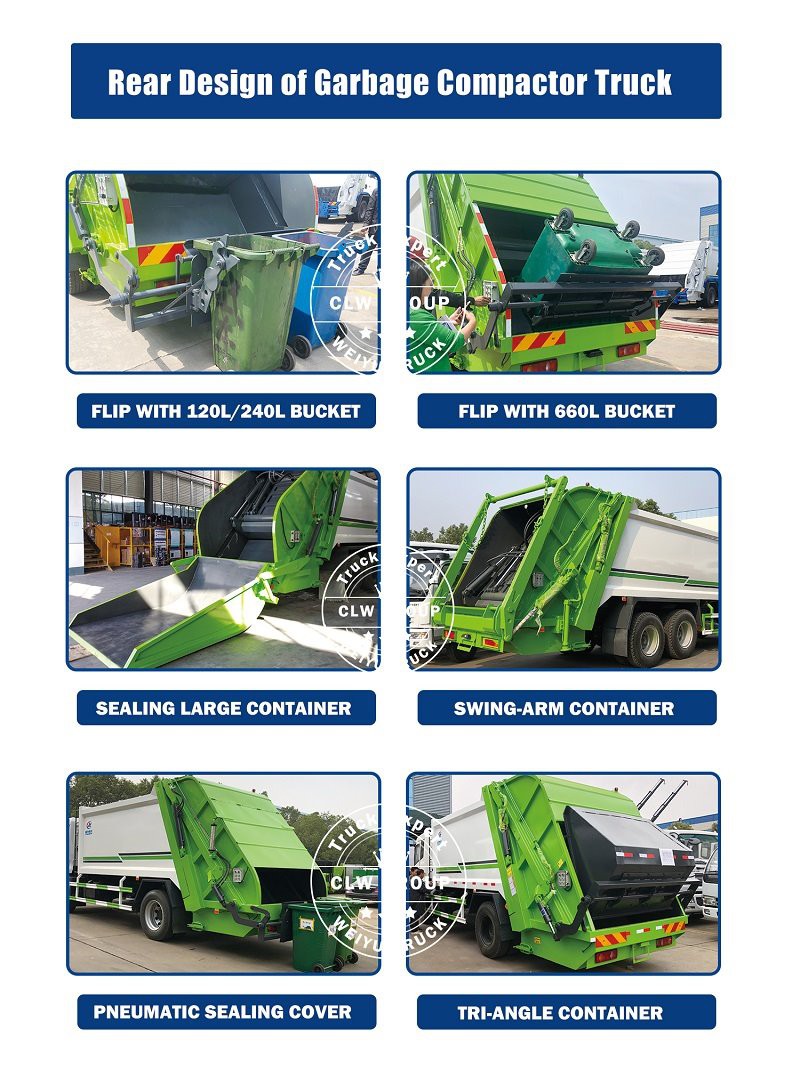

You can also choose different loading type for the garbage compactor truck
