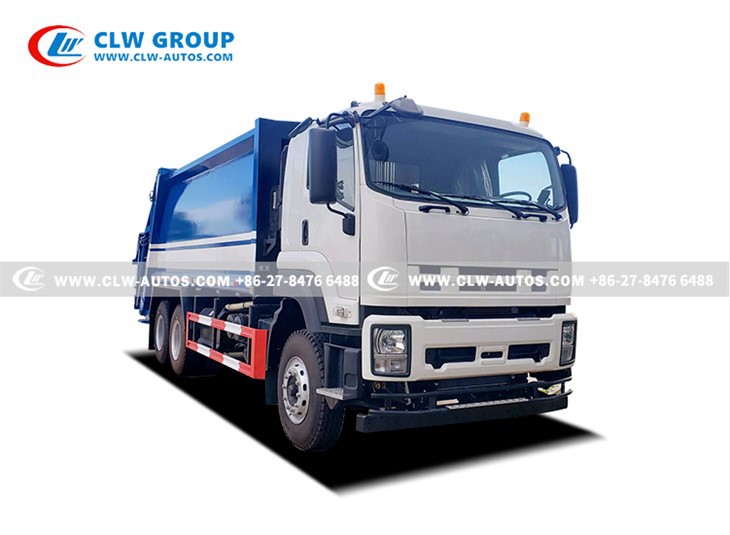

Philippines Compressed Garbage Truck 20CBM

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of philippines compressed garbage truck 20cbm in China. If you're going to buy high quality philippines compressed garbage truck 20cbm, welcome to get more information from our factory. For price consultation, contact us.







Philippines Compressed Garbage Truck 20CBM/20 M3

• Philippines design rear loader garbage truck/compactor waste truck/refuse truck is with ISUZU 10-wheel VC46/VC61/GIGA truck chassis and ISUZU 350 HP diesel engine.

• large selaing typing waste collection container at rear of truck
• CAN type control system at rear of truck and cabin











Why do you choose ISUZU GIGA garbage compactor truck?

• Strong axle with higher loading capacity

• Low fuel consumption

• large horsepower

• Easy to get spare parts

• Wider sleeper

• Body capacity 18/20/22CBM

• High strength Protector

• high strength steel garbage box

• side plate is whole plate bending molding,without welding to ensure long service life.

• Germany Siemens CAN BUS System(more convenient operation)

• ISO Certified Hydraulic Cylinders

• Patented Design with Balance Valve for safety

• CE Standard Hydraulic Oil Pipeline



TECHNICAL SPECIFICATION
Main specification	Chassis brand	ISUZU VC46/GIGA model
	Chassis model	QL1250
	Overall dimension(L*W*H)	10050×2496×3400mm
	Compressed tank	20m3 22m3
	Rated Loading capacity	20,000 kg
	Gross weight	25,000 kg
Chassis	Drive modle	6x4 left hand drive
	Cabin	VC46 ,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior
	Front axle	7ton loading capacity
	Rear axle	18ton loading capacity/ 2 axles
	Wheel Base	5100mm+1300mm
	Front/rear suspension	1032/2138mm
	Approach/departure angle	24/12(°)
	Transmission	FAST, 9 gears frowards and 2 reverse.
	Tyre size & number	11.00R20. with one spare tyre
	Max speed	100km/h
Engine	Model	6UZ1-TCG40
	Engine Type	6 cylinders, Diesel,Vertical in-line, water-cooled,
	Horse power	350HP
	Displacement	9,839ml
	Emission	Euro 4

Compactor  Body
Tanker body material	Quality high tensile Q345 carbon steel
Shape	rectangular box, arc-shaped rear
Thickness	Side 5mm, Bottom 6mm
Garbage Container Size	20 CBM
Waste Container
Waste container size	4 m3
Waste container material	High quality carbon steel
Thickness	Side 3mm Bottom 4mm

Pictures

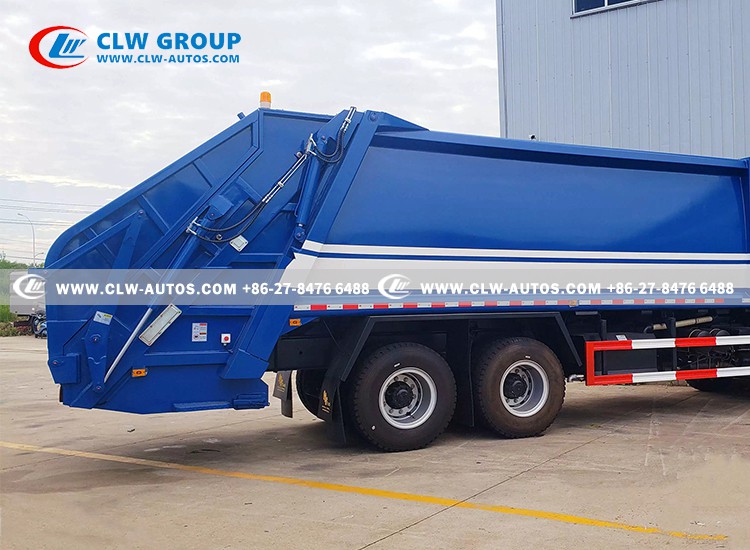

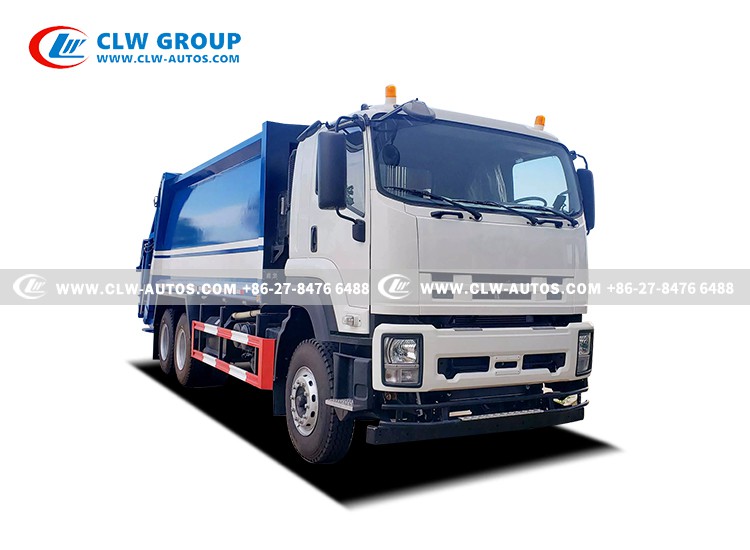

• ISUZU GIGA Garbage Compactor Truck 20 cbm

• ISUZU 350HP Garbage Compactor Truck 20m3

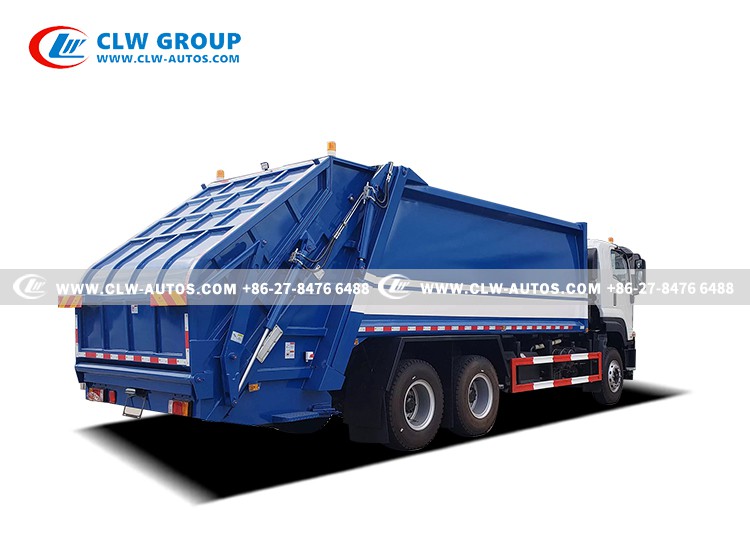

•  Strong garbage box with beautiful painting of ISUZU 20cbm



Except for angola design garbage truck with large  waste container,we also supply customized waste collection method and design as follows,

• Flip type with 120L/240L/660L/330L garbage bucket

• Rear Triangle bucket,

• Rear swing arm system.

• Sealing large waste collection container

• Pneumatic sealing cover
