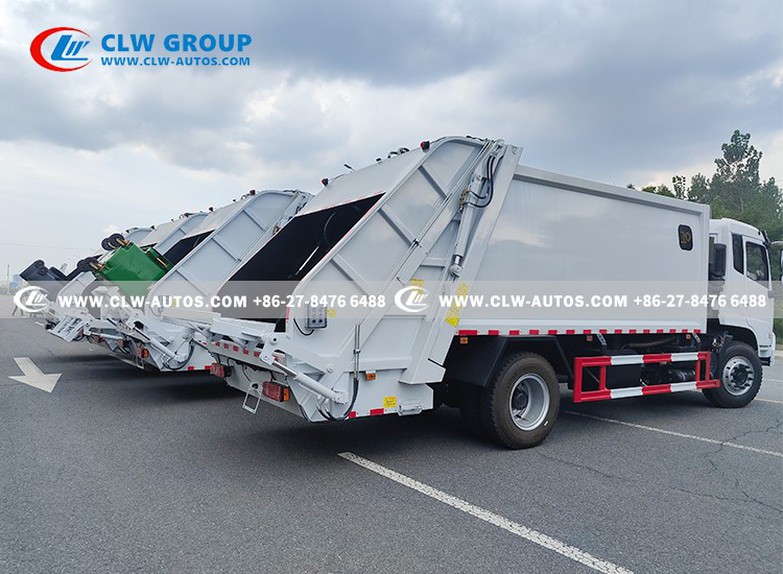

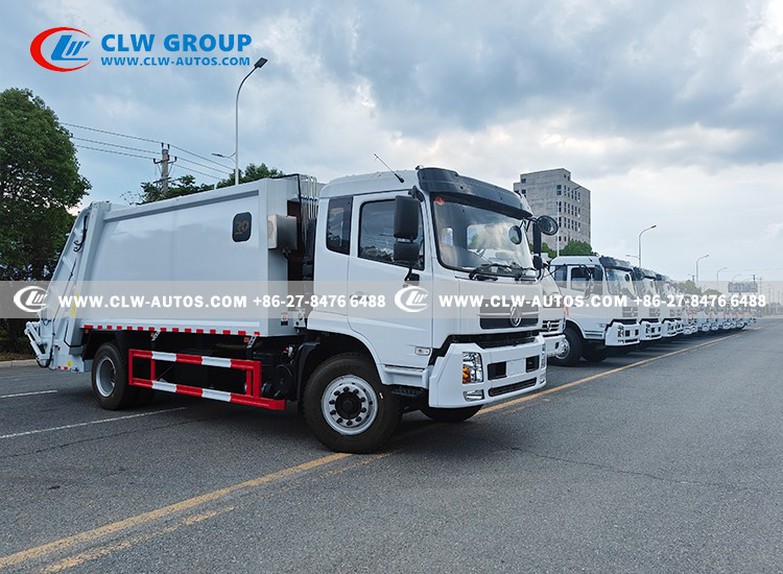

Donfeng 10tong Waste Compression Truck
Dongfeng Tianjin Cabin
Cummins engine
China Top brand hydraulic cylinder
Electronical control system
Two unit sewage tank
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of donfeng 10tong waste compression truck in China. If you're going to buy high quality donfeng 10tong waste compression truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description

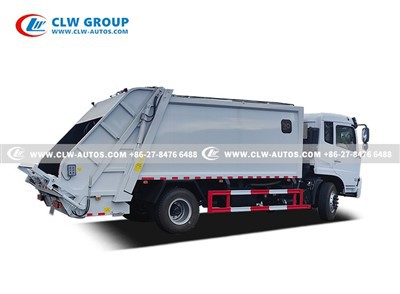

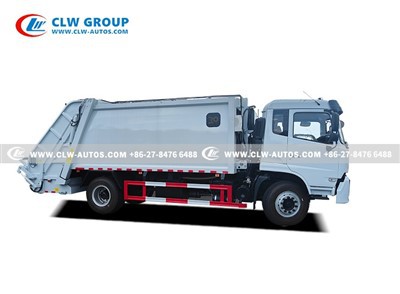

Donfeng 10tong waste compression truck
The compressed garbage truck consists of a sealed garbage bin, hydraulic system, and operating system. The whole vehicle is fully sealed, and the sewage generated to prevent secondary pollution during garbage transportation. CLW Group has more than 20 years experience design and produce garbage trucks. Our engineer continuously improving according to customer needs.
Waste compression truck feature:
* The garbage tank is made by high intense Q235b carbon steel, 5mm thickness
* The compression mechanism consists of a pressure plate welded with steel plates and channel steel, a guide wheel, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the chamber. Compression cycle time: 20-25s, compression density: 0.7 t/m3.
* The unloading mechanism is composed of a unloading oil cylinder and a unloading push plate. The unloading push plate is welded from a steel plate and a bracket, positioned by a guide groove, and pushed out by the extension of the oil cylinder to discharge garbage. unloading garbage is: less than 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
* Rear loading : lifting mechanism working with 120L/240/600L plastic garbage, can be customized as per customer's request
Maintenance tips:
- Change hydraulic oil every six months
- Clean sewage tank regularly
- Grease the grease fitting and the slide inside the garbage bin can every week.
- Cean the sticky garbage and debris on the hydraulic cylinder to avoid the dust ring or oil seal of the oil cylinder is damaged.
-
Clean the engine fuel filter, air filter, and engine oil Filters, hydraulic system air filters regularly.
| Dongfeng 10tons waste compression truck | |||
| Condition | New condition/Left or Right hand drive/4X2 | ||
| Chassis | Brand | Dongfeng, Tianjin Cabin | |
| Curb weight(kg) | 9850kg | ||
| Wheelbase(mm) | 4700mm | ||
| Dimensions(mm) | 8350*2490*3250 mm | ||
| Axle Load(kg) | 5000/10000 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 10pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Transmission | Manual type, 8 Forwards and 1 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Cummins | |
| Model | B190 33 | ||
| Horsepower/(HP) | 180 HP | ||
| Emission standard | Euro II | ||
| Upper Body | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 14.0 CBM | ||
| Thickness of the tank | 5mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one side of the truck) | 200 L | ||
| Tail gate volume(L) | 600L(Filling structure) | ||
| Rated Pressure of Hydraulic system: 16 Mpa | |||
| Filling time of loading system: 8-10 s | |||
| Specification | Working cycle of Loading system: 50-60 s | ||
| Working cycle of the unloading system: 30-40 s | |||
| Compress ratio:0.6:0.7 | |||
| Equipped with hermetic dustbin, hydraulic system and operating system. | |||
| Automatic compress and uninstall, sewage can be collected by the sewage tank. | |||
| Equipment | Control system: China top brand operate system. | ||
| Painting and Logo | As customer's requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
| Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder | |||
Contact Alice for quick inquiry +86 180 7154 2196(whats app)
You can also choose different loading type for the garbage compactor truck
