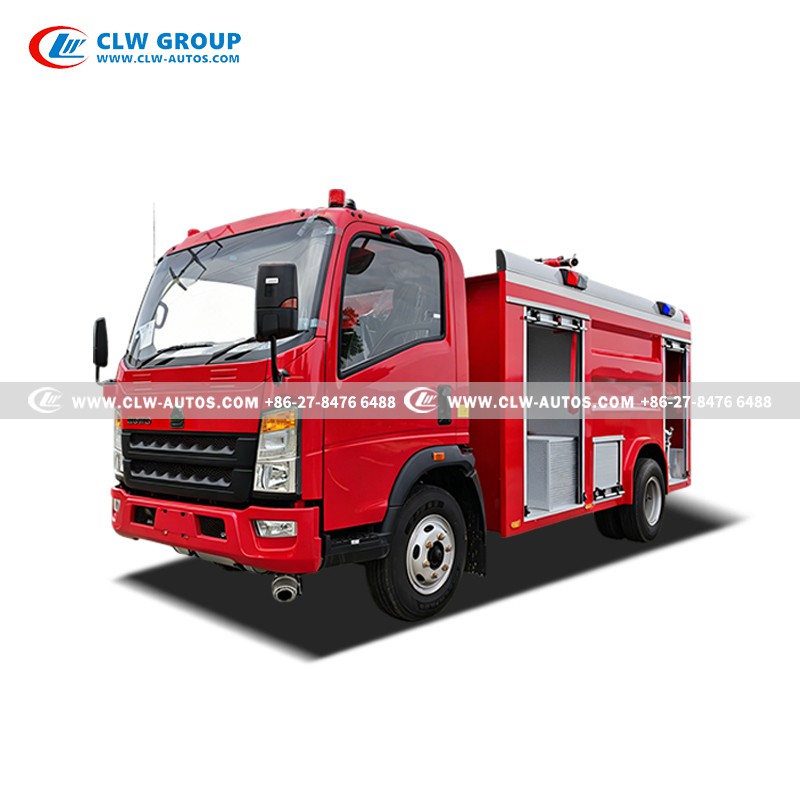

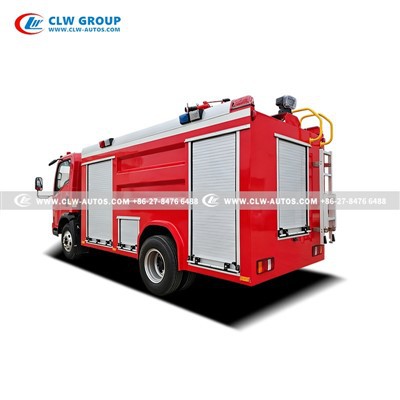

HOWO 3Tons Water Tender Fire Truck
Sinotruk HOWO 4x2 fire trucks
2-3000L water tanker
YN4102QBZL Engine:116HP
Right hand drive(RHD)
Rated Flow of Fire Monitor
Fire cannon range ≥ 55m
PLC control fire extinguishing system
Overall size:6250x2050x2550mm
Full power sandwich type
Water tank: Q235 carbon steel
Exported to Guyana
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 3tons water tender fire truck in China. If you're going to buy high quality howo 3tons water tender fire truck, welcome to get more information from our factory. For price consultation, contact us.
SINOTRUK HOWO 2-3 Ton Water Water Tank Fire Fighting Truck
3,000L Water Tanler Truck Specialized Vehicle China Factory!
Products Description
What is water tank fire truck?
According to water tank capacity, our HOWO fire trucks are categorized into three types: Light-duty, Medium-duty, and Heavy-duty, with capacities ranging from 2 to 20 tons to meet diverse firefighting requirements.
The HOWO Water Tender is a specialized vehicle engineered for rapid fire suppression and emergency rescue.
Water Volume
Fire Pump System
Monitor Range
light duty chassis
Key Vehicle Specifications:
Product Name: HOWO 3,000L Water Tender Fire Truck
Tank Capacity: 3000L Water Tank
Cab: Single row cabin, RHD, A/C
Wheelbase: 3300 mm
Engine: YN4102QBZL
Horsepower: 116HP
Transmission: MLD 6-shift
Emission standard: Euro II
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 8275 kg
Curb weight: 4800 kg
Loading weight: 3000 kg
Front/Rear Axle loading: 2800kg / 5200kg
Tires: 7.50R16, 6 pcs with one spare
PTO: Full power sandwich type
Products Pictures
Related Operational Video
Products Parameters
|
Water Tank |
|
|
Tank Volume |
3000kg / 3000L / 3Tons |
|
Tank Material |
Q235 Carbon steel |
|

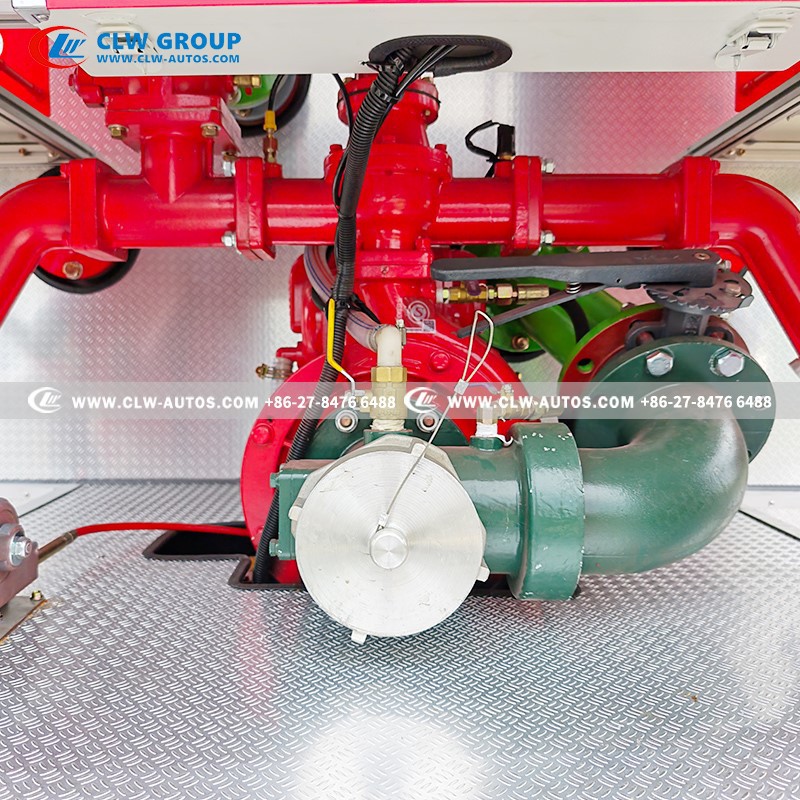

Fire Pump
|
Model: CB 10/20 Rated flow: 20 L/s Outlet rated pressure: 1.0 MPa Maximum suction depth: 7 m Priming Time: ≤35s Priming Device: Electric piston pump, automatic vacuum pumping for water extraction Rear-mounted pump with rear controls for easy firefighter access and hose connection |
|
Fire Monitor
|
Model: PS20 Slewing angle: 360°Horizontal rotation Rated flow: 20 L/s Shoot Range: ≥45-50m Elevation Angle: -15° ~ +70° Operation: Manual, located on the roof, with a locking device Function: It can achieve Fog / straight stream, adjustable for water mist or water column mode |

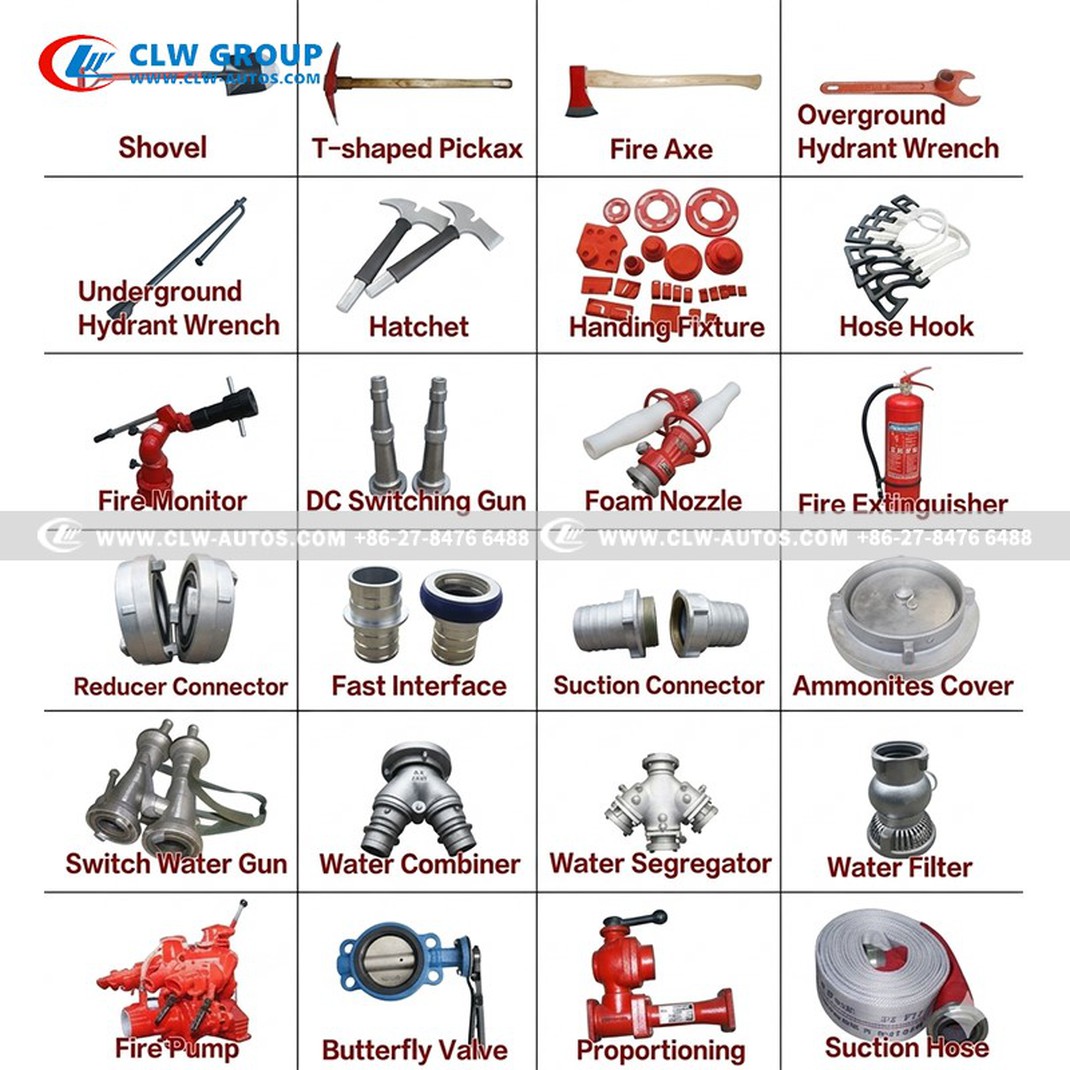

Fire Truck Equipment List
|
Accessory Equipment Configuration |
||
|
NO |
Item |
Qty |
|
1 |
Fire Hose (20 meters per piece, equipped with quick couplings 80mm/65mm) |
4-6 rolls |
|
2 |
Suction Hose (Used for pumping water from rivers or ponds - 4 meters per unit) |
2 PC |
|
3 |
Suction Strainer (Filter out impurities and prevent the backflow of water) |
1 PC |
|
4 |
Fire Nozzle (can switching between direct current and spray modes) |
2 PC |
|
5 |
Hose Adapter (Various specifications of connectors as request) | 1 PC |
|
6 |
Hydrant Wrench (Used to open fire hydrants) | 1 PC |
|
7 |
Hose Bridge(Protect the water hose from being damaged by passing vehicles) |
2 PC |
|
8 |
Suction Wrench (Used for securing the large-diameter suction pipe interface) |
4 PC |
|
9 |
Tire Wrench (For replacing tires) | 1 PC |
| 10 | Hydraulic Jack (5 - 10 ton) | 1 PC |
| 11 | Basic Hand Tools (Including screwdrivers, pliers, adjustable wrenches, etc.) | 1 Set |
| 13 | Warning Triangle (Breakdown parking safety reminder) | 1 PC |
| 14 | Fire Extinguisher (2-4kg) | 1 PC |
| 15 | User Manuals (Including chassis and fire pump operation instructions) | 1 PC |
Products Description
more details

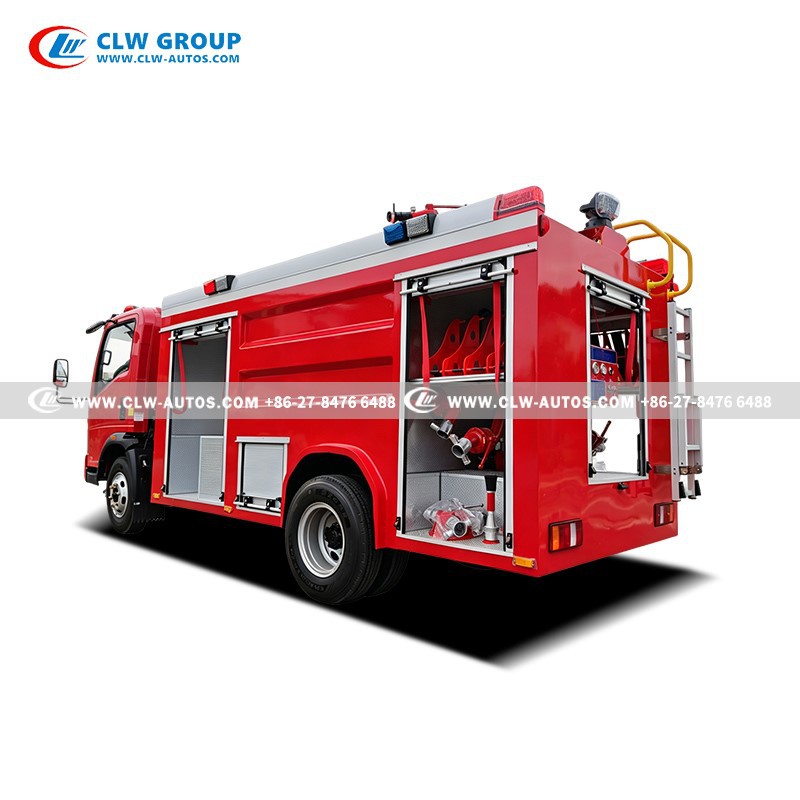

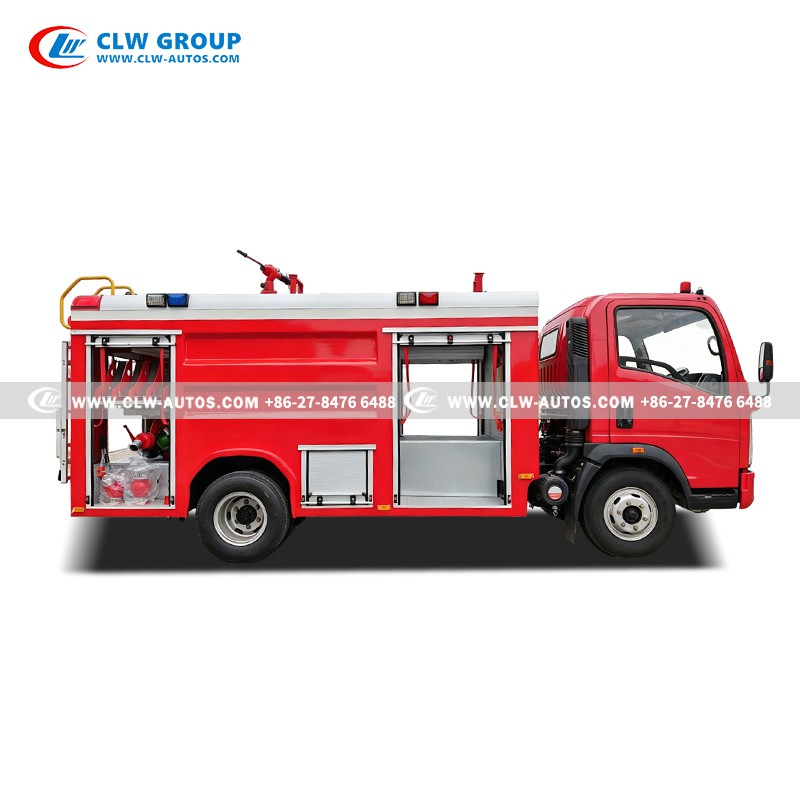

HOWO 4X2 RHD Euro II Water Tank Fire Fighter 3,000liters !
Fully enclosed storage tank
Flashing warning light
Rear working/situation lighting
Single-row driver's cab configuration

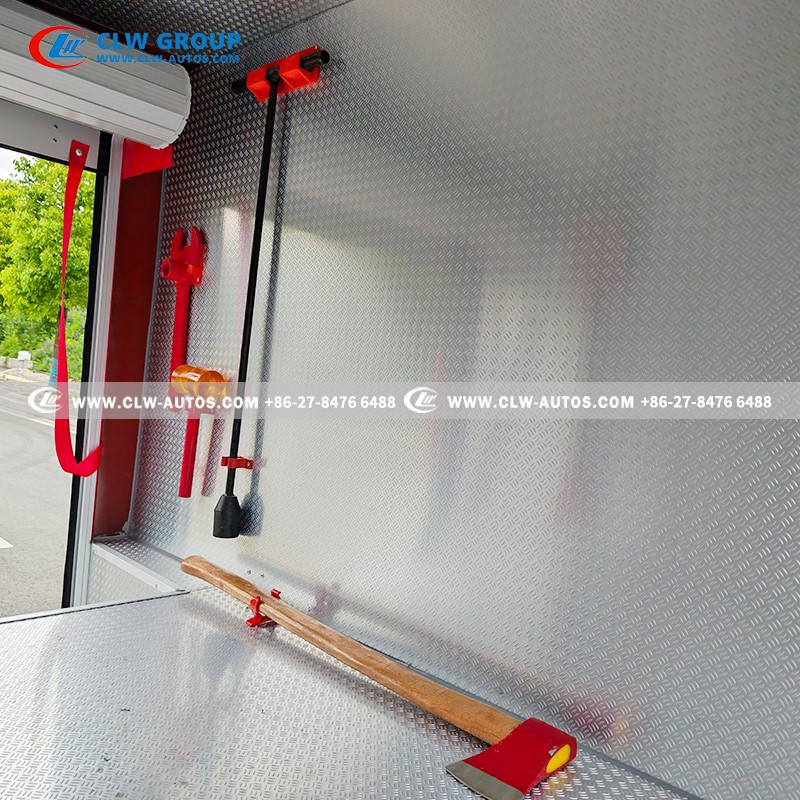

On-board fire extinguishing equipment
Two foldable compartment doors on each side
Exterior painted in the fire service-specific red color

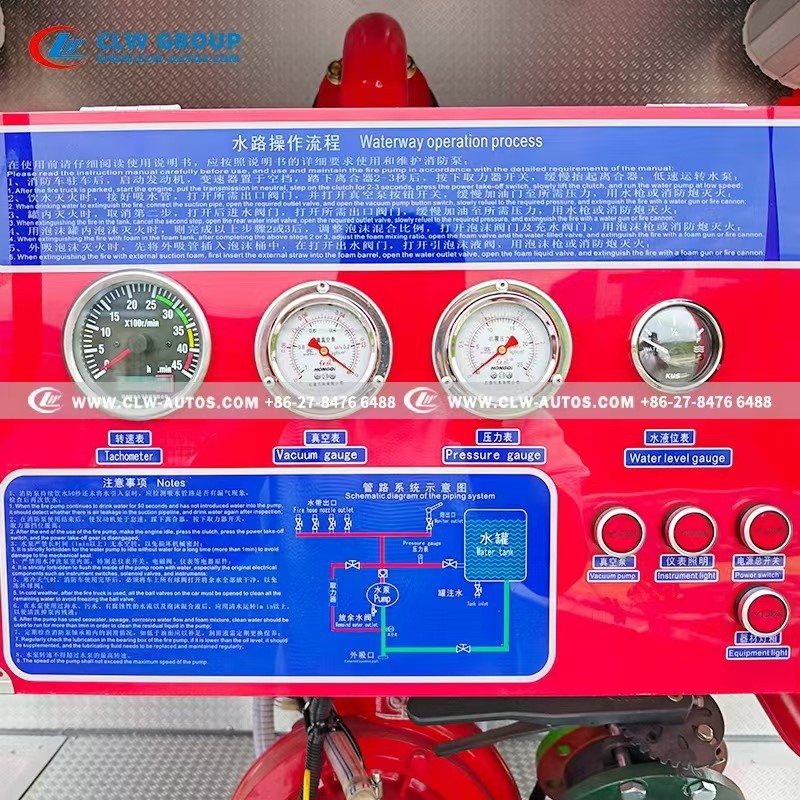

PLC control system

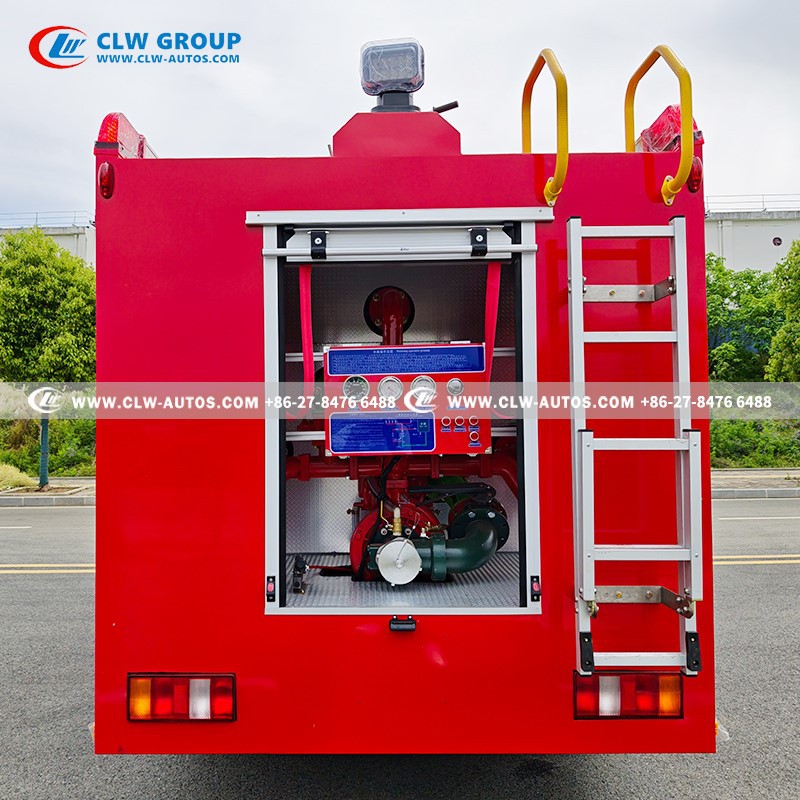

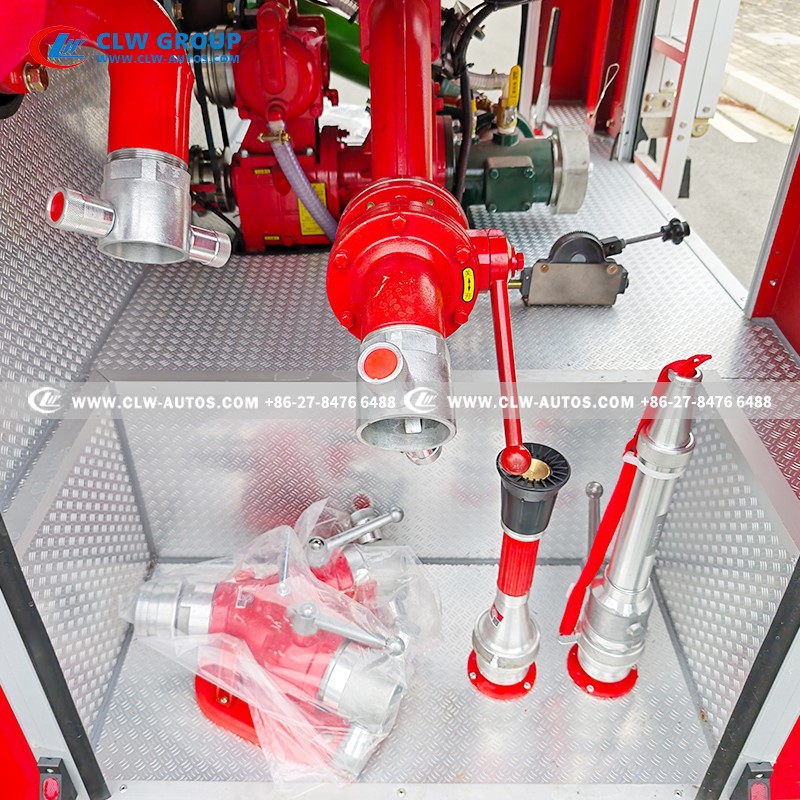

Control in the pump room
Main power switch of the upper part
Parameter display, status display
Each fire extinguishing system is controlled by PLC
Different standardized control modules can be selected
Using high-grade panels, it is both elegant and stylish

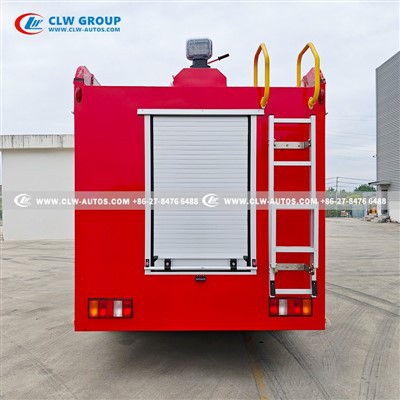

ladder and frame
Rear extension ladder: Two sections folding ladder
Ladder handle: Steel pipe with anti-slip grooves
Ladder frame: Can store two sections of ladder at the top
Roof railings: Equipped with external flashing warning lights

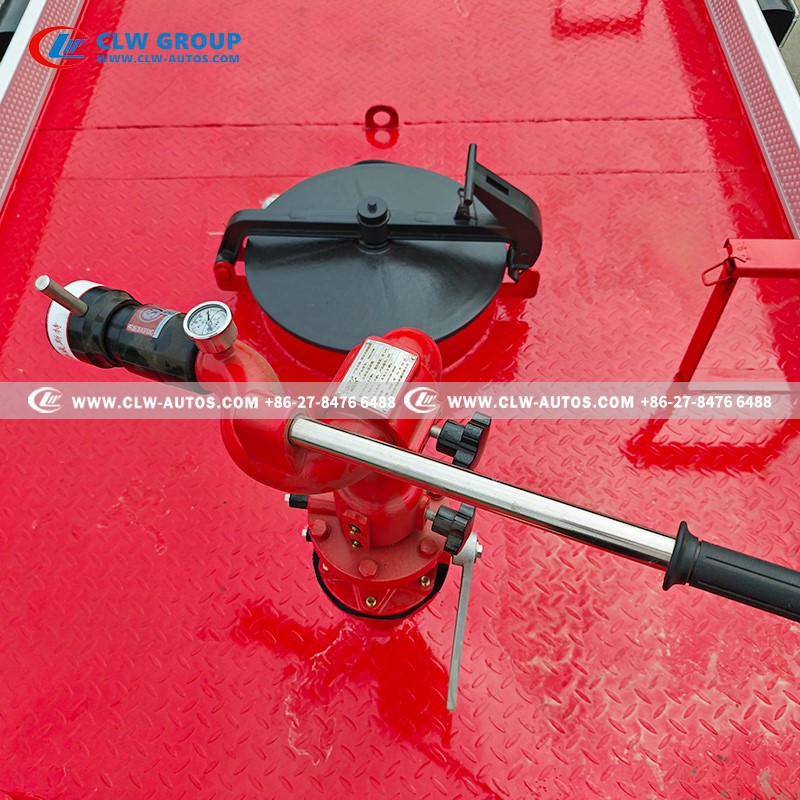

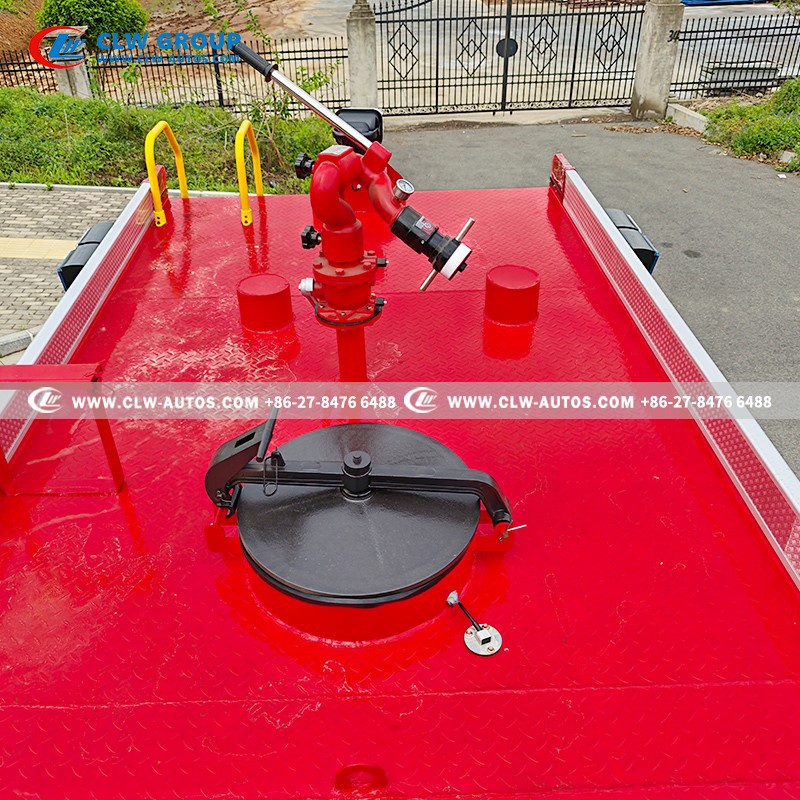

Fire Monitor and manhole
Aluminum alloy roof guard
Two-section ladder frame is set on the top
Separate tanks for water and foam concentrate
Two manholes DN460, for water tank and foam tank
Capable of delivering both straight stream and water fog
Capable of delivering both straight stream and water fog
Fire truck Advantages
Choose the water tank fire trucks that suits you best.
Water Storage & Supply Unit
This fire apparatus boasts an exceptional water-carrying capacity, featuring a high-volume onboard reservoir that can be expanded to meet the varying tactical demands of any firefighting operation.
High-Efficiency Fire Pump System
Integrated with a professional-grade pump, the vehicle rapidly drafts water and delivers it to the scene via powerful high-pressure jets. Operators can precisely modulate both pressure and discharge volume to maximize extinguishing efficiency.
Intelligent Sensor & Deluge System
Equipped with advanced high-level sensors, the truck monitors fireground temperature and smoke density in real time, automatically adjusting spray patterns and flow rates based on live data feedback.
Versatile Rescue Equipment
Beyond its core suppression capabilities, the vehicle is outfitted with an array of emergency tools, including telescopic high-reach booms and heavy-duty master stream monitors, providing critical tactical support for complex emergencies.
Fire fighting trucks types
Water tank fire trucks ( water tenders) are specialized vehicles designed for fire suppression, featuring onboard water storage typically ranging from 500 to over 10,000 liters
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
