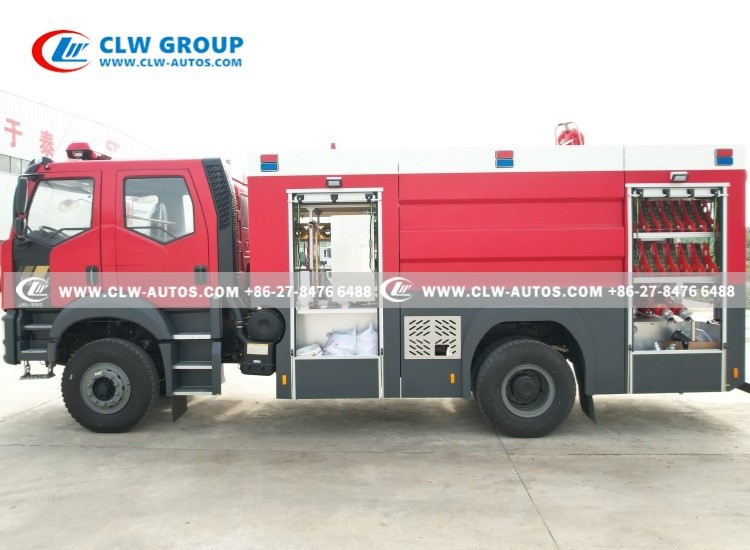

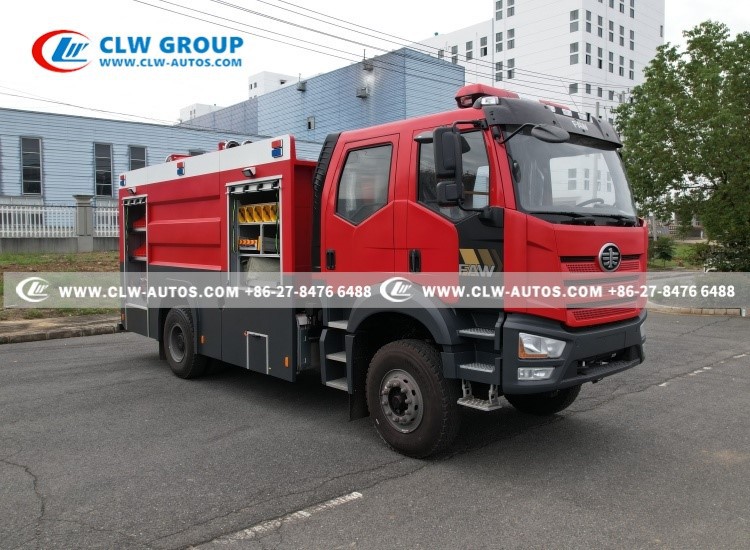

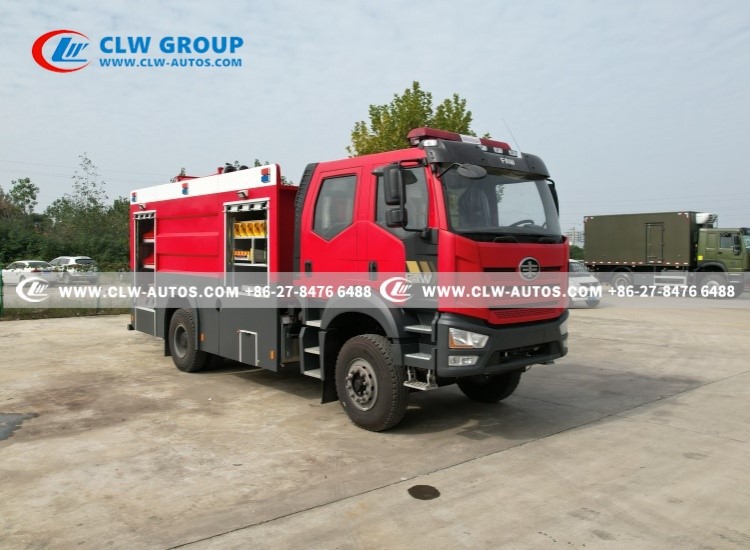

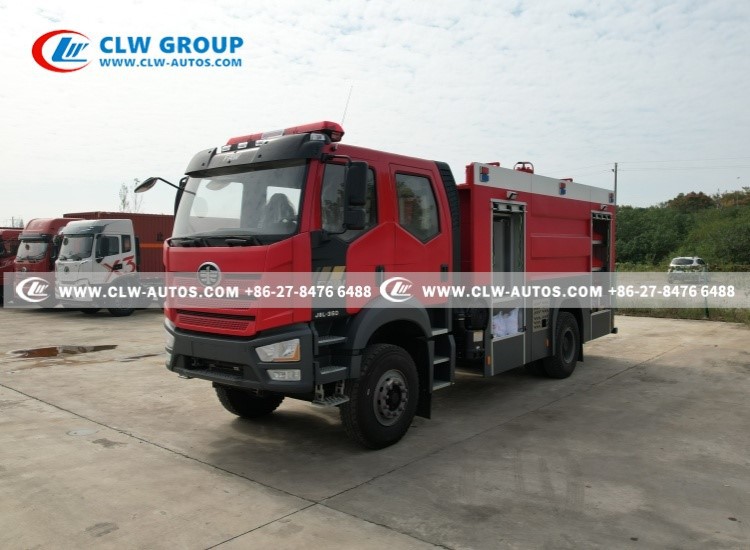

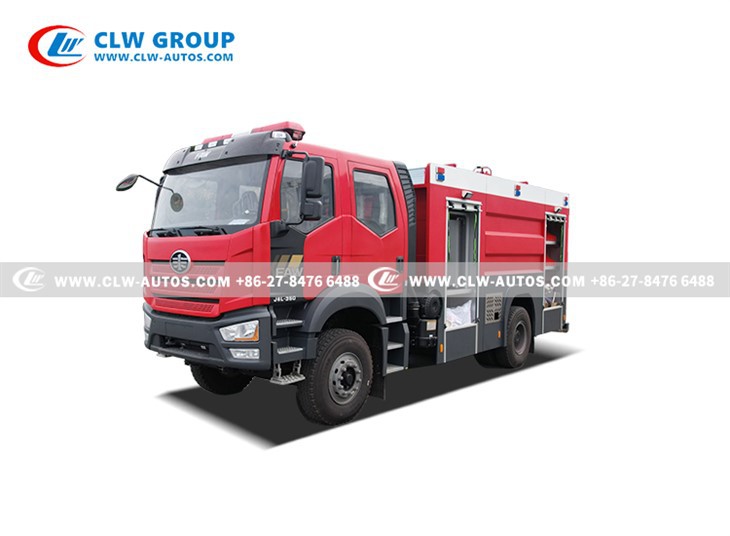

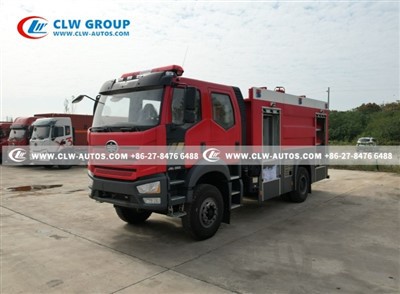

FAW J6L 7000Liters Fire Brigade Vehicle

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j6l 7000liters fire brigade vehicle in China. If you're going to buy high quality faw j6l 7000liters fire brigade vehicle, welcome to get more information from our factory. For price consultation, contact us.







FAW J6L 5000L Water & 2000L Foam Fire Fighting Truck – Professional Fire Brigade Vehicle!



The FAW J6L 5000L Water & 2000L Foam Fire Fighting Truck, Fire Brigade Truck is a comprehensive fire suppression solution for professional fire brigades and municipal departments. With its substantial water capacity, dedicated foam system, powerful pumping performance, and versatile application capabilities, this fire truck provides the reliability, flexibility, and firefighting power required for effective incident response.



Whether protecting urban communities, industrial facilities, or rural areas, this dual-agent fire apparatus ensures that firefighters have the resources, equipment, and performance needed to protect lives and property.









1. Dual-Agent Fire Suppression System

• Water Tank: 5,000 liters (5,000L) for extended firefighting operations
• Foam Tank: 2,000 liters (2,000L) of foam concentrate for Class B fires
• Integrated Foam Proportioning: Automatic or manual foam induction system
• Balanced Pressure Proportioning: Precise foam concentrate mixing (1-6% ratio)
• Dual-Agent Capability: Switch between water-only, foam, or combined operations



2. High-Performance Fire Pump

• Pump Type: Single-stage or two-stage centrifugal fire pump
• Flow Rate: 40-60 L/s (2,400-3,600 L/min) at 1.0 MPa pressure
• Priming System: Automatic or manual vacuum priming

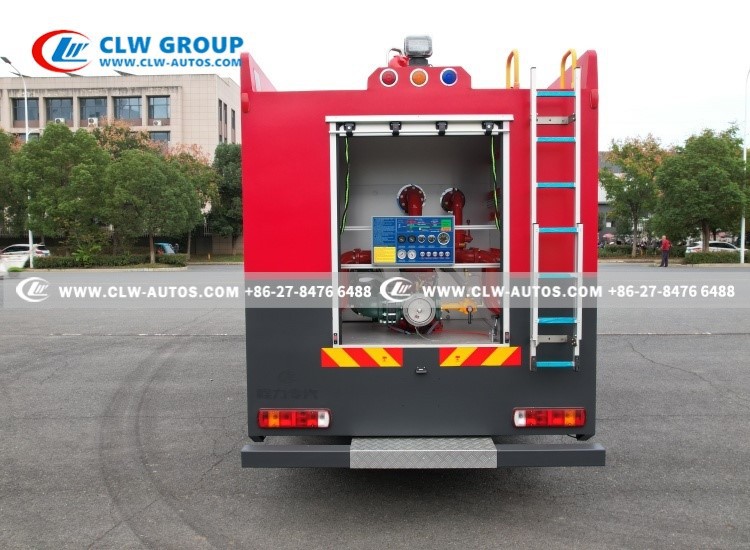

• Pump Configuration: Mid-ship or rear-mount options available
• Multi-Outlet Discharge: Multiple 65mm and 80mm discharges with valves

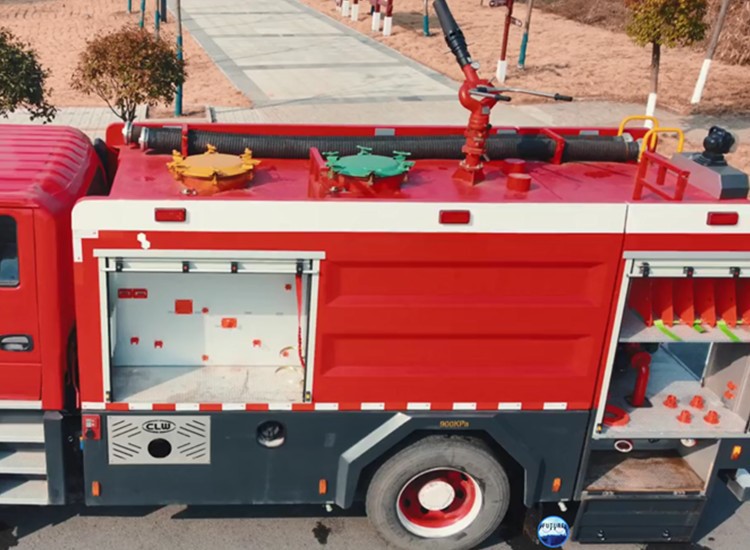

3. Roof-Mounted Fire Monitor

• Monitor Type: Manual or remote-controlled electro-hydraulic
• Flow Capacity: 40-50 L/s (2,400-3,000 L/min)
• Reach: 60-70 meters (water), 50-60 meters (foam)
• Rotation: 360° continuous rotation
• Elevation: -15° to +75° adjustable
• Pattern Control: Straight stream, fog, or combination

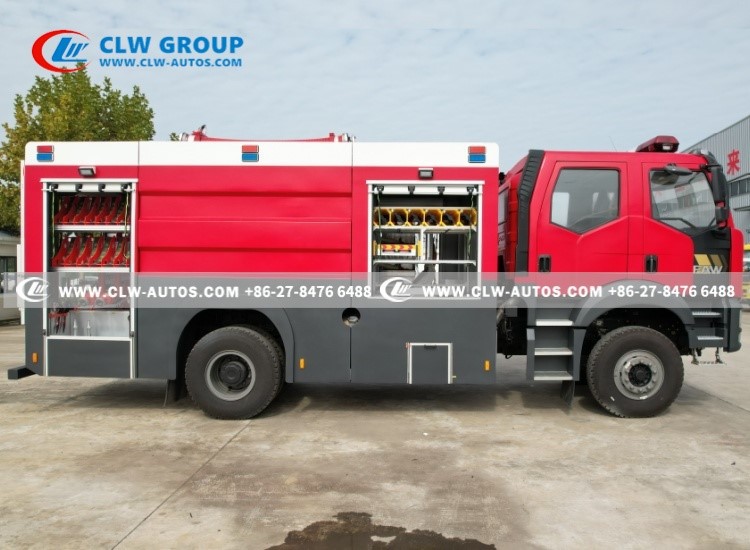

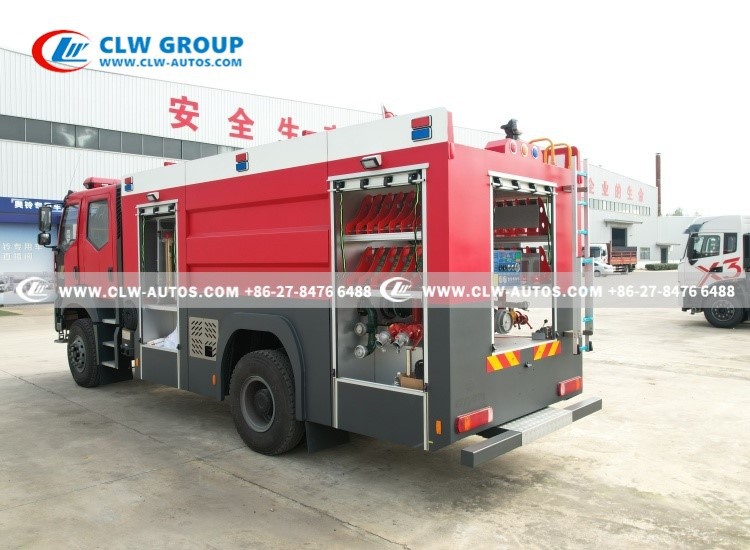

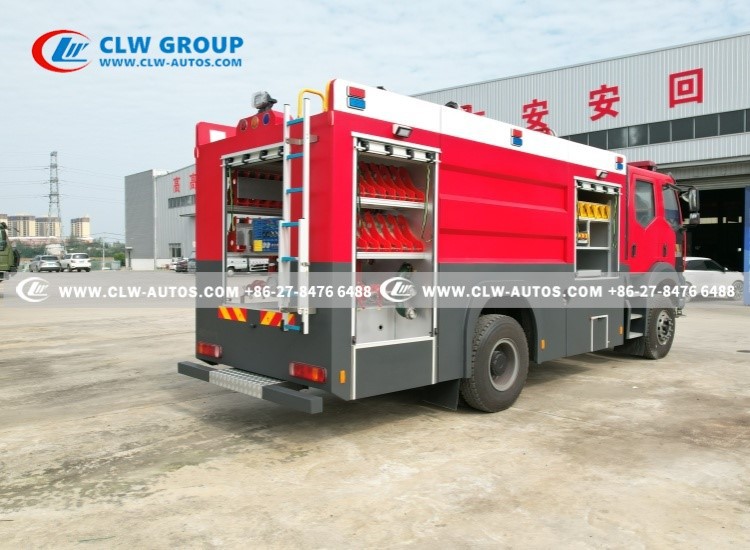

4. Comprehensive Hose & Equipment Storage

Hose Storage: Enclosed compartments for 65mm and 80mm fire hoses

Hose Reels: 2-3 swing-out or roll-out hose trays

Tool Compartments: Lockable storage for nozzles, fittings, and hand tools

Ladder Storage: Roof-mounted or side-mounted ladder racks

Breathing Apparatus: SCBA brackets and storage compartments



5. Reliable FAW J6L Chassis

Engine: 220-280 HP diesel (Euro V/VI compliant)

Drivetrain Options: 4×2 for urban operations, 4×4 for off-road capability

Transmission: 6-8 speed manual or optional automatic

Suspension: Heavy-duty multi-leaf or parabolic springs

Braking System: Dual-circuit air brakes with ABS

Cab Configuration: Crew cab for 6-9 firefighters (including driver)



6. Emergency Response Features

• Emergency Lighting: LED light bar, strobes, and scene lighting
• Audible Warning: Electronic siren with PA system
• High-Visibility Markings: Reflective striping and chevrons
• Night Operations: 360° LED scene lighting
• Communications: Pre-wired for two-way radio installation







Parameter	Specification
Chassis Model	FAW J6L 4×2
Engine Power	280 HP (Diesel, Euro II, V/VI)
Water Tank Capacity	5,000 liters
Foam Tank Capacity	2,000 liters
Total Agent Capacity	7,000 liters
Pump Flow Rate	40-60 L/s (2,400-3,600 L/min)
Pump Pressure	1.0-1.4 MPa
Foam Proportioning	1-6% adjustable
Monitor Flow	40-50 L/s
Monitor Reach (Water)	60-70 meters
Monitor Reach (Foam)	50-60 meters
Hose Storage	200-300 meters total
Crew Capacity	6-9 personnel
Gross Vehicle Weight	18,000 kg



1. Municipal Fire Departments

Urban Fire Response: Structure fires in residential and commercial areas

Industrial Zones: Protection of light industrial facilities

Vehicle Fires: Response to car, truck, and bus fires

Wildland-Urban Interface: Support for brush fire operations



2. Industrial Fire Brigades

Manufacturing Plants: Protection of factory facilities

Warehouse & Storage: Fire suppression for storage buildings

Fuel Depots: Foam capability for flammable liquid fires

Chemical Facilities: Support for hazardous material incidents



3. Airport & Aviation Support

Small Airports: ARFF support for general aviation

Heliports: Fire protection for helicopter operations

Aircraft Ground Support: Response to ground incidents



4. Petrochemical & Energy

Tank Farms: Foam attack for storage tank fires

Refineries: Support for processing facility protection

Pipeline Stations: Fire response at pumping stations



5. Port & Marine Facilities

Dockside Protection: Fire support for port operations

Boat Yards: Response to marine vessel fires

Cargo Handling Areas: Protection of container terminals



6. Rural & Volunteer Fire Departments

Multi-Purpose Response: One truck handles diverse calls

Water Supply: 5,000L capacity for rural water hauling

Brush Fire Support: Capability for wildland fire response





Feature	Benefit
Dual 5,000L/2,000L Tanks	Extended firefighting duration without refilling
Foam Capability	Effective on flammable liquid fires
40-60 L/s Pump	Powerful flow for aggressive attack
Remote-Controlled Monitor	Operator safety during hazardous conditions
Crew Cab Design	Full team arrives together, ready to deploy
FAW J6L Reliability	Proven chassis with low maintenance









Firefighting Capability Analysis


Fire Scenario	Water Only	With Foam
Structure Fire	10-15 minutes attack time	N/A
Vehicle Fire	15-20 vehicles	N/A
Flammable Liquid Spill	Limited effectiveness	200-300 m² coverage
Tank Farm Fire	Ineffective alone	5-10 minutes foam application
Wildland Support	2-3 hours mop-up	N/A
Rural Water Supply	Haul to remote locations	N/A





Target Users:



1. Municipal Fire Departments: City and county fire services
2. Industrial Fire Brigades: Plant and facility protection teams
3. Airport Fire Services: General aviation and heliport protection
4. Petrochemical Facilities: Refinery and tank farm protection
5. Port Authorities: Marine and cargo terminal fire protection
6. Military Fire Departments: Base and installation fire services
7. Volunteer Fire Departments: Rural and community fire protection
8. Mining Operations: Remote site fire response
