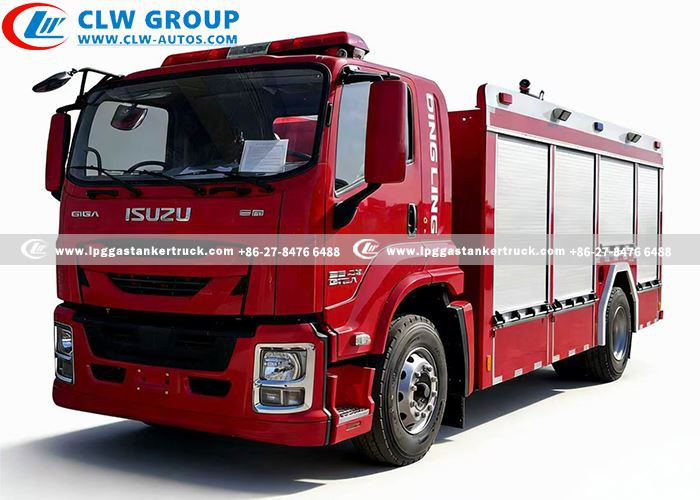

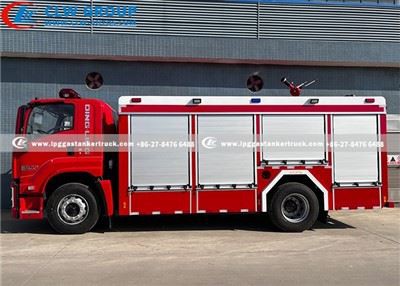

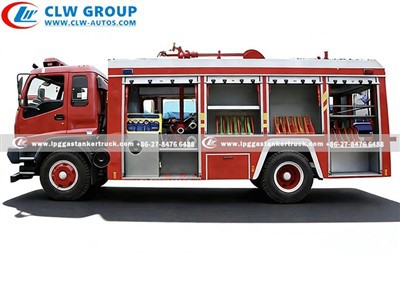

ISUZU 6Tons Foam Fire Truck
ISUZU 4x2 LHD fire trucks
5000L Water + 1000L Foam
4HK1-TCG60 Engine:205HP
CAFS (Compressed Air Foam Systems)
Rated Flow of Fire Pump:10 L/s 4.0MPa
Rated Flow of Fire Monitor:20 L/s - 32 L/s
Fire cannon range: Foam ≥ 50m ; Water ≥ 55m
Each fire extinguishing system is controlled by PLC
Max. Range of Fire Monitor: 60-70 m
Overall size:8870X2530X3600 mm
Full power sandwich type
Water tank: Q235 carbon steel
Foam tank:304 stainless steel
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ISUZU 6Tons Foam Fire Truck in China. If you're going to buy high quality ISUZU 6Tons Foam Fire Truck, welcome to get more information from our factory. For price consultation, contact us.

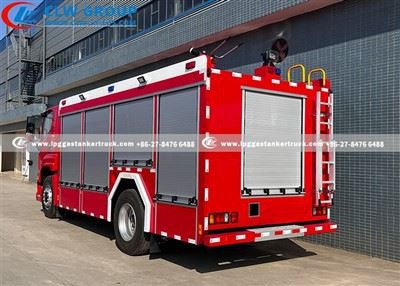

ISUZU 4X2 LHD Foam Water Tank Fire Fighting Truck

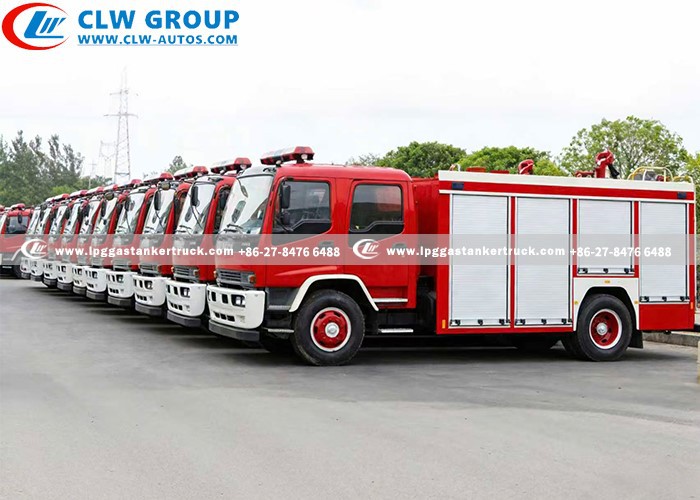

ISUZU 6000L Compressed Air Foam Fire Truck Specialized Vehicle China Factory!
Products Description
Chassis & Powertrain
Built on the robust ISUZU QL1180JQFRY chassis with a GVW of 18,000 kg, this fire truck is powered by a 4HK1-TCG60 engine compliant with Euro VI emission standards. Delivering 150 kW (205 HP), it is paired with a 6-speed FTR manual transmission for reliable performance. The vehicle features a 3-seat, single-row cab with air-suspension seats, power steering, multi-function steering wheel, air conditioning, central locking, and electric windows for enhanced operational comfort.
Safety & Axle Configuration
Equipped with ABS, air-assisted drum brakes on the front wheels, and a spring-loaded parking brake, safety is prioritized. The chassis is supported by a 6.3-ton front axle and a 13-ton rear axle, with a 4,500 mm wheelbase for stability. It rides on six 295/80R22.5 16PR tires plus a full-size spare.

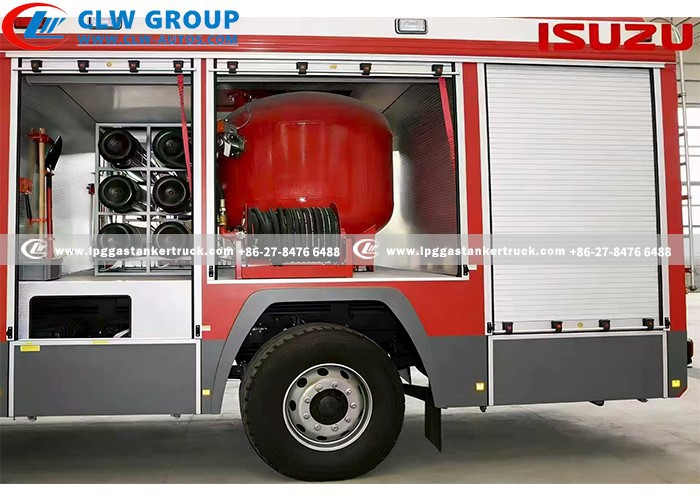

Firefighting Equipment & Tank
The truck carries a 5,000-liter water tank (Q235 carbon steel) and a 1,000-liter foam tank (304 stainless steel), both integrated within the body design. It is outfitted with a CB10/40 rear-mounted Rongshen fire pump (with four DN80 rear-facing outlets) and a Weisite PL32 portable fire monitor. Tank refilling is facilitated by one DN65 and one DN80 inlet on each side-the DN80 inlet located inside the pump compartment and the DN65 externally.
Body & Lighting

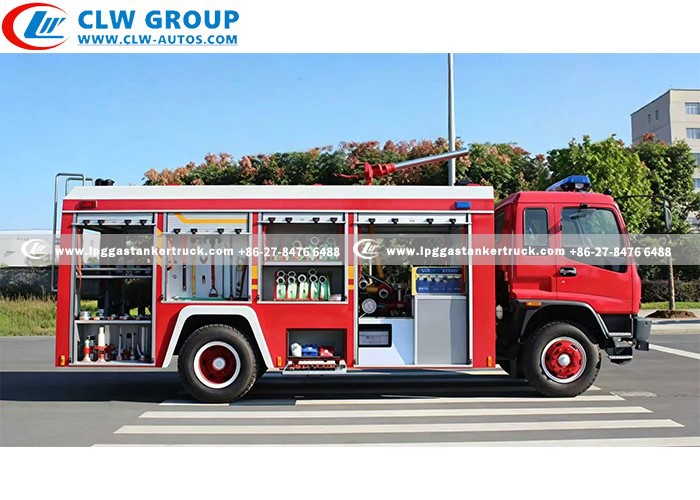

The compact, enclosed body includes eight roll-up doors (four per side) for organized equipment storage. Lighting features include:
Six red/blue warning lights (three per side)
Two red/blue warning lights above the rear roll-up door
Rear work lights and slanted scene lights above compartments
A long-range optical warning light with a voice amplifier (graphic-icon handset, no Chinese text)
Key Vehicle Specifications:
Product Name: ISUZU Water & Foam Fire Fighting Truck
Tank Capacity: 5000L Water Tank+ 1000L Foam Tank
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 4500 mm
Engine: 4HK1-TCG60
Horsepower: 205HP
Transmission: MLD 6-shift
Emission standard: Euro VI, Mechanical type
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 18000 kg
Curb weight: 5600 kg
Loading weight: 12400 kg
Front/Rear Axle loading: 6.3t / 13t
Tires: 295/80R22.5 16PR, 6 pcs with one spare
PTO: Full power sandwich type
Related Operational Video
The Main Application
- Fully enclosed (internal) tank design
- Long-range light bar with graphic-icon PA handset
- Strobe warning lights
- Rear work/scene lighting
- Standard fire-red paint
- Single-row cab configuration
- On-board firefighting equipment (as per equipment list)
- Four roll-up compartment doors on each side
- Exterior finished in fire-service red

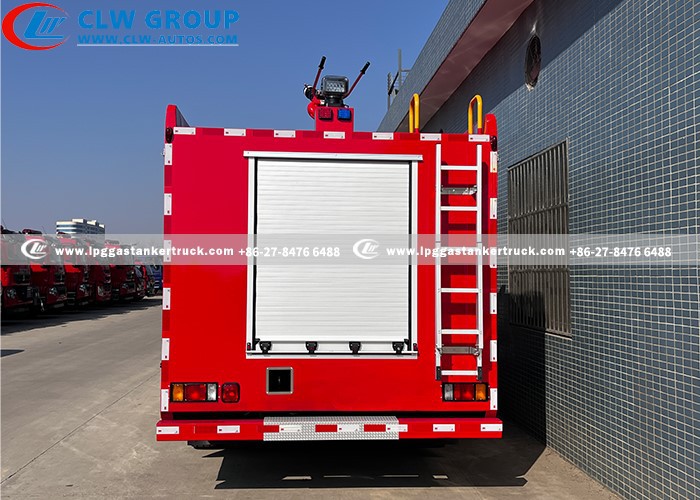

- Rear access ladder: two-section aluminum flip ladder, deployed height ≤350mm from ground.
- Boarding handles: anti-slip grooved steel pipe, powder-coated finish.
- Ladder Rack: A multi-functional two-section ladder rack installed on the roof of the chassis, capable of storing two-section ladders, attic ladders, and hook ladders.
- Roof Rail：Constructed entirely from aluminum alloy, fitted with exterior strobe warning lights and scene lights, and equipped with interior LED roof lighting.
Products Parameters
|
Water Tank |
|
|
Tank Volume |
5000kg / 5000L / 5Tons / 1321Gallon |
|
Tank Material |
Q235 Carbon steel |
|
Foam Tank |
|
|
Tank Volume |
1000kg / 1000L / 1Tons / 264 Gallon |
|
Tank Material |
304 Stainless steel |
|
Fire Pump
|
Model: CB10/40 Post-mounted fire pump Rated flow: 10 L/s Outlet rated pressure: 4.0MPa Maximum suction depth:7m Rear-mounted pump with rear controls for easy firefighter access and hose connection. |
|
Fire Monitor
|
Model: Wister PL32 Slewing angle: 360°Horizontal rotation Max Dep. ≤ -15°,Max Elev. ≥ +60° Rated flow: 20 L/s - 32 L/s Shoot Range:≥50m Function: It can achieve direct current spraying, spray spraying, and foam spraying. |
|
Accessory Equipment Configuration (Standard Equipment) |
||
|
NO |
Item |
Unit |
|
1 |
Water Suction Pipe (screw-type Ø 150 mm, length: 4 m) |
2 PC |
|
2 |
Water strainer (screw-type Ø 150) |
1 PC |
|
3 |

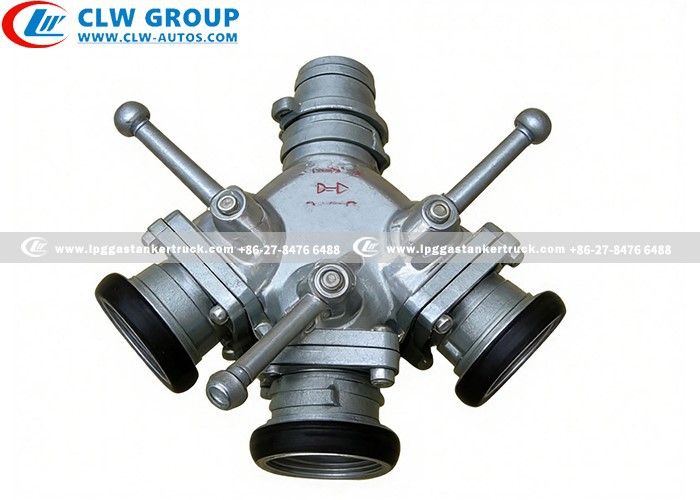

Water segregator (Snap-on type Ø 80-65-65 mm) |
1 PC |
|
4 |

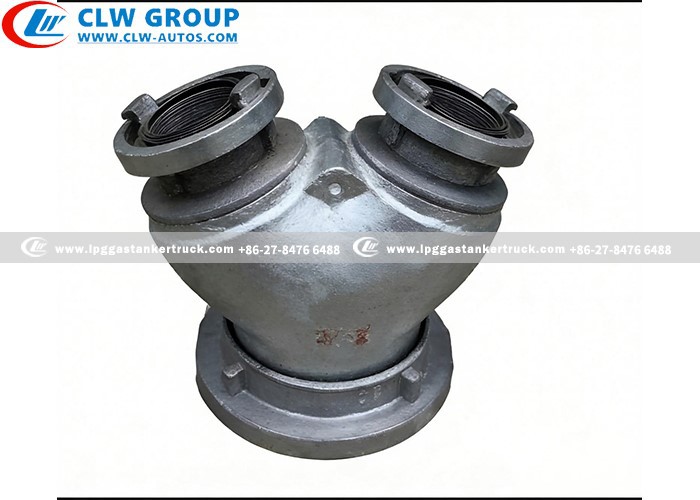

Water collector (Snap-on type Ø 150-65-65 mm) |
1 PC |
|
5 |

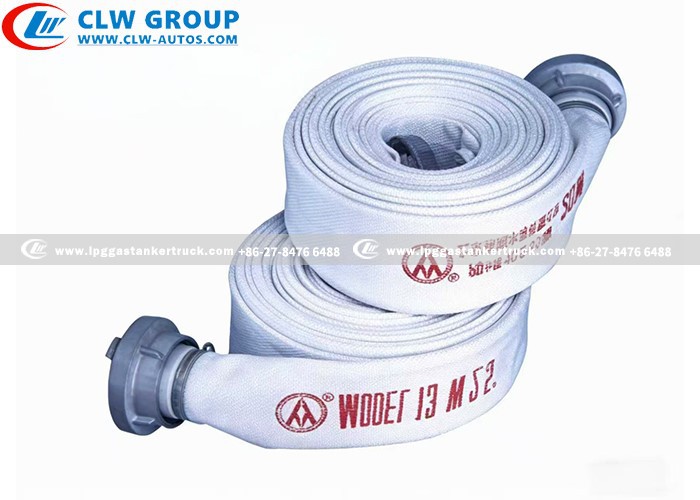

Soft-wall fire hose (Snap-on type Ø 65 mm, length: 20 m) |
6 SET |
|
6 |
Soft-wall fire hose (Snap-on type Ø 80 mm, length: 20 m) |
6 SET |
|
7 |
Fast conversion joint (80X65 mm) |
2 PC |
|
8 |
Hose protector(DT-SB) |
4 PC |
|
9 |

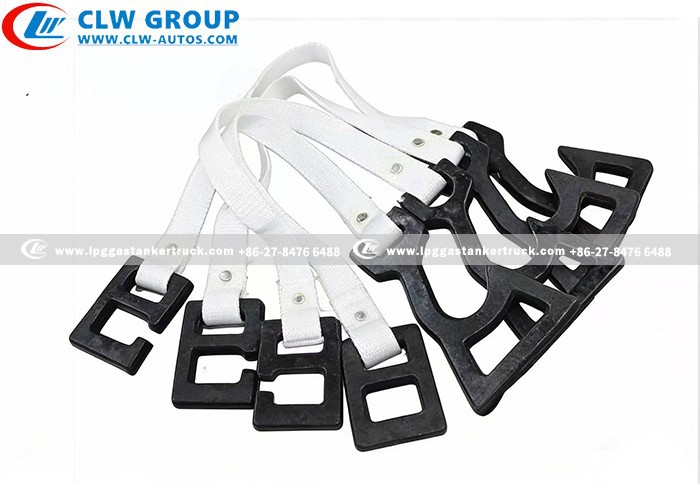

Hose Hoist |
4 PC |
|
10 |
Ground Hydrant-wrench (Length: 400) |
1 PC |
|
11 |
Underground Hydrant-wrench (Length: 860) |
1 PC |
|
12 |
Suction Wrench (FS100) |
2 PC |
|
13 |

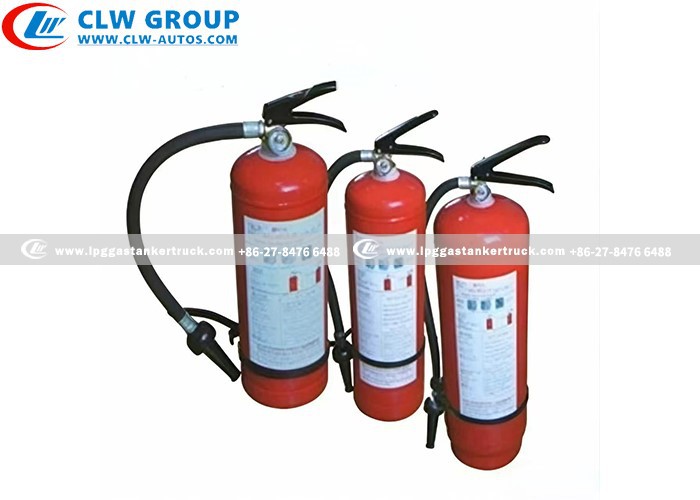

Dry Powder Extinguisher (3kg) |
1 PC |
|
14 |

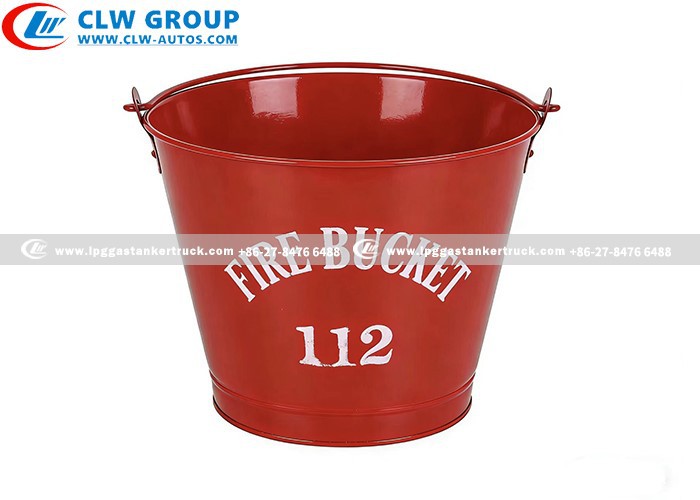

Fire Fighting Barrel |
1 PC |
|
15 |

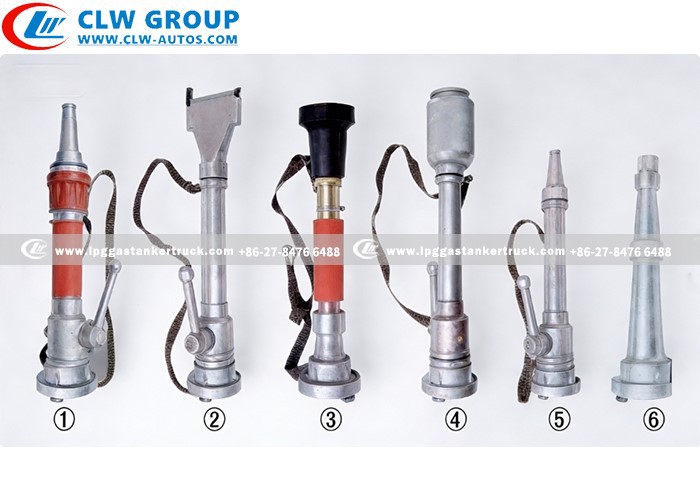

Straight flow switch water gun (Snap-on type Ø 65 mm) |
1 PC |
|
16 |
Multi-purpose switch water gun (Snap-on type Ø 65 mm) |
1 PC |
|
17 |

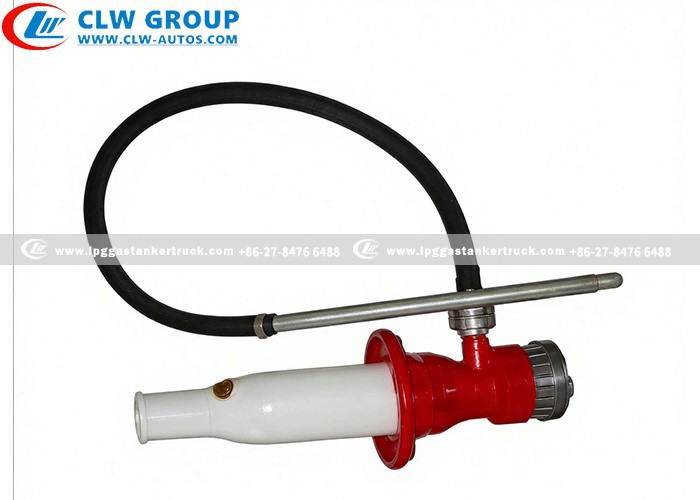

Foam nozzle(PQ4/0.7Z) |
1 PC |
|
18 |
Foam suction tube(40*2700) |
1 PC |
|
19 |

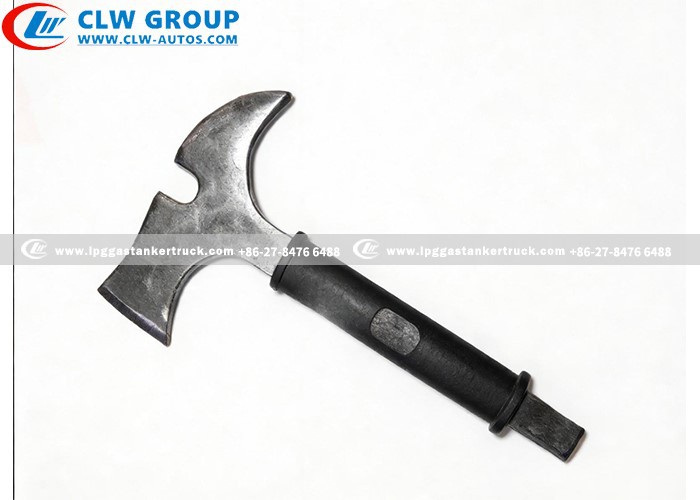

Fire Fighting Axe (Length: 390) |
1 PC |
|
20 |
Rubber hammer |
1 PC |
|
21 |
Rechargeable portable lighting lamp |
1 PC |
|
22 |
4M Aluminum Ladder (Optional 10M Aluminum Ladder) |
1 PC |
Reference Picture
vehicle advantages

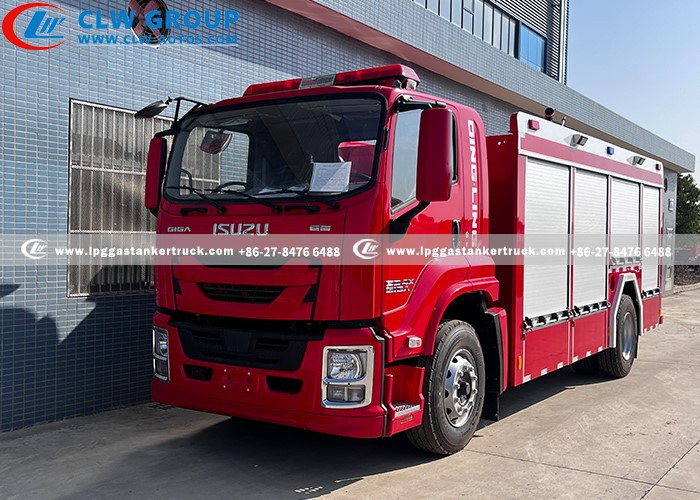

ISUZU Giga 4X2 LHD Euro VI 205HP Foam Tank Fire Fighter 6000liters Water Tank Fire Engine!

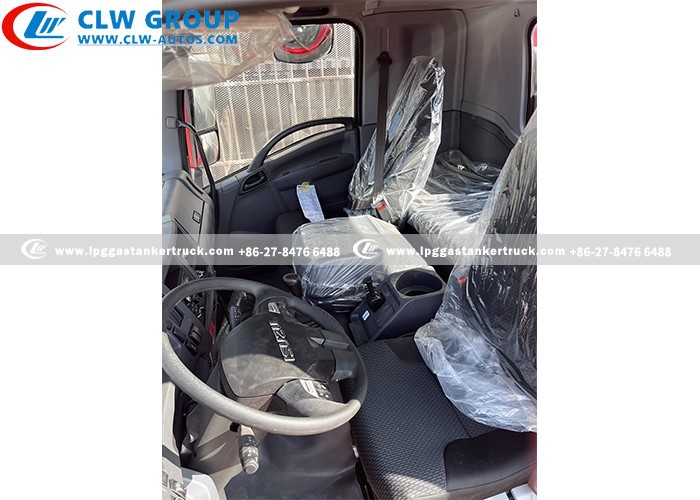

ISUZU GIGA Cabin
Single and half cabin
3 seats + 1 sleeper
Air-suspension driver's seat
Air conditioning, power steering
Multi-function steering wheel
Central locking, electric windows
PLC control system
Each fire extinguishing system is controlled by PLC
Different standardized control modules can be selected
Using high-grade panels, it is both elegant and stylish.
The operation is very convenient.

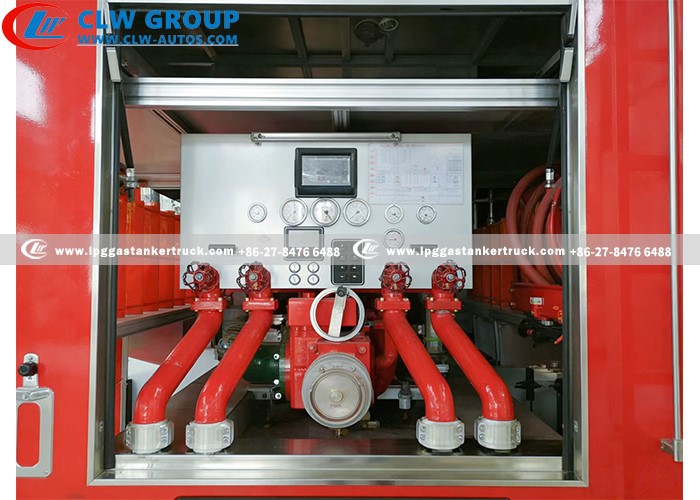

Control in the pump room
Main power switch of the upper part,
Parameter display, status display

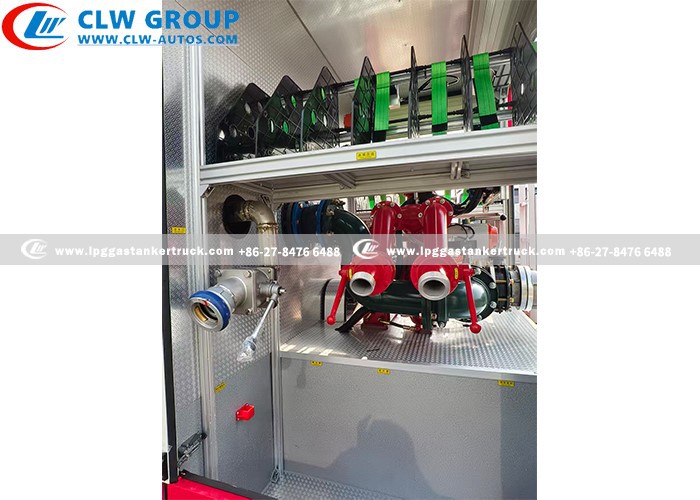

Pipeline System
Pipe material: High-quality seamless steel pipe
American-style fire couplings
One DN65 and one DN80 filling inlet on each side of the tank
The DN80 inlet is inside the pump compartment
The DN65 is outside
Fully enclosed (internal) tank design
Separate tanks for water and foam concentrate
Two manholes DN460, for water tank and foam tank
Two-section ladder frame is set on the top
Aluminum alloy roof guard

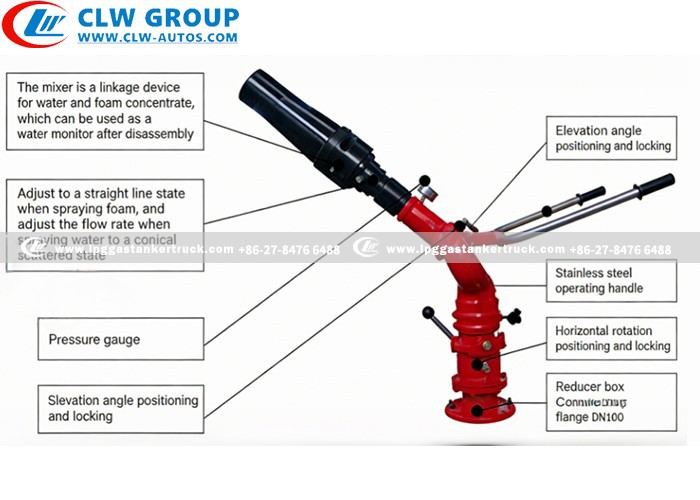

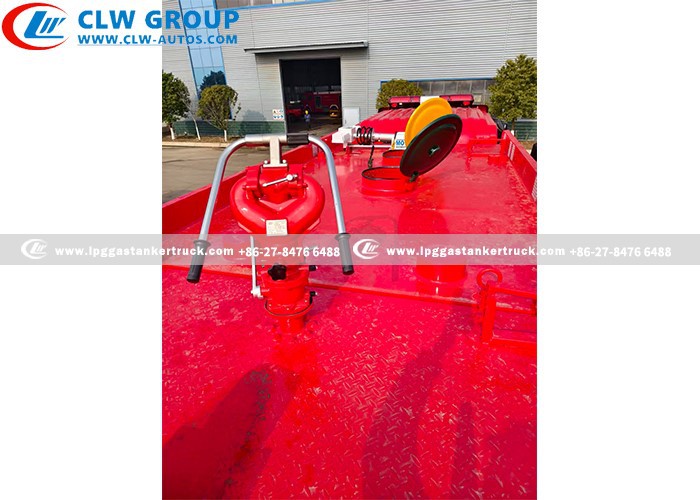

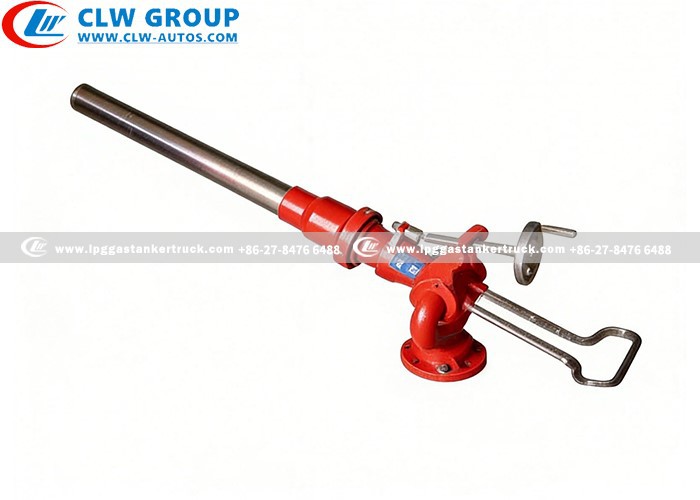

Fire Monitor/Deck Gun
Wester PL32 Fire Cannon
Range: Foam ≥ 50m Water ≥ 55m
Features 360-degree horizontal and vertical rotation
Long-range projection with concentrated water stream
Capable of delivering both straight stream and water fog.
Lighting electrical system
Strobe warning lights
Rear scene/work lights
Long-range light bar with PA system
Side: 3 red/blue strobes each left and right sides.
Front/Rear: Slanted scene lights on roll-up doors
Rear door: 2 additional red/blue strobes
The lighting power system is well-structured & user-friendly
It features LED headlights

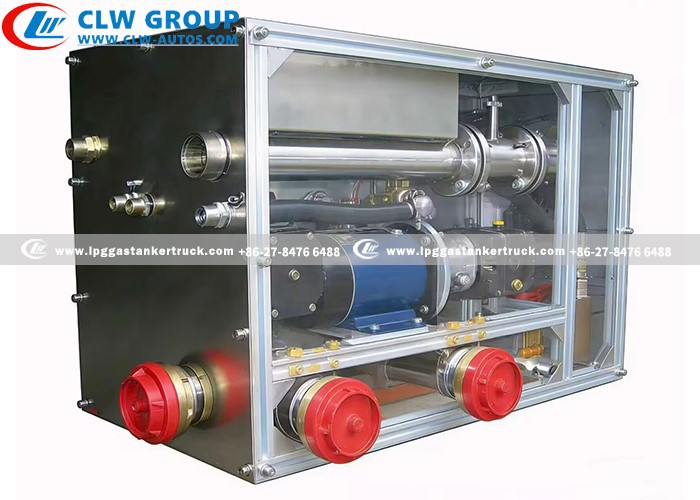

CAFS system Equipped
Drastically cuts water usage
Enhanced Dispersion: Improves foam and water distribution
Reduced Runoff: Minimizes environmental
Use balanced pressure proportioning to mix foam
concentrate with water at precise ratios.
foam Concentrate tank
1 Ton Foam, 304 stainless steel
Enhanced Foam Application
Foam creates a blanket over flammable liquid fuels human Sealing in vapors and providing cooling for deep-seated fires
Application
ISUZU 6 wheels water fire truck has a wide range of application!
Petrochemical and Oil Depots
Ideal for Class B liquid fuel fires.

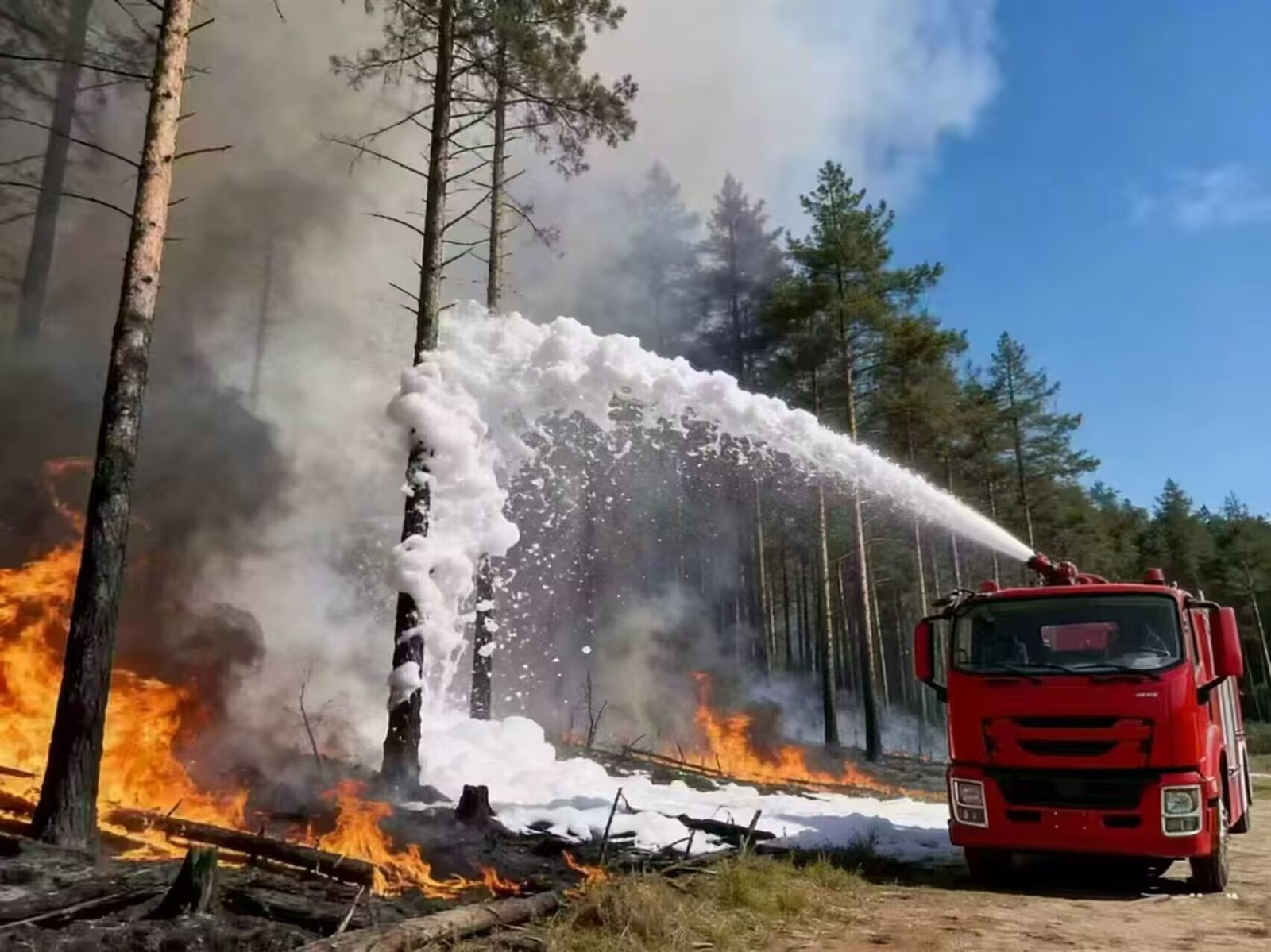

Forestry Department
Applicable to forest fires.

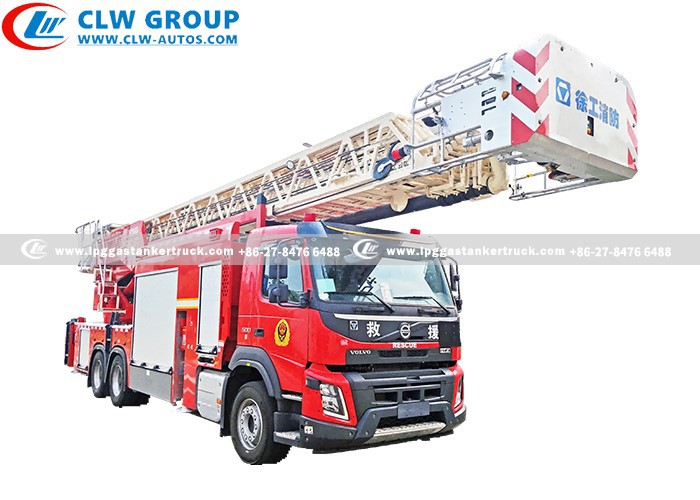

Aircraft Rescue
Specialized high-reach boom trucks.
Civil Buildings
Suitable for large-scale structural fires.

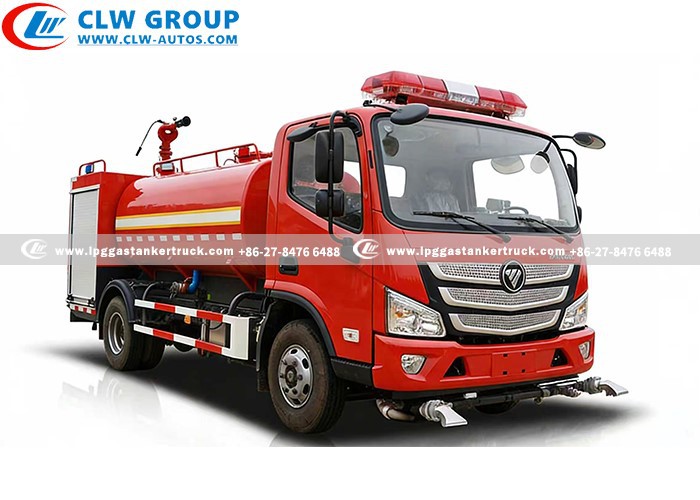

Fire fighting trucks types
Isuzu fire truck category provides a diversified fleet,designed for various emergency situations
and can adapt to different operating scales, with load capacities ranging from 3 tons to 50 tons.
