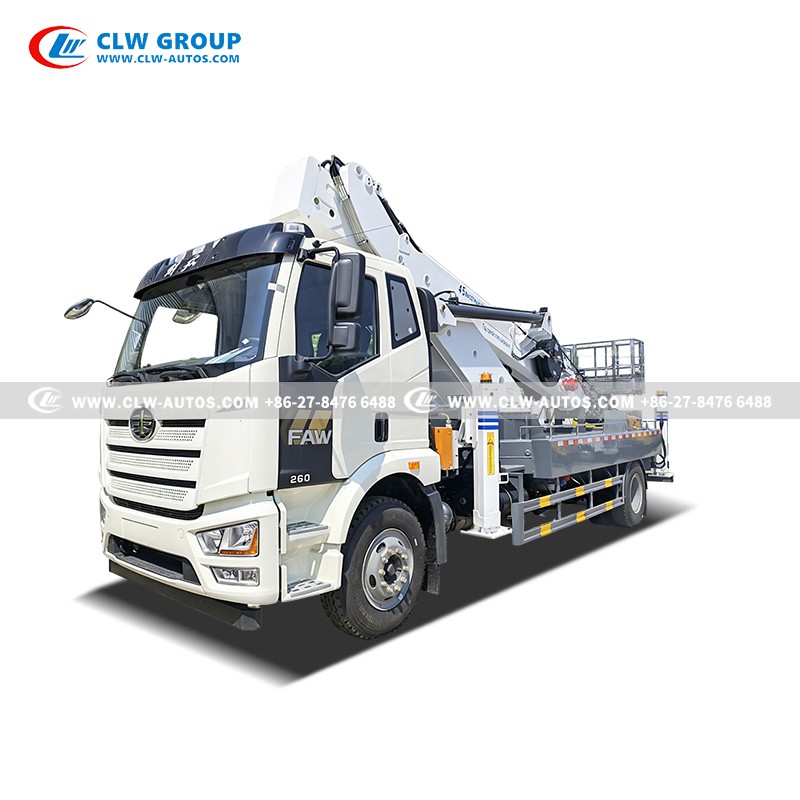

FAW 45m Straight Boom Aerial Lift Truck
FAW 260HP with EAC Certified
45m Straight boom
Platform Load Capacity:200kg
Slewing Angle: 360° Continuous Rotation
Outrigger Type:Front V-type & Rear V-type
Euro VI Emission
8-speed Manual
Overall size (L×W×H): 9810x2550x4060mm
7-section telescopic boom
Max. Working Height: 45 m
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of FAW 45m Straight Boom Aerial Lift Truck in China. If you're going to buy high quality FAW 45m Straight Boom Aerial Lift Truck, welcome to get more information from our factory. For price consultation, contact us.
FAW 45m Telesopic Boom Lift Truck
4X2 260HP 45m Telescopic Boom Aerial Work Platform Truck For Power Grid Repairs!
Products Description
According to the customer's usage requirements, we have different height aerial work trucks to choose from, such as 5-10 meters, 11-20 meters, 21-30 meters, 31-40 meters, and those above 40 meters. Aerial work vehicles are widely used in industries like street lighting, landscaping, power, petrochemicals, and communications, and are suitable for various scenarios that require high-altitude operations.
1. Robust Structure & Premium Materials
The aerial work platform truck features a fully upgraded exterior and boom structure fabricated from high-strength 960 steel. This premium material delivers an optimized balance of reduced dead weight and exceptional durability. Coupled with meticulous craftsmanship and attention to detail, the entire vehicle ensures long-lasting, reliable performance even under the most demanding workplace conditions.
2. Versatile Operation & Platform Utility
Engineered to maximize on-site productivity, the high-strength working platform can be equipped with an optional 220V mains power interface. This allow operators to power daily electrical tools directly from the basket, eliminating any dependency on external site power infrastructure. Additionally, the system supports versatile wireless remote control operation, offering operators optimal visibility and flexibility from the best vantage points.
3. Advanced CAN Bus Control & Triple Operation Zones
The vehicle integrates a streamlined CAN bus electrical control architecture, ensuring clean wiring layouts and highly reliable data transmission. To adapt to diverse operational needs, it provides a triple-zone control system. Operators can effortlessly maneuver the vehicle directly from the platform basket, from the ground via a wired console, or via wireless remote controls, significantly improving overall field efficiency.
4. Intelligent Safety Systems & Real-Time Monitoring
Safety is paramount with our intelligent computerized control system, which features automatic envelope limiting and hazardous operation alarms. The lower chassis is equipped with an integrated LCD display that provides real-time readouts of the vehicle's working conditions. Furthermore, the standard "Soft-Leg" protection system automatically restricts any hazardous boom movements if the outriggers detect uneven or unstable ground contact, guaranteeing maximum crew safety.
Key Vehicle Specifications:
Product Name: FAW 4x2 Aerial Work Platform Truck
Application: High-rise exterior maintenance
Telescopic Boom: 45m
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 5300 mm
Engine: CA6DH1-26E65
Horsepower: 260HP
Emission standard: Euro VI
Gearbox: 8 Forwards and 2 reverse
Gross Vehicle Weight: 18000 kg
Front/Rear Axle loading: 6500kg /11500kg
Tires: 10.00R20 , 6 pcs with one spare tire
Related Operational Video

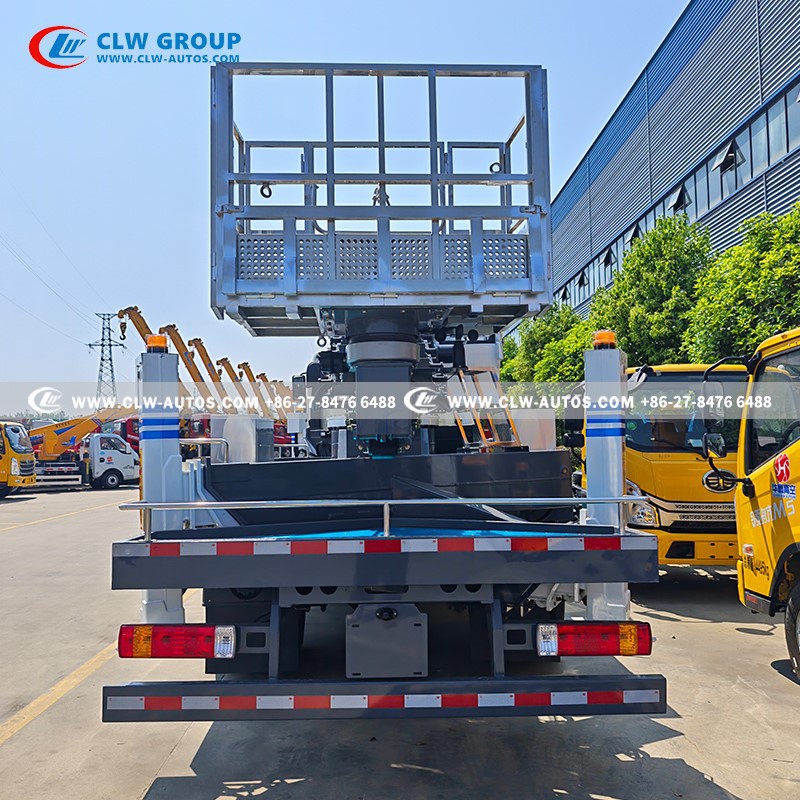

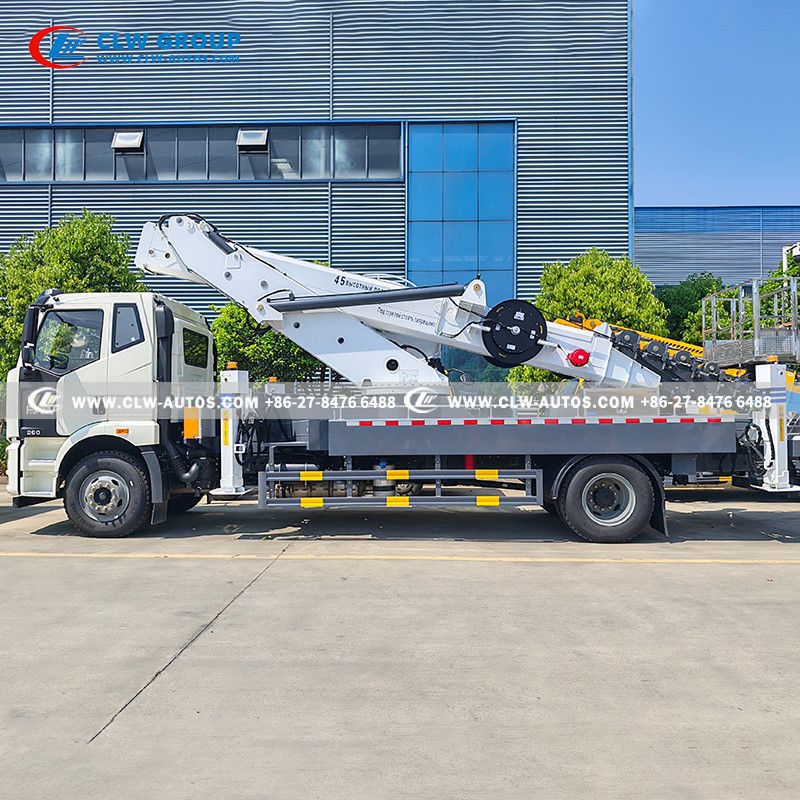

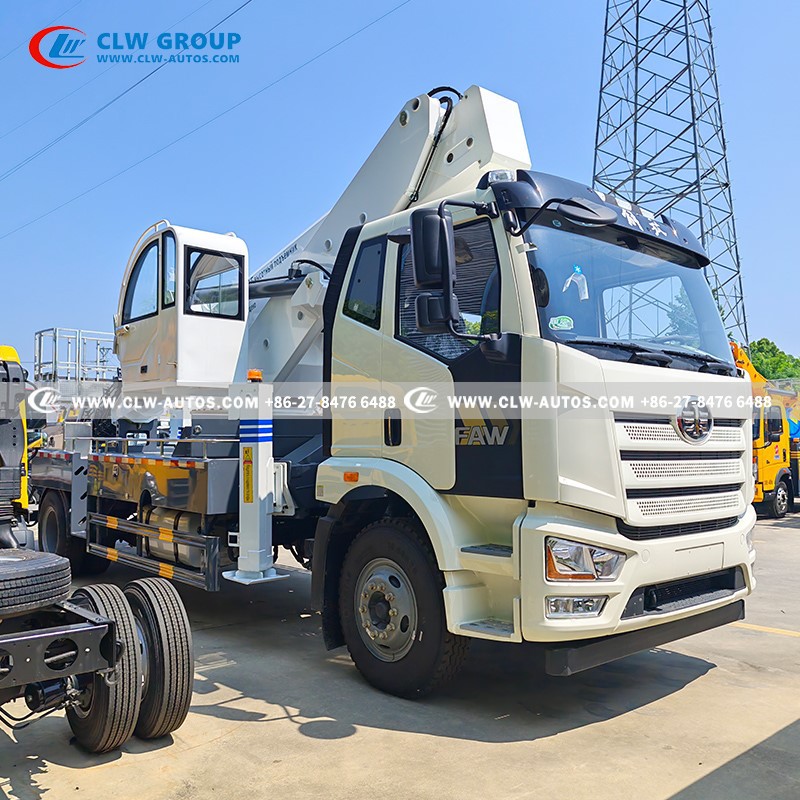

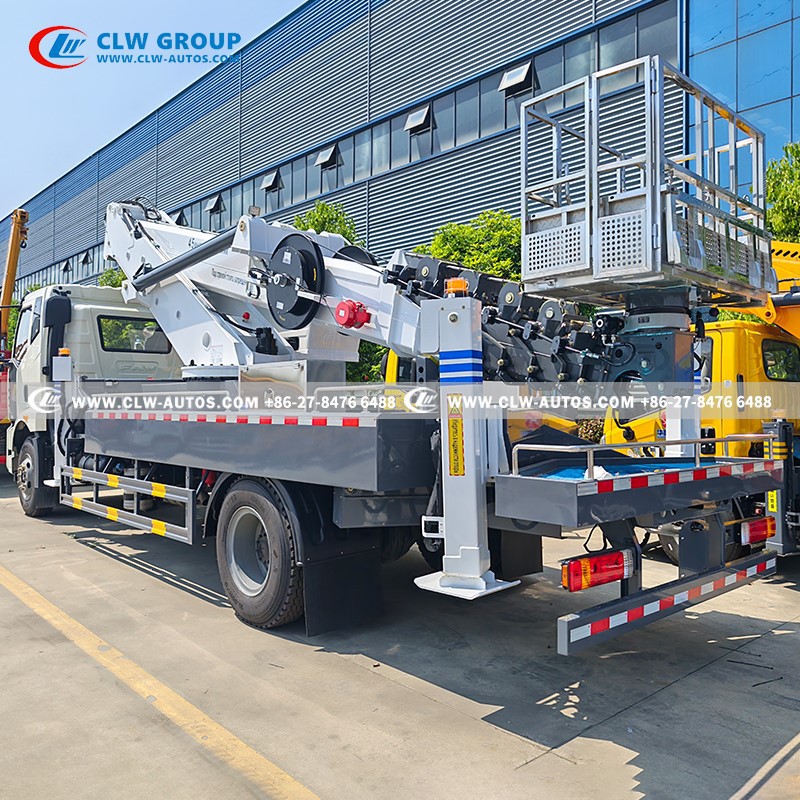

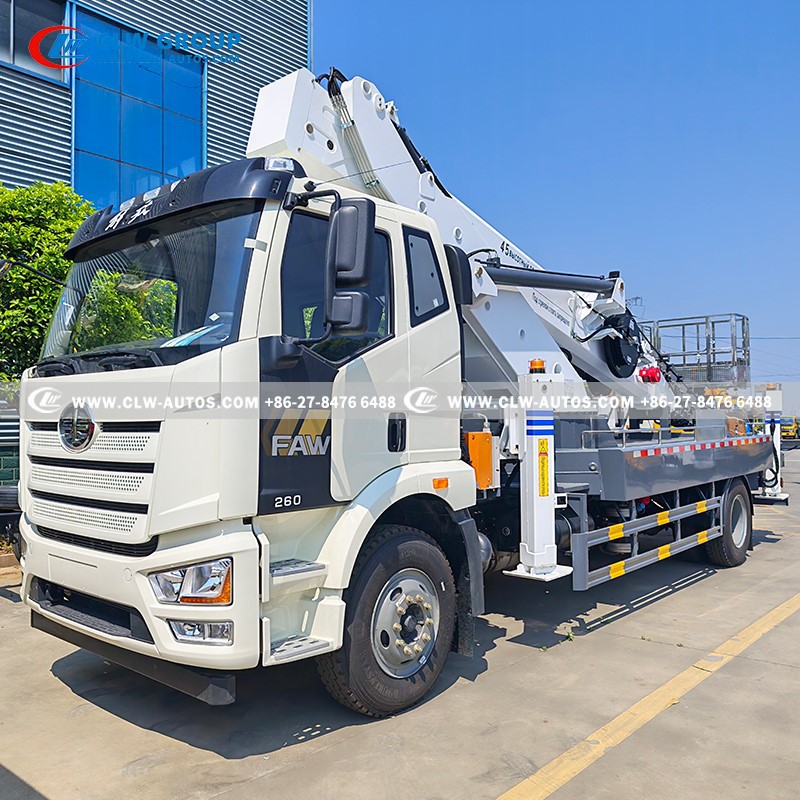

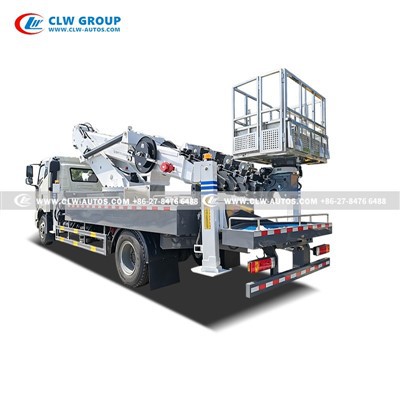

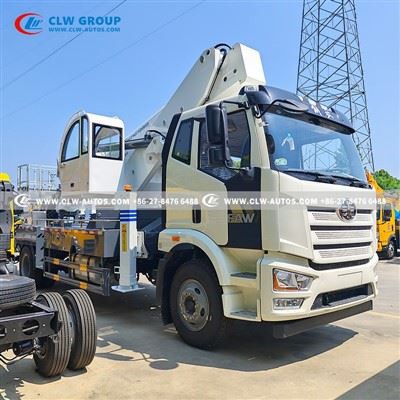

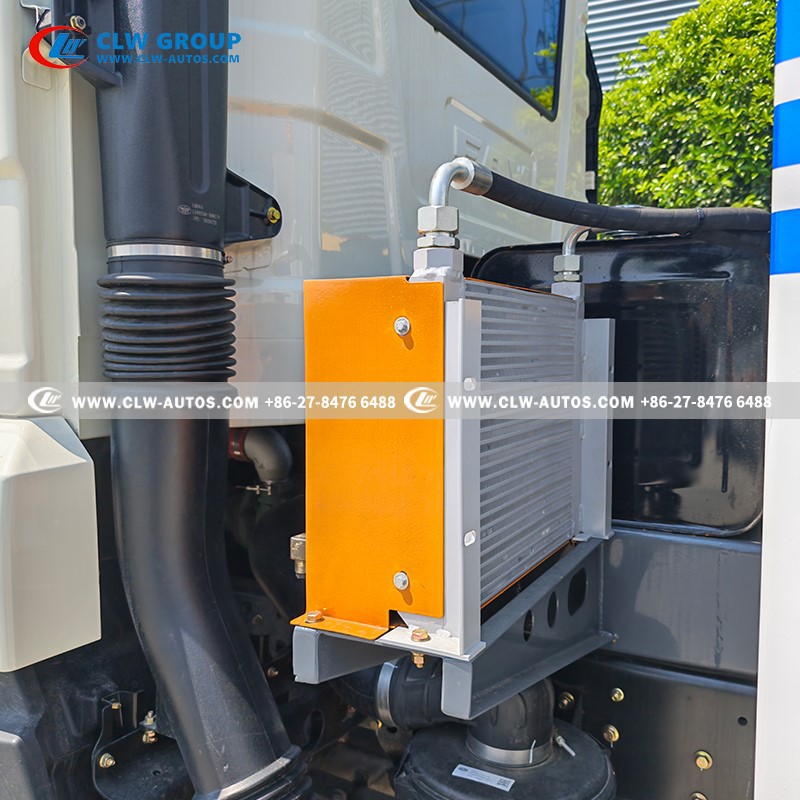

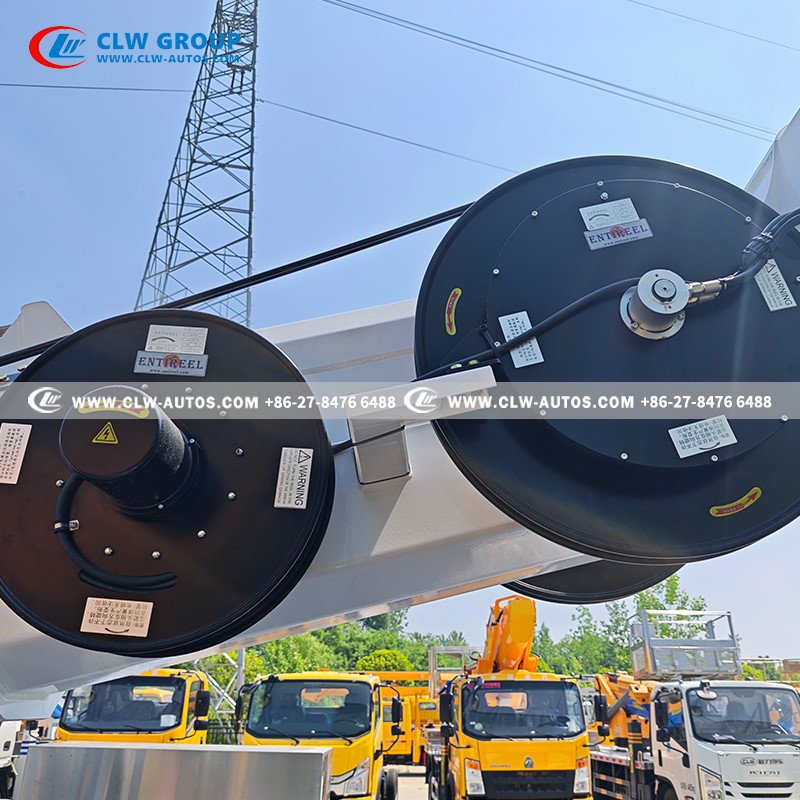

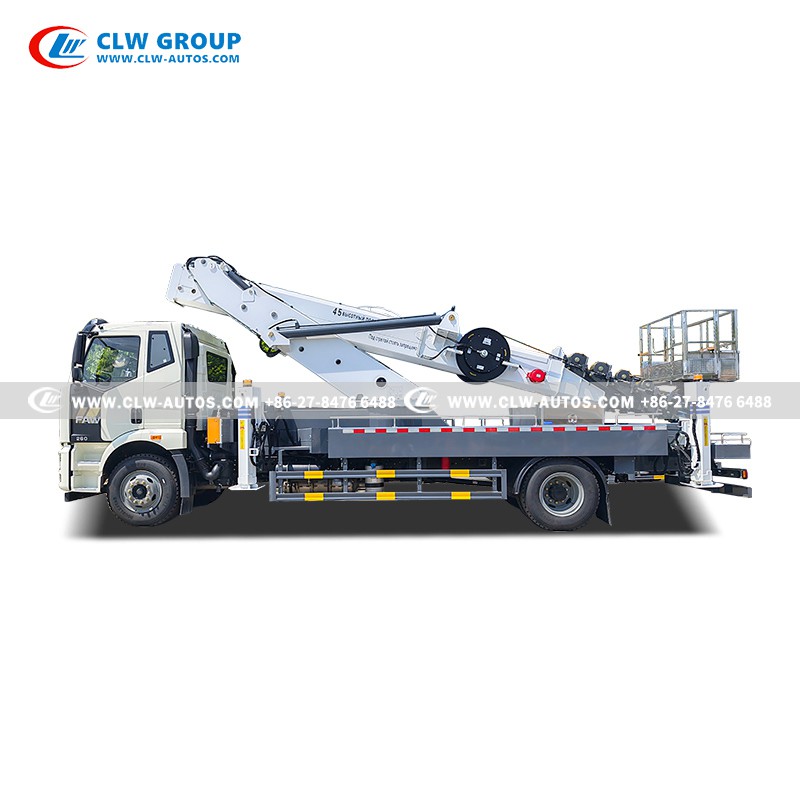

Product Pictures
Products Parameters
|
Working Bucket |
|
|
Max.work height |
45 meters |
|
Dimensions |
20000 x 700 x 1000 mm |
|
Bucket material |
High-strength aluminum alloy,anti-slip floor |
|
Rated Load Capacity |
200 kg |
|
Operator Capacity |
2 Persons |
|
Slewing Angle |
360° Hydraulic Rotatio |
|
Hoardings and walkways |
Aluminum plate |
|
Straight Boom |
|
|
Number of Boom Sections |
1 Main Arm + 5 Telescopic Arms |
|
Max Horizontal Reach |
Approx. 20 m |
|
Boom Material |
High-strength Steel |
|
Driving Method |
By hydraulic drive |
|
Boom Lift Time (Full Extend) |
≤150 s |
|
Outtriggers |
|
|
Outtriggers Type |
Front V + rear V outrigger (Four Independent Outriggers) |
|
Outtriggers span |
Front 8200mm / Back 8900mm |
|
Adjustment |
Individual & Automatic Leveling |
|
Supporting leg Control mode |
Manual hydraulic operation |
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
|

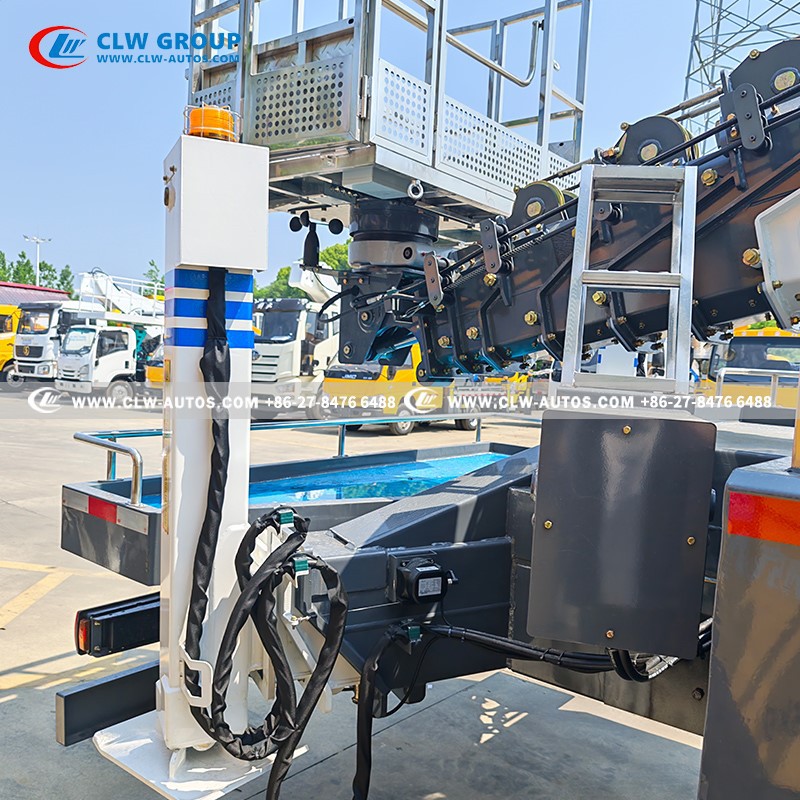

Strobe light on legs |
LED Amber Strobe |
| Hydraulic control system | |
| Control system | CAN bus control system, equipped with a wireless remote controller, enabling stepless speed adjustment |
| Operation | Electrical control operation, with an additional manual emergency operation available. |
| Leveling system | automatic leveling |
| Power system | mechanical operation |
Products Description
our Truck Advantage
Factory-fitted with bilingual safety placards and synchronized metric control interfaces.
Exceptional Reach & Platform Capability
45-Meter Working Reach: Delivers an outstanding maximum vertical working height of up to 45 meters for high-altitude tasks.
Heavy-Duty Basket Payload: Supports a rated load capacity of 200 kg, safely accommodating up to 3 operators simultaneously.
360° Basket Rotation: Equipped with an independent 360-degree rotating mechanism to ensure flexible positioning at the work face.
Lightweight Stainless Steel Design: Constructed from premium stainless steel, reducing structural deadweight while preventing rust and damage.
Intelligent Overload Protection: Integrates a high-precision weight sensor that monitors payloads in real-time to prevent overloading hazards.
Advanced Boom & Chassis Engineering
High-Strength Steel Structure: Fabricated entirely from ultra-high-strength steel plates, ensuring low deadweight, high toughness, and maximum reliability.
7-Section Wire Rope Telescopic Mechanism: Utilizes an industry-leading 7-section synchronized extension system for smoother and more stable lifting.
Polygonal Compact Boom: The polygonal cross-section design optimizes structural rigidity and expands the lateral working radius.
Accessible External Maintenance: Features externally mounted telescopic cylinders and wire rope blocks, making fault detection and maintenance easy.
Premium Euro VI Chassis: Built on a compliant Euro VI (National VI) chassis featuring power steering and an air-conditioned cabin for driver comfort.
State-of-the-Art Proportional Hydraulics & Electronics
Electro-Hydraulic Proportional Valves: Equipped with advanced electro-hydraulic proportional valve banks for micro-positioning and jerky-free movements.
Integrated CAN Bus Architecture: Uses a centralized CAN bus network to manage all electronic signals, significantly reducing complex wiring.
World-Class Component Sourcing: Key components like load-sensing valves and counterbalance valves are sourced from top global manufacturers.

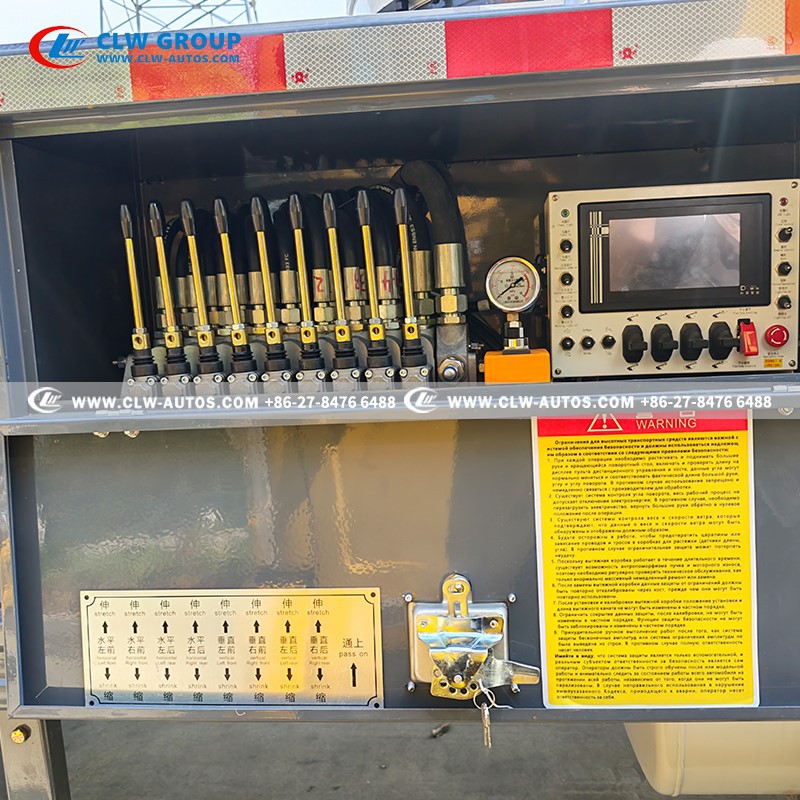

5-Inch Ground LCD Display: Features a weatherproof 5-inch screen on the lower chassis for real-time monitoring of operational data.
Comprehensive Telemetry Readouts: Provides instant digital readouts of current boom length, elevation angle, platform height, and working altitude.
Intelligent Multi-Zone Controls
Streamlined Wiring Layout: The CAN bus infrastructure ensures neat, organized, and simplified electrical circuits that lower failure rates.

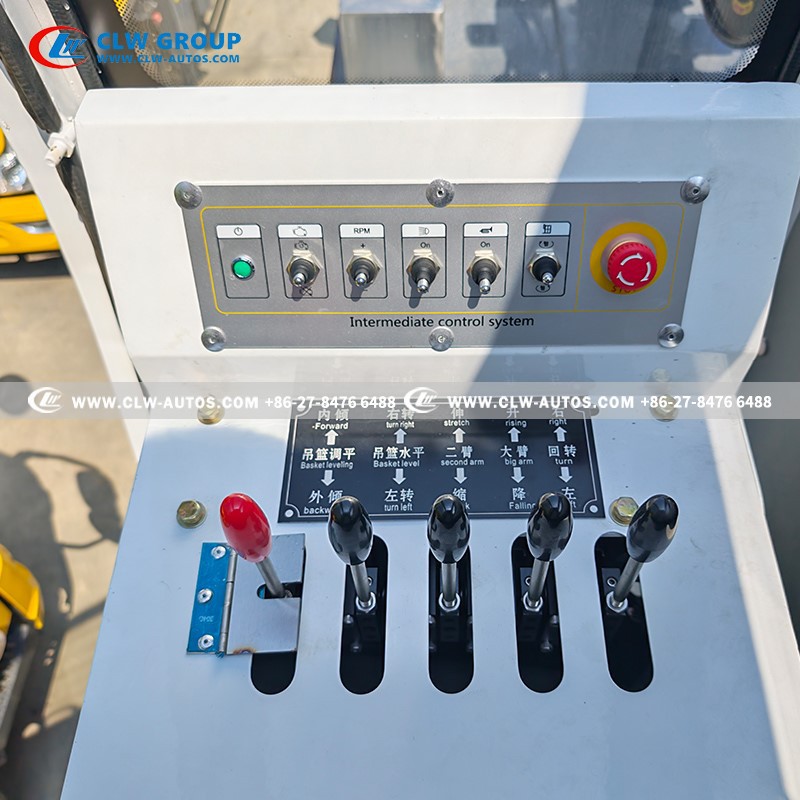

Primary On-Vehicle Control: Features a localized computer control console mounted directly on the vehicle superstructure.
Long-Range Wireless Remote: Includes a standard wireless remote control handset, allowing operators to maneuver safely from the ground.
Optional In-Basket Control: Can be equipped with an optional control station inside the platform basket for independent high-altitude operation.
High-Efficiency Redundancy: The multi-position control design maximizes operational safety, coordination, and on-site work efficiency.
Operation Safety Guide
The operation safety guide can ensure safety during work and the lifespan of the vehicle.
Pre-Operation Inspection & Ground Setup
Thorough Pre-Check: Conduct a meticulous inspection prior to operation to confirm that the vehicle and all systems are completely fault-free.
Firm & Level Ground: Park the vehicle strictly on a flat, solid, and level road surface; operation on slopes exceeding 5 degrees is strictly prohibited.
Mandatory Outrigger Deployment: It is strictly forbidden to perform any aerial work without fully extending and setting the outriggers first.
No Outrigger Adjustment Under Load: Never attempt to adjust or level the outriggers while the operation is in progress or when personnel are inside the basket.
Operational Safety Constraints
PTO Driving Restriction: It is strictly prohibited to engage or drive the hydraulic oil pump during road travel; ensure the Power Take-Off (PTO) is turned off when driving.
Stationed Operator Requirement: When the vehicle is in operation and the engine is running at high speed, the designated operator must remain at the control station and is strictly forbidden to leave.
No Vehicle Movement: The truck chassis must never be moved or shifted once the upper working boom has started any movement.
Strict High-Voltage Ban: Live-line work near high-voltage power grids or environments is strictly prohibited.
Safe Lifting Envelopes: Operation beyond the vehicle's safe automated cutting or maximum horizontal outreach limits is strictly forbidden.
Personnel Safety & Environmental Awareness
Mandatory PPE: All high-altitude operators must properly wear approved safety helmets and secure their safety harnesses before ascending.
Boom Standing Restriction: It is strictly forbidden for any personnel to stand on or climb onto the telescopic boom while the vehicle is working.
Wind Speed Limit: Cease all aerial operations immediately if ambient wind speeds exceed Level 5 (approx. 8–10.7 m/s).
Interference Avoidance: Operators must maintain constant visual awareness of their surroundings to observe and actively avoid surrounding obstacles or hazards.
No Lower Valve Interruption: When the working boom is in motion, manipulating the lower chassis multi-way directional valves is strictly prohibited.
Periodic Maintenance & Fastener Checks
Main Boom Wire Rope Inspection: Regularly reinspect the screw interfaces and clamps of the main boom steel wire ropes, and tighten them immediately if any loosening is detected.
Slewing Bearing Bolt Verification: Periodically check the connecting nuts of the slewing ring and bearing assembly, ensuring any loose nuts are torqued timely.
U-Bolt Tightness Maintenance: Conduct routine checks on the chassis U-bolts (riding bolts), ensuring they remain securely tightened to preserve structural integrity.
