ISUZU 100P 21Meters Bucket Truck

Drive Type: 4x2
Wheelbase: 3360mm
Engine Power: 120hp
Max. Height: 21meters
With 200kg high altitude basket
Exported to Russia

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 100p 21meters bucket truck in China. If you're going to buy high quality isuzu 100p 21meters bucket truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU 4X2 100P 21Meters Aerial Work Platform Truck - Exported To Russia

Products Description

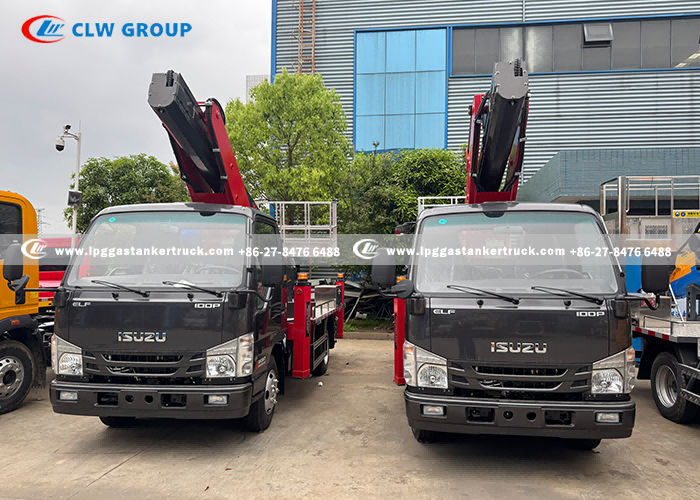

8ISUZU 100P 21meters Aerial Work Platform Truck

Isuzu 100P 21m aerial work truck stands out in the Russian market for its robust reliability, strong adaptability, and cost‑effectiveness. Built on the durable Isuzu 100P chassis, it is powered by a proven diesel engine that delivers stable power, excellent fuel efficiency, and long service life with minimal maintenance, well‑suited to Russia's harsh climates and long‑haul operations. The 21m maximum working height and 6.3m maximum radius, combined with a 360° rotating platform and four hydraulic outriggers, ensure exceptional stability and flexibility on uneven surfaces, ideal for municipal, power, and construction tasks across Russia's diverse regions. Its compact yet sturdy design offers good maneuverability in urban areas, while high‑strength steel construction and comprehensive safety features-including relief valves, balance valves, and emergency systems-reduce operational risks. Moreover, competitive pricing, easy access to spare parts, and strong after‑sales support make it a cost‑effective choice, aligning with Russian buyers'demand for durable, low‑maintenance, and versatile aerial work solutions.

Products Video

Products Parameters

ISUZU 100P 4x2 21m Aerial Work Platform Truck
Chassis Specification
Chassis Model	QL104
Driving Model	4X2
Cab	ISUZU 100P Cabin, Single row Left Hand Drive With Air Conditioner Allowed 3 Passengers
Dimension	6000 x 2100 x 3200 mm
Wheelbase	3360 mm
Gross vehicle Weight	4000 kg
Curb Weight	2720 kg
Front Axle Loading Capacity	2000 kg
Rear Axle Loading Capacity	4000 kg
Axle Number	2
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4KH1CN6LB
	Horse power: 120 HP
	Displacement: 2999 ml
	Emission standard: Euro 6
Transmission	Model: Manual Type
	5 Forward & 1 Reverse
Tire	7.00R16
	6 Pcs with one spare tire
Fuel Tank Capacity	100L
Brakes	Air brake
Steering Gear	Power steering, hydraulic steering with power assistance
Upper Specifications
Working Platform		Size: 1600 x 700 x 1000 mm
		Material: Stainless Steel
		Rated Load: 200 kg
Boom Form		Four-section, Six-hexagonal Working Arms Synchronization telescope
Max. Working Height		21 meters
Max. Working Height of Working Range		5 meters
Max. Working Range		11 meters
Outrigger Span		Landscape: 4200 mm
		Portrait: 4000 mm
		Front "V" type, Rear "H" type Independently adjustable (controlled)
Partition Boards & Walkway Boards		Material: Stainless Steel & Anti-slip
Rotator		360 ° of continuous rotation
Operation		Electrically controlled operation Manual emergency operation
Control System		CAN control system, equipped with wireless remote control, realize stepless speed regulation

Products Pictures

our truck

More photos of ISUZU 100P 21Meters Aerial Work Platform Truck

Features of The Main Boom

The main boom combines telescopic and articulated sections, offering both the working height of a straight boom and the obstacle-crossing capability of an articulated boom. It easily navigates obstacles, enables precise positioning in complex conditions, and provides greater operational flexibility.
Made of high-strength steel, the main boom is lighter yet stronger, ensuring overall stability and enhancing chassis load safety-ideal for markets like Russia with high demands for heavy loads and safety margins.
Equipped with a mature hydraulic system featuring balanced valves, relief valves, and other protections, the boom operates smoothly and precisely even in low-temperature, harsh environments, with low failure rates and controllable maintenance costs.
With a 21m working height and reasonable working radius, it covers most municipal repairs, power line maintenance, and exterior wall construction scenarios-offering strong versatility and outstanding cost-effectiveness.

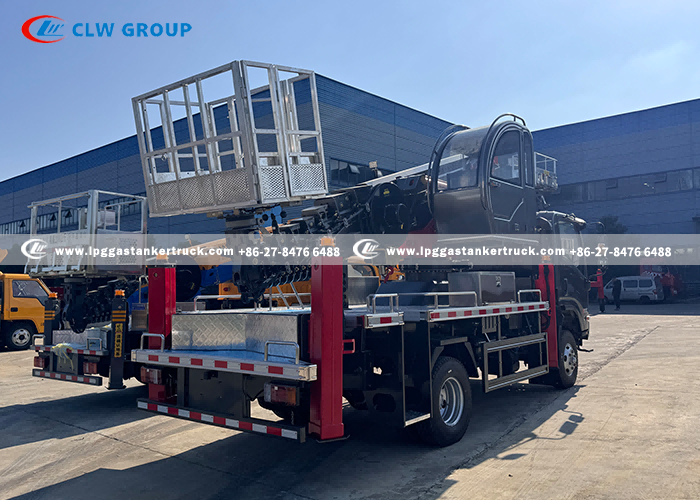

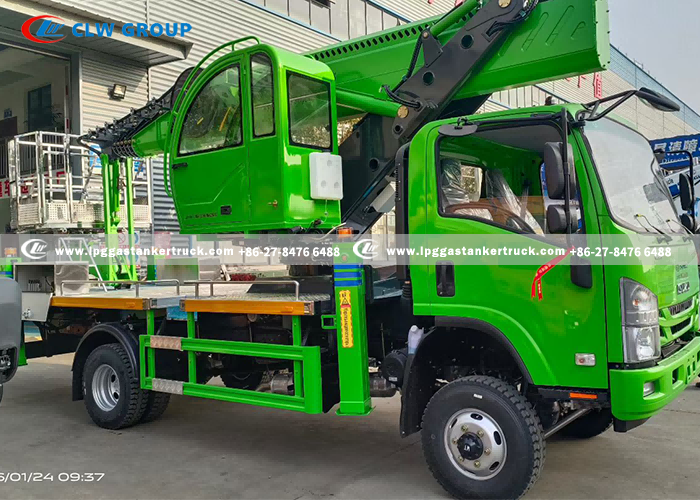

The independent aerial work cabin

Enhanced Safety: The enclosed cabin protects against wind, rain, and falling objects, significantly improving safety during adverse weather and complex operations.
Greater Comfort: Equipped with a seat, control console, and large panoramic windows, it greatly reduces fatigue during prolonged work compared to traditional standing baskets, improving control precision.
Unobstructed View: The independent cabin design allows the operator to clearly see the boom movements and working environment, reducing blind spots and enhancing both efficiency and safety.
Strong Environmental Adaptability: Optional air conditioning and heating systems make it suitable for extreme conditions such as severe cold and heat, making it ideal for regions with complex climates like Russia, ensuring year-round stable operation.
Convenient Operation: Integrated control handle and display with a well-designed layout allow a single operator to easily manage all boom movements and platform controls, improving work efficiency.

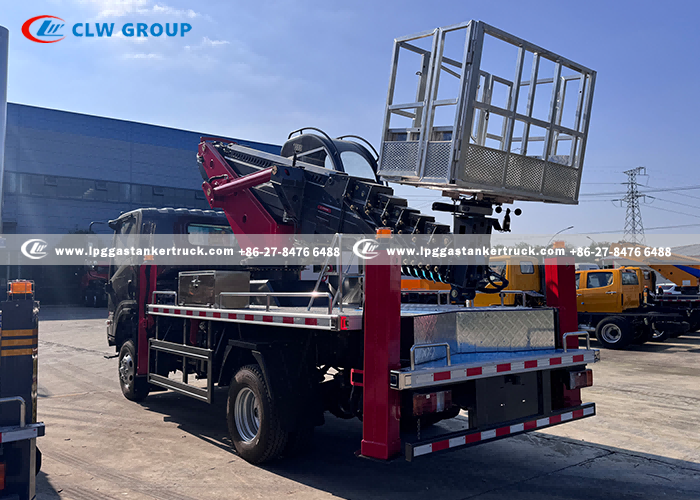

1ISUZU 4x2 100P 21meters Aerial Work Platform Truck

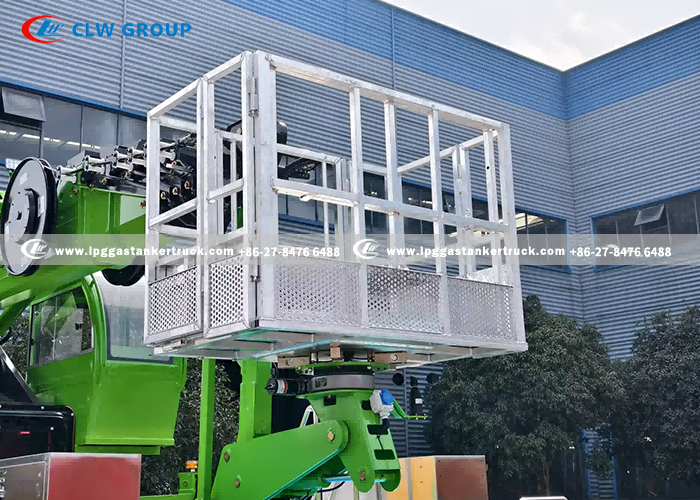

The insulated bucket

Lightweight & High Strength, Excellent Load-to-Weight Ratio
The aluminum alloy platform is lighter and stronger than steel, reducing boom load, improving vehicle stability, and easily supporting two workers plus tools.
Corrosion-Resistant & Long Service Life
Naturally rust-proof and corrosion-resistant, it withstands rain, humidity, and coastal conditions with low maintenance and long life-ideal for Russia's varied climate.
Complete Safety Protection Design
High-strength guardrails and anti-slip flooring prevent falls; the sturdy frame absorbs shocks and sway during operation for high safety.
Added Benefits of Lightweight Design
The lighter weight allows more flexible lifting and rotation, reduces hydraulic system load, lowers energy use, and improves vehicle control and safety.

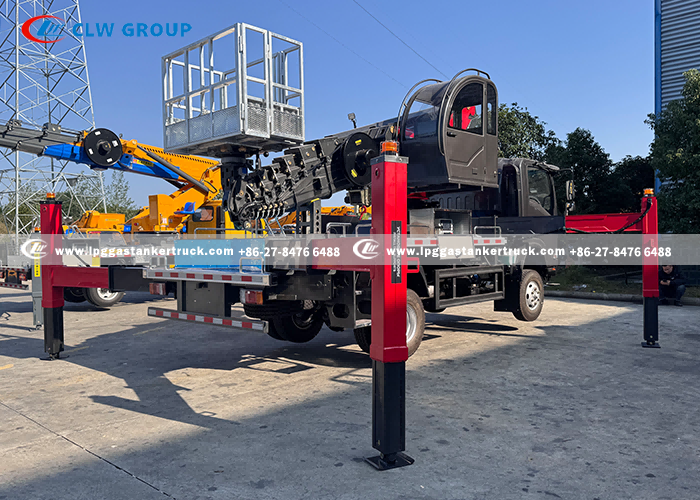

360° full-swing outriggers

All-Directional Outriggers, High Site Adaptability
360° flexible outrigger placement adapts to narrow spaces, slopes, and irregular sites-ideal for urban alleys and complex job sites.
Higher Stability & Safety Redundancy
Even load distribution and adjustable outriggers keep the center of gravity safe, reducing tip-over risks for heavy loads and large radii.
Excellent Leveling for Complex Terrain
Independent extension and leveling enable rapid vehicle leveling on uneven ground, ensuring boom stability and equipment life.
Flexible Operation, Higher Efficiency
Individual outrigger control allows greater working range with one setup-reducing repositioning and boosting overall efficiency.
Enhanced Durability & Protection
High-strength steel, slip-resistant pads, and hydraulic locks ensure reliable performance under heavy loads and harsh conditions with low maintenance.
