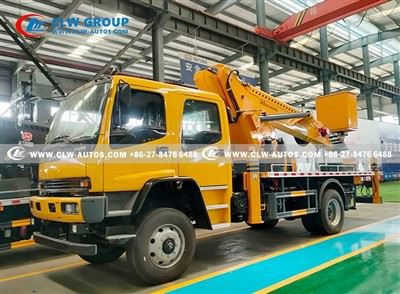

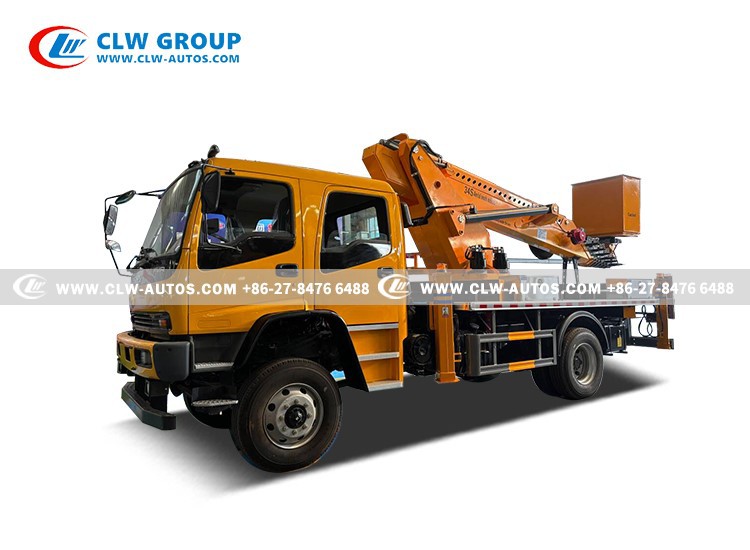

ISUZU All Drive 34m Aerial Working Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu all drive 34m aerial working truck in China. If you're going to buy high quality isuzu all drive 34m aerial working truck, welcome to get more information from our factory. For price consultation, contact us.

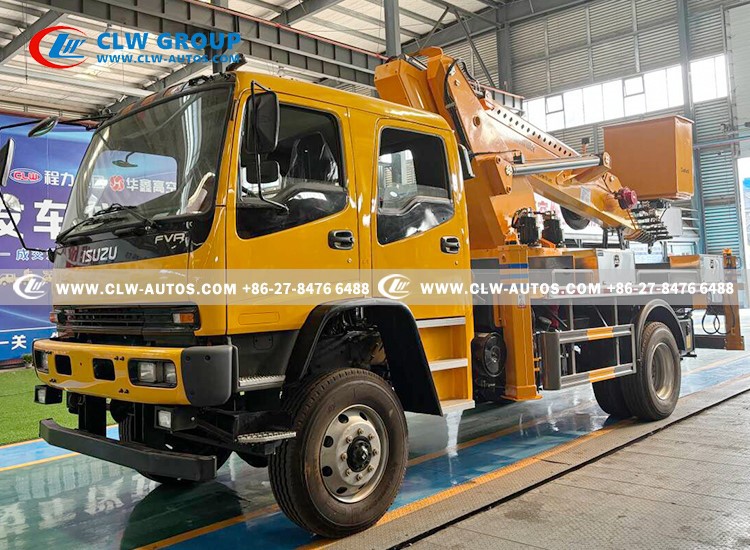

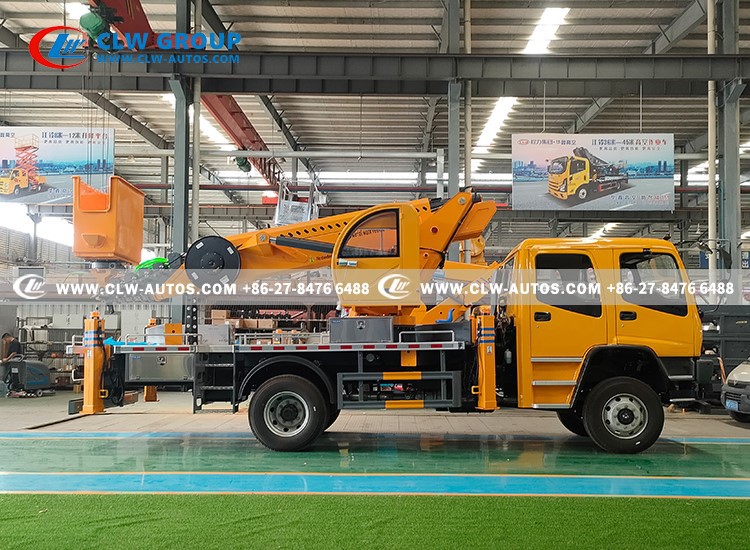

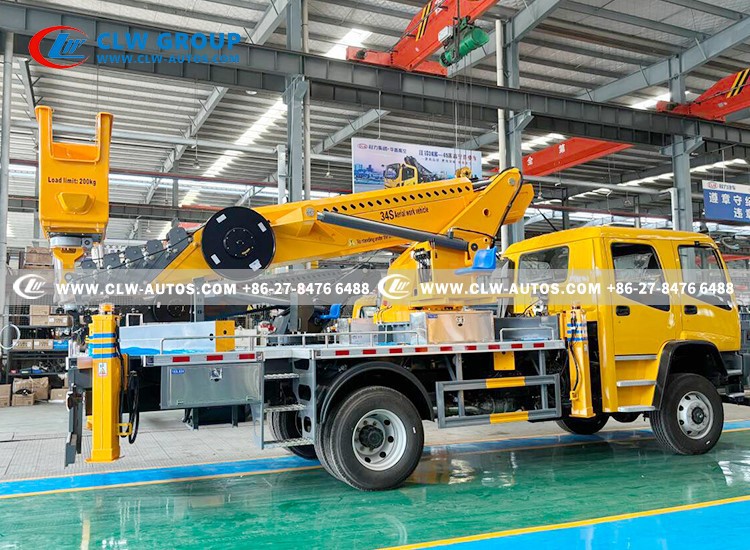

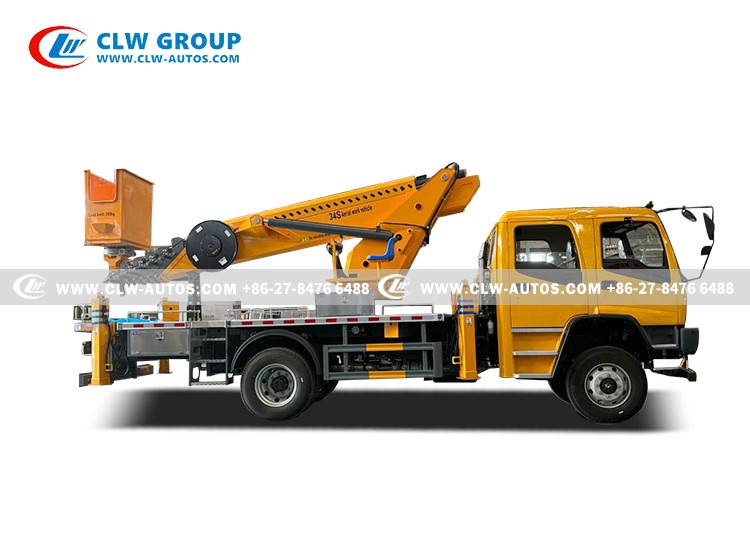

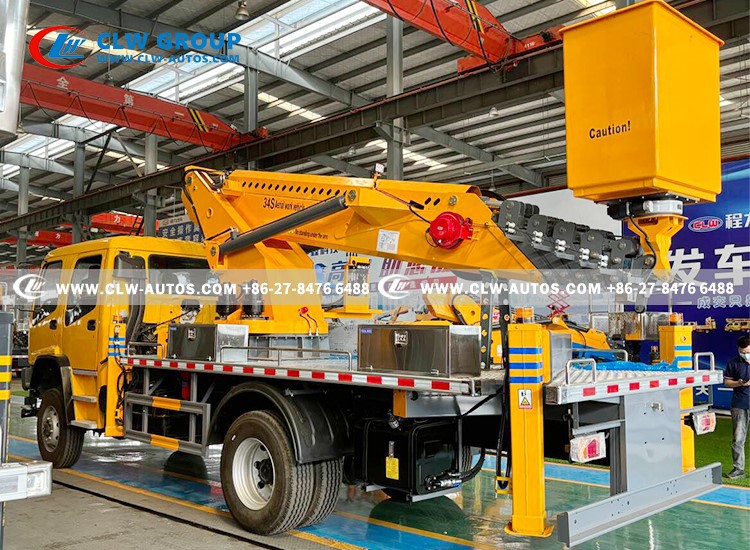

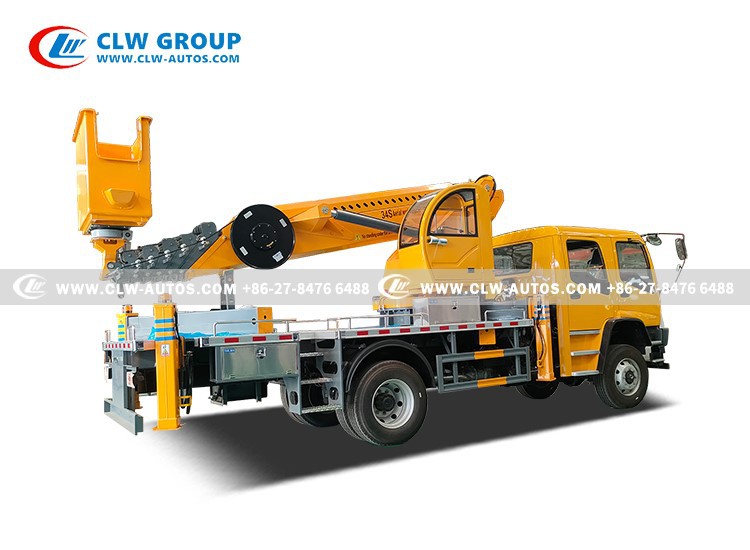

ISUZU FVR All Drive 34M Aerial Working Truck For Phillpine

Factory Price For Sale



We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance







• What is the aerial working truck?



An aerial working truck, also referred to as bucket truck, cherry picker truck, and elevated work platform truck, etc, which is a utility truck equipped with a hydraulic boom that incorporates a man-carrying bucket at its extremity.

Aerial working truck plays a crucial role in various industries such as municipal services, electric power maintenance, street light installation, advertising, communications, photography, landscaping, shipbuilding, transportation, operation at docks, airports, and ports, as well as rescue and maintenance tasks in large industrial and mining enterprises.

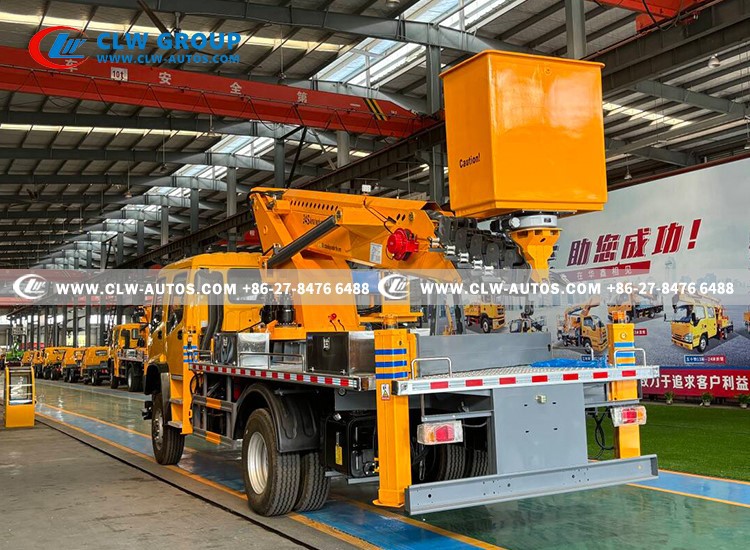

• Features of ISUZU FVR 34m aerial working truck:

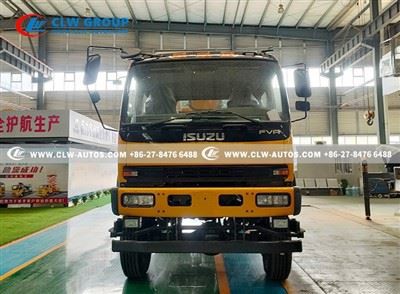

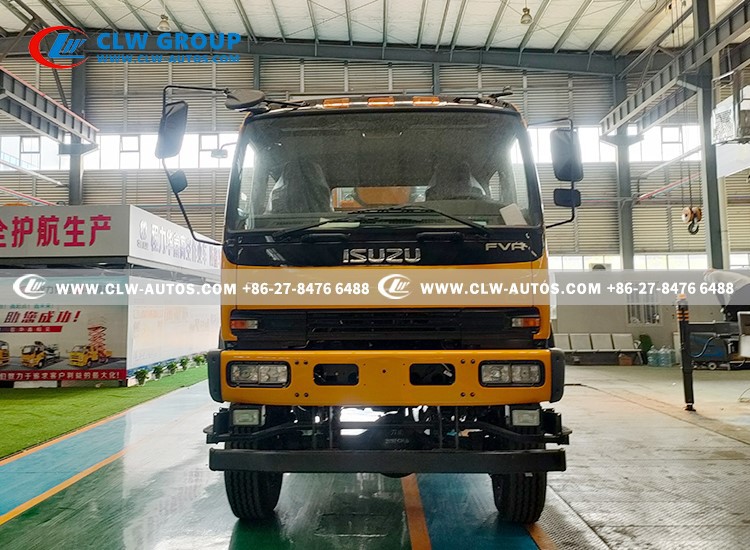

1. The chassis of the ISUZU GIGA truck is original and features Japanese technology.

2. It is equipped with all drive axles, making it suitable for navigating hill roads and unpaved surfaces.

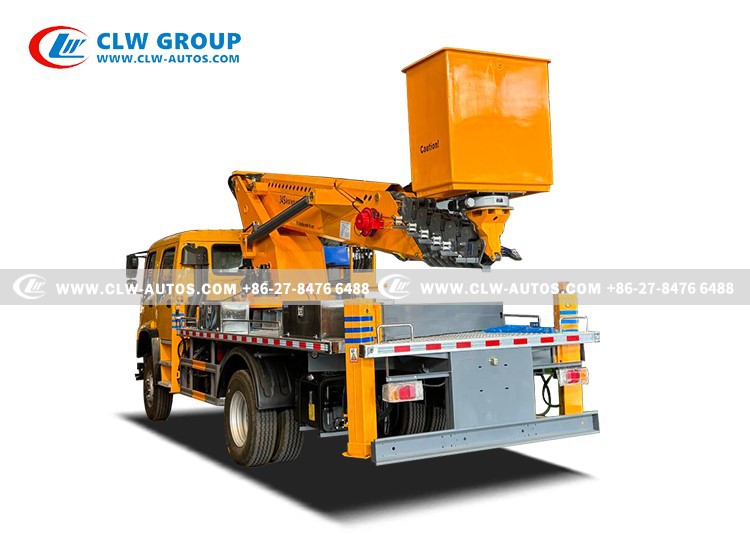

3. The truck boasts a four-section telescopic boom that allows for 360° rotation.

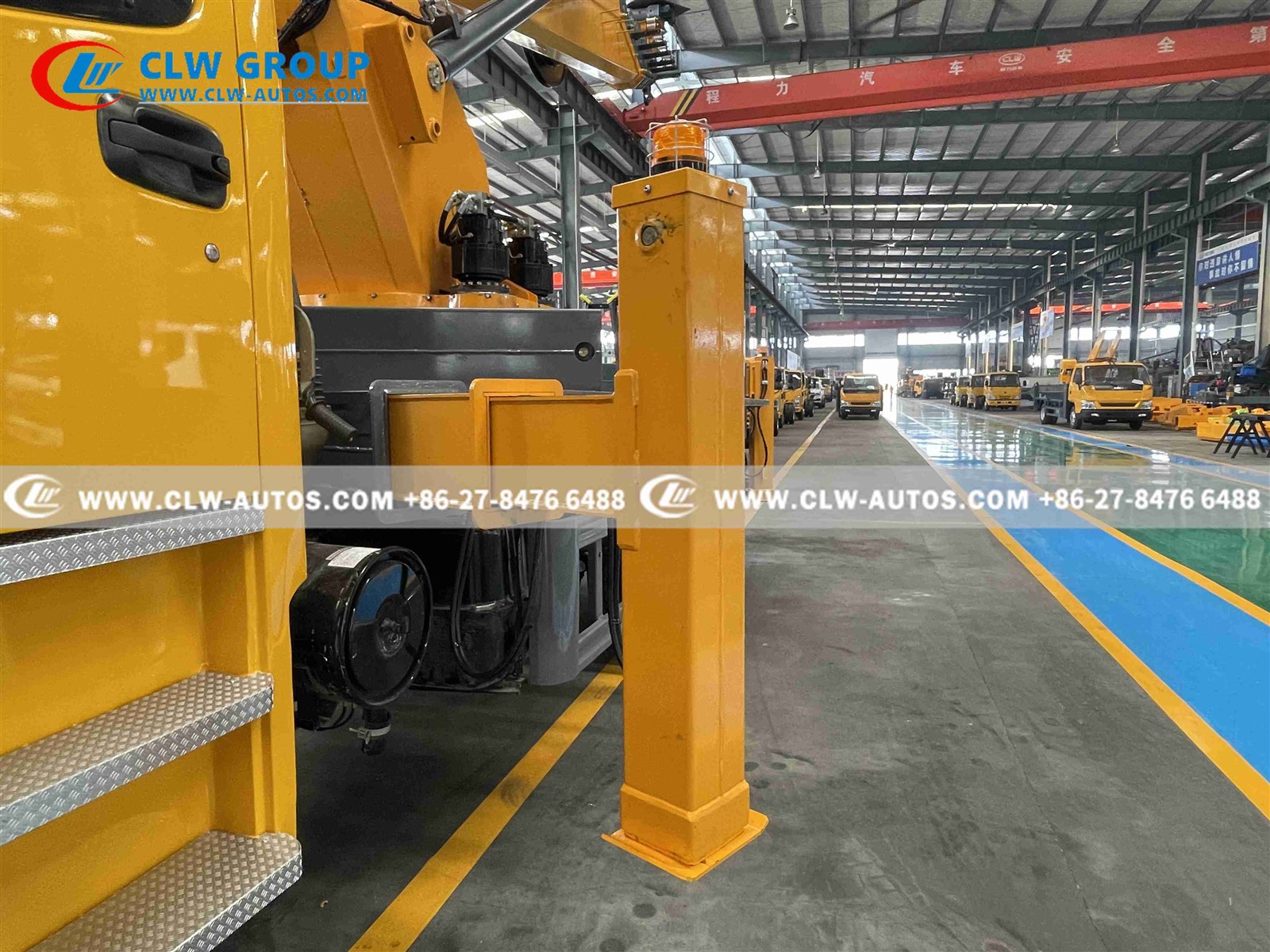

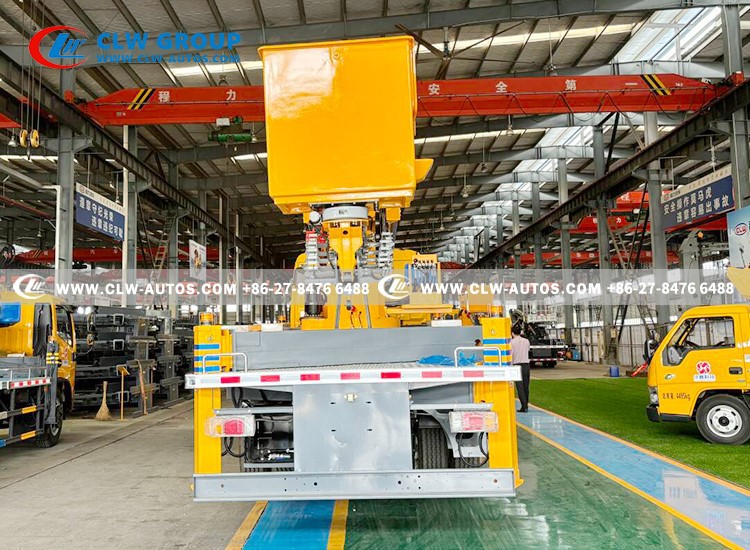

4. For enhanced stability, it comes with four adjustable landing legs that have a large span for excellent support.

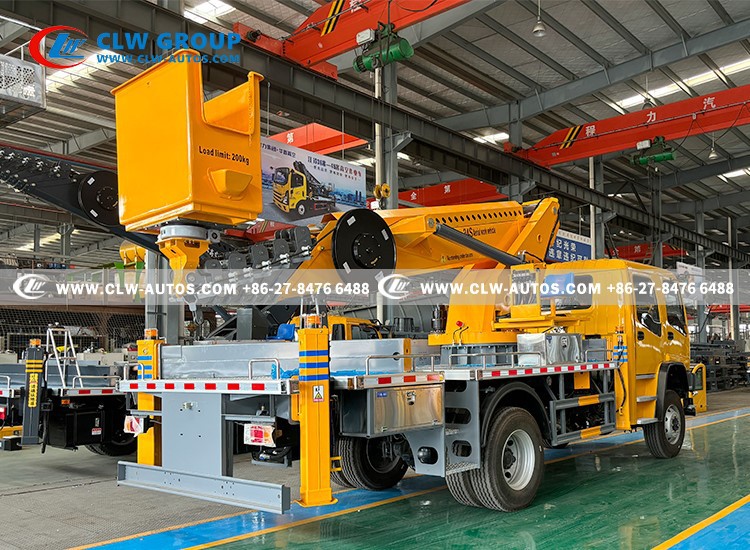

5. A stainless steel bucket, with a maximum loading capacity of 200kg, is included.

6. The bucket is designed to maintain a balanced level during operation.

7. An LCD display is integrated to provide real-time information on the working condition of the boom.



• What aerial working truck do we have?



1. Aerial working height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,32m,45m

2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.



• For quick inquiry, please contact:



 Whatsapp/Wechat: +86 139 2570 3918

 Email: juniper@clw-autos.com







Overall Dimension	8200×2060×3050mm
Gross Vehicle Weight	18000 kg
Wheel Base	4500mm

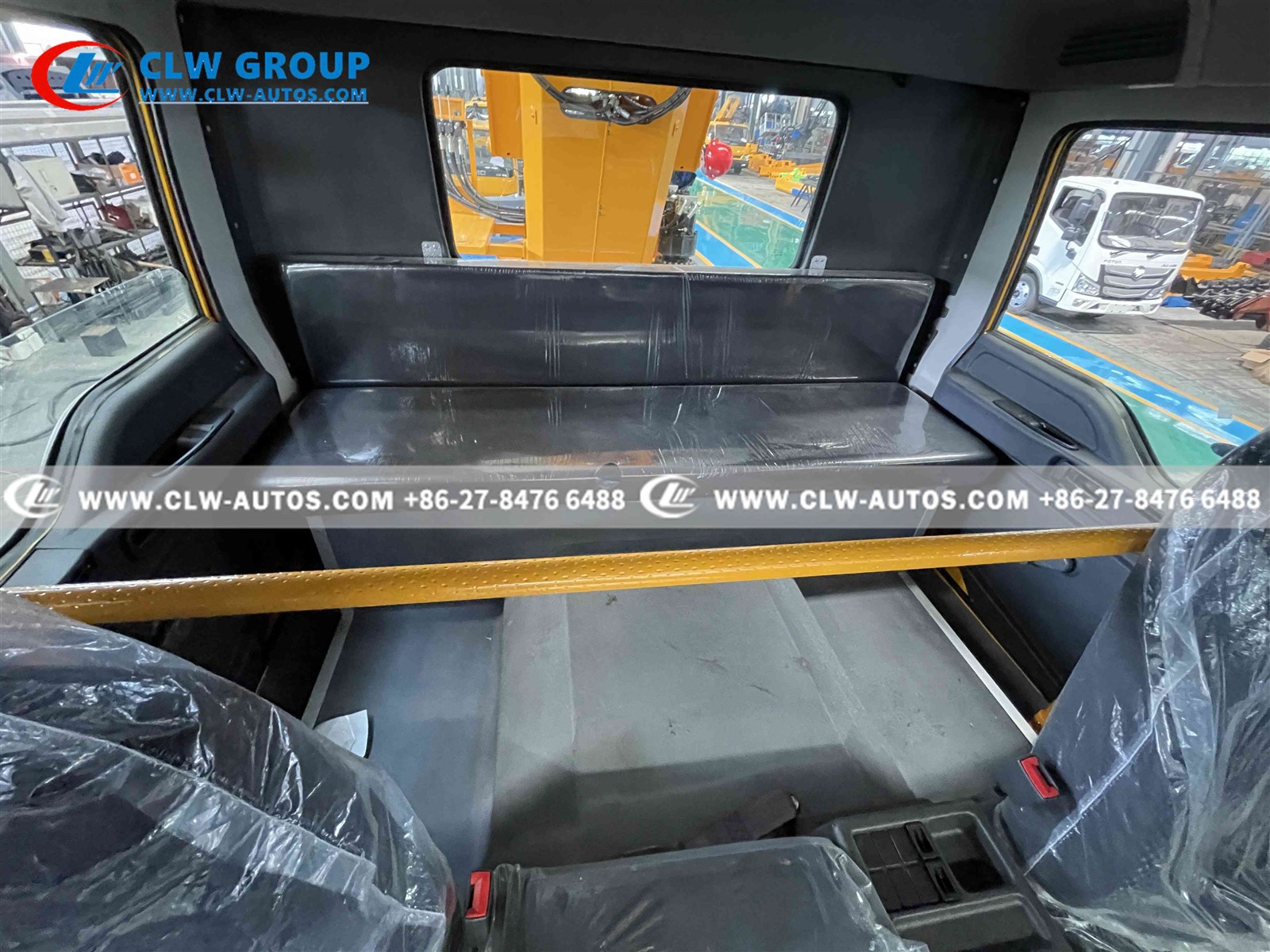

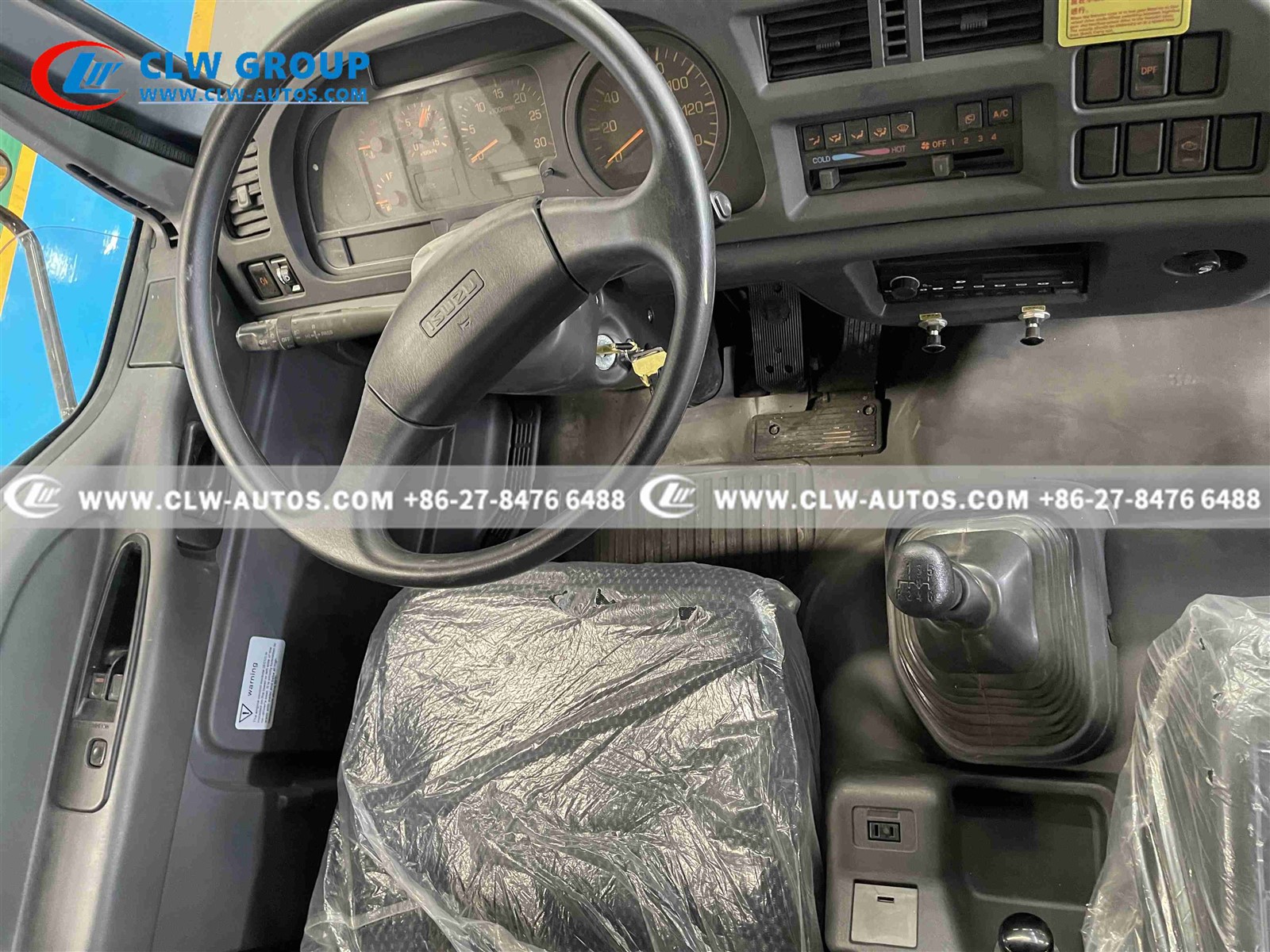

Cabin	LHD, double rows cabine, one sleeper, with A/C
Engine	Diesel Engine 4KH1-TC60, 205 HP, Euro VI

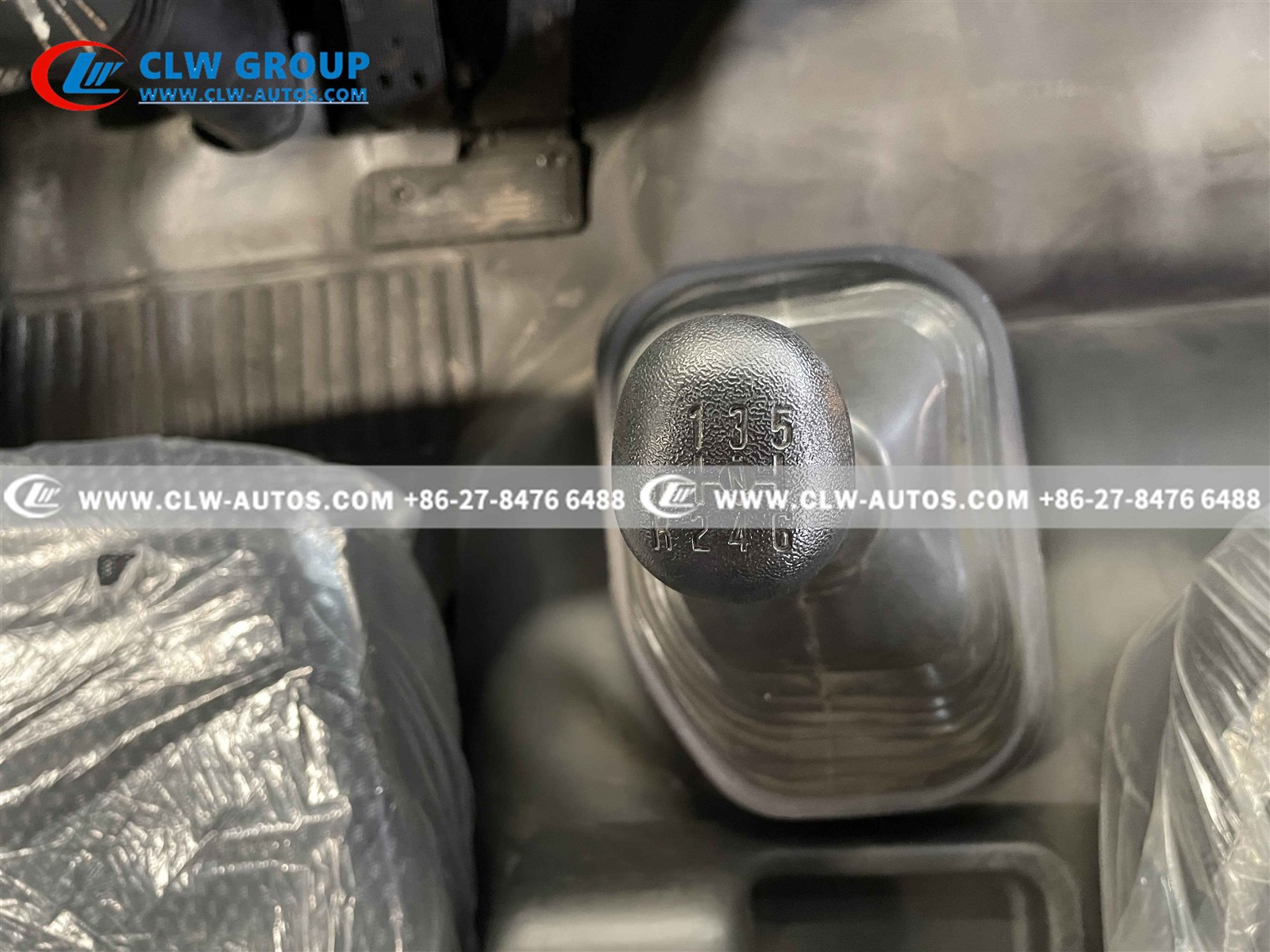

Gearbox	Manual, ISUZU MLD 6 Forward & 1 Reverse Gear
Axle	6.3 Ton Front Axle, 13 Ton Rear Axle

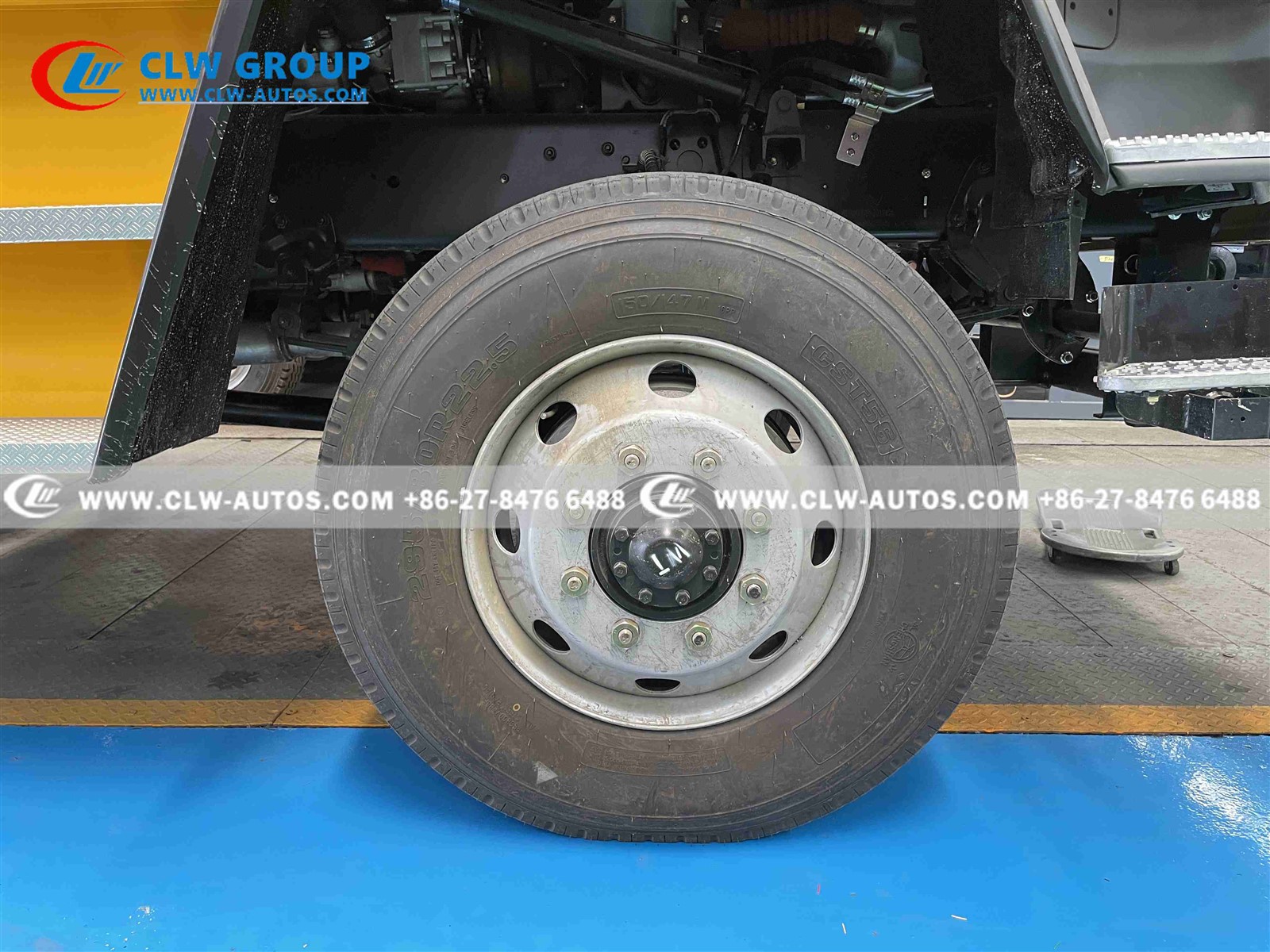

Tire	295/80R22.5, 6 pieces with 1 spare tire
Working height	34m
Maximum operating range of the platform	≥18m
Platform operating range when operating height is maximum	≥6m
Platform operating height when operating range is maximum	≥6m
Maximum working angle of platform	80°
Landing leg	4 landing legs
Leg span	Lateral leg span: 5385mm, Longitudinal leg span: 5195mm
Control system	Manual control and remote control system
Bucket Loading Capacity	200kgs
