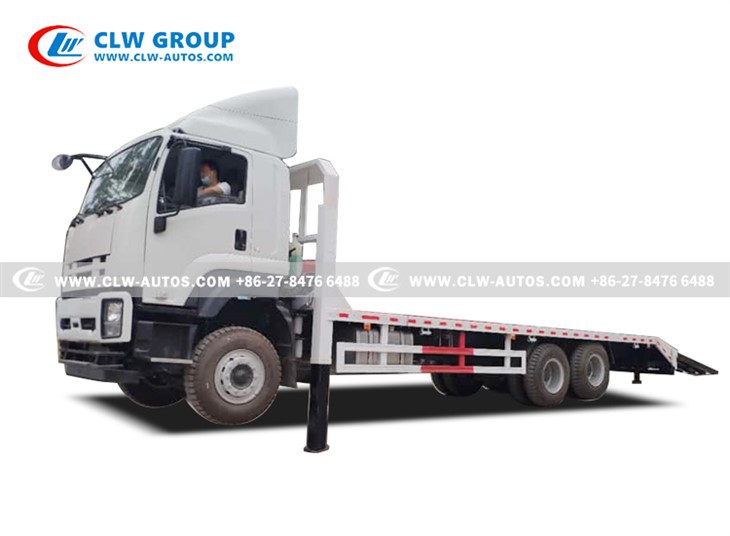

ISUZU GIGA 20Ton Flatbed Truck

Transport Excavators/Bulldozer/Engineering Machinery
Engine: 300hp
Flatbed Length:7.5m
Flatbed Width:2.5m
Flatbed Loading Capacity:15Ton
With Winch
With Lifting Front Outrigger

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 20ton flatbed truck in China. If you're going to buy high quality isuzu giga 20ton flatbed truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU GIGA 10 Wheels 20Tons Flatbed Truck /With Winch /Lifting Front Outrigger

Main Functions of Winch Installation

1. Rescue and Self-Recovery

Can tow vehicles (including itself or others) stuck in mud, snow, or ditches, reducing reliance on external rescue.
Quickly remove obstacles or tow damaged equipment at disaster sites (e.g., earthquakes, floods).

2. Heavy Cargo Securing and Loading/Unloading

Assists in pulling large cargo (e.g., construction machinery, containers) onto the flatbed using the winch cable, ensuring stable loading.
Enables inclined loading/unloading of goods in areas without lifting equipment.

3. Special Operations Support

Used with pulley systems to drag heavy objects like trees or utility poles, suitable for forestry, power line construction, and similar scenarios.
Stabilizes cargo positioning on steep slopes or rough terrain to prevent slippage.

4. Military/Emergency Applications

A common configuration for military or emergency vehicles, enabling rapid equipment deployment or obstacle clearance.

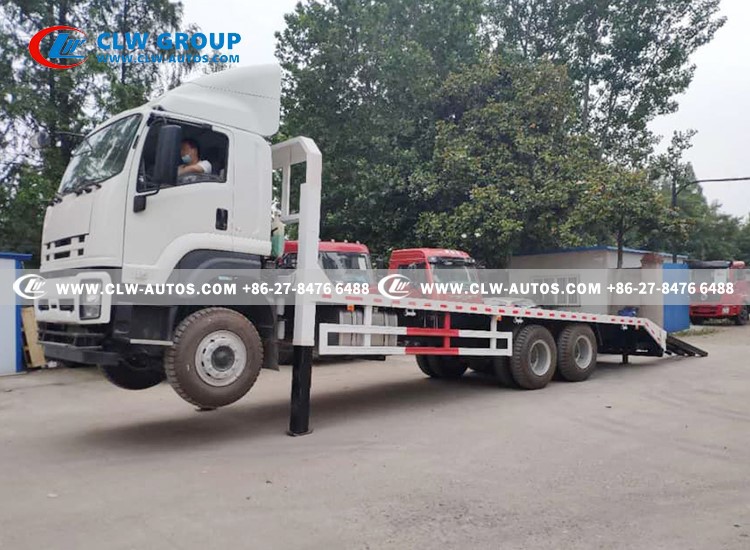

Lifting Front Outrigger - Primary Functions

1. Enhancing Vehicle Stability

During the loading/unloading of heavy cargo (e.g., construction machinery, large equipment), the front outriggers help distribute the front load, preventing the truck head from lifting or suspension overload, ensuring operational safety.
Suitable for uneven terrain (e.g., soft soil, slopes), reducing vehicle sway and improving lifting and loading/unloading stability.

2. Protecting the Chassis and Suspension System

When lifting or carrying oversized/overweight cargo, the front outriggers reduce stress on the front axle and suspension, preventing long-term overloading that could lead to metal fatigue or deformation.

3. Assisting Cargo Handling

When used in conjunction with the flatbed's hydraulic tilting function, the front outriggers adjust the vehicle angle, facilitating cargo sliding or winch-assisted loading.
In the absence of external lifting equipment, they serve as temporary support points to assist in cargo positioning.

4. Meeting Special Transport Requirements

When transporting oversized or lengthy cargo (e.g., wind turbine blades, prefabricated bridge sections), the front outriggers help balance the vehicle, preventing center-of-gravity shifts that could lead to rollovers.

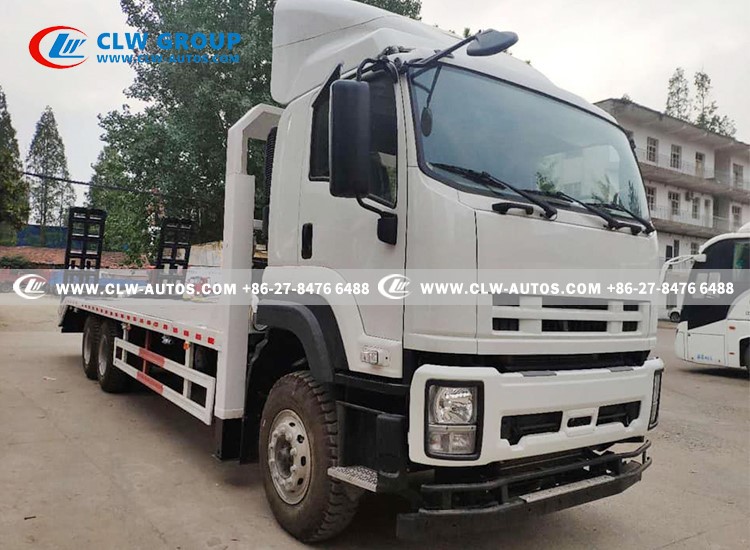

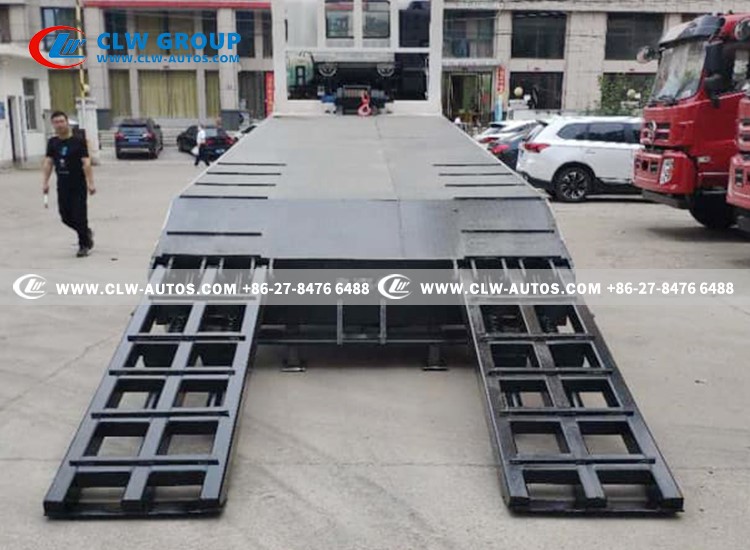

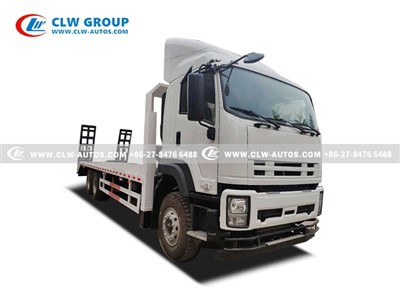

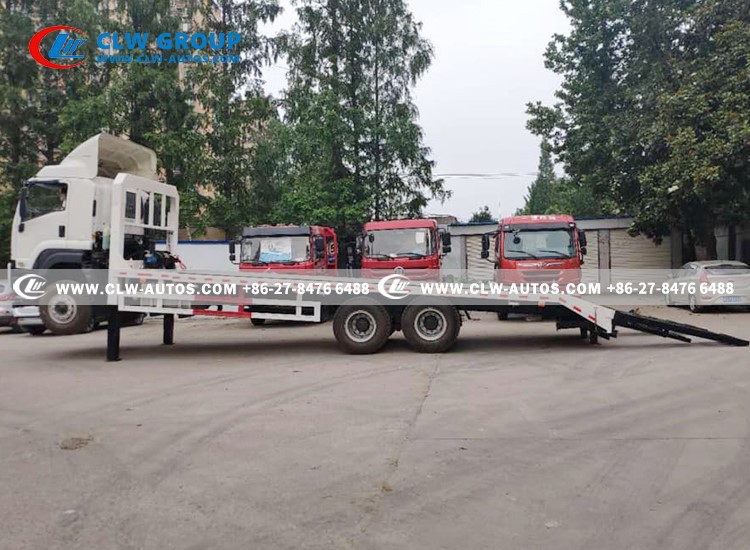

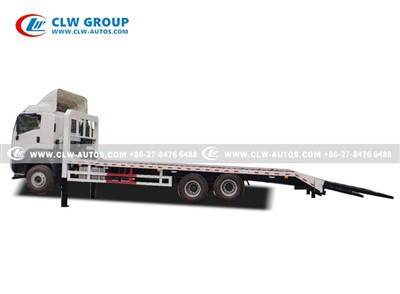

Products Factory Pictures

1. Power Performance

Engine: Isuzu 6UZ1-TCG40 or 6WG1-TCG50 diesel.
Displacement: ~7.8L–9.8L, 300 HP max.
Torque: ~900–1100 N·m, ideal for heavy loads.
Emission: Complies with Euro V/VI or higher.
Fuel efficiency: Relatively economical.
Transmission: 6 or 9-speed manual.

2. Chassis & Load Capacity

Frame: High-strength steel ladder frame.
Load capacity: ~15–25 tons (varies).
Rear axle: Multi-leaf spring or air suspension.
Wheelbase: Customizable (~4–6m).

3. Flatbed Design

Dimensions: ~6–9m long, 2.4–2.5m wide.
Low deck for easy loading/unloading.
Material: Steel or aluminum.
Optional: Anti-slip, hooks, tie-downs.
Suitable for heavy cargo transport.

4. Safety & Reliability

Brakes: Air brake + ABS + exhaust brake.
Stability: Low center of gravity.
Optional: ESC (Electronic Stability Control).
Durability: Low failure rate, easy maintenance.
Proven Isuzu powertrain reliability.

Products Parameters

ISUZU GIGA 6X4 20Ton Flatbed Truck
Chassis Specification
Chassis model	QL1251
Driving model	6X4
Dimension	12000×2500×3950 mm
Cab	Original ISUZU FVZ/5X cabin Single Row Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1370 mm
Axle loading (front / rear)	7000 / 10000 x 2 kg
Engine	ISUZU, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP, 221 KW
	Displacement: 7790 ml
	Emission standard: Euro 6
Transmission	Manual type, 9 Forward & 1 Reverse
Upper Parameters
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 20000 kg
