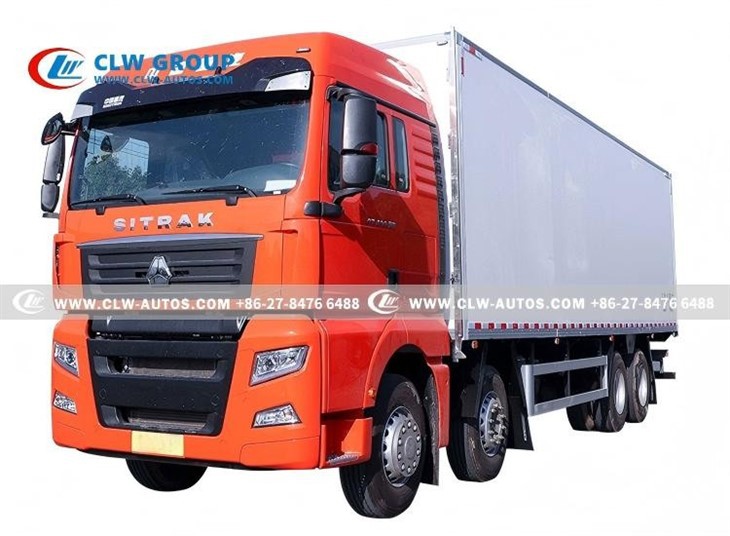

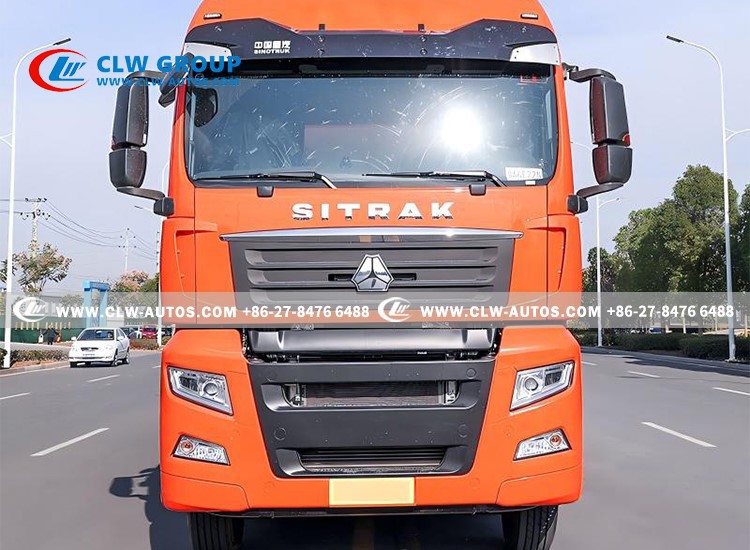

SITRAK Reefer Truck 30Tons

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of SITRAK Reefer Truck 30Tons in China. If you're going to buy high quality SITRAK Reefer Truck 30Tons, welcome to get more information from our factory. For price consultation, contact us.

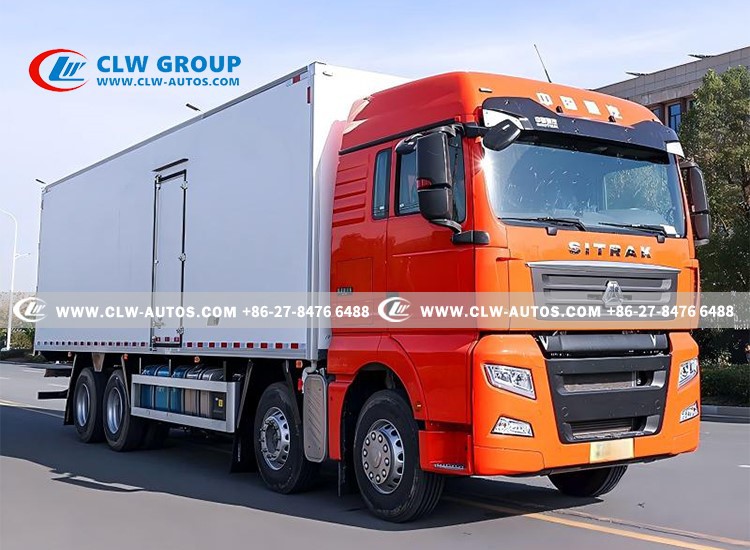

Sinotruk 8×4 Refrigerated Truck for Cold Chain Logistics





This Sinotruk 8×4 refrigerated truck is a high-performance cold chain transport solution designed for long-distance and heavy-load refrigerated and frozen cargo delivery. Equipped with a powerful engine, large-capacity insulated box, and internationally renowned refrigeration units, it ensures stable temperature control and reliable operation under demanding conditions.



Powerful Performance & Reliable Drivetrain



The vehicle is powered by a 324 kW (440 HP) diesel engine with 6 cylinders and 10.518 L displacement, delivering a maximum torque of 2100 N·m. Combined with a 12-speed manual transmission and 8×4 drive mode, it offers strong traction, excellent climbing ability, and fuel-efficient performance, making it ideal for long-haul cold chain transportation.

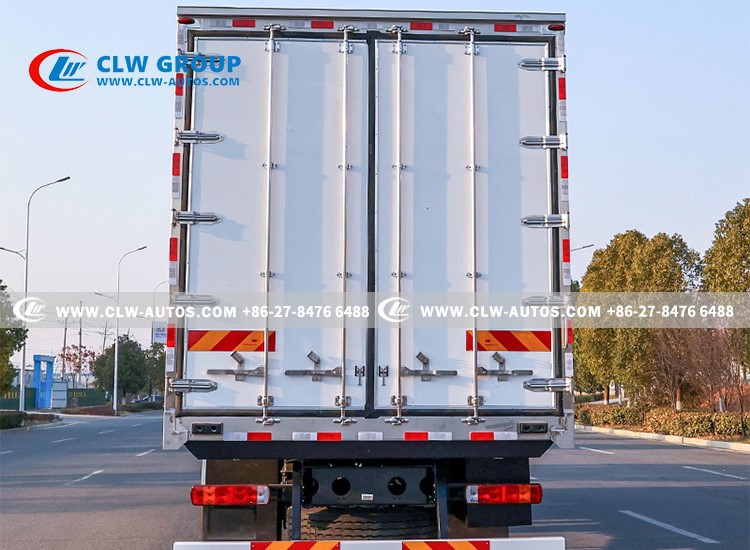

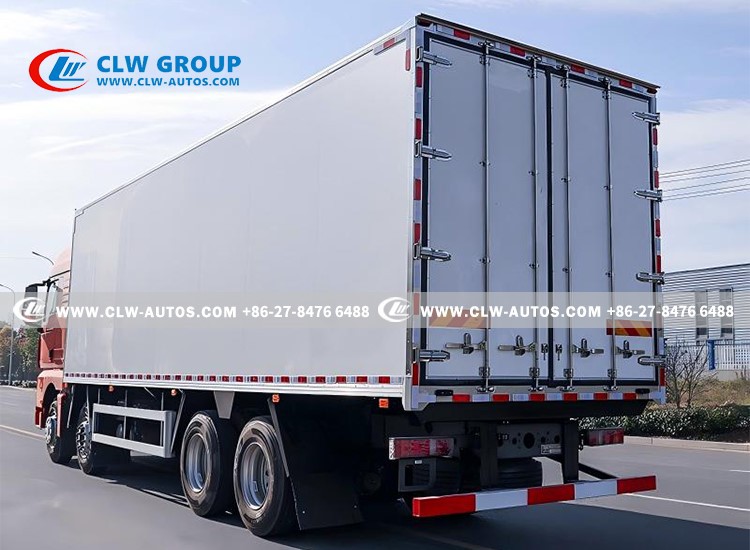

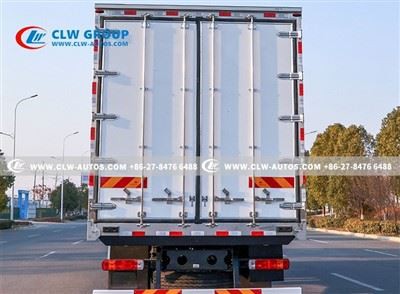

Large Volume Insulated Cargo Box



The refrigerated box features a 58 m³ cargo volume, constructed with high-density polyurethane foam insulation and an 80 mm insulation thickness, ensuring superior thermal performance. The box is designed to maintain internal temperatures ranging from +30°C to -30°C, suitable for transporting frozen food, fresh produce, dairy products, pharmaceuticals, and vaccines.



Advanced Refrigeration System



Equipped with internationally trusted Carrier or Thermo King refrigeration units, the system provides a cooling capacity of 8700 W and a blowing rate of 3200 m³/h, ensuring fast cooling and uniform air circulation throughout the cargo compartment.

Durable Chassis & Safety Features

4 axles with a reinforced chassis for heavy loads

12 tires (12.00R20) for stability and durability

Automatic air-cut braking system for enhanced safety

Optimized axle load distribution for reliable long-term operation



Key Specifications



Vehicle Dimensions: 12000 × 2600 × 4000 mm

Container Dimensions: 9200 × 2430 × 2450 mm

Box Size: 10000 × 2500 × 3000 mm

Emission Standard: Euro V

Refrigeration Temperature Range: +30°C ~ -30°C











Quick Contact



Get more informations or photos quickly

 Laura LIU +86 15037170872







Vehicle Parameters
Vehicle Brand		Sinotruk
Drive mode		8×4
Curb Weight(kg)		13800
Engine	Engine Power(kw)	324kw
	Engine Power(hp)	440hp
	Number of cylinders	6
	Displacement	10.518L
	Emission standard	Euro V
	Maximum torque	2100N·m
Gearbox		12 Speed Manual Transmission
Vehicle Size (mm)		12000x2600x4000
Container Size (mm)		9200x2430x2450
Number of Axles		4
Wheelbase (mm)		1800+4575+1400
Number of Tires		12
Tire Size		12.00R20
Front/Rear Axle		5Tons /5Tons /10Tons/10Tons
Brake System		Automatically Air-Cut Brake
Technical parameter
Box Volume(m³)		58
Box size		10000*2500*3000mm
Gross weight		8900kg
Refrigeration Temperature Range		+30ºC ~-30ºC
Material of The Insulation Layer of the Box		Polyurethane Foam
Insulation Thickness(mm)		80
Refrigeration Unit Brand		Carrier/Thermo King
Refrigeration Capacity (w)		8700
Blowing Rate(m³/h)		3200

















Applications



This refrigerated truck is widely used for:

Frozen and fresh food transportation

Meat and seafood logistics

Pharmaceutical and medical cold chain transport

Long-distance and cross-regional refrigerated delivery
