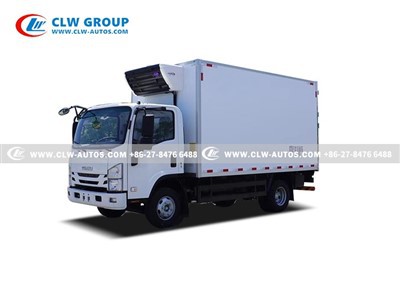

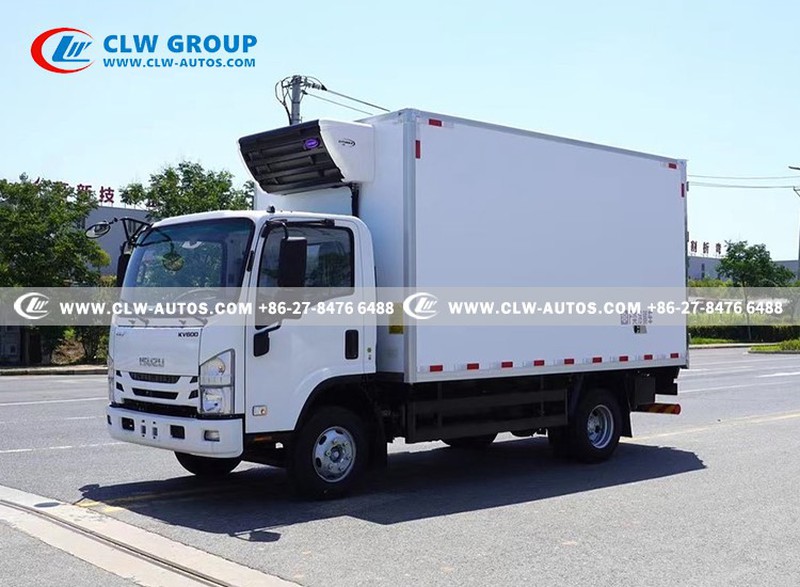

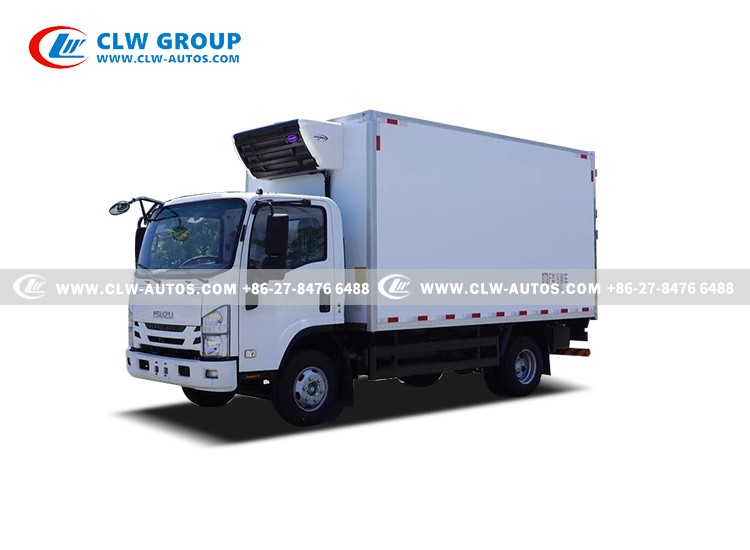

ISUZU 16CBM Refrigerated Van Truck
Japanese brand Isuzu chassis

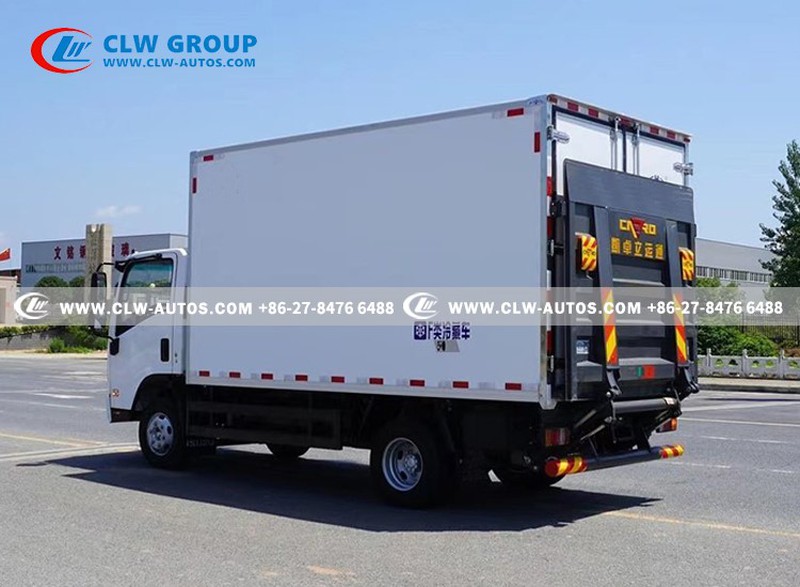

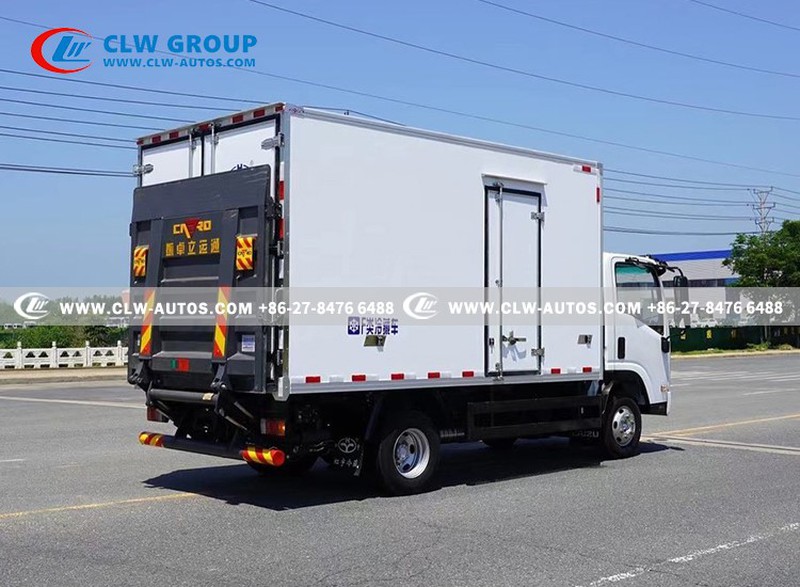

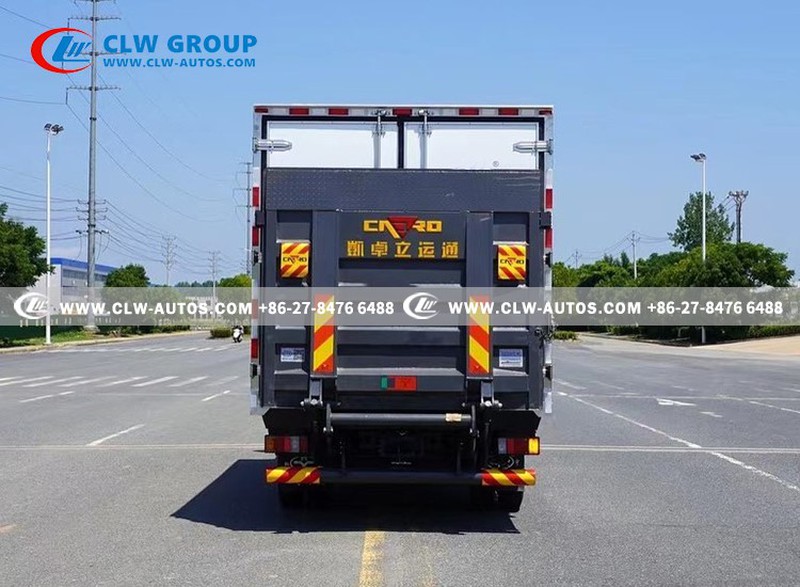

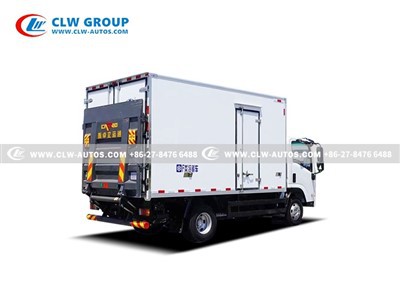

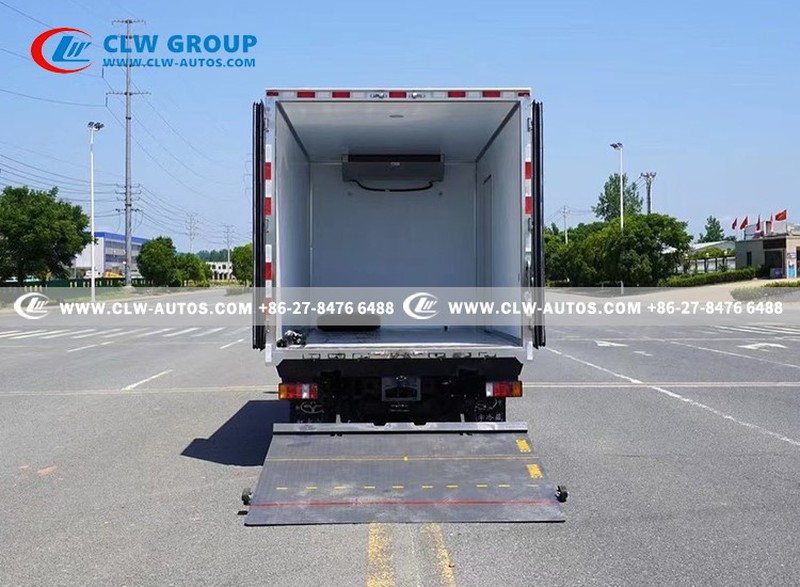

Refrigerater van truck with hydraulic tailplate
16 cubic meter refeer truck
Refeer for vaccine,medicine,fish,meat,vegetable,ice cream,drink etc
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 16cbm refrigerated van truck in China. If you're going to buy high quality isuzu 16cbm refrigerated van truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU 16cbm Reefer Van Truck For Sale
From Straight Manufacturer in China
Products Descriptions
Refrigerated truck is a closed van vehicle equipped with refrigeration device to transport frozen or fresh-keeping goods. It is often used to transport frozen food (refrigerated truck), dairy products (milk transport truck), vegetables and fruits (fresh cargo transport truck), vaccine drugs (vaccine transport truck) and so on.
Refrigerator van truck is also called refrigerated truck, refrigerated boxcar, refrigerator wagon, freezer vehicle, freezer wagon, termperature controlled truck, refrigerator car, preservation vehicle.
There are two types of power driving ways for the refrigerator truck: One is driven by the engine through PTO, the other is driven by independent power unit.
Optional for the brand of refrigeration device: China famous brand such as Hanxue, or America famous brand such as Carrier, Thermo King etc.
Optional for the minus temperature of refrigeration device: minus 5 degrees Celsius or minus 15 degrees Celsius.
In case of special requirements, below optional parts can be added:

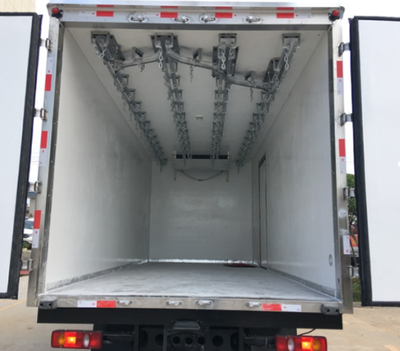

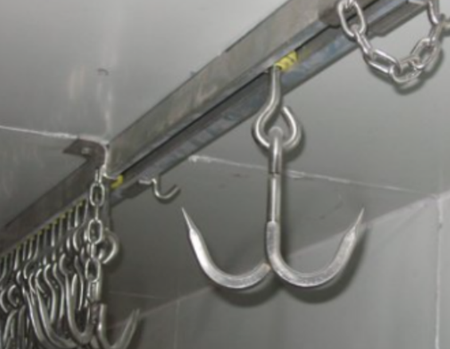

- Guide Rail For Meat Hook

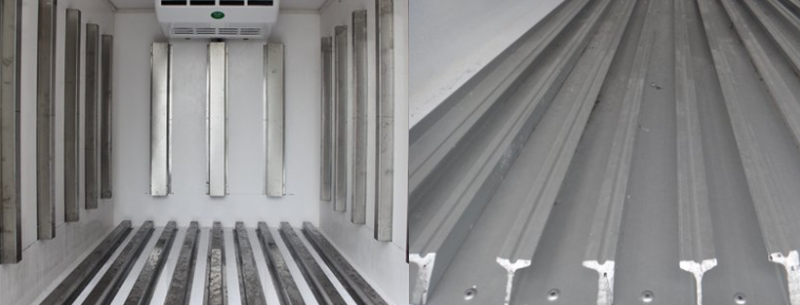

- Ventilation Slot
> Enhance the cold air circulation effect of the refrigerator.
> Goods will not be close to the side wall and the bottom of the car body.

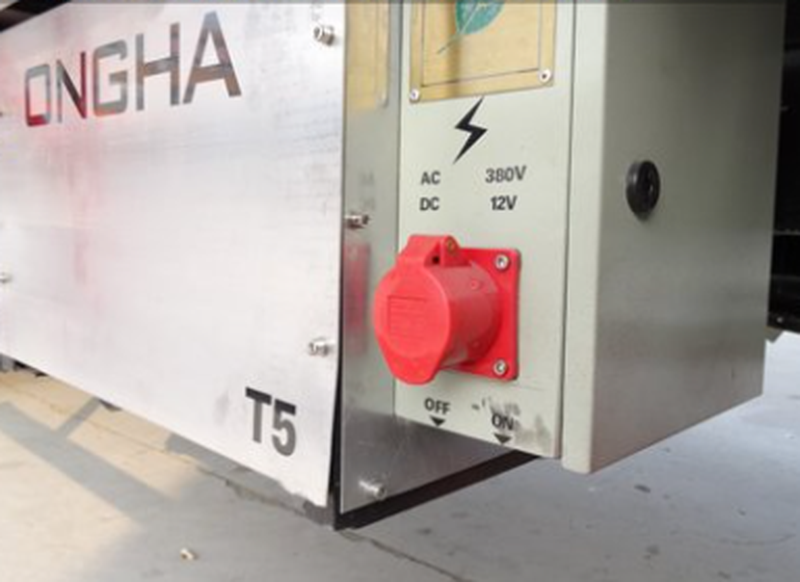

- Backup Power System
> Generally used for goods that is not easy to unload and needs long-term storage.
> No damage to the engine for vehicle even parked long time.

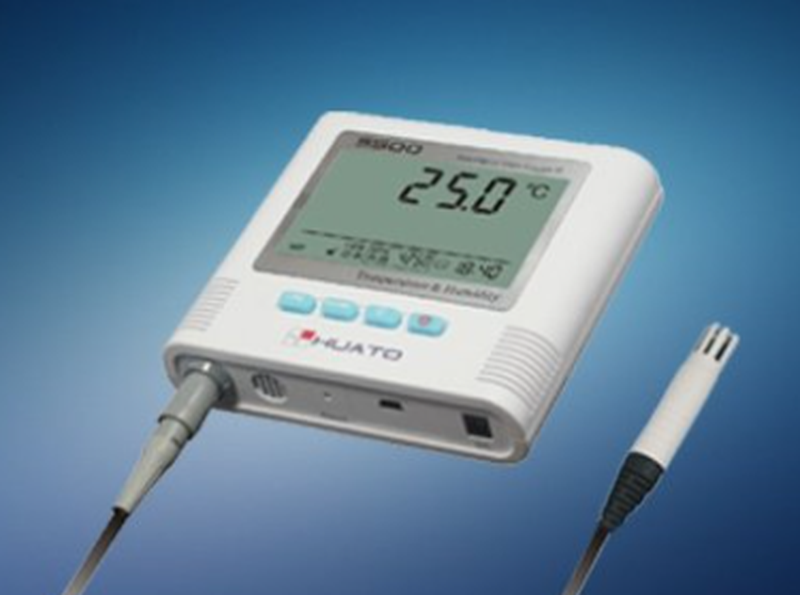

- Temperature and Humidity Loggers
> Record the temperature and humidity changes at each time point during the transportation. Data easy to check.

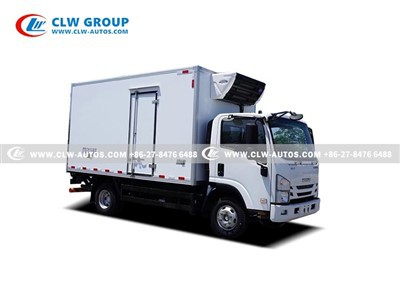

- Side Door
> Easy to unload, suitable for small cargo loading and unloading, air conditioning will not be lost too quickly.
Products Parameters
| ISUZU 16cbm Reefer/Refrigerated Van Truck | |||
| Overall dimension | 5995X2770X2980mm | Curb weight | 3200kg |
| Van dimension | 4075X2060X1860mm | Loading capacity | 16m3 |
| Chassis parameters | |||
| Chassis brand | ISUZU | Wheel base | 3360mm |
| Front/rear wheel track | 1685/1525mm | Front/rear suspension | 1110/1525mm |
| Approach/departure angle | 19/16° | Maximum speed | 110km/h |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||
| Cab | Configuration | Single row, allowable 3 passengers, with A/C, USB radio interface, cab can be flipped. | |
| Color | White, optional for other colors | ||
| Engine | Model | 4KH1CN6LB | |
| Emission | Euro II,Euro III,Euro Ⅳ,EuroⅤ,Euro Ⅵ for Option | ||
| Type | 4 cylinders, 4 valve,4-stroke,in-line,common rail, precision electronic control, multistage injection, optimal combustion, exhaust gas recirculation, diesel engine. | ||
| Rated power | 120 HP | ||
| Displacement | 2999ml | ||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||
| Tire | Size | 7.00R16LT 8PR | |
| Quantity | 6 tires with 1 spare tire | ||
| Brake | Air brake | ||
| Front axle | 3.0 tons | ||
| Rear axle | 5.0 tons | ||
| Drive form | 4X2 | ||
| Suspension | Multi leaf springs | ||
| Transmissions | Manual, 5 forward &1 reverse | ||
| Steering device | Power assisted steering | ||
| Steering wheel | LHD or RHD | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||
| Van body structure parameters | |||
| Van dimensions | 4075X2060X1860mm | Loading capacity | 16m3 |
| Van material(inner) | Color steel | Van material(outer) | Glass steel |
| Insulation layer | Polyurethane foam | Thickness of insulation layer | 8cm |
| Temperature | Optional for minus 5 degrees Celsius and minus 15 degrees Celsius | Color and Logo | Customizable |
| Refrigeration unit | China famous brand or America famous brand | ||
| Standard configuration | Chassis,sub frame,van body(inner color steel, outer glass steel,8cm polyurethane foam insulation),stainless steel locks,stainless steel door frame,with overhead light and anti collision device,Refrigeration unit from China or International. | ||

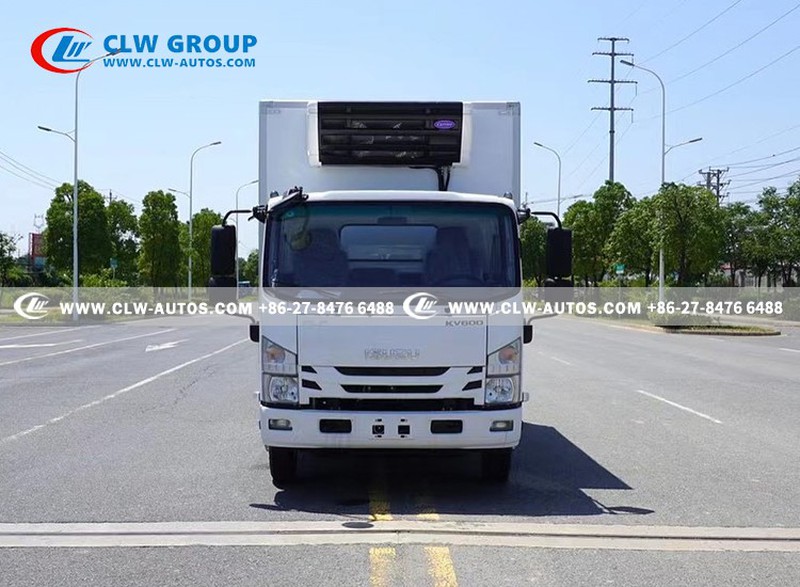

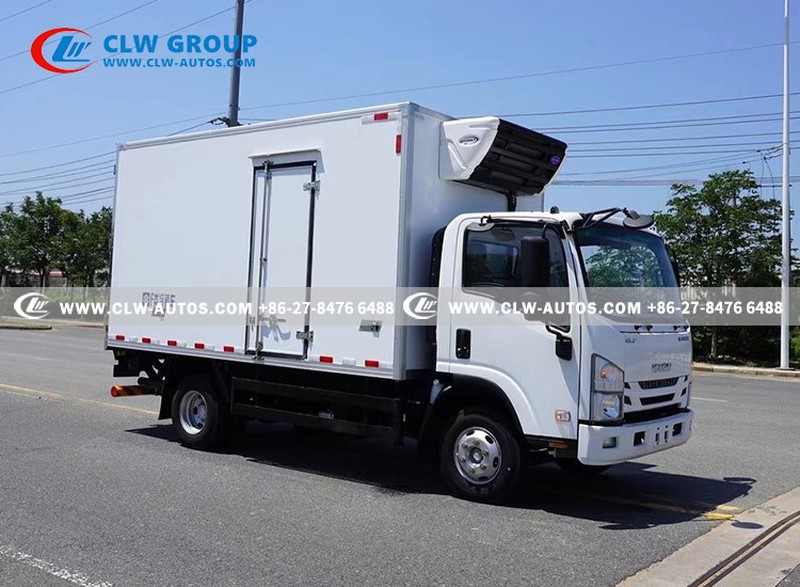

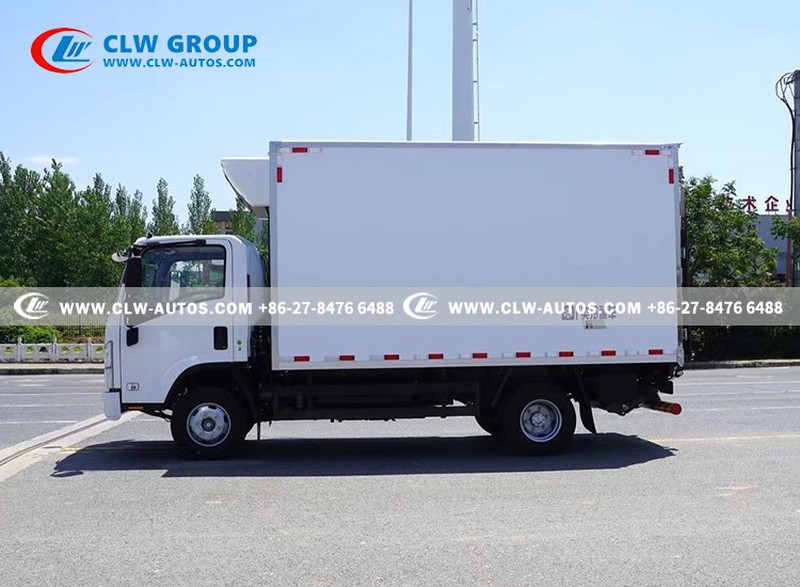

Reference Pictures
