ISUZU 4x2 240HP Refrigerated Truck – Your Reliable Partner for Temperature-Controlled Logistics

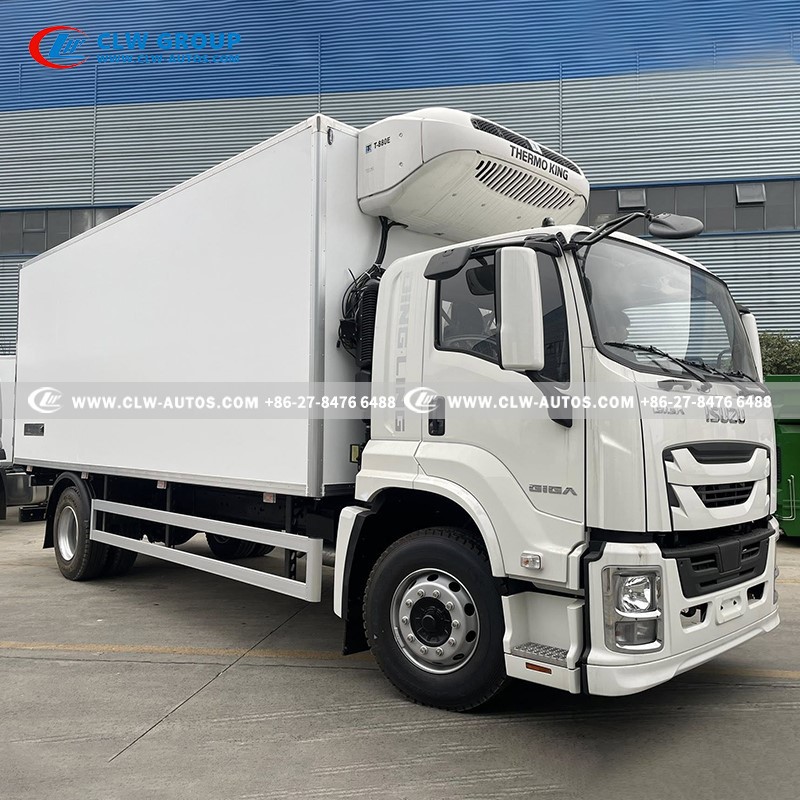

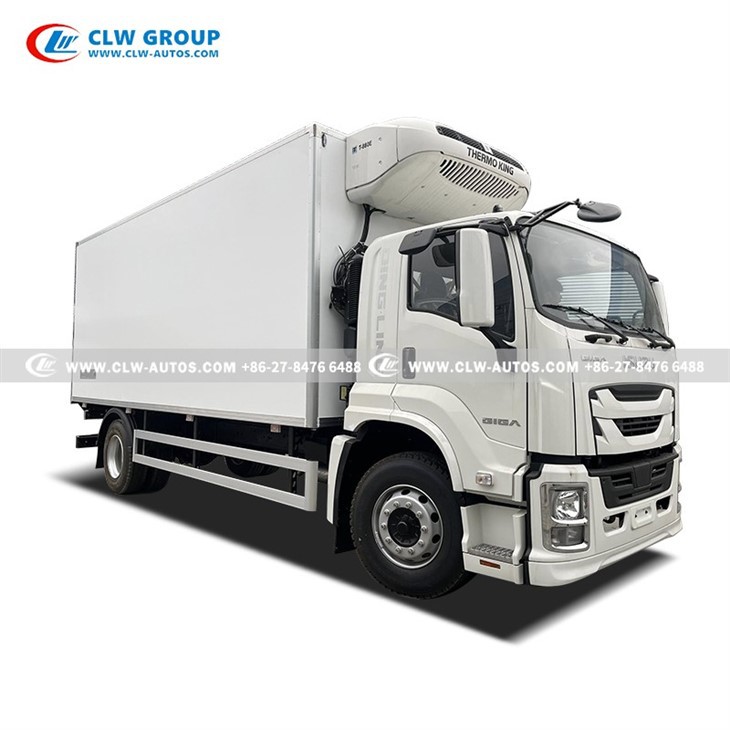

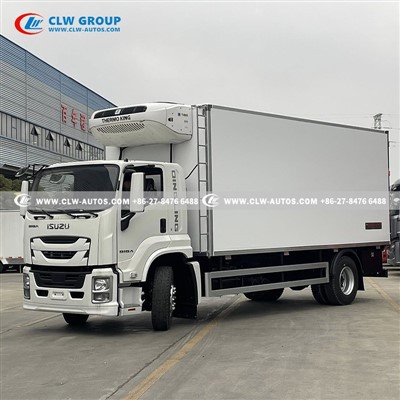

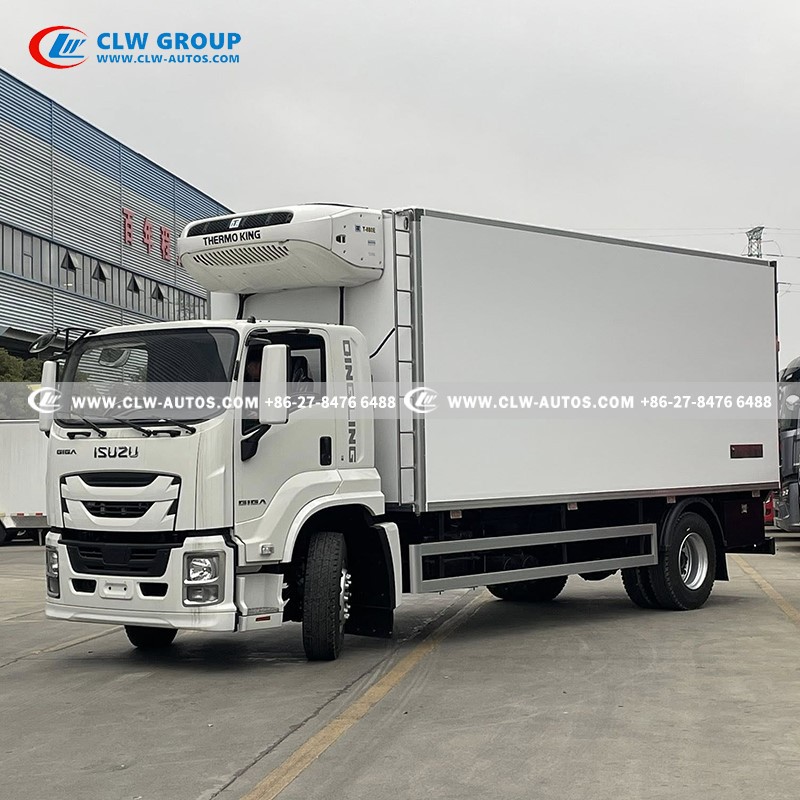

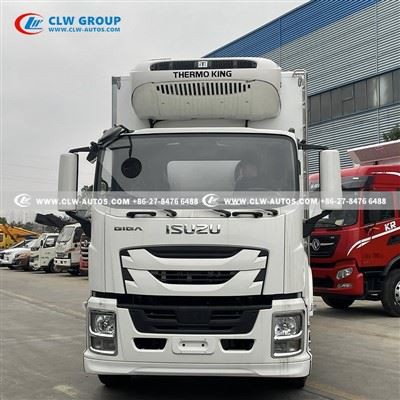

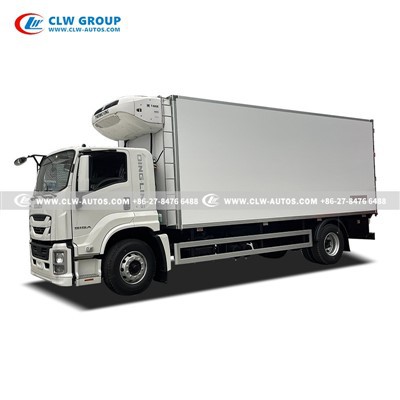

Meet the ISUZU FVR 4x2 Refrigerated Van, engineered for excellence in the demanding world of cold chain transportation. Combining the legendary durability of an ISUZU chassis with superior refrigeration technology, this truck is built to deliver your perishable goods in perfect condition, every time, across any distance.





Key Features & Performance:



Powerful & Efficient Drive: At its heart lies the robust ISUZU 6HK1-TCG61 Euro VI diesel engine, delivering 240 HP for confident performance and excellent fuel economy. Coupled with an 8-speed manual transmission and a reinforced chassis, it ensures reliable and cost-effective operation under full load.

Precision Temperature Control: Equipped with the high-performance THERMO KING T-800 refrigeration unit, the van maintains a precise internal temperature range from -18°C to +20°C. This versatility allows for the safe transportation of a wide array of goods, from deep-frozen products to fresh chilled items.

Optimized Cargo Space: The body offers substantial capacity with internal dimensions of 6800L x 2440W x 2500H mm (approx. 41.5 cubic meters). Constructed with a lightweight yet incredibly strong FRP outer shell and 8cm thick polyurethane foam insulation, it guarantees maximum thermal efficiency, minimal cold loss, and reduced operating costs.

Driver-Focused Cabin: The spacious one-and-a-half-row FVR cabin is designed for comfort and productivity. Features include power steering, air conditioning, an adjustable driver's seat, and central locking, ensuring a less fatiguing and more controlled driving experience on long hauls.

Built for Safety & Durability: With air brakes, a reinforced clutch, and 295/80R22.5 tires, this truck is built for safety and stability. The high-quality construction includes seamless, corrosion-resistant walls and stainless-steel door fittings, ensuring longevity and ease of maintenance.







Quick Contact



Get more informations or photos quickly

 Laura LIU +86 15037170872





ISUZU 4X2 240HP refrigerated van truck
Chassis parameters
Condition	New condition/Left hand drive/4X2
Main details	Brand		ISUZU
	Wheelbase(mm)		5550 mm
	Overall Dimensions(mm)		10000×2550×3850 mm
	Gross Weight(kg)		18,000
	Front/Rear Axle loading(kg)		6300/13000 kg
	Max. driving speed(km/h)		105 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Air brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	295/80R22.5
Transmission	Manual type , MLD 8 forward gears & 1 reverse
Cabin	Left Hand Driving FVR spacious cabin one row and a half cab adjustable driver seat central lock with Air condition
Engine	Brand		ISUZU engine
	Model		6HK1-TCG61
	Fuel type		Diesel
	Displacement(ml)		7790ml
	Power(kw)		175w at 2600 rpm
	Horsepower(HP)		240 HP
	Cylinder number		6
	Emission standard		Euro VI
Power Supply	With PTO

Up-parts Description
Van box dimensions	6800×2440×2500 mm
material of the van	FRP, 8 cm thick PU inside
Temperature	-18°C to +20°C (customizable based on requirements)
Refrigeration Unit	THERMO KING T-800
Rear Door Type	Full Size Double Opening Rear Door
painting	Custom's Requirement
Box Introduction	light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
Optional equip ment	1, Refrigeration brand: Carrier, Thermoking, DAlKlN (with any brand) 2. Rear vision camera 3. Aluminum flooring, hanging system 4.Optional Dual temperature, multi compartment









This ISUZU refrigerated truck is a core asset in cold chain logistics, specifically designed to transport goods that require a strictly controlled temperature environment. Its primary applications serve the following critical sectors:

Food Distribution & Logistics:

Frozen Foods: Safely transports ice cream, frozen meat, seafood, frozen prepared meals, and other goods requiring a deep-freeze environment, typically at or below -18°C.

Chilled/Perishable Foods: Ideal for fresh fruits and vegetables, dairy products (milk, yogurt), eggs, chocolate, and cut flowers, which need a stable chilled range between 0°C and +10°C to preserve freshness and extend shelf life.

Foodservice & Retail Supply: Delivers ingredients, pre-processed foods, and fresh produce from central kitchens and distributors to supermarkets, restaurants, hotels, and catering services.

Pharmaceutical & Healthcare Logistics:

Pharmaceuticals: Essential for transporting temperature-sensitive medicines such as vaccines, insulin, biologics, and clinical trial samples, often requiring a precise 2°C to 8°C cold chain.

Medical Supplies: Used for certain medical reagents, diagnostic kits, and supplies that must be kept at constant, cool temperatures.

Specialty Cargo & Other Uses:

High-Value Goods: Can transport certain temperature-sensitive high-precision electronic components or specialty chemicals that require a stable climate during transit.

Floral Industry: Used for the long-distance transport of premium cut flowers to maintain their freshness.
