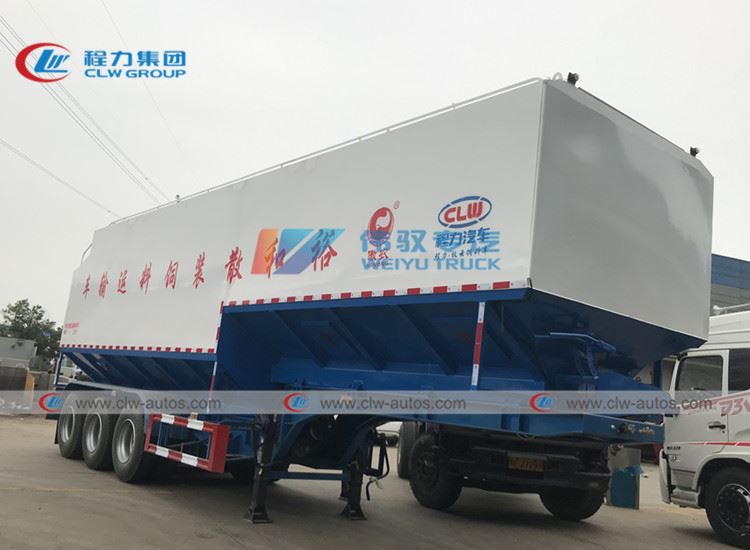

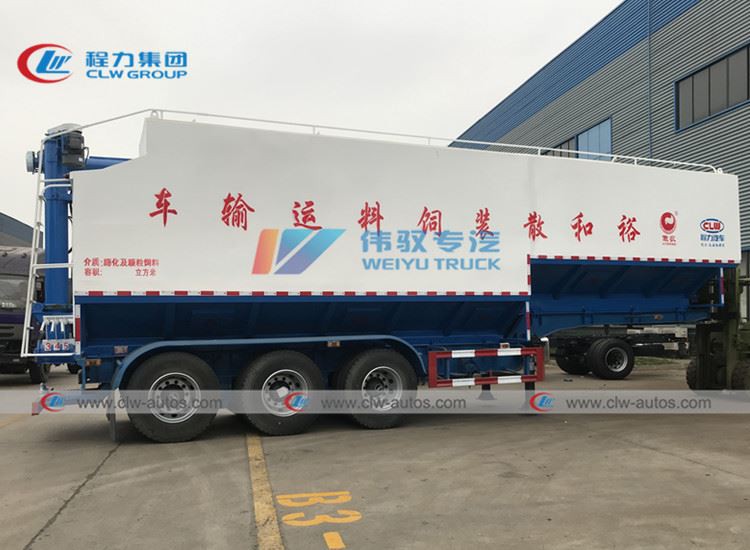

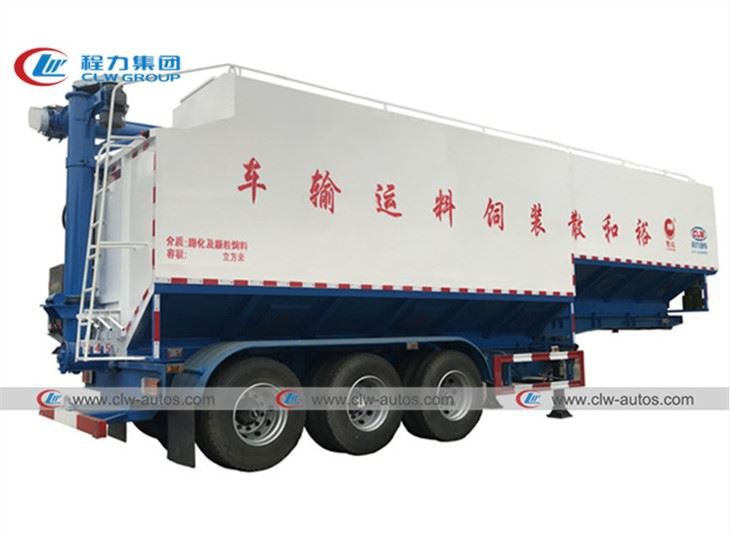

Hydraulic Auger Bulk Feed Delivery Trailer
3 axle Tri-axle Hydraulic Auger Bulk Feed Delivery Trailer Volume: 40CBM-65CBM
Product Details
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of hydraulic auger bulk feed delivery trailer in China. If you're going to buy high quality hydraulic auger bulk feed delivery trailer, welcome to get more information from our factory. For price consultation, contact us.
3 Axle 40,000Liters Hydraulic Auger Feed Delivery Transport Tank Truck Trailer
Product Description

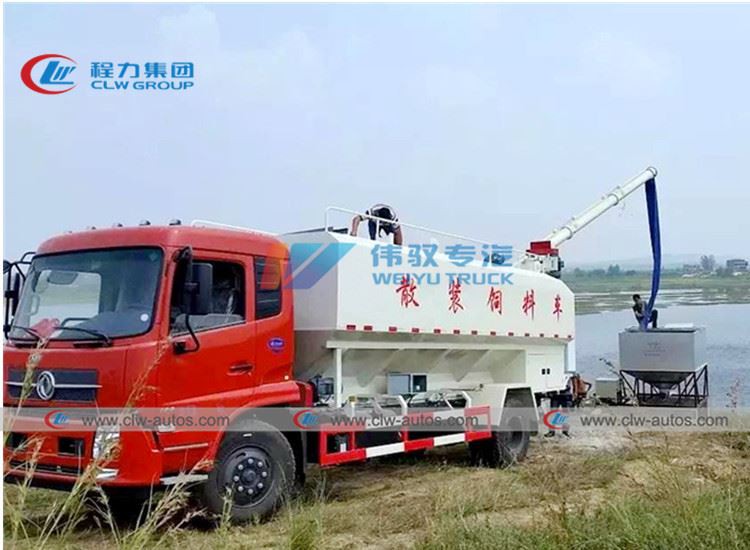

1. Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.
2. Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.
3. Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.
2. Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.
3. Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.
product Specification
| Specification of Bulk Feed Trailer | |||
| Condition | New condition. | ||
| Walking Mechanism | Axles | 3 Axles, FUWA. | |
| Overall Dimension(mm) | 12955×2550×3980 | ||
| Wheelbase(mm) | 7050+1310+1310 | ||
| Curb weight(kg) | 12350 | ||
| Loading weight(kg) | 34000 | ||
| Approach/departure angle(°) | -/13 | ||
| Front /rear overhang(mm) | -/2310 | ||
| Wheel track(front/rear)(mm) | 1840/1840/1840 | ||
| Axle loading(front/rear) (kg) | -/23600 | ||
| Suspension | Mechanical suspension with 8-pcs leaf spring | ||
| Braking System | Drum braking system, ABS, WABCO Emergency Relay Valve; T30/30+T30 air chamber. | ||
| Rim & Tire | Quantity | 12+1 | |
| Specification | 11R22.5 | ||
| Body | |||
| Loading Medium | Bulk feed, grain,powder, etc. | ||
| Tank size | 40' x 96" x153''(12.1x2.4x3.9 m ) | ||
| Bulk Capacity | 47 cbm | ||
| Material | Carbon steel | ||
| Thickness: 4mm | |||
| Rust Resistance | Anticorrosive paint | ||
| Compartments | Quantity: 6 (customized) | ||
| Color | As your request | ||
| Logo | As your request | ||

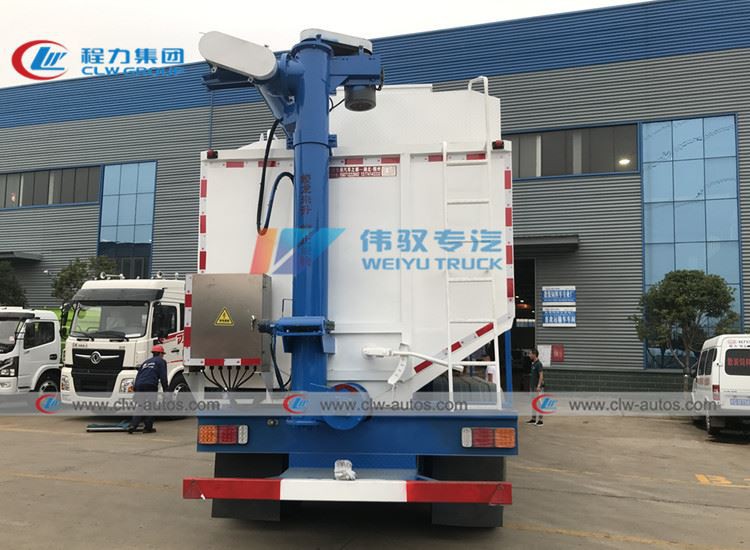

| Accessories | 1. Mobile conveyor 2. Vertical conveyor 3. Wire cabinets 4. Conveyor maintenance port 5. Horizontal conveyor 6. Discharging operation handle 7. Ladder 8. Electric motor (Wireless remote control is optional) | ||
