Dongfeng 12Ton XCMG Telescopiec Straight Arm Crane Truck
14meter lifting Height
12Ton XCMG Crane
Telescopic Straight Arm
4 Section Arm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 12ton xcmg telescopiec straight arm crane truck in China. If you're going to buy high quality dongfeng 12ton xcmg telescopiec straight arm crane truck, welcome to get more information from our factory. For price consultation, contact us.

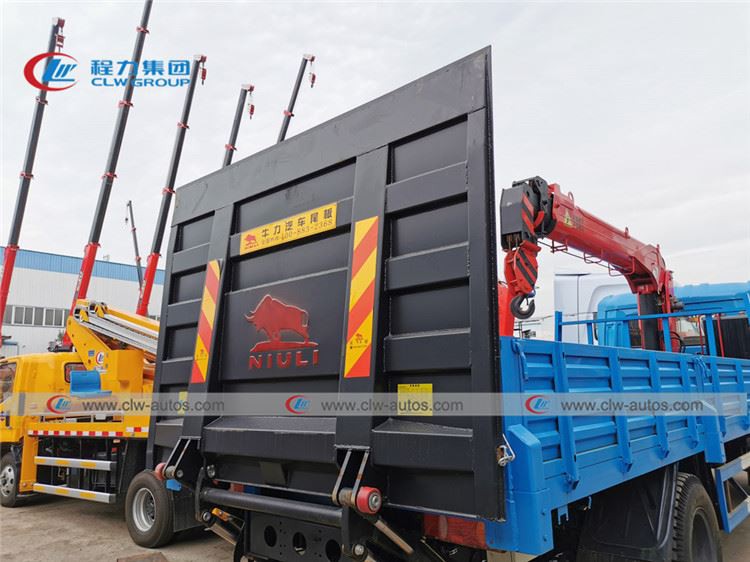

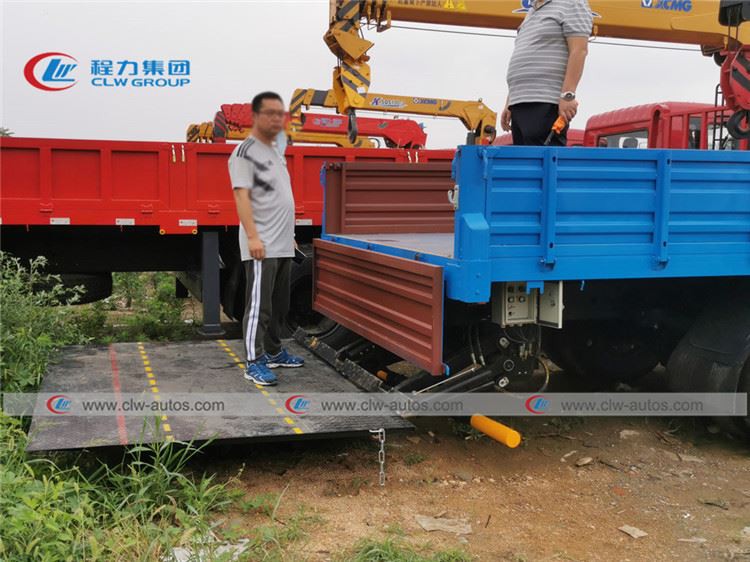

1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm
Description:
1. Crane Brand: Chinese Famous Brand
2. Heavy Duty Cargo box.
3. H Shape Hydraulic front & Rear Leg for safety.
4. Folded Arm & Telescopic Straight Arm Crane for option.
5. Crane capacity: 10ton,12ton, 14ton,16ton,20ton,25ton
6. Crane Brand: XCMG, SANY PALFINGER, CLW Brand
Product Specification
General Technical Parameters | ||
Overall Dimension | 12000×2500×3980 (mm) | |
Gross Vehicle Weight | 24900(Kg) | |
Curb Weight | 15800(Kg) | |
Chassis Specification | ||
Chassis Brand | Dongfeng | |
Drive model | 6*2 | |
Cabin | Double, Left Hand Driving, with air conditional | |
Number of Passengers | 3 | |
Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, |
Power |
| |
Emission standard | EURO 3 | |
Displacement | 6870(ml) | |
Fuel type | Diesel | |
Gearbox | 8Forwards & 1Reverse | |
Brake System | Air break | |
Wheel Base | 2100+5250 mm | |
Front/Rear Axle Loading | 8000/11500(Kg) | |
Approach/Departure Angle | 23/12(°) | |
Overhang | 1250/3545(mm) | |
Tire | 11.00R20 | |
Max Driving Speed | 90(km/h) | |
Item | Unit | SQ12ZK3Q |
Max Lifting Capacity | kg | 12000 |
Max Lifting Moment | t.m | 30 |
Recommend Power | kw | 32 |
Max Oil Flow of Hydraulic System | L/min | 55 |
Max Pressure of Hydraulic System | Mpa | 30 |
Oil Tank Capacity | L | 160 |
Crance Weight | kg | 4130 |
Installation Space | mm | 1400 |
Rotation Angle | ° | 360°All Rotaion |

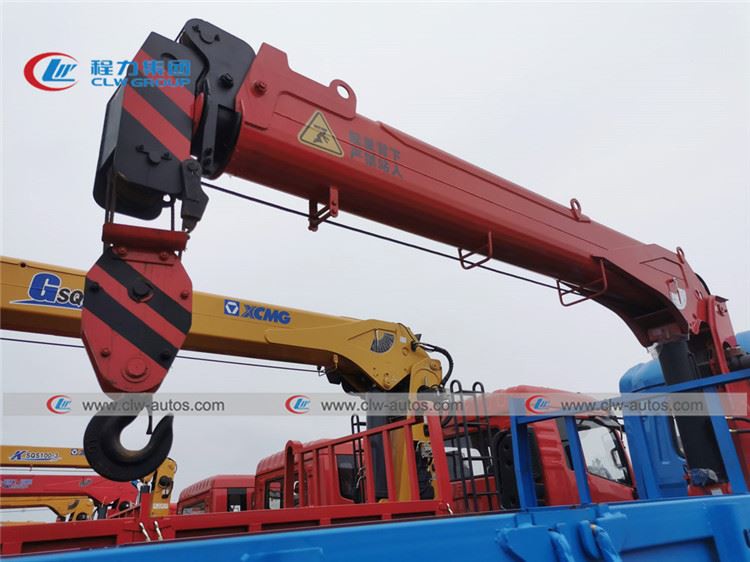

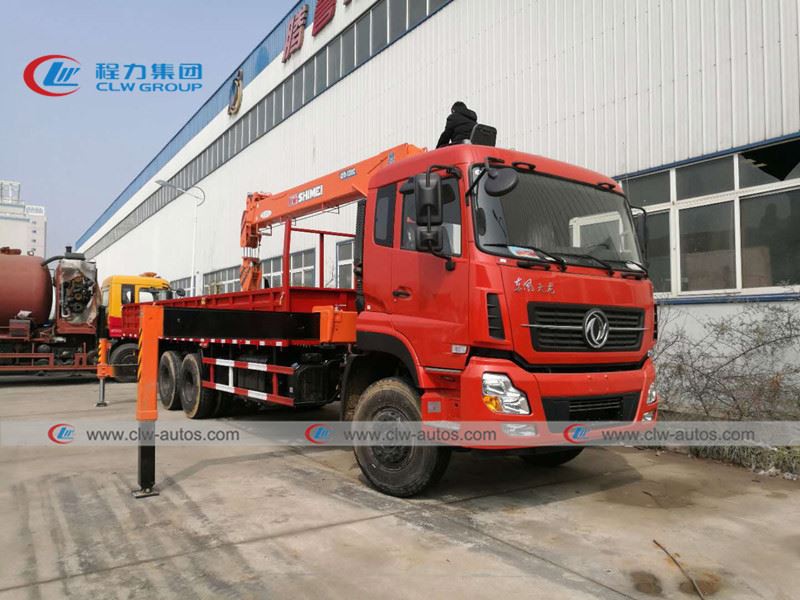

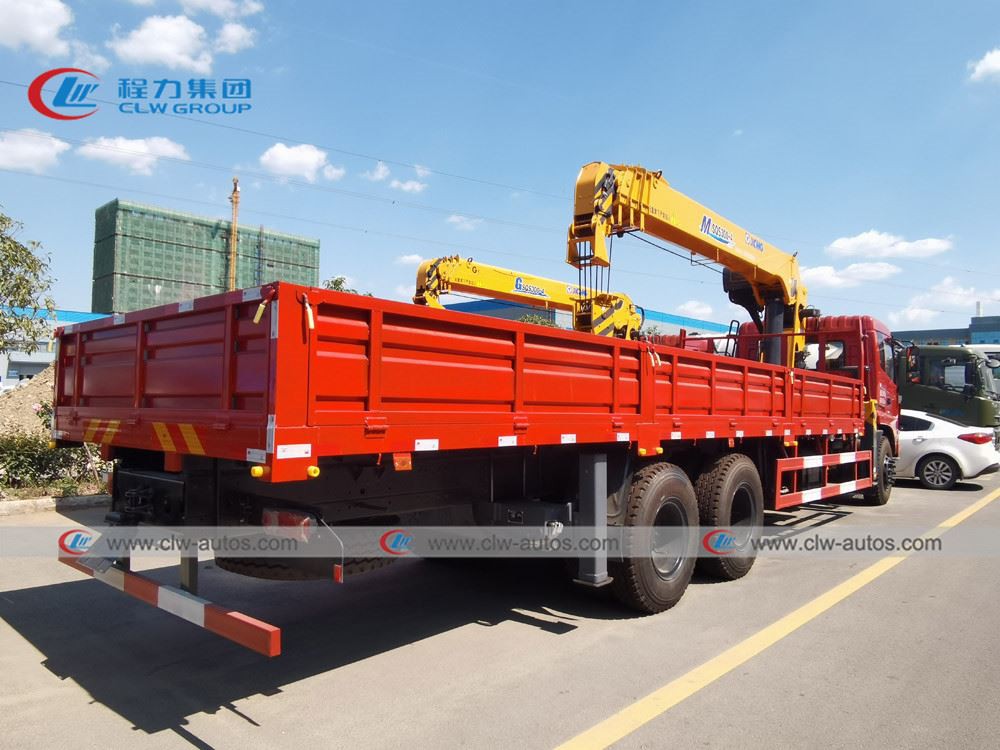

Reference Photos
1. More efficient
Multiple hydraulic cylinders form a jointed boom connection mechanism
So It's faster to get work done
2. Can be installed a variety of AIDS
high-altitude work platform,work bucket, fixture, hanging basket, plate fork, all kinds of high grip, auger, tire loading
manipulator and pile extractor and other auxiliary equipment
3. Narrow working environment
More suitable for the factory warehouse & other relatively narrow working environment
