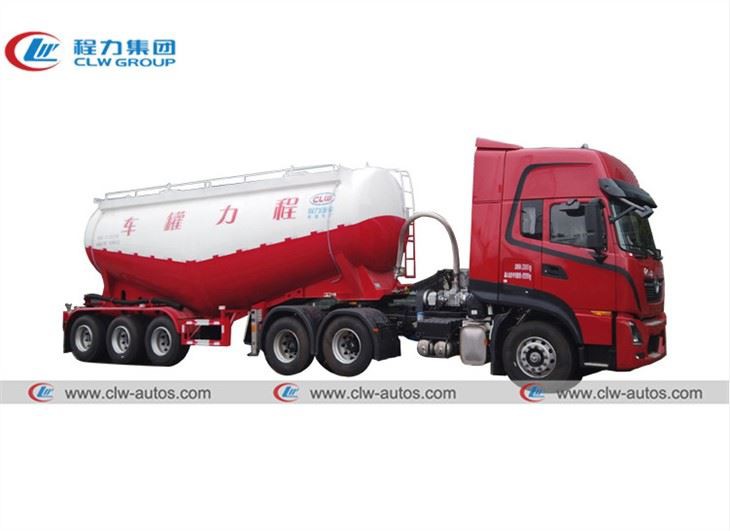

27500 Liters Bulk Cement Tanker Semi-trailer With Tractor Truck
Bulk cement trailer is a semi-trailer V type used for the transport of bulk cement and other cement products. Trailer capacity from 20 to 60 m³. Available from 2 to 4 axles. The discharge is carried out with the help of a compressor.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 27500 liters bulk cement tanker semi-trailer with tractor truck in China. If you're going to buy high quality 27500 liters bulk cement tanker semi-trailer with tractor truck, welcome to get more information from our factory. For price consultation, contact us.
Product description:
The bulk cement tanker semi-trailer used for transporting cement is a bulk powder transport vehicle made of a combined specially designed chassis, pneumatic piping system, tanker and discharging units. Its common application and use are in the cement manufacturing factory, construction sites and the cement warehouse.
Product specifications:
| Semi-Trailer | |
| Trailer Tare weight | 8500kg |

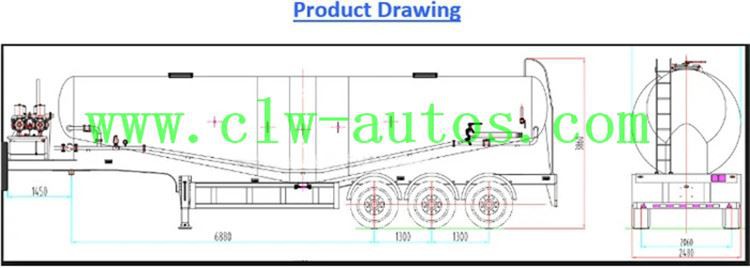

| Trailer Size | 11000*2500*4000mm "V" type |
| Volume | 27500Liters(27.5cbm) |
| Loading Capacity | 25-35tons |
| Tank body | Q235 4mm steel sheet |
| End plate | Q235 6mm ball shape |
| Axle | 13ton *3 axles |
| Suspension | Mechanical suspension American type |
| Leaf spring | Leaf spring 10pcs*90mm*13mm |
| Manhole cover | 500mm manhole cover 2 sets |
| Tire | 12R22.5 *12units |
| Wheel rim | 9.0-22.5 *12pcs |
| Discharge valve | 4" disc valve |
| Discharge pipe | 4" seamless steel tube |
| Outlet pipe | 4" rubber hose. 6meters |
| Kingpin | JOST brand 2"/3.5" bolt-in king pin |

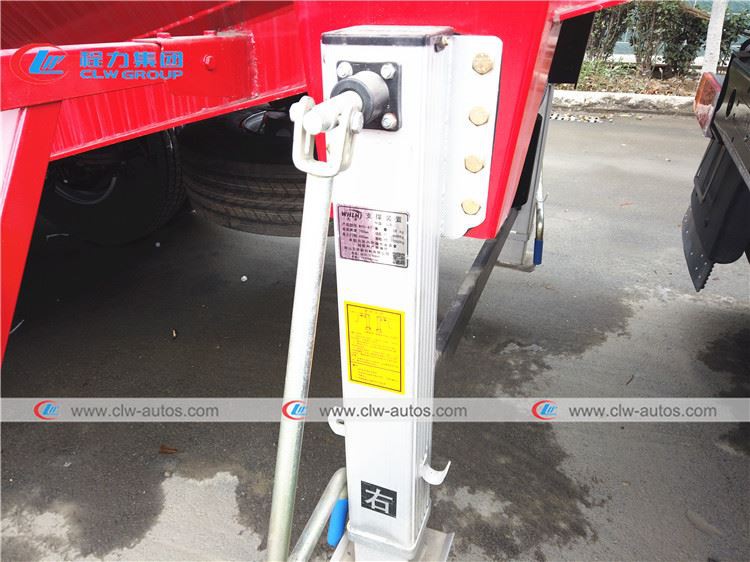

| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear |
| Engine | WEICHAI brand model: 4102 |

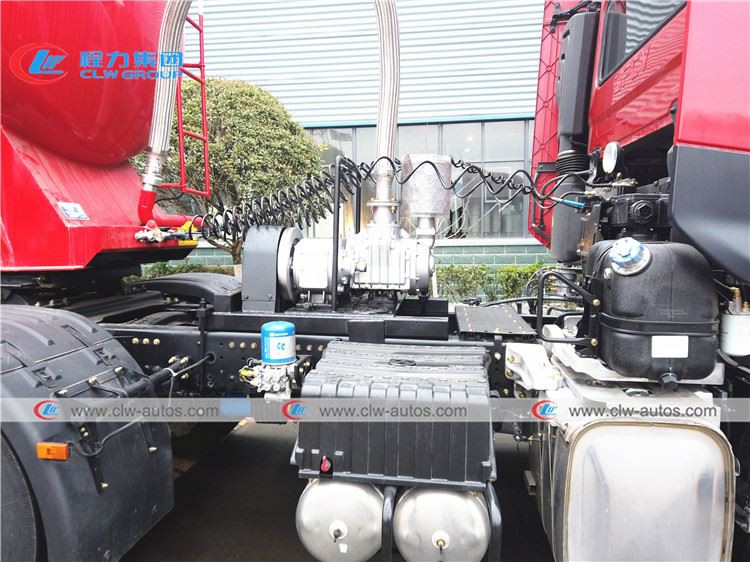

| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | 1UNITS |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S2M or Optional |
| Air-charging system | 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint |
| Accessories | One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench |
| Date of delivery | 25 working days |
| Tractor truck | |
| Brand/model | Dongfeng/Sinotruk Howo/FAW/Shacman 6x4 tractor trucks are optional |

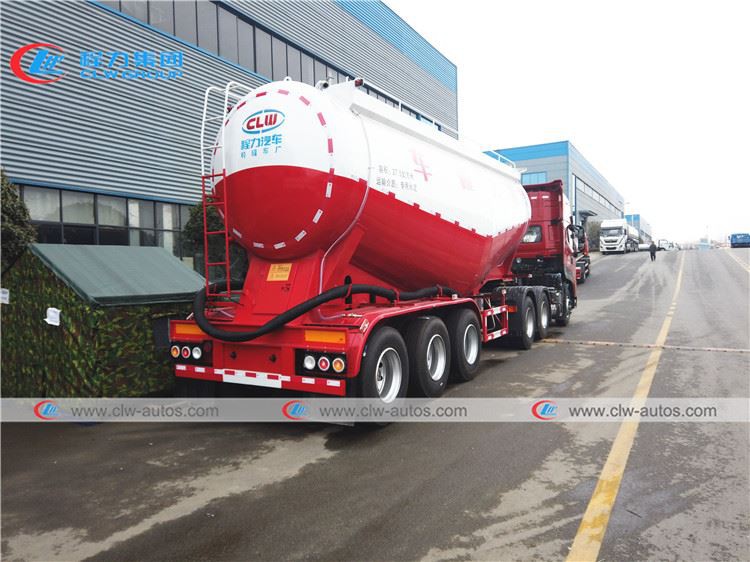

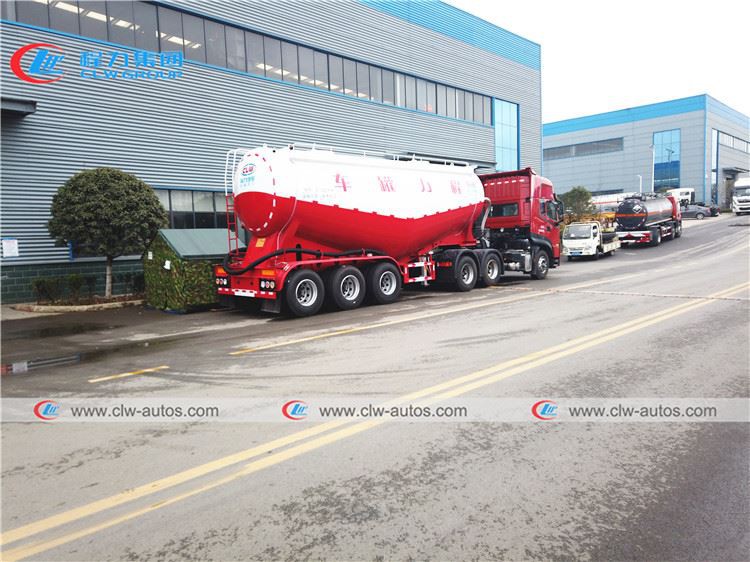

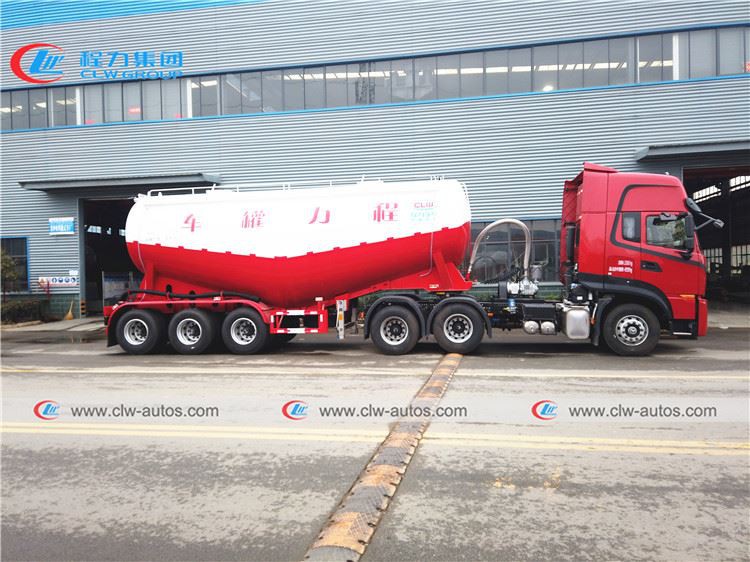

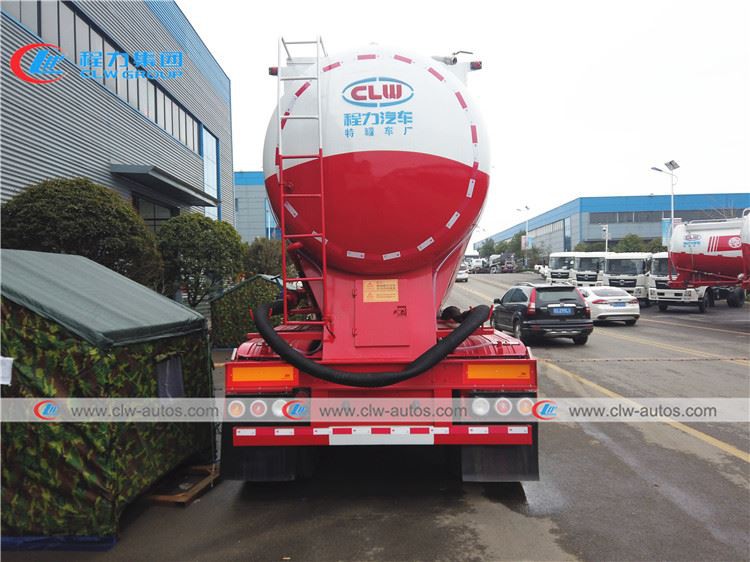

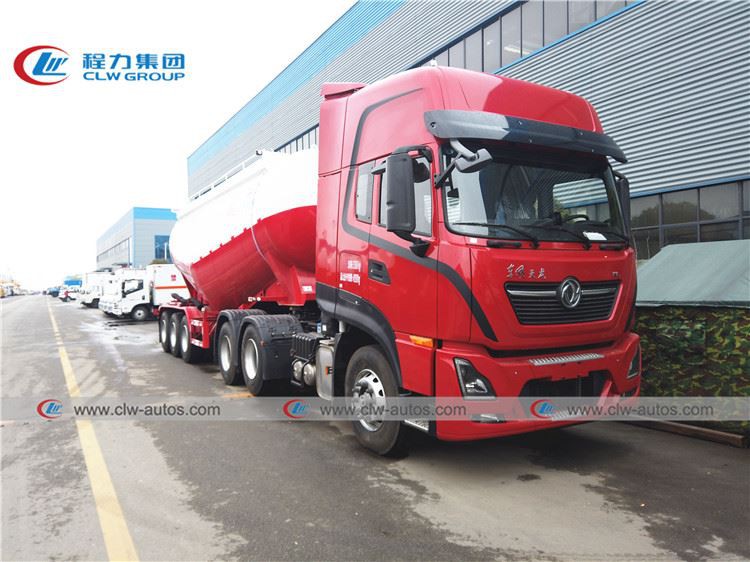

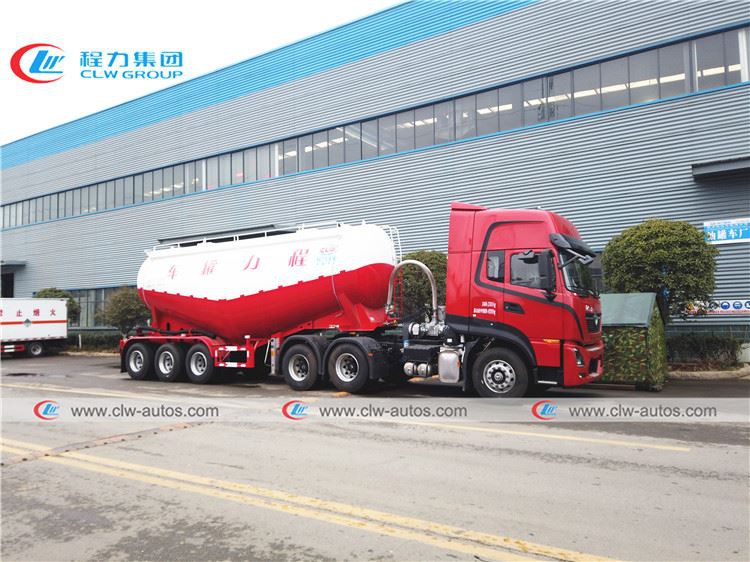

Product pictures:
After-sales service
Semi-trailer adopts computer 3D aided design,rational structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
| ITEM | WARRANTY TERM | |
| Main Frame | frame | 1 year |
| king pin | 1 year | |
| suspension | 6 months | |
| balance arm | 3 months | |
| U-shaped bolt | 3 months | |
| pull rod | 6 months | |
| leaf spring | 3 months | |
| landing gear | 3 months | |
| spare tire carrier | 3 months | |
| Running Gear | axle | 1 year |
| axle bearing | 3 months | |
| wheel rim | 3 months | |
| tire | 3 months | |
| Braking Device | brake drum | 3 months |
| Relay valve | 3 months | |
| brake champer diaphragm | 3 months | |
| spring brake chamber | 3 months | |
| brake shoe | 3 months | |
| air tank | 3 months | |
