ISUZU SUS 316 Drinking Water Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu sus 316 drinking water truck in China. If you're going to buy high quality isuzu sus 316 drinking water truck, welcome to get more information from our factory. For price consultation, contact us.

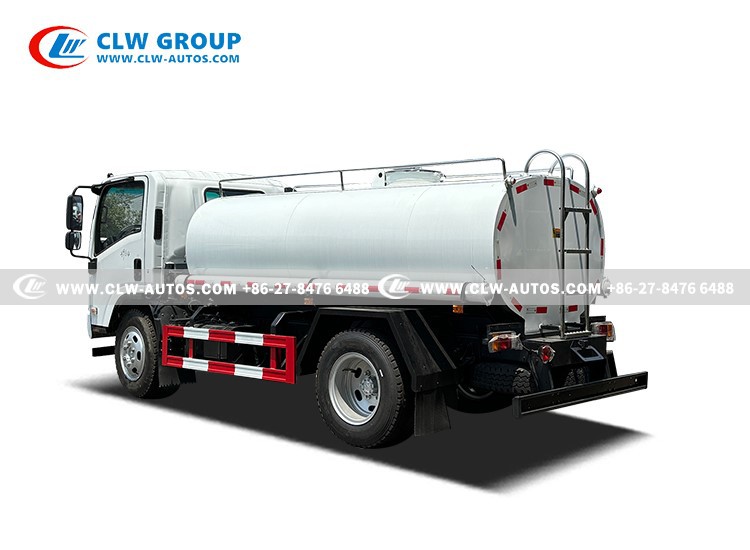

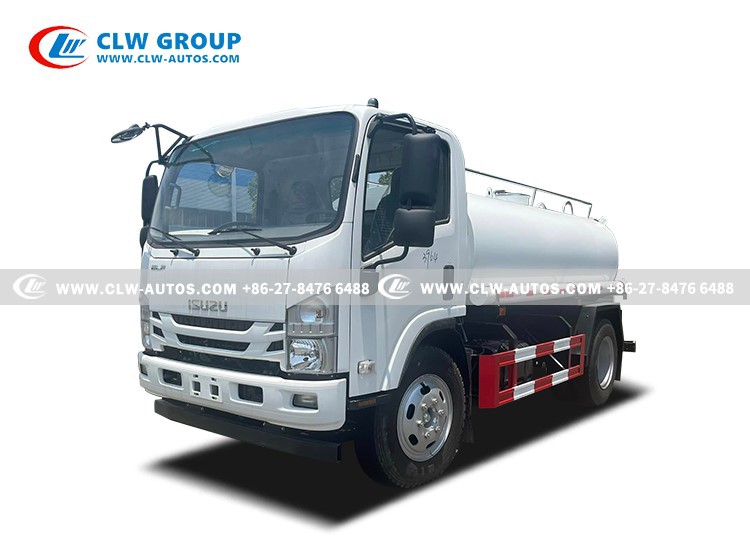

5 Cubic Meter Capacity ISUZU KV100 4X2 Potable Water Tanker

 with Stainless Steel SUS 316









• Built for efficient and reliable drinking water transport, this Isuzu KV100 4x2 Potable Water Truck offers a compact yet capable solution. It features the robust KV100 wide-body cab for operator comfort and is powered by a fuel-efficient 120 horsepower engine meeting stringent Euro 6 emission standards.
• The core component is its 5-cubic-meter  water tank, meticulously constructed from premium SUS 316 stainless steel – a superior grade offering enhanced corrosion resistance, especially important for maintaining water purity over the long term.
• This tank is specifically certified for potable (drinking) water transport, adhering to all relevant health and safety standards.
• The truck includes a dedicated water pump capable of handling flows around 5 liters per minute (1.3 US GPM).
• Key specifications include a 3815 mm wheelbase, ABS (Anti-lock Braking System), air-actuated parking brakes (Spring Brakes), a 2.5-ton front axle capacity, and a 4.8-ton rear axle capacity.















1. Local Community and Urban Water Delivery: Ideal for supplying clean drinking water to neighborhoods, small communities, housing estates, or offices within city limits or semi-urban areas.
2. Construction Camps and Small Sites: Providing essential potable water for worker hydration, cooking, and sanitation facilities on smaller construction projects.
3. Resort, Hotel and Facility Supply: Efficiently delivering water to tourism locations, hotels, schools, or other facilities requiring regular fresh water top-ups.
4. Restaurant and Catering Support: Supplying high-quality drinking water to food service businesses.
5. Emergency Backup Supply: Serving as a crucial mobile water reserve for smaller-scale emergencies or temporary disruptions.
6. Agricultural and Nursery Support: Transporting water for irrigation in gardens, nurseries, or small-scale farming operations.











Chassis Technical Specification
Chassis brand	ISUZU KV100
Driving mode	4X2
Gross vehicle weight	11,000kg
Loading weight	5,000kg
Wheelbase	3815mm
Cabin	ISUZU 3X cabin; Left hand driving; Electrical doors and windows; With air conditioning; Power steering, central lock;
Engine	Engine brand	ISUZU, 4KH1CN6LB
	Horsepower	120 hp
	Displacement	3.0L
	Emission standard	Euro Ⅵ
Transmission	ISUZU, Manuel, 5 forward gears and 1 reverse
Front axle loading	2,500kg
Rear axle loading	4,800kg *2
Tyre	7.00R16 , 6 pieces with 1 spare tire
Max. Driving speed	89km/h
Brake system	ABS air brake off
Superstructure Parameters
Water tank volume	5,000 liters
Loading medium	Potable water
Water tank mterial	Stainless steel 316
Tank thickness	5mm, 6mm,7mm as requested

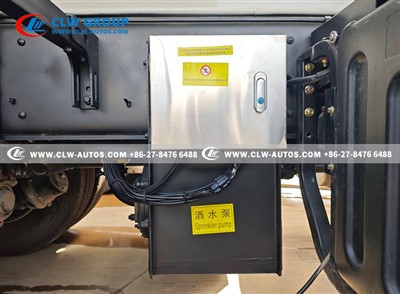

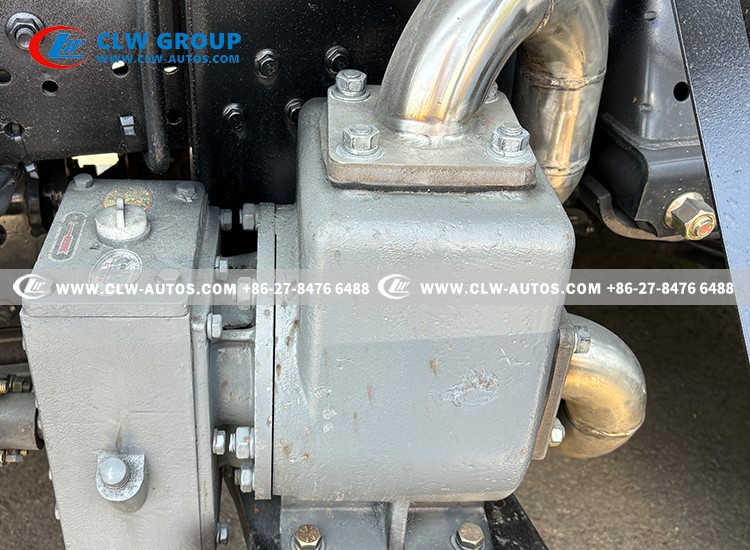

Water pump	High quality stainless steel water pump
Water flow rate	60m3/h

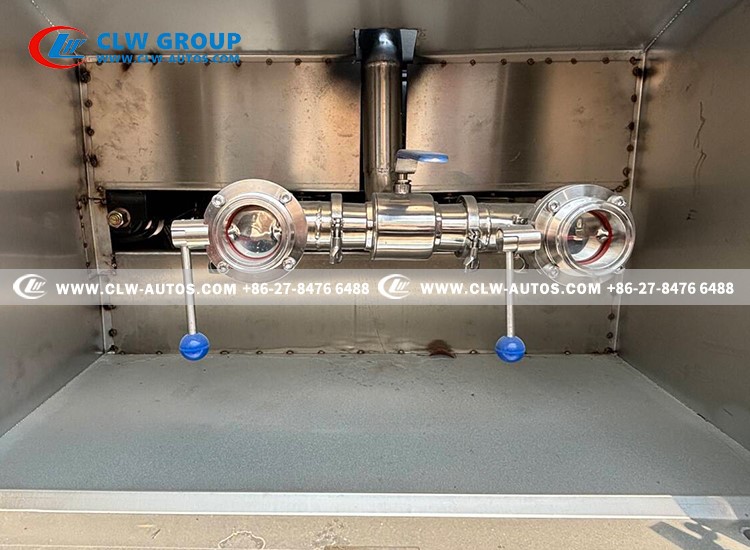

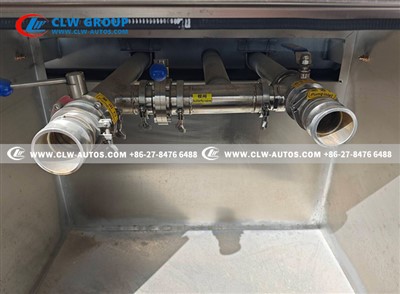

Other devices	Self-flow valve 1pc; Fire joint 1pc; Discharging pipe 2 pcs. DN450 manhole; Fence and ladder; Vice-beams, anti-wave clapboard; Level gauge at rear of truck.



















1. Guaranteed Water Purity and Longevity: The SUS 316 stainless steel tank offers exceptional corrosion resistance, particularly against chlorides and other elements often found in water, ensuring the highest level of water quality preservation and a significantly longer tank lifespan compared to standard grades. Meets critical health standards.
2. Compact and Maneuverable: The 4x2 chassis and 3815mm wheelbase make this truck highly agile and easy to navigate in urban environments, narrow streets, and confined worksites – a key advantage over larger trucks.
3. Euro 6 Efficiency and Compliance: The 120 HP engine delivers excellent fuel economy for its class while adhering to the latest low-emission standards (Euro 6), reducing environmental impact and allowing operation in emission-controlled zones.
4. Proven Isuzu Reliability: Built on the dependable Isuzu KV100 platform, renowned for its durability, low maintenance costs, and overall value in light/medium-duty applications.
5. Optimized Payload and Stability: Clearly defined axle capacities (Front 2.5T / Rear 4.8T) ensure safe and stable operation when the tank is fully loaded within its 5m³ capacity.
6. Essential Safety Systems: Standard ABS improves safety during braking maneuvers, while air-actuated parking brakes are a critical safety feature for heavy vehicles.
7. Cost-Effective Operation: Combines Isuzu's inherent reliability and fuel efficiency with the lower operating costs typical of a lighter chassis, resulting in an attractive total cost of ownership.
8. Purpose-Built for Potable Water: Every aspect, from the superior SUS 316 tank material to the dedicated pump, is engineered specifically for the safe, reliable, and efficient transport of drinking water.
