Shacman Piglets Transportation Truck

Brand:Shacman H3000 8X4
Horsepower: 380hp
Overall dimension: 12,000*2,500*3,995mm
Wheelbase:1800+4575+1400mm
Emission standard: Euro 2
Tire: 12.00R20, 12+1 pieces
Numbers of pigs:110pigs for125kg; 1200pigs for 10kg

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Shacman Piglets Transportation Truck in China. If you're going to buy high quality Shacman Piglets Transportation Truck, welcome to get more information from our factory. For price consultation, contact us.

8X4 SHACMAN H3000 Animal Transportation Piglets livestock Carrier

We are Straight Manufacturer from China.

Quality First, Service Best, Welcome for Inquiry!

Products Description

The livestock transport vehicle primarily used for transporting live pigs is also referred to as a hog hauling truck or swine transport trailer. Its body features an all-aluminum or stainless steel insulated structure with fiberglass exterior panels.
The Shacman H3000 8x4 is a state-of-the-art, heavy-duty livestock transporter engineered for the safe, efficient, and humane long-distance transportation of pigs. Designed to maximize animal welfare and survival rates, this truck features a customizable 3 to 5-deck structure with a capacity ranging from approximately 100 market hogs to 1000 piglets. Built on a supremely robust H3000 chassis and integrated with a comprehensive life-support system-including full climate control (heating & cooling), automatic feeding, ventilation, and real-time monitoring-it sets a new standard for reliability in challenging environments like Africa, Asia, and cold regions like Russia.

The main structural characteristics are as follows:

Multi-Tier Loading System
Automated Feeding System
Climate-Controlled Cabin System
Spraying System
Hydraulic Access Ramp System
Power Supply System
Integrated Monitoring & Control System

Technical Specification

Chassis Technical Specification
Driving mode		8X4
Gross weight		31,000kg
Curb weight		15,500kg
Rated loading weight		15,370kg
Wheelbase		1800+4575+1400 mm
Cabin		Top-flat, one row and a half cabin; Left hand driving
Engine	Engine brand	WP10.380E22
	Horsepower	380 hp
	Emission standard	Euro 2
Transmission		10JSD180, 10 forward gears and 2 reverse; Manual
Tyre		12.00R20, 12pieces
Front/Rear axle loading		7500kg 2 ; 13000kg2
Fuel tank		300L; aluminum alloy material
Air storage tank		200L; aluminum alloy material
Upper Structure Parameters
Van body dimension		960025002600mm
Van material		The whole van body is made of aluminum alloy
Single-layer square area		21.25m2
Numbers of pigs loaded		Three storey	110pigs;125kg per one
		Four storey	1200pigs; 10kg per one
Spraying System		Pressurized water tank Distribution pipelines Spray nozzles Wastewater collection tank
Automated Feeding System		Feed tank Pipeline pump Distribution piping Feeding nozzles
Climate-Controlled Cabin System		Vehicle-mounted refrigeration unit Heating blower Air-mixing delivery chamber Ventilation exhaust fans Temperature & humidity sensors
Hydraulic Access Ramp System		Vertical hydraulic tail lift Folding safety guardrails Non-slip surface

Video Shots and Spots for You

Why Choose Our Livestock Transport Truck?

We provide more than just a vehicle, we deliver a complete, life-supporting mobile environment for your valuable livestock. By prioritizing animal welfare through technology, we help you protect your investment, ensure compliance with increasingly strict transport regulations, and achieve higher profitability through reduced loss rates. Our trucks are built for the toughest conditions and are fully customizable to your specific operational needs.

Key Advantages and Features

Multi-Tier Loading System

The transport compartment is equipped with a 2- or 3-tier loading mechanism, where hydraulically operated partitions allow pigs to move between levels-essentially "taking an elevator." Each tier features dividing panels to separate the animals.

Automated Feeding System

--Feed tank (food storage)

--Pipeline pump (for liquid delivery)

--Distribution piping

--Feeding nozzles (for precise dispensing)

This system ensures efficient, automated delivery of liquid feed to pigs during transport.

Climate-Controlled Cabin System

--Vehicle-mounted refrigeration unit (cooling)

--Heating blower (warming)

--Air-mixing delivery chamber (for balanced airflow)

--Ventilation exhaust fans (gas circulation)

--Temperature & humidity sensors (real-time monitoring)

Spraying System

--Pressurized water tank (for spray supply)

--Distribution pipelines

--Spray nozzles (for even water dispersion)

--Wastewater collection tank (environmental compliance)

The system cools piglets via water mist while maintaining cabin hygiene.

--Animal Welfare & Survival Rate Focus

Full Climate Control: Equipped with air conditioning, cooling fans, and heavy-duty heaters to maintain an optimal temperature range inside the cargo area. This is critical to reduce heat stress in summer and prevent hypothermia in winter, directly lowering mortality rates.

Advanced Ventilation System: Each deck features sealed folding partitions, exhaust fans, and high-efficiency air filters to ensure constant air exchange, remove ammonia, and provide fresh air, preventing the spread of pathogens.

All-Weather Operation: Specially designed for extreme climates. For regions like Russia (down to -40°C), we offer enhanced heating, fully enclosed bodies, and thickened insulation layers for superior thermal retention.

-- Operational Efficiency & Automation

Hydraulic Management System: Hydraulically operated decks and dividers allow for easy loading/unloading and efficient space management. The rear gate hydraulically unfolds to form a ramp, adjustable to different dock heights.

Automated Onboard Systems: Includes automatic feeding systems, drinking water pipelines with a 200L tank, and automated spray cooling to nourish and hydrate animals during transit without manual intervention.

Intelligent Monitoring & Control: Features a central touch-screen control panel and CCTV monitoring system, allowing drivers to oversee animal conditions, control environment, and operate systems from the cab.

--Durability, Hygiene & Safety

Robust Construction: Built on a reinforced chassis with an 850x300 (8+5)mm frame, high-capacity axles (Front 7.5T / Rear 13T), and 12.00R20 tires for unmatched stability and durability on rough roads.

Integrated Sanitation System: Comes with a dedicated sewage recycling and disposal system to collect waste, preventing bacterial growth, contamination, and ensuring compliance with environmental and biosecurity standards.

Reliable Powertrain: Powered by a 380 HP WP10.380E22 engine (Euro II) and a 10JSD180 transmission with a PTO (QH50), providing ample power for heavy loads over long distances.

--Customizable & Versatile Design

Flexible Deck Configuration: The 3, 4, or 5-deck design can be customized based on the size (piglets or market hogs) and quantity of animals, maximizing payload efficiency for every client.

Comprehensive Standard Equipment: Includes a 300L aluminum fuel tank, 200L aluminum water tank, hydraulic tail lift, and partition dividers to secure animals and minimize stress during transit.

Reference Pictures

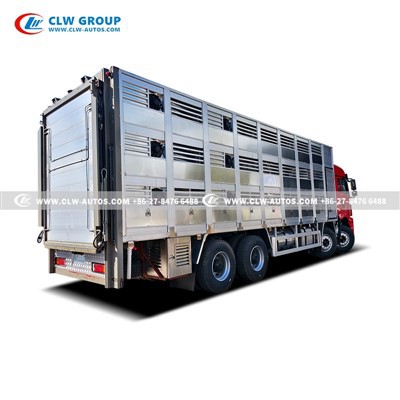

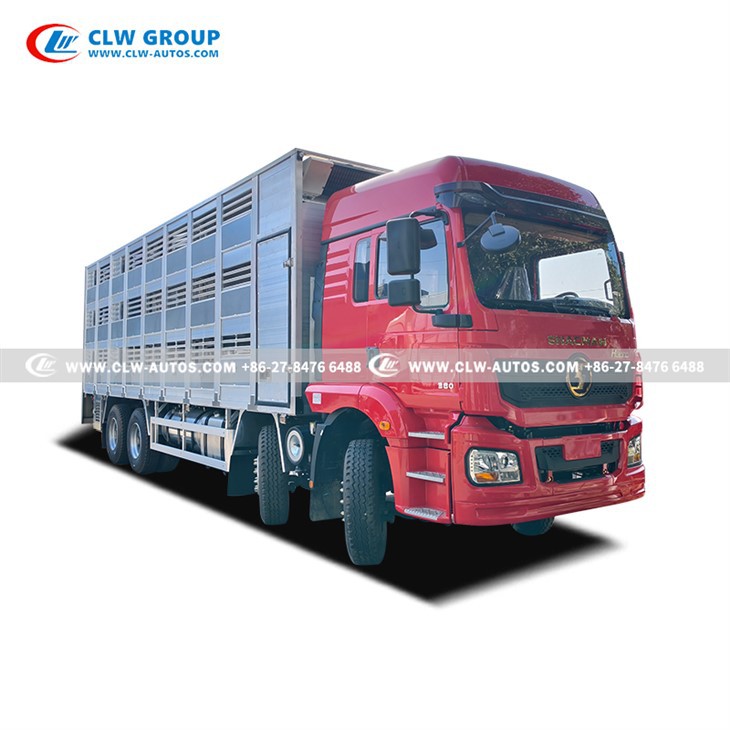

Shancman 8X4 Piglets livestock truck

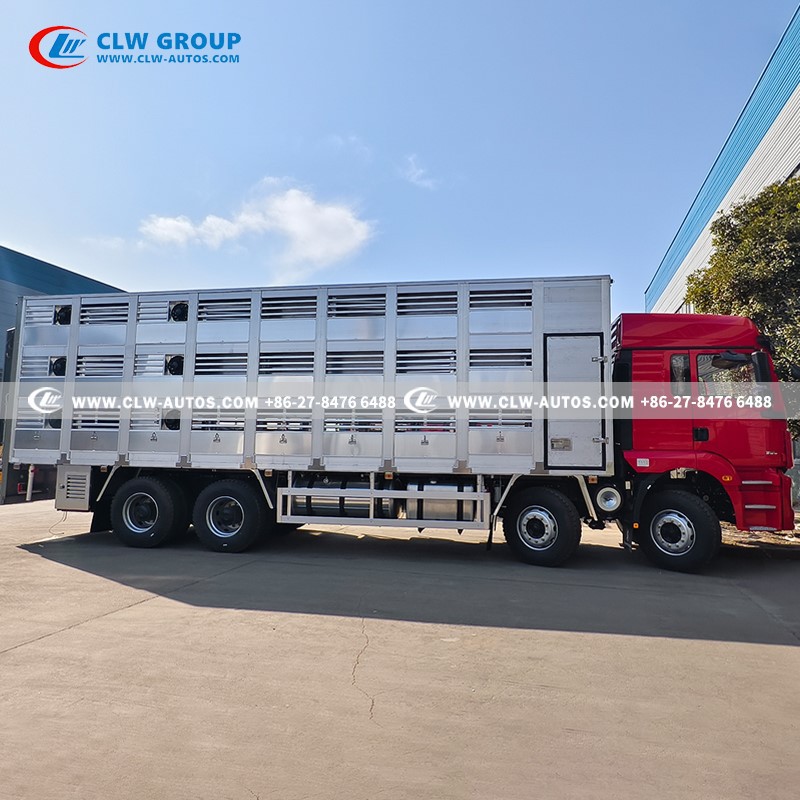

8X4 Piglets transportation livestock truck

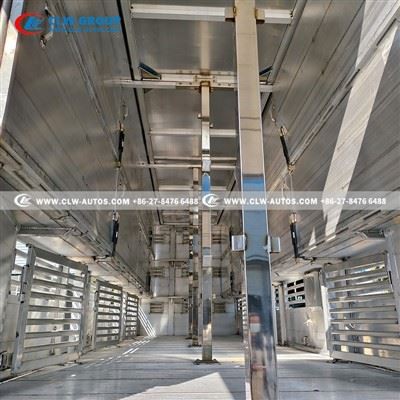

Internal stainless steel design could be divided into 345 layers

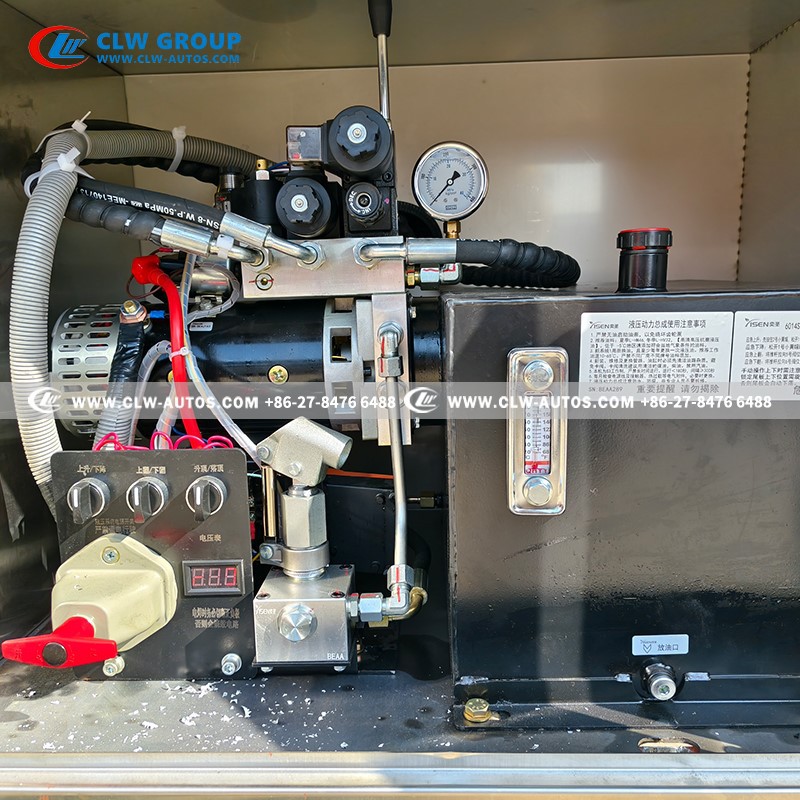

electrical machine supply power

8X4 Piglets livestock truck hydraulic tailboard

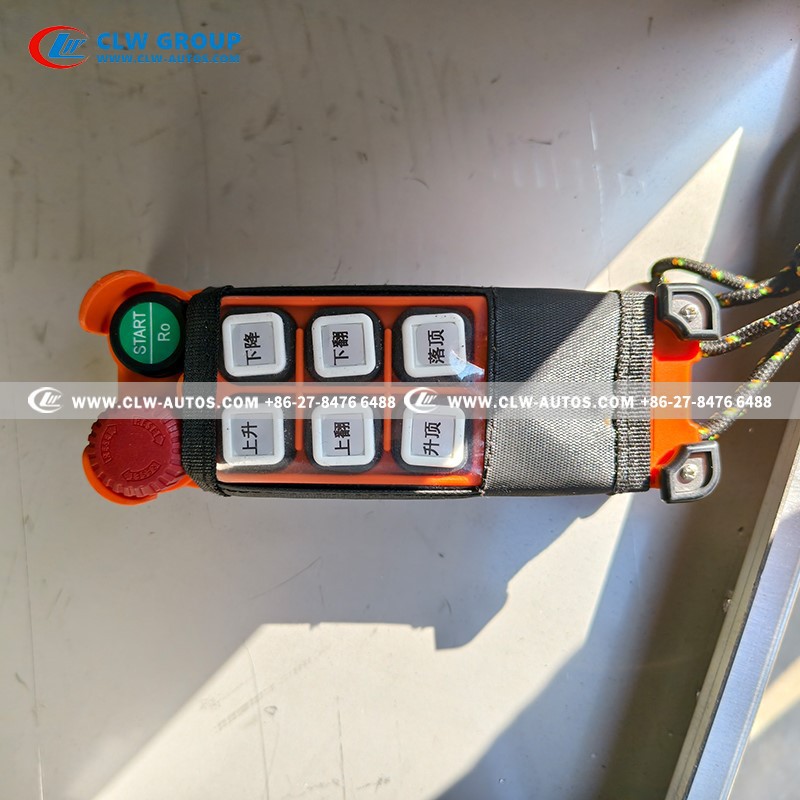

remote control

Ideal Application Scenarios:

Large-Scale Pig Farms: Transporting piglets from breeding farms to growing facilities or market hogs to processing plants.
Long-Distance & Cross-Border Transport: Ideal for regional trade within Africa, Asia, and Europe, built to handle varying road and climate conditions.
Cold/Extreme Climate Regions: Specifically adapted versions for operations in countries with severe winters.
Livestock Export Businesses: Meeting international animal welfare and transport standards for export operations.
