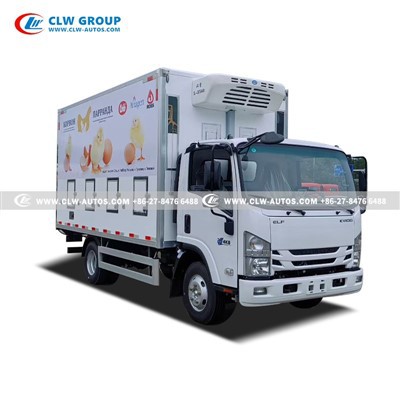

ISUZU Climate-controlled Chick Van
Chassis brand:ISUZU KV100
Van length: 4200mm
Wheelbase: 3360mm
Horsepower: 120-130hp
Van base plate: Stainless steel plate
With great climate-controlled system
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu climate-controlled chick van in China. If you're going to buy high quality isuzu climate-controlled chick van, welcome to get more information from our factory. For price consultation, contact us.

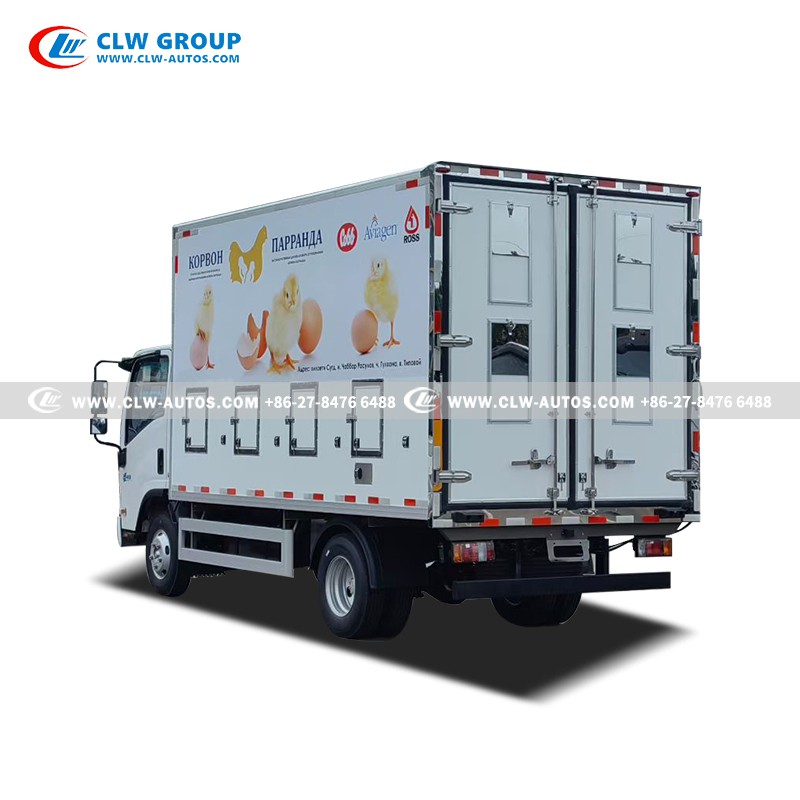

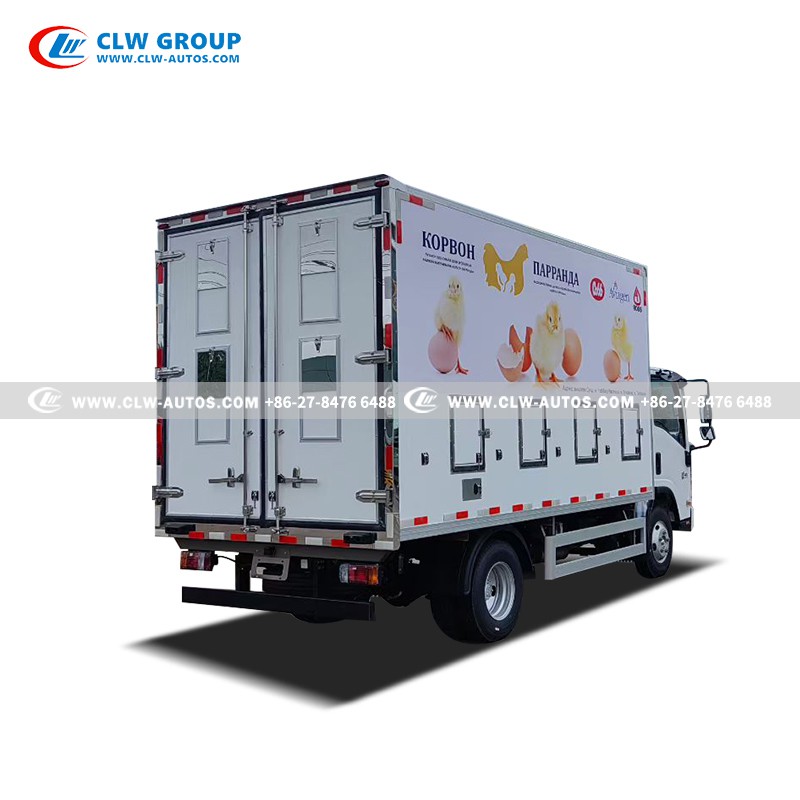

ISUZU 4x2 Day-Old Chick Transport Climate-controlled Truck
Products Description
Poultry Chick Transport Vehicle, also known as Chick Carrier, Hatchling Transport Van, Livestock Carrier, or Climate-Controlled Poultry Transporter, is a specialized vehicle designed for the safe transportation of live poultry hatchling including chicks, ducklings, goslings, quails, and pigeons.
Equipped with an integrated ventilation system, refrigeration units, heating mechanisms, and compartmentalization features, it maintains a precisely regulated thermal environment throughout transit.
Designed for Excellence in Poultry Mobility
Our specialized 4.2-meter Day-Old Chick Transporter is engineered to deliver maximum viability and welfare for your poultry. Capable of humanely transporting up to 20,000 chicks with a guaranteed survival rate exceeding 95%, this vehicle sets the new standard in reliable and efficient chick logistics. Custom-built on various chassis to meet your specific operational needs.
key Words:
--Climate-controlled poultry transport vehicle
--4.2m livestock transporter for hatchlings
--ISUZU KV100 poultry truck
--Multi-zone ventilation livestock carrier
--Energy-efficient live poultry transportation
Technical Specification
|
Chassis Technical Parameters |
||
|
Driving mode |
4X2 |
|
|
Wheelbase |
3360mm |
|
|
Cabin |
KV100, LHD or RHD With air conditioning; Electrical doors and windows; Central control lock; |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Horsepower |
120hp |
|
|
Displacement |
3000ml |
|
|
Transmission |
ISUZU, 5 forward gears and 1 reverse |
|
|
Tyre |
7.00R16, 6+1pieces |
|
|
Front axle loading |
2,500kg |
|
|
Rear axle loading |
4,800kg |
|
|
Upper structure parameters |
||
|
Van length |
4.2m |
|
|
Van material |
Fiberglass reinforced plastic |
|
|
Thickness |
8cm |
|
|
Base plate |
Stainless steel plate |
|
|
Ventilation system |
|||
|
Top van ventilation |
Three ventilation fans (emergency exits) are installed in the center of the top panel |
||
|
Side van ventilation |
Five operable doors and windows are added to the lower part of each of the left and right side panels. |
||
|
Rear van ventilation |
Two ventilation fans are installed on each side of the rear door of the enclosure. |
||
|
Temperature and humidity detection recorder |
Installed in the driver's cab, it allows for real-time monitoring of the Day-chicks' situation.
|
||
|

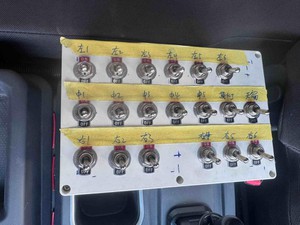

Control panel |
|
||
|

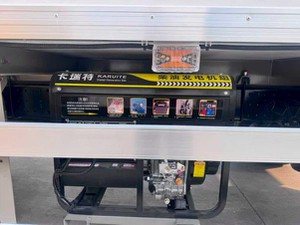

Diesel generator |
5KW |
|
|
|
Others |

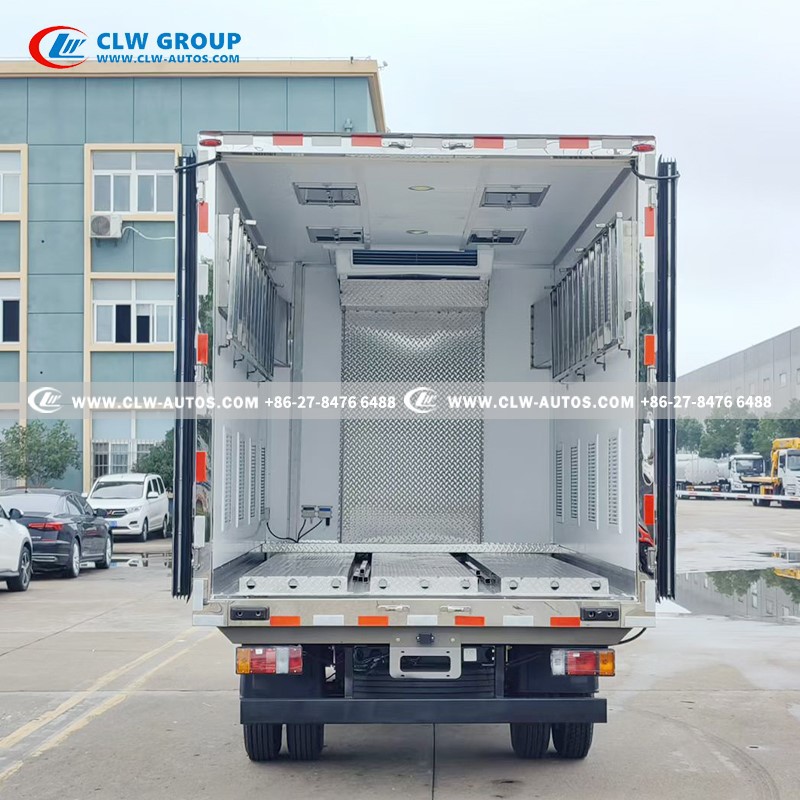

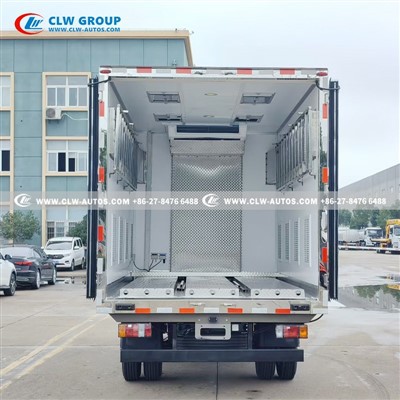

The interior is fitted with shelves, the floor is laid with heater channels, aluminum alloy side guards are installed, and the entire vehicle's primer is treated with electrophoresis. |
||
|

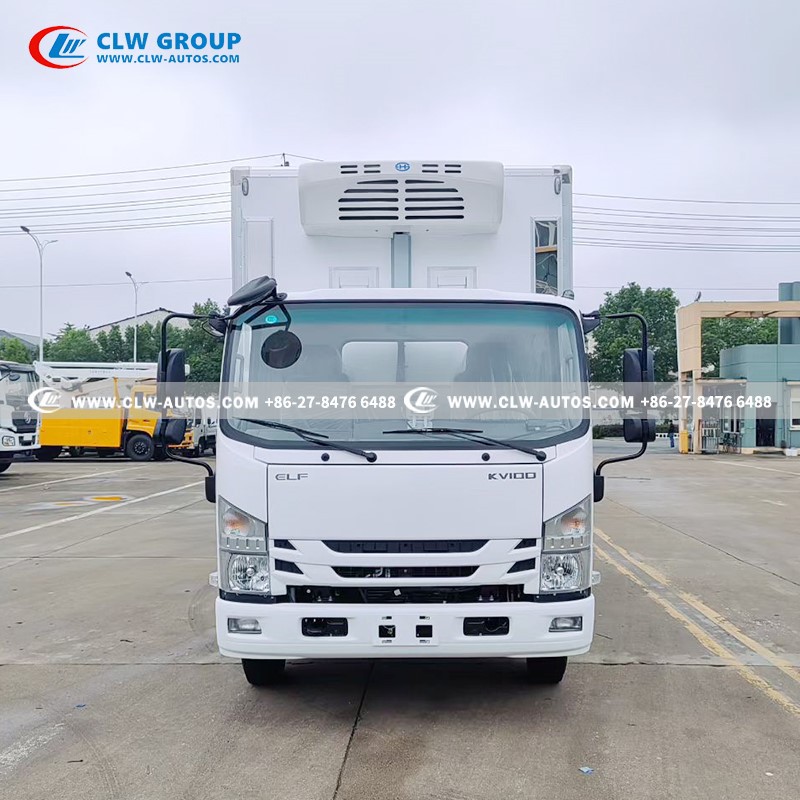

Refrigerator Machine |
|||
|
Cooling refrigerator |
Famous Chinese brand |
||
|
Model |
L-Z1090 , Dual-temperature refrigeration unit |
||
|
Remarks |
Color is optional LOGO painting as per customer request |
||

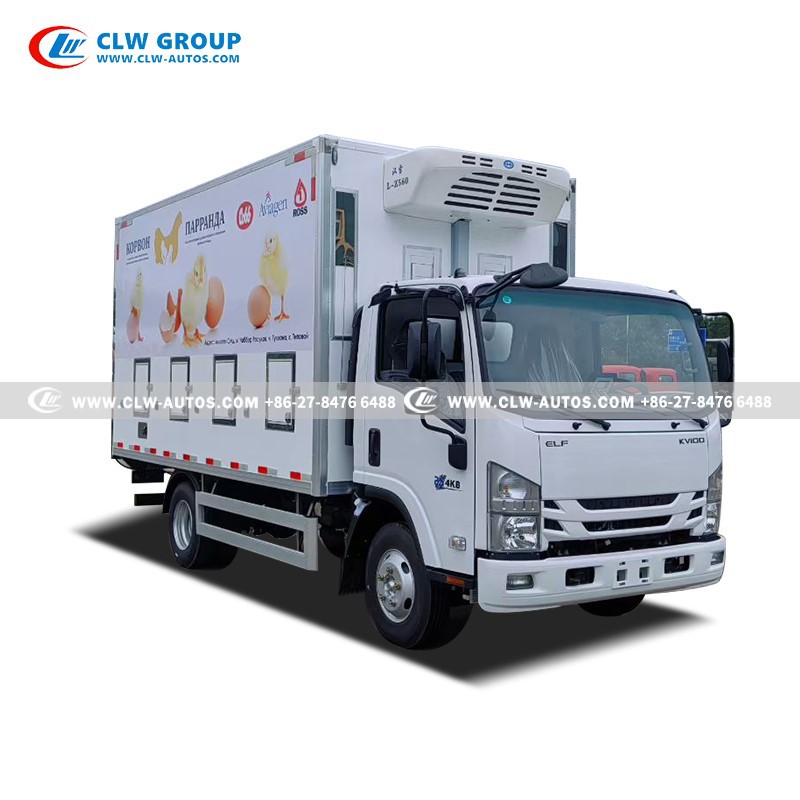

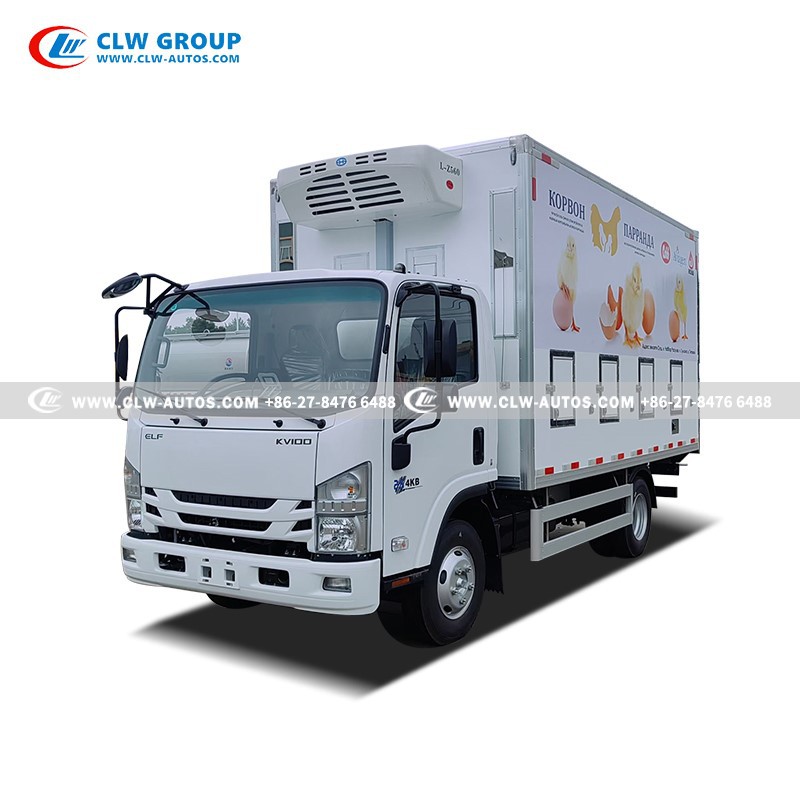

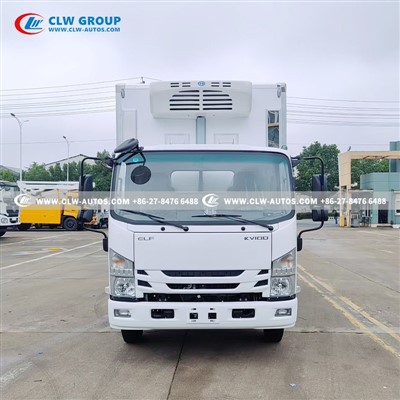

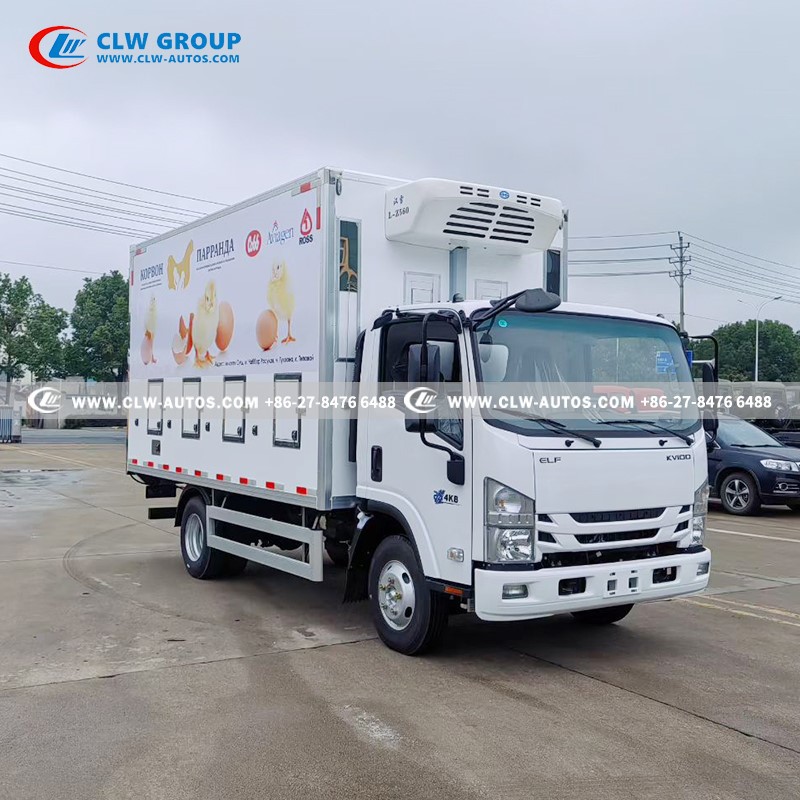

Products Reference Pictures
Our Key Benefits
- Superior Livability: Our integrated climate and ventilation technology directly translates to higher survival rates (95%+), protecting your investment and profitability.
- Operational Flexibility: The choice of chassis allows you to match the vehicle to your local market preferences, regulatory requirements, and budget.
- Proven Reliability: Built on dependable platforms like the ISUZU, ensuring minimal downtime and trusted performance in demanding conditions.
- Animal Welfare Focus: Designed to meet stringent animal welfare standards during transport, enhancing your farm's reputation and compliance.
- Cost-Effective Transport: High capacity maximizes each journey's efficiency, reducing cost per chick delivered.
Ideal Application Scenarios
Hatcheries: Reliable delivery of day-old chicks to broiler farms or pullet growers.
Large-Scale Poultry Integrators: Internal transfer of chicks between company-owned facilities.
Farming Cooperatives: Providing efficient transport services for member farms.
Poultry Distribution Companies: Offering specialized, high-viability chick logistics as a core service.
Biosecurity-Sensitive Operations: The cleanable design is ideal for operations requiring strict disease control between loads.
This industry

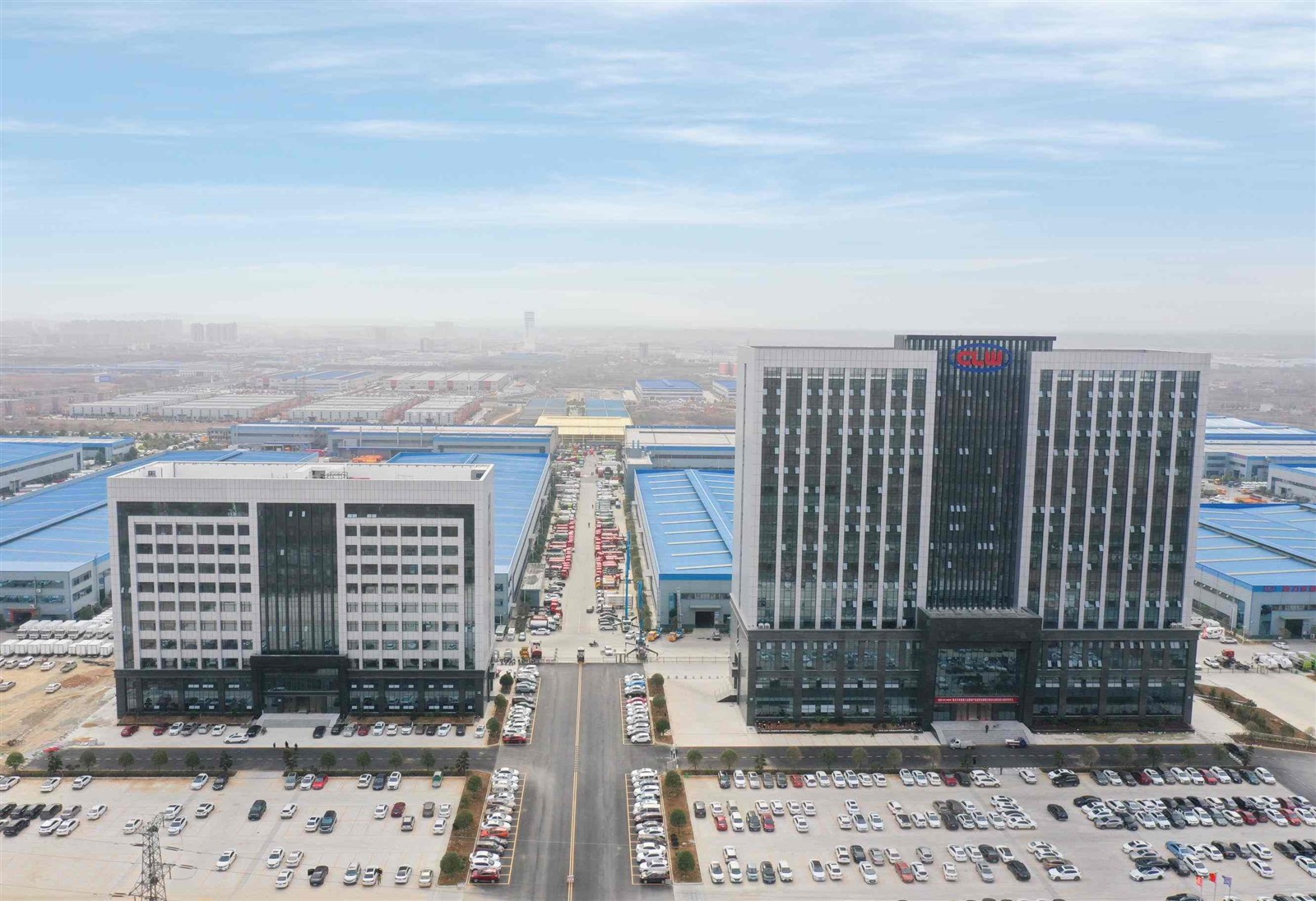

Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
Ready to enhance your chick logistics with guaranteed viability?
Contact us to discuss customizing the perfect transporter for your business.
