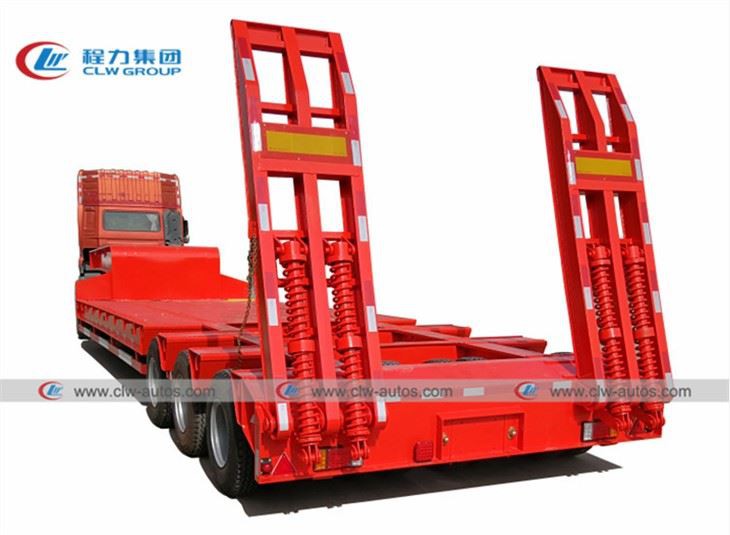

3 Lines 6 Axles 100T Lowbed Semi Trailer

2 Lines 4 Axles 70T Lowbed Semitrailer 3 Lines 6 Axles 100T Low bed trailer 4 Lines 8 Axles 130T Low Loader trailer 5 Lines 10 Axles 160T Lowboy trailer

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 lines 6 axles 100t lowbed semi trailer in China. If you're going to buy high quality 3 lines 6 axles 100t lowbed semi trailer, welcome to get more information from our factory. For price consultation, contact us.

Goods Description:

Through the introduction of foreign advanced design concept ,in combination of the domestic transport situation and environment of overload and overrun control and charging by weight,and through the analysis by finite element analysis(FEA) system, the light low-bed semi-trailer built through elaborate design, in which the weight is reduced in all aspects,meets the customer demands for meeting the standard loading capacity to maximum extent and creating maximum profit.

1,Convex-concave throughout beam

2,High strengh steel materials

3,High bearing capacity

4,Lower bearing surface

5,Applicable scope Standard Type

6. Low load bearing surface ,low transport gravity center of cargo,and low transport and repair costs.

7. Heavy Type High configuration determines high bearing capacity for transport of medium and heavy cargos. High quality realizes the trouble-free throughout the whole transport. High benefit is beyond your expectation.

Parameters for 3 Lines 6 Axles 100T Lowbed Semi Trailer:

Heavy duty lowbed semi trailer
Axles No.	2 lines 4 axles	3 lines 6 axles	4 lines 8 axles	5 lines 10 axles
Pay load	60-80tons	80-120tons	100-160tons	100-200tons
Tires	16pcs	24pcs	32pcs	40pcs
Rims	16pcs	24pcs	32pcs	40pcs
Size	Optional
Main beam	Heavy duty Double I beam.
Side beam	500mm I beam
Plate	5mm checked plate
Ladder	Mechanical spring ladder or hydraulic ladder
Suspension	Rigid suspension
Kin pin	2’’/3.5’’ bolt type
Landing gear	40 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Sand blasting processing clean rust
	1 coat of anticorrosive primer
	2 coats of finish urethane paint
	Color as customer choice
Accessory	One tooling box with a set of standard trailer tool
Usage	Is applicable for the transportations of the mechanical equipment,
	large objects, highway construction equipment, large tanks,
	power plant equipment or machine, and all sorts of steel products.
Other Descriptions	The cargo platform is lower than others,
	is applicable for unsound road condition,
	ensuring the stablenessof the transportation.
Other Specifications	It's concave structured with tyre appeared style,
	the height of the cargo's carrying platform from ground is 900mm,
	(ladders belong to optional components), with the overall height of 1710 mm
Remark	We can design model according to client's requirement
