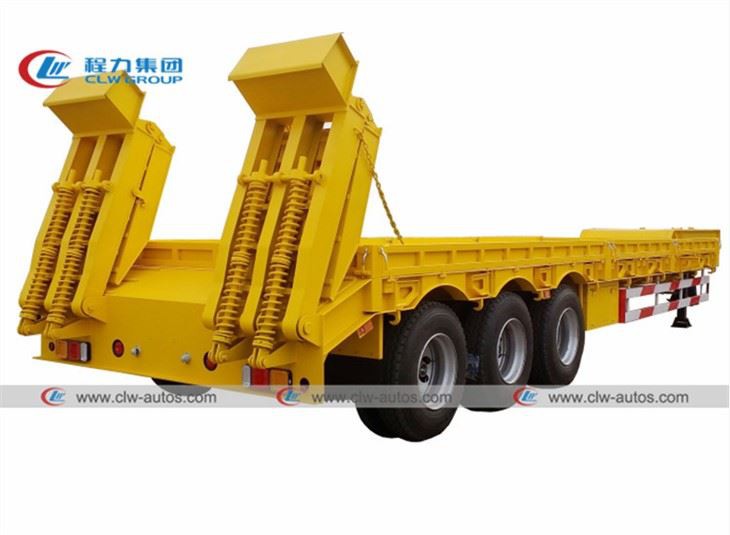

3 Tri-Axle 60Tons Low Bed Loader Semi Trailer
low bed trailer, low bed truck trailer, low bed trailer dimensions, low loader, low loader trailer, used low bed trailer, low bed semi trailer, low height bed, lowboy trailer, lowboy trailer 100 ton, lowbed trailer, price low bed trailers, tractor truck trailer, low flatbed trailer, multi-axle hydraulic low bed truck trailer for sale
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 tri-axle 60tons low bed loader semi trailer in China. If you're going to buy high quality 3 tri-axle 60tons low bed loader semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
Tri axle low loader trailer for sale is commonly used to haul heavy equipment and machinery, such as excavators, bulldozers, and other large construction equipment. The semi low loader trailer for sale is perfect for hauling large equipment like this because they are usually tall and wide and would exceed standard legal height and weight restrictions.
Heavy load lowbed truck trailer is tested to ensure that our semi-trailers are free of problems. All low price heavy haul trailer is tested for carrying capacity after production is finished. We have dedicated technical staff to guide the operation
Our Advantage for low bed Loader trailer:
1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.
6. All the main parts are used famous brand, or customized as the customer's requirement.
Product process for Lowbed Loader Trailer:
Before we produce, first of all, Our CLW Group, Chengli Special Automobile Co., Ltd technical department will provide you with suitable drawings according to your needs, and after the drawings are confirmed to be correct, we will start to put them into production. Low boy trailer is widely used, generally for medium and long distance freight. Its frame is a through-beamstructure, and the longitudinal beam adopts straight live gooseneck type. The height of the web varies from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot blasted, and the crossbeam is welded through the longitudinal beam as a whole.
For more information, please contact: Ms. Helen Jiang, WhatsApp: +86 13554195719

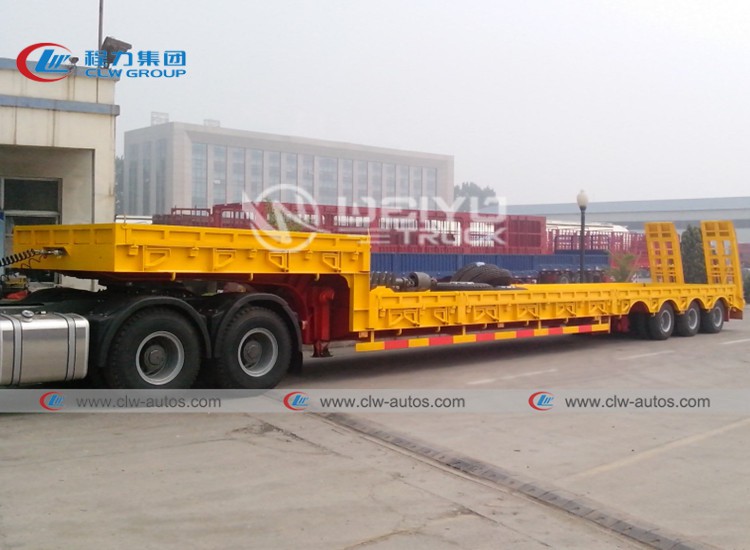

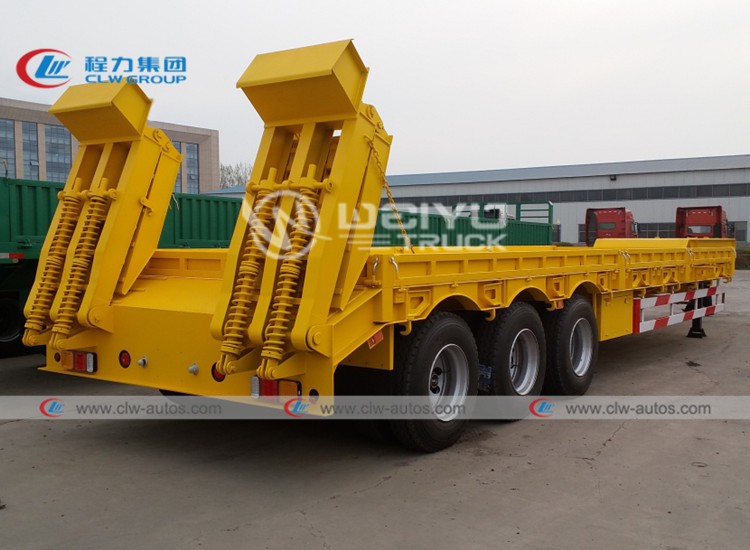

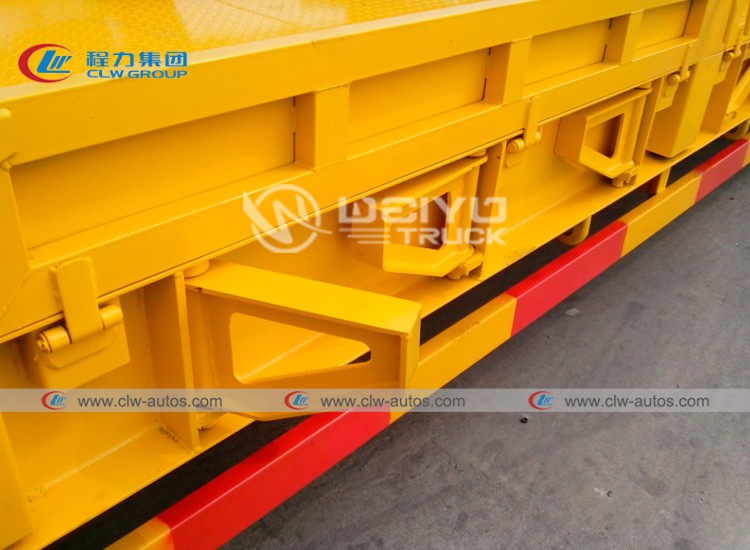

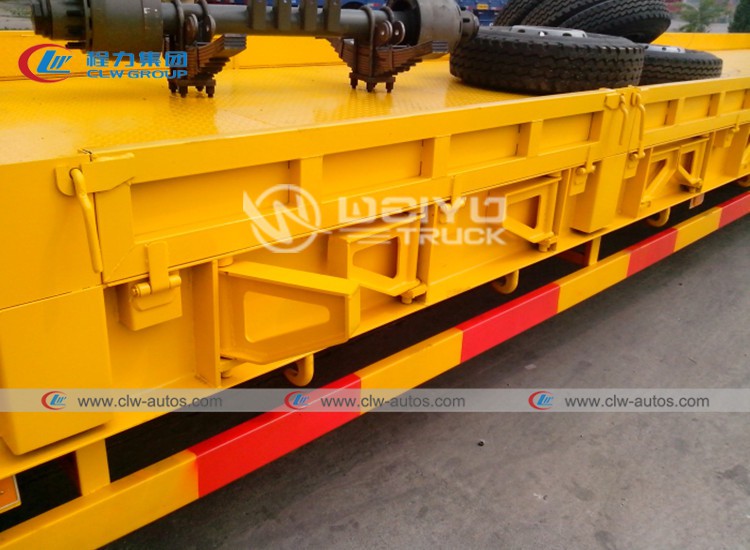

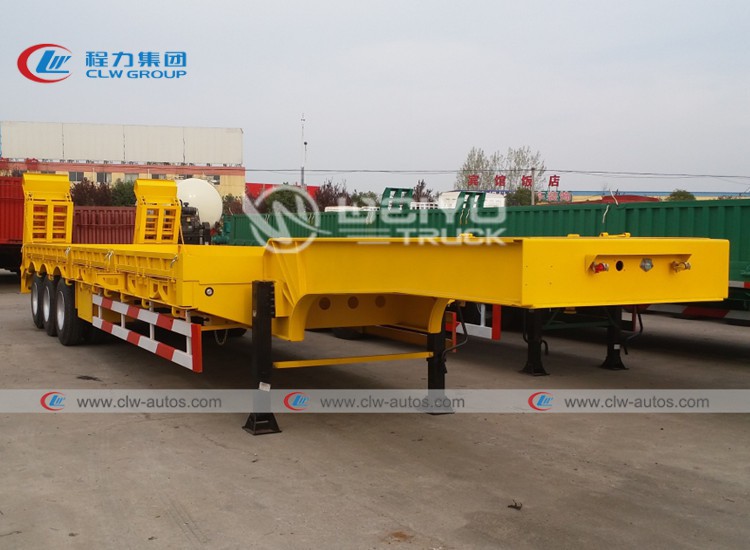

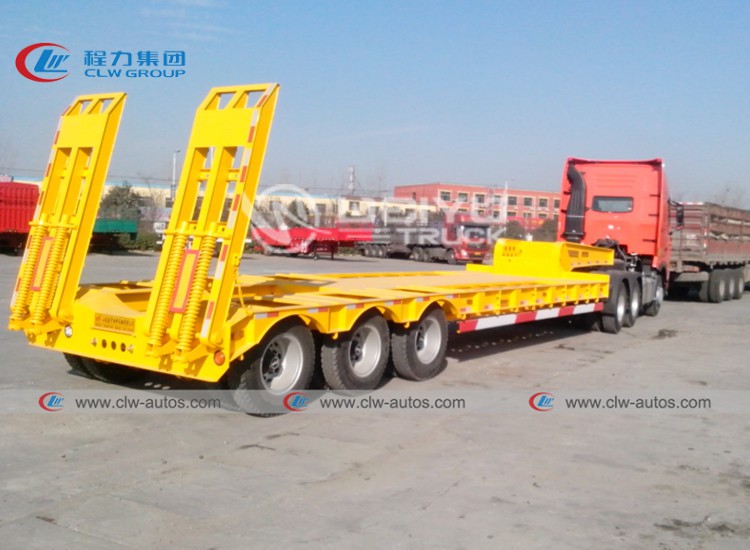

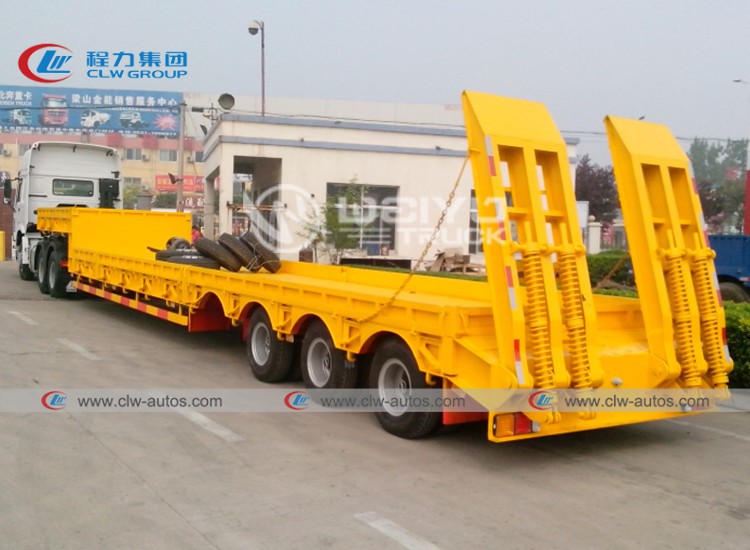

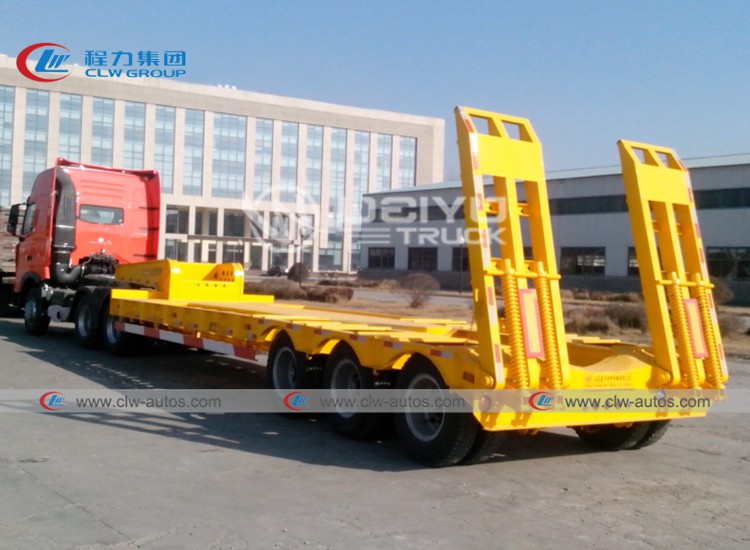

Pictures for 3 Tri-Axle 60Tons Low bed Loader Semi Trailer:
Prameter for 3 Tri-Axle 60Tons Low bed Loader Semi Trailer:
Tare Weight | About 8.5-13T |
Dimension(mm) | 13000x3000x3200mm |
Loading capacity(ton) | 100T |
Axles | 13T/16T ,FUWA/ BPW/ Zhengyang Chinese Famous Brand |
Tire | 12.00R22.5 or 315/80R22.5, optional |
Rim | 9.00-22.5 or 9.75-22.5 |
Suspension | Mechanical suspension |
Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
Platform | 3mm-thick checkered plate |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
Ramp | Spring or hydraulic type |
valve | WABCO valve (specially intended for oversea market) |
ABS | Optional |
Light | LED light (specially intended for oversea market) |
Voltage | 24V |
Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Shipping Terms | Transported by the bulk carrier in an RORO or 40ft container |
