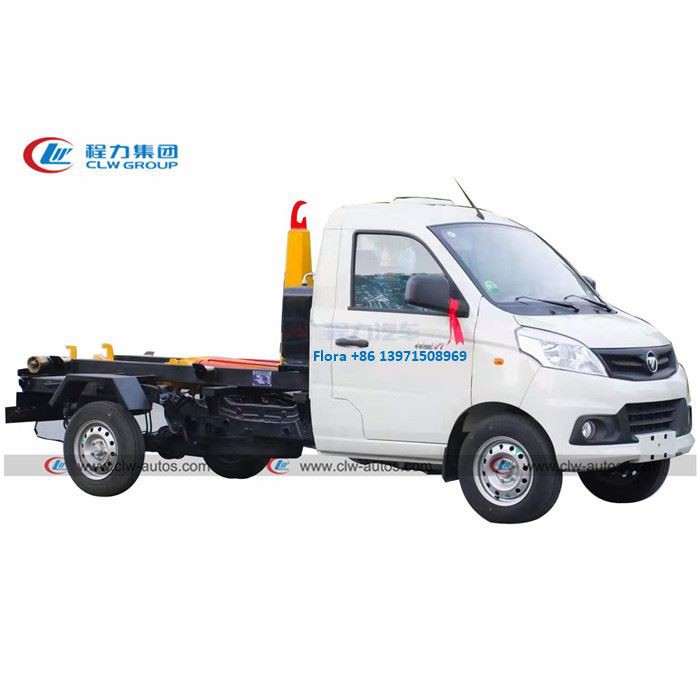

3cbm Hook Lift Garbage Truck
Engine:Foton brand;
Driving model:LHD or RHD;
Gear box:5-speed forward and 1-reverse
Hydraulic cylinder:Top brand
Open Top Container size:3cbm-5cbm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3cbm hook lift garbage truck in China. If you're going to buy high quality 3cbm hook lift garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
2. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Feature
--Foton small chassis, petite and convenient
--Nice shape, rational design
--High quality price ratio, hydraulic cylinder, top brand
--Strong, durable, long time service time
--High tense carbon steel material
Specification
Technical parameters
| Condition | New condition/Left hand drive/Right hand drive/4x2 | ||
| Main details | Wheelbase(mm) | 2600;2800;2850 | |
| Front/Rear Axle loading(kg) | 2000/4000 | ||
| Rear axle ratio | 5.375(6.142) | ||
| Wheel track (front/rear) (mm) | 1440/1425 | ||
| Front/Rear overhang(mm) | 1110/1488 | ||
| Min. Ground Clearance | 190 | ||
| Approach/Departure angle(°) | 20.5/17 ° | ||
| Max. driving speed(km/h) | 100 | ||
| Battery | 12V*2 ; 100Ah*2 | ||
| Alternator | 14V 60A | ||
| Starter | 12V 2.8kw | ||
| Clutch | Dry single plate | ||
| Brakes | Hydraulic brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 6.50-16 | ||
| Oil tank | Fuel tank material | Steel | |
| Fuel tank capacity (L) | 100 | ||
| Transmission | Manual type, 5 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Optional | |
| Model | Optional | ||
| Fuel type | Diesel | ||
| Emission standard | Euro 1/Euro 2/Euro 3/Euro 4/Euro 5 | ||
| Upper & Control System | |||
| Garbage box | Capacity(cbm) | 3.0cbm/4.0cbm | |
| Tank material | Q235 carbon steel | ||
| Side plate thickness(mm) | 3.0 mm | ||
| Bottom thickness(mm) | 4.0 mm | ||
| pulley wheel quantity(pcs) | 4 pcs | ||

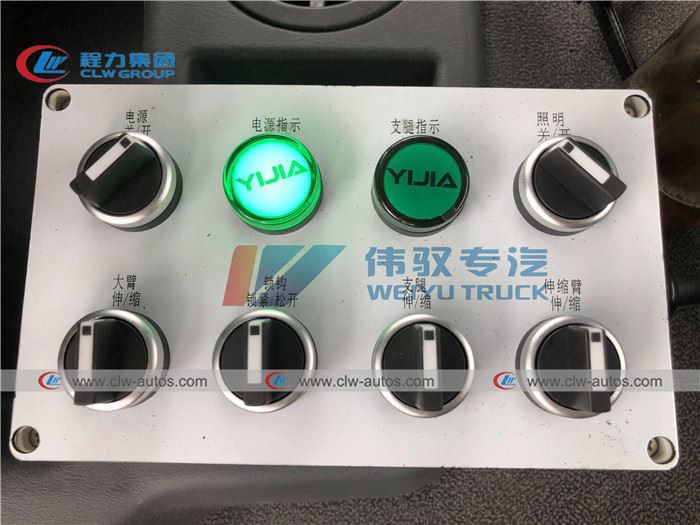

| Control System | Control model | Hydraulic control | |
| Control panel | Close to Cabin | ||
