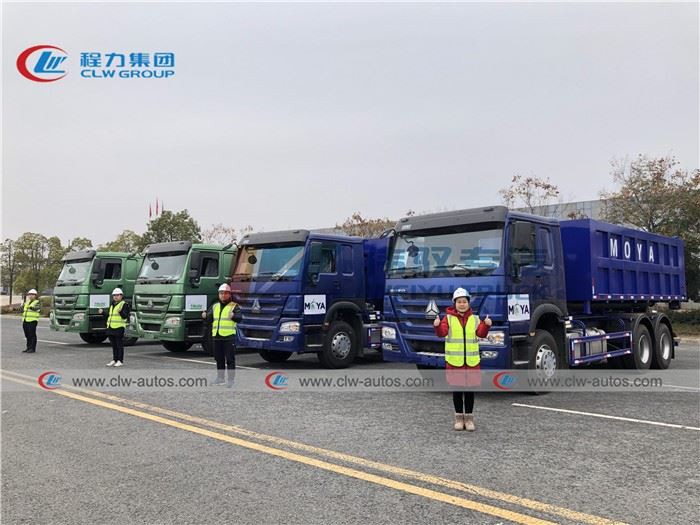

Hooklift Garbage Truck With 20m3 Roll-off Open Top Container
Engine:SINOTRUK HOWO brand;
Driving model:LHD or RHD;
Gear box:10-speed forward and 2 reverse
Hydraulic cylinder:Top brand
Open Top Container size:20cbm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of hooklift garbage truck with 20m3 roll-off open top container in China. If you're going to buy high quality hooklift garbage truck with 20m3 roll-off open top container, welcome to get more information from our factory. For price consultation, contact us.
Description--Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
--Hydraulic Control Loading & Unloading System.
--Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
--High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
--Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
--Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Feature--SINOTRUK HOWO Chassis, perfect performance
--Sinotruk engine, Super powerful,reliable performance-- Nice shape, rational design --High quality hydrauilc cylinder, Top brand --Strong,durable, long time service time--High tense carbon steel material
Specification
Technical parameters
Truck model | SINOTRUCK HOWO | |
Drive style | Left or right hand drive, as customer's request | |
Drive model | 6x4 | |
Dimensions(LxWxH) | 8865x2500x3290 MM | |
Container volume | 20 cbm | |
Loading weight | 15ton-20ton | |
Engine | WD615.69, 336HP | |
Emission standard | EURO II or EURO III | |
Front axle | HF7, 7tons loading capacity | |
Rear axle | HC16, 16tons loading capacity | |
Transmission | HW13710, 10 forward & 2 reverse. | |
Steering system | ZF8118, hydraulic steering with power assistance | |
Tires | 295/80R22.5, 10+1spare | |
Upperstructure Specification | ||
Garbage container | Dimension | 5600×2300×1500mm |
Standard Configuration | With one garbage bin, with hydraulic rear outrigger | |
Volume | 20cbm | |
Loading Capacity | 16tons or 18Tons | |
Thickness | 5mm, Carbon Steel Q235B | |
Dump type | Hydraulic cylinder lifting and self-loading | |
Dump angle | ≥45° | |
Hydraulic system pressure | ≤16Mpa | |
Protective Material | Q235A Carbon Steel | |
Controlling Way | Three-way hydraulic control valve | |
Other Configuration | Reinforced hydraulic swept-body system, with Double hydraulic cylinder | |
Swing Arm Chain. | ||

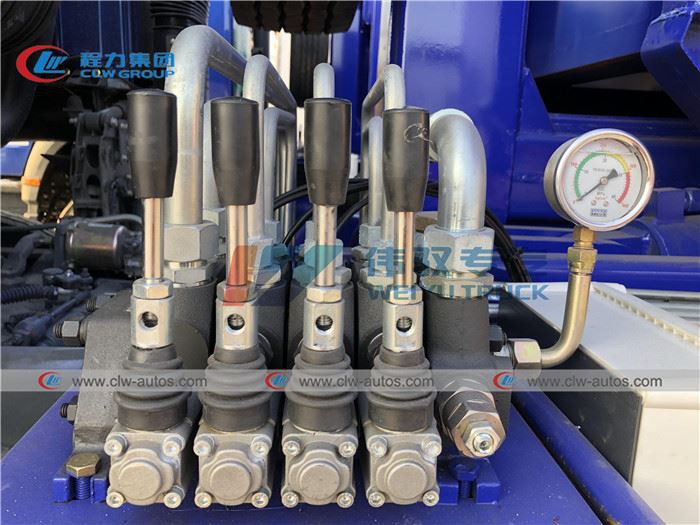

Hydraulic multi-way valve control. | ||
Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. | |
