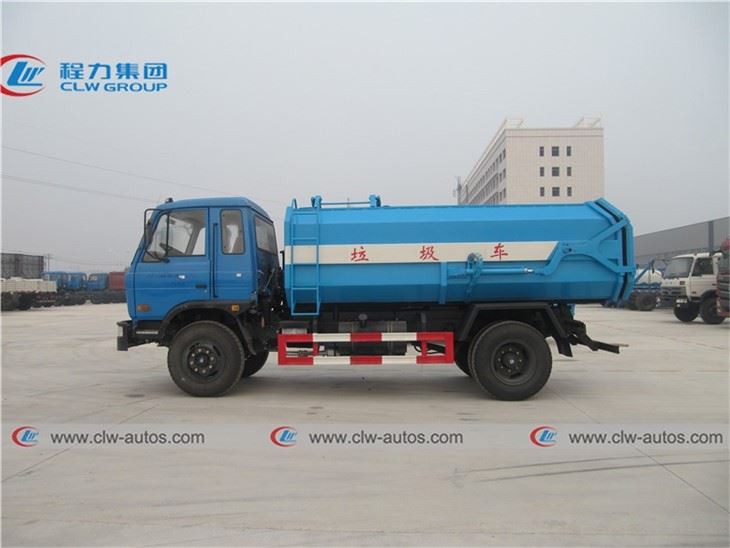

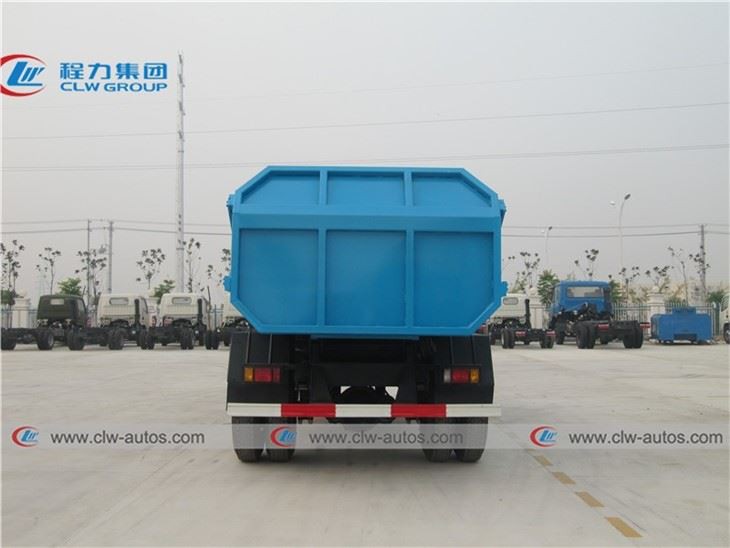

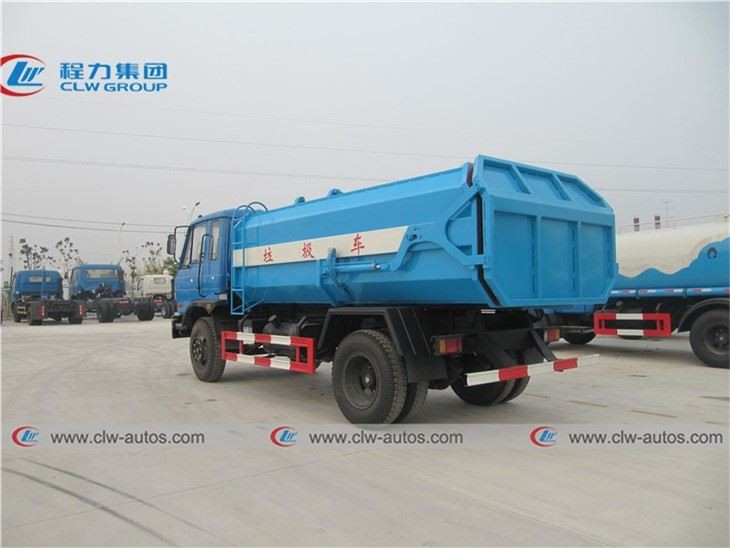

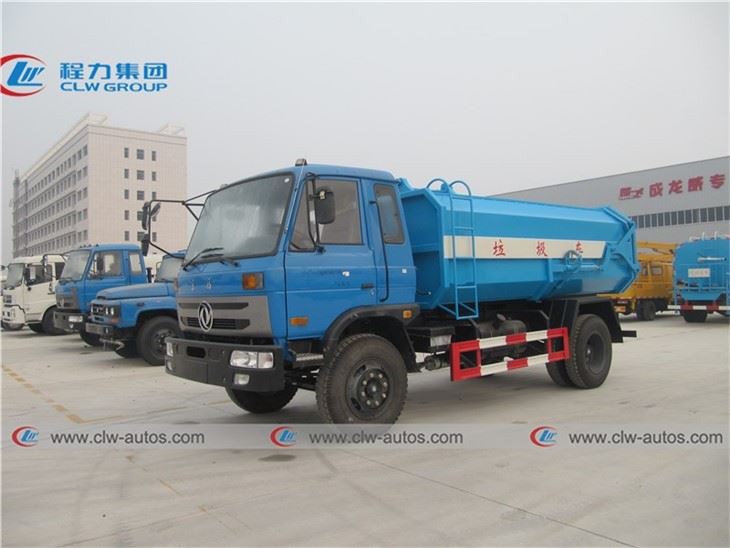

10CBM Side Loading Garbage Truck For Waste Management

Side loaders are loaded from the side, either manually, or with the assistance of a joystick-controlled robotic arm with a claw, used to automatically lift and tip wheeled bins into the truck's hopper.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm side loading garbage truck for waste management in China. If you're going to buy high quality 10cbm side loading garbage truck for waste management, welcome to get more information from our factory. For price consultation, contact us.

Product Description

Side loading garbage trucks are used primarily for household waste collection which are loaded from the side either manually or with the assistance of an automatic robotic arm that is controlled from inside the cab of the truck. Lift assist trucks are referred to as automated side loaders (ASL) which only require one operator and can service up to 1,500 homes a day.

1. Side Loading Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
2. Easy Full Automatic Operation: computer control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation working, greatly improves the working environment.
4. Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.

Specifications

Dongfeng 10CBM Side Loading Garbage Truck
Overall Dimension	7150×2500×3050 mm	Gross Vehicle Weight		15800 kg
Curb Weight	5940 kg	Loading Weight		9105 kg
Wheel Base	3950 mm	Front / Rear Axle		5800 kg / 10000 kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine	Cummins
Engine horsepower	170 HP, EURO II
Max Driving Speed	90 km/h
Gear Box	8 Forward Gear, 1 Reverse Gear,
Tire	9.00R20 (6 pieces with one spare)
Garbage Bin	Capacity		10CBM
	Material		4mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Side Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request
