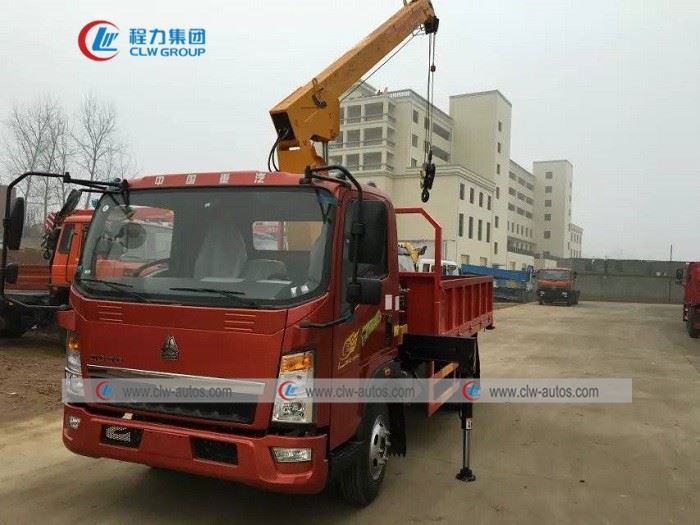

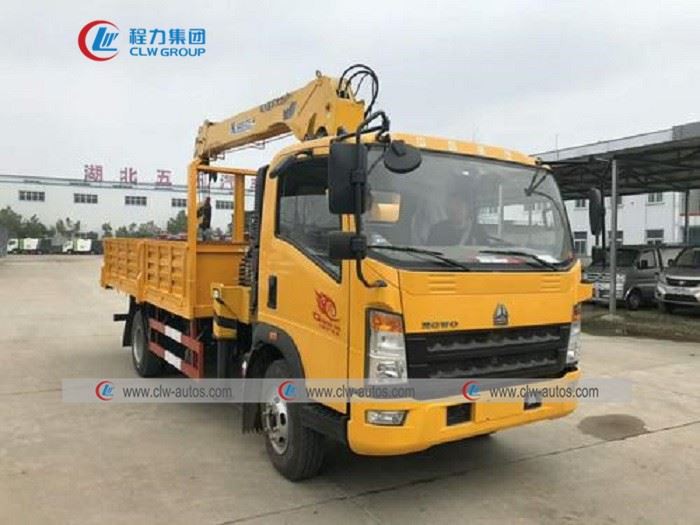

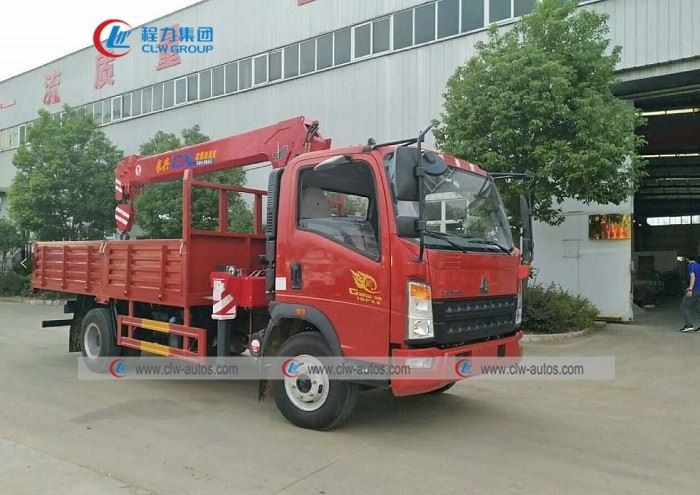

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4-5meters cargo box mounted with clw telescopic boom crane truck in China. If you're going to buy high quality howo 4-5meters cargo box mounted with clw telescopic boom crane truck, welcome to get more information from our factory. For price consultation, contact us.
--Straight Boom Truck(also called Truck Mouted Crane, Truck Crane, Truck With Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
--Straight Boom Truck can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Knuckle Boom Truck;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Knuckle Boom Truck;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Knuckle Boom Truck.
--Crane: We can supply International brand XCMG and PALFINGER for optional.
--Landing leg: Hydraulic control, top quality, easy for operation.
--Storage box: High quality carbon steel Q235
--Truck chassis: Top quality ISUZU 6X4 Diesel engine truck chassis
Model | ZZ1127G5215C1 | |
Cabin | 2080 King Cab, with two seats and one bed, with Air Conditioner. | |
| Model | YC4E160-33 |
Horse Power (Hp/rpm) | 160/2600, Euro III Emission Standard | |
Max.Torque (Nm/rpm) | 600/1200-1600 | |
Displacement (L) | 4.257 | |
Type | 4-cylinder in-line with water cooling, 4-stroke direct injection diesel engine | |
Transmission | DC6J65TC, 6 speeds forward and 1 speeds reverse. | |
Front Axle | Steering with double T-cross section beam, Loading Capacity: 3.2T | |
Driving Axle | Pressed axle housing, central reduction, loading capacity: 8T | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | Hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Tire | 9.00R20 | |
Fuel Tank Capacity (L) | 120L Diesel Tank | |
Kurb Weight (kg) | 10,500 | |
Loading Capacity (kg) | 12,500 | |
Gross Vehicle Weight (kg) | 23,000 | |
Overall Dimension(L*W*H)(mm) | 8100×2200×3500 | |
Body Dimension(L*W*H)(mm) | 6000×2100×600 | |
Model | SQ4SK2Q | |
Max Lifting Moment | 8.4 tm | |
Max Lifting Capacity | 4000 kg | |
Recommend Power Needed At Recommend Oil Flow | 16 kw | |
Max Oil Flow of Hydraulic System | 25 L/min | |
Rated Pressure Of Hydraulic System | 20 Mpa | |
Oil Tank Capacity | 60 L | |
Rotation Angle | (360°)All Rotation | |
Crane Weight | 1271 Kgs | |
Installation Space | 850 mm | |
Wheelbase(mm) | 5200 | |
Max. Speed (km/h) | 90 | |
