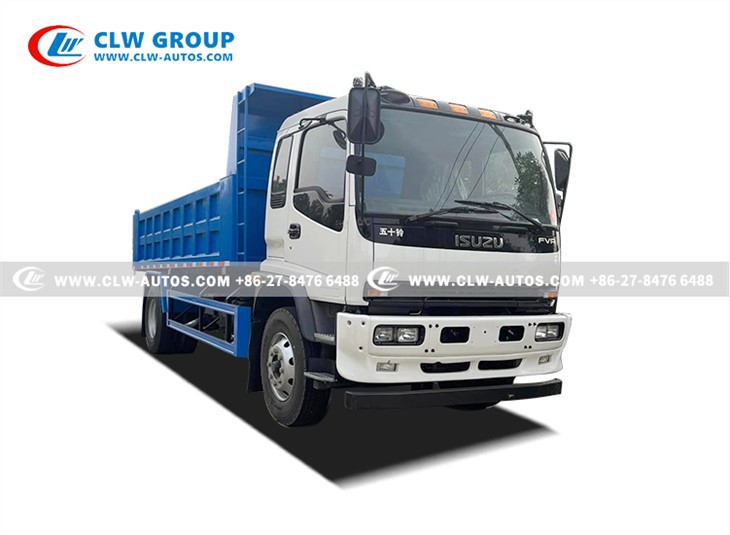

ISUZU FVR 10 Tons 15 Tons Dump Truck
ISUZU 10 tons dump truck
ISUZU 15 Tons Tipper Truck
10 Tons Tipper Truck
Philippines tipper truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvr 10 tons 15 tons dump truck in China. If you're going to buy high quality isuzu fvr 10 tons 15 tons dump truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
ISUZU FTR/FVR 10 Tons 15 Tons dump truck is also called tipper, dump tipping vehicle, sand and stone transporting truck, etc. ISUZU dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box, which is hinged at the rear and equipped with hydraulic cylinder to lift the front, allowing the material in the box to be dumped on the ground behind the truck at the site.
Contact us for quick inquiry +86 135 4506 4324.
|
ISUZU FVR 4X2 240HP 15Tons Dump Truck |
|||
|
Chassis parameters |
|||
|
Condition |
New condition/Left hand drive/4X2 |
||
|
Main details |
Brand |
ISUZU |
|
|
Wheelbase(mm) |
4500 mm |
||
|
Dimensions(mm) |
7700*2500*3200mm |
||
|
Gross Weight(kg) |
18,000 |
||
|
Front/Rear Axle loading(kg) |
6300/13000 kg |
||
|
Max. driving speed(km/h) |
95 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brakes |
Air brake |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
295/80R22.5 |
||
|
Transmission |
Manual type , MLD 6 forward gears & 1 reverse |
||
|
Cabin |
Left Hand Driving FVR spacious cabin one row and a half cab adjustable driver seat central lock with Air condition |
||
|
Engine |
Brand |
ISUZU engine |
|
|
Model |
4HK1-TCL |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
7790ml |
||
|
Power(kw) |
175w at 2600 rpm |
||
|
Horsepower(HP) |
240 HP |
||
|
Cylinder number |
4 |
||
|
Emission standard |
Euro V |
||
|
Power Supply |
With PTO |
||
|
Dump truck box |
|||
|
Material |
Carbon steel T700 |
||
|
Size (length*width*height) (mm) |
5200*2350*1500 |
||
|
Thickness (mm) |
Side 4mm bottom 5mm |
||
|
Tipping type |
Front tipping |
||
|
Tipping Cylinder Dia |
Chinese brand/HYVA oil cylinder With dia Ф137 |
||

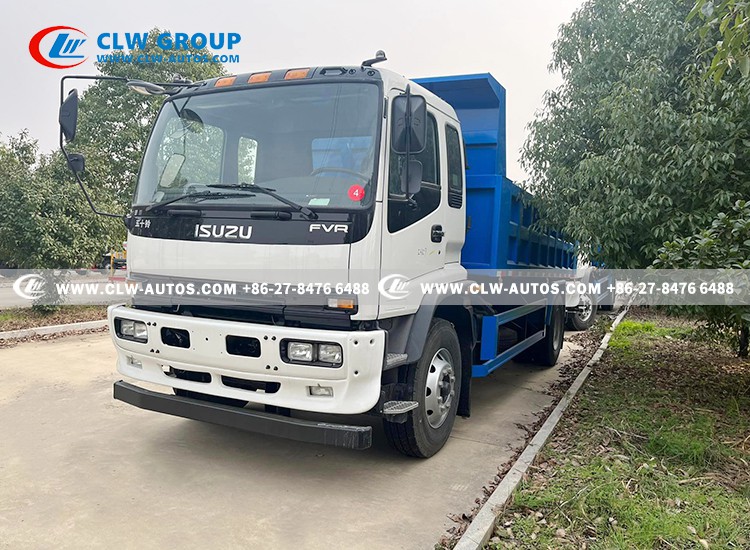

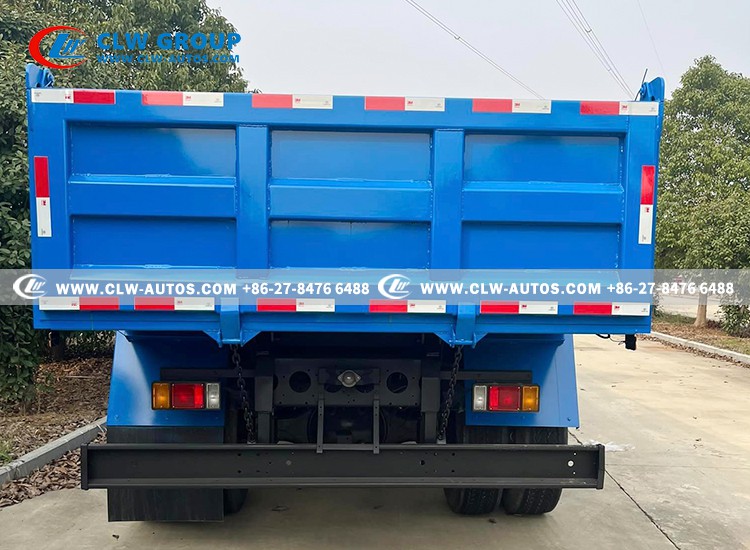

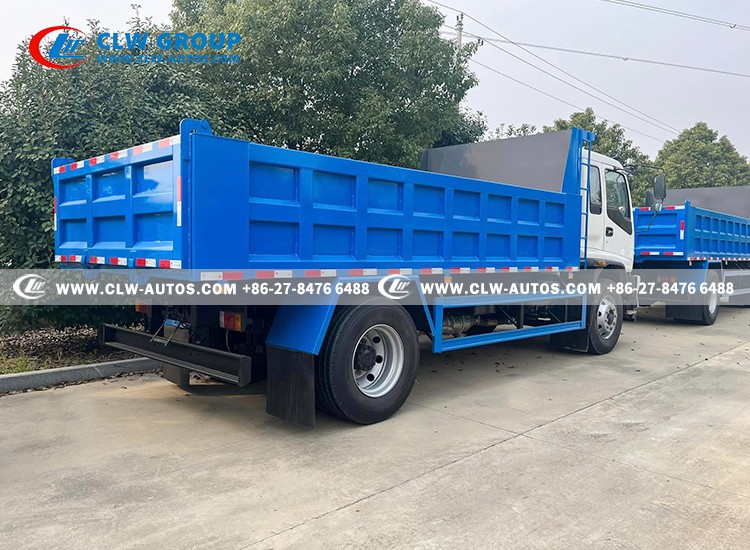

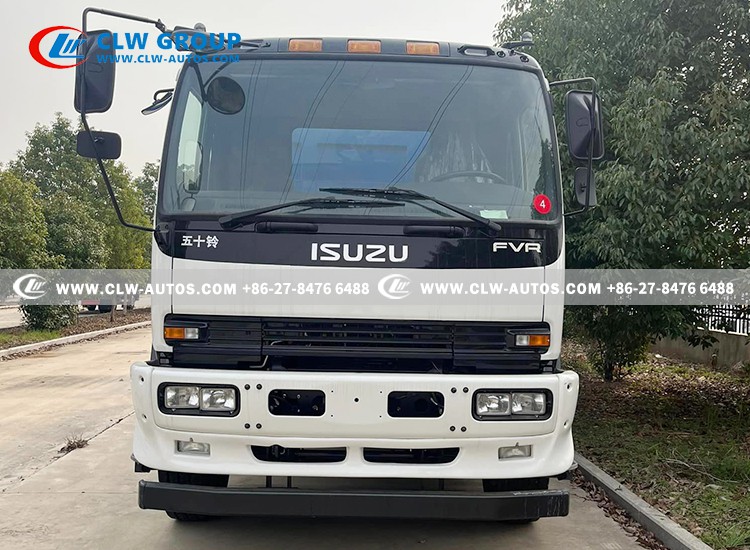

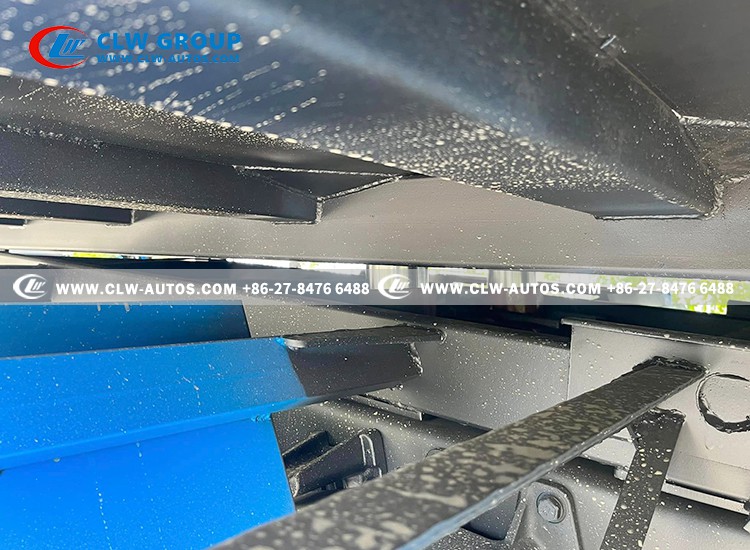

Production pictures
