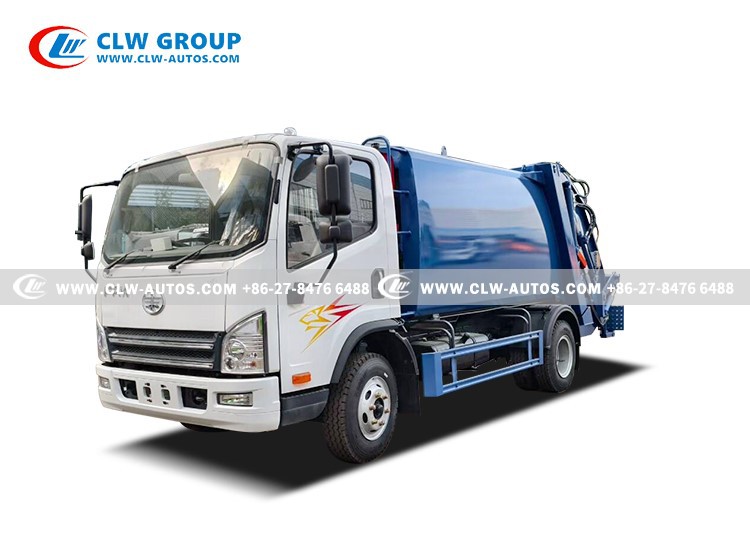

FAW 7cbm Junk CollectionTruck

Truck brand:FAW RHD 4X2 compactor refuge truck
Wheelbase:3300mm
Volume Capacity:7,000litrs
Engine:YC4D130-33, 130 horsepower
Front and rear axle loading:2tons/7tons
Tyre type:8.25R16 14PR

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 7cbm junk collectiontruck in China. If you're going to buy high quality faw 7cbm junk collectiontruck, welcome to get more information from our factory. For price consultation, contact us.

FAW RHD 7m3 4X2 Compactor Garbage Truck

Products Description

A refuse compactor truck is a specialized waste management vehicle designed to collect, compress, and transport municipal solid waste (MSW). Combining a heavy-duty chassis with hydraulic compaction technology, it significantly increases payload capacity while reducing collection frequency.

The FAW 7-Cubic Meter Compressed Garbage Truck, built on a robust FAW 4x2 chassis, is engineered for efficient, high-volume refuse collection and compaction. Featuring the FAW Tiger VH flat-top single cab in right-hand drive (RHD) configuration, it's ideally suited for markets requiring RHD vehicles. Powered by a reliable Yuchai 130 HP engine and equipped with a substantial Ø330 mm clutch, this truck delivers the necessary power and durability for rigorous waste management operations. Compliant with Euro II emissions standards, it features a strategic 3300mm wheelbase for excellent maneuverability in urban settings, paired with a Wangliyang 6-speed manual transmission for optimal control. The robust chassis supports a 2-ton front axle and a heavy-duty 7-ton rear axle, riding on sturdy 8.25R16 tires capable of handling rough access roads and landfill terrain.

Core Functions and Advantages

Core Functions

Collection: Crew members load refuse directly into the hopper at the rear of the truck.
Loading Cycle: The hydraulic-powered packing panel sweeps the waste from the hopper into the main body cavity.
Compression Cycle: A heavy-duty hydraulic compaction panel repeatedly compresses the waste within the main body, significantly increasing payload capacity and reducing volume (achieving the rated 7 cubic meter capacity after compression).
Transportation: The tightly compacted waste is securely contained within the sealed body during transport to the disposal site (landfill, transfer station, recycling center).
Ejection: Upon arrival, the hydraulic system activates the tailgate, and the compaction panel pushes the entire compressed load out efficiently for disposal.

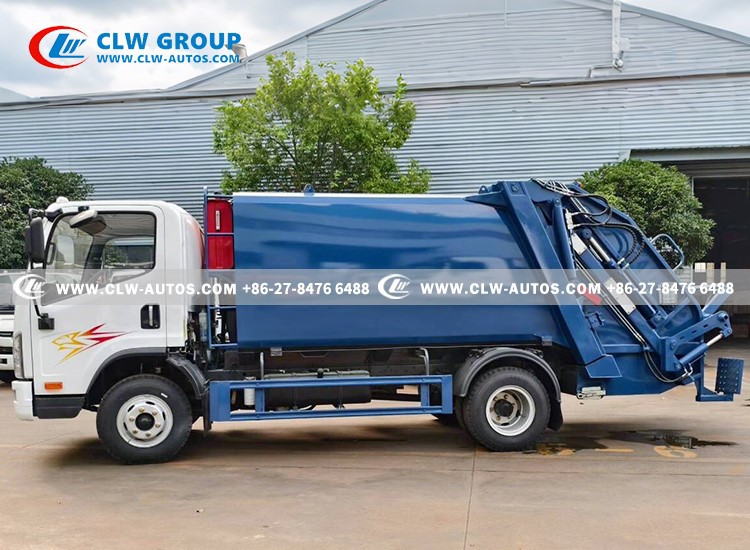

FAW RHD compactor junk truck manufactuer

key Advantages

Right-Hand Drive (RHD) Configuration: Essential for efficient and safe operation in countries with left-hand traffic systems (e.g.,Australia, India, South Africa, Thailand, Malaysia, etc.), allowing the driver optimal visibility during curb-side collection.
Robust Powertrain: The proven Yuchai 130 HP engine provides ample power for compaction cycles, climbing, and loaded travel. The large Ø330 mm clutch ensures smooth power transfer and enhanced durability under high-torque start-stop operations. The Wangliyang 6-speed transmission offers reliable gear selection for varying loads and terrain.
Optimized Chassis and Maneuverability: The 3300mm wheelbase strikes a perfect balance between stability with a full load and the agility needed for navigating narrow streets, alleys, and tight residential areas. 4x2 configuration keeps initial cost and maintenance efficient.

Primary Applications

Urban Waste Management

High-density residential areas (narrow street access )

Apartment complexes with centralized bin stations

Commercial Sector Service

Shopping malls/food courts requiring daily collection

Office parks with limited loading zone space

Event and Public Space Cleaning

Temporary venues (festivals/sports events)

Municipal parks and pedestrian zones

Municipal Solid Waste Collection: Core fleet vehicle for city/town councils collecting household waste.

Commercial Waste Collection: Serving businesses, shopping centers, markets, and restaurants with high-volume waste streams.

Residential Community Management: Efficiently managing waste for large housing estates, apartment complexes, and gated communities.

Resort and Hospitality Waste: Handling waste from hotels, resorts, and tourist areas, especially where RHD is standard.

Event Waste Management: Effective cleanup during festivals, concerts, sporting events, and public gatherings.

Developing Markets: An excellent choice where reliability, proven technology (Euro II), right-hand drive, and cost-effectiveness are crucial factors.

Products Specification

Chassis Technical Specification
Driving model	4X2
Cab	FAW VH flat-roof single row cabin Right hand driving With 2-3 passengers
Wheelbase	3300mm
Engine	Model	YC4D130-33
	Type	Diesel, 4 stroke, 4 cylinders in line
	Horsepower	130hp
	Max output power	96kw
	Emission standard	Euro 2
Gear box	Manual type, 6 forward gears and 1 reverse
Axle loading (front and rear)	2T ; 7T
Fuel box volume	120L, steel material
Tyre	8.25R16
Garbage truck body
Garbage Container Size	7 m3
Tanker body material	Quality high tensile Q345 carbon steel
Shape	Rectangular box, arc-shaped rear
Thickness	Side 4mm, bottom 4mm
Filling hopper volume	0.7 m3
Idle Speed	750 rpm
Compaction ratio	0.7-0.85T/m³
Compacting cycle time	≤23 s
Loading cycle time	≤10 s
Unloading cycle time	≤45 s
Oil pump displacement	40 ml/r
Hydraulic oil box size	60 L
System pressure	16 Mpa
PTO operation method	Pneumatic
Operation and Control	Both Automatic(Electrical) and Manual (hydraulic)
Remarks	Rear-mounted wastewater tank Photoelectric sensors Hyva cylinders Zhongmei multi-way valve Wanye gear oil pump CFW seals Dual-mode PLC or Can control system With cabin operation Rear standard equipped with triangualr hopper or cradle-type bin tipper
Optional device	Electrophoresis treatment for whole garbage compactor body Remote control function Optional all sealing waste collection hopper Pneumatic cover to avoid waste flying away during driving Rear swing arm bucket

Factory Real Shot Video for You

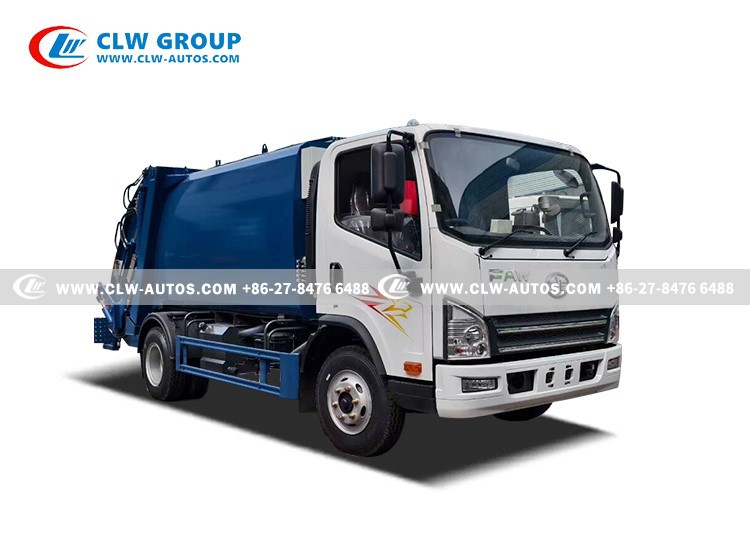

FAW compactor garbage truck

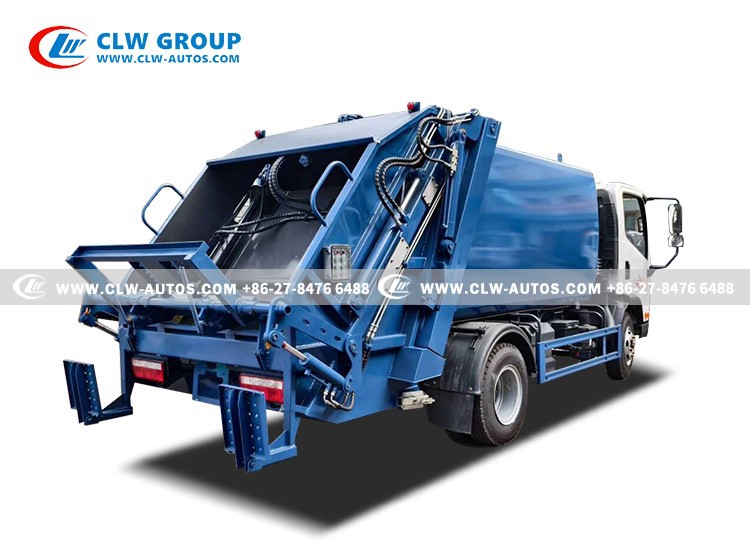

refuse compaction collection truck

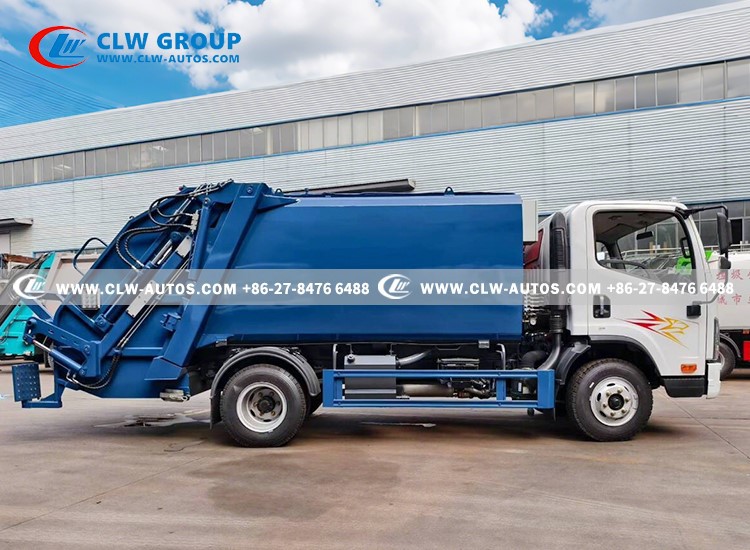

FAW RHD compactor junk truck supplier

Different Rear Design of Garbage Compactor Truck

Flip with 120L/240L bucket

product-1-1

Pneumatic cover and bucket flip

product-1-1

tri-angle container

product-1-1

Swing-Arm cntainer

product-1-1

sealing large container

product-1-1

flip with 660L bucket

product-1-1
