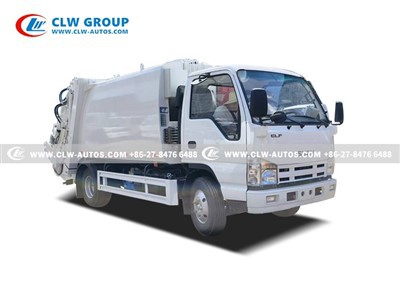

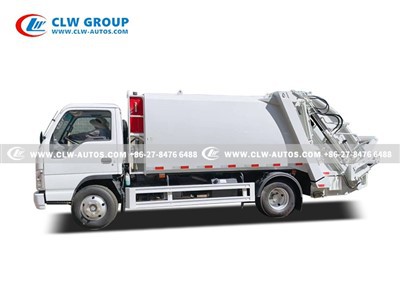

7cbm Compaction Junk Collection Truck
Truck brand:ISUZU compactor garbage truck
Wheelbase:3815mm
Volume Capacity:7,000litrs
Engine:4KH1CN6LB 120 horsepower
Front and rear axle loading:2-2.5tons/4-4.8tons
With ABS system and air conditioning
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 7cbm compaction junk collection truck in China. If you're going to buy high quality 7cbm compaction junk collection truck, welcome to get more information from our factory. For price consultation, contact us.

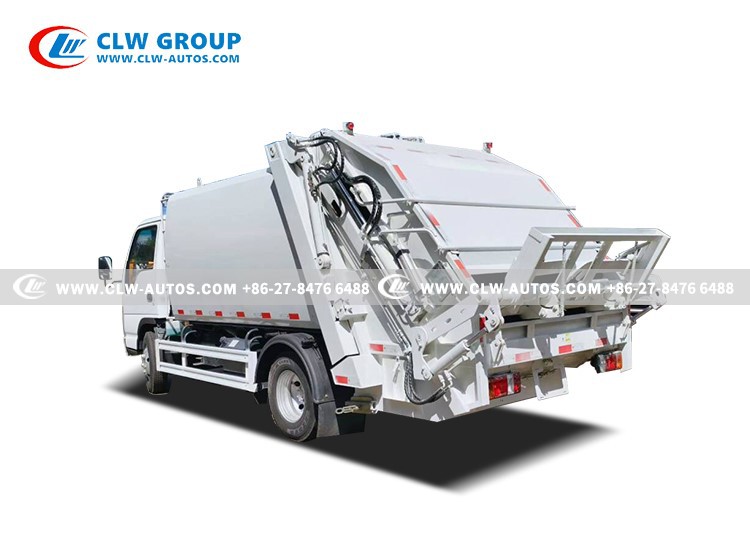

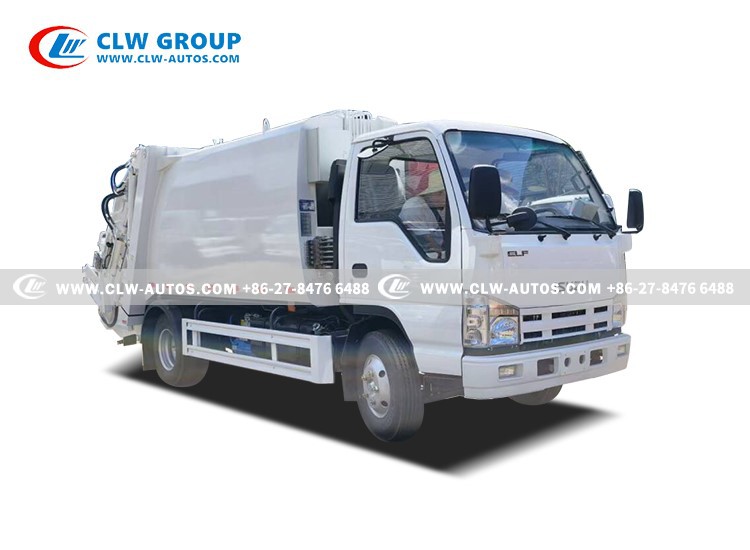

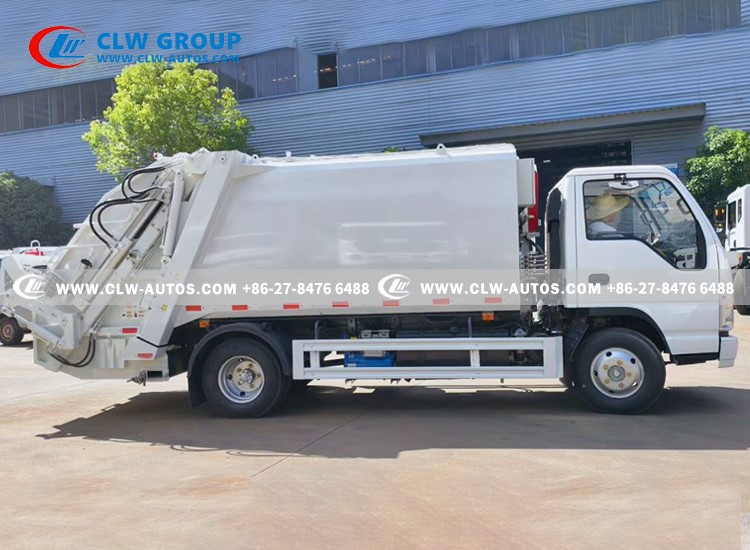

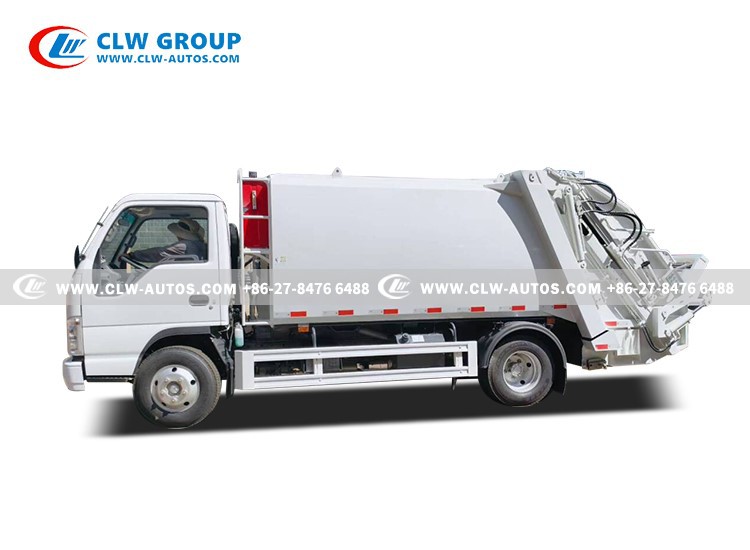

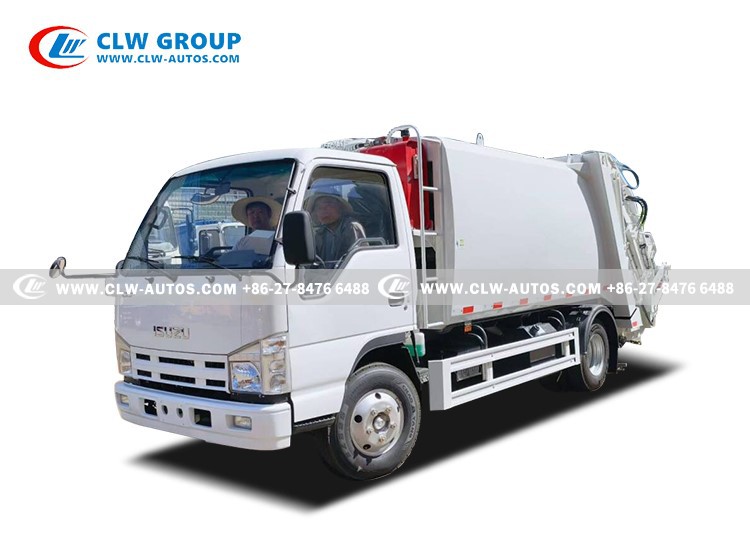

7m3 ISUZU 4X2 Refuse Junk Compactor Garbage Truck
Products Description
A refuse compactor truck is a specialized waste management vehicle designed to collect, compress, and transport municipal solid waste (MSW). Combining a heavy-duty chassis with hydraulic compaction technology, it significantly increases payload capacity while reducing collection frequency.
This ISUZU-based 7-cubic meter refuse compactor truck is engineered for efficient, reliable, and environmentally compliant waste collection and transportation. Built on the robust ISUZU 100P cab chassis platform, it combines proven Japanese engineering with specialized compaction technology to offer municipalities and waste management operators a high-performance solution for urban and suburban sanitation needs. The truck is specifically designed to handle daily residential, commercial, and institutional waste streams effectively.
Core Functions and Advantages
Core Functions
Automated Waste Loading
-Its hydraulic compaction system compresses loose waste within its 7-cubic-meter body, significantly increasing payload capacity per trip compared to non-compacting trucks.
-This reduces the number of trips needed to the disposal site, enhancing operational efficiency.
Leak-Proof Transportation
-Sealed Body Design: Prevents liquid spillage with rubber-edged tailgate
-Corrosion Resistance: SUS304 steel cladding for acidic/organic waste
key Advantages
Chassis & Powertrain:
-Cab: Durable ISUZU 100P standard cab.
-Wheelbase: 3815 mm, optimized for maneuverability in urban environments.
-Engine: Powerful and fuel-efficient ISUZU 4KH1CN6LB diesel engine, delivering 120 HP.
-Emission Standard: Compliant with stringent China VI (GB6) emission regulations.
-Transmission: Reliable ISUZU MSB 5-speed manual transmission for smooth operation and control.
Safety and Running Gear:
-Braking System: Equipped with Anti-lock Braking System (ABS) for enhanced safety and control during braking, especially on wet roads or when fully loaded.
-Tyres: Standard fitment of durable 7.00R16 tyres, suitable for varied road conditions.
Primary Applications
This 7-cubic meter compactor is perfectly suited for:
- Municipal Solid Waste (MSW) Collection: Daily curbside collection in residential neighborhoods, apartment complexes, and villages.
- Commercial Waste Collection: Servicing shops, restaurants, offices, and small businesses generating moderate waste volumes.
- Institutional Waste Collection: Efficiently handling waste from schools, hospitals, government buildings, and community centers.
- Urban & Suburban Environments: Its maneuverable size (thanks to the 3815mm wheelbase and ISUZU chassis) makes it ideal for navigating narrower streets and congested areas common in towns and smaller cities.
- Transfer Operations: Collecting waste and transporting it to larger transfer stations or directly to landfills/processing facilities.
Products Specification
|
Chassis Technical Specification |
||
|
Driving model |
4X2 ISUZU 100P |
|
|
Cab |
100P single row 700 cabin Left hand driving With 2-3 passengers |
|
|
Wheelbase |
3815mm |
|
|
Engine |
Model |
4KH1CN6LB |
|
Type |
Diesel, 4 stroke, 4 cylinders in line |
|
|
Horsepower |
120hp |
|
|
Max output power |
88kw |
|
|
Emission standard |
Euro Ⅵ |
|
|
Gear box |
Manual type, 5 forward gears and 1 reverse |
|
|
Axle loading (front and rear) |
2-2.5T ; 4-4.8T |
|
|
Tyre |
7.00R15 |
|
|
Garbage truck body |
||
|
Garbage Container Size |
7 m3 |
|
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
Rectangular box, arc-shaped rear |
|
|
Thickness |
Side 3mm, bottom 4mm |
|
|
Filling hopper volume |
0.7 m3 |
|
|
Idle Speed |
750 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤23 s |
|
|
Loading cycle time |
≤10 s |
|
|
Unloading cycle time |
≤45 s |
|
|
Oil pump displacement |
40 ml/r |
|
|
Hydraulic oil box size |
60 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Remarks |
|
|
|
Optional device |
|
|
Factory Real Shot Video for You

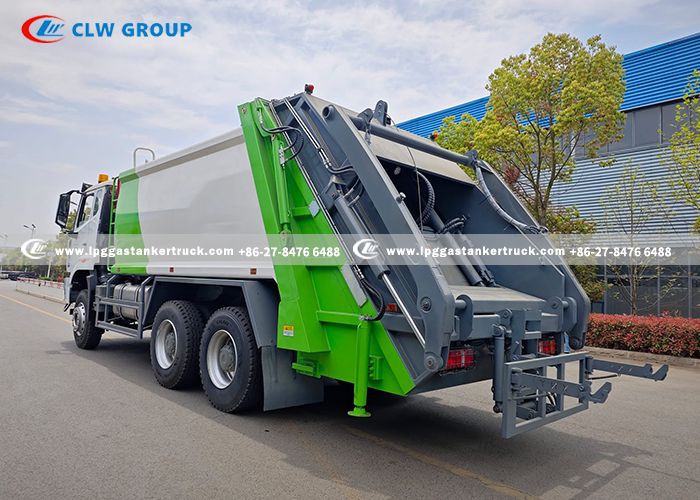

Different Rear Design of Garbage Compactor Truck

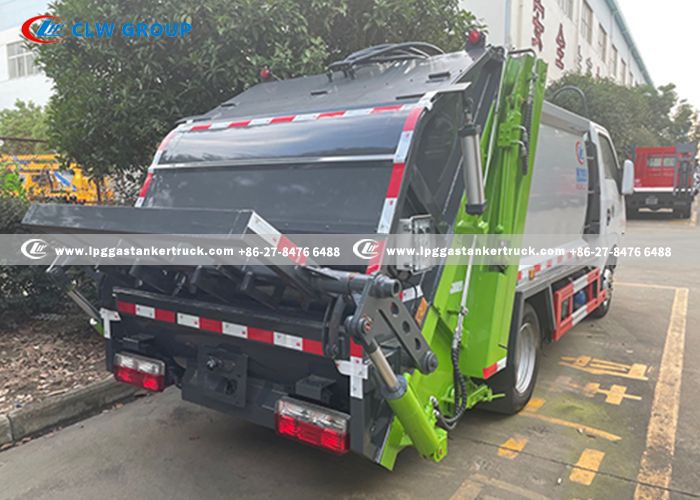

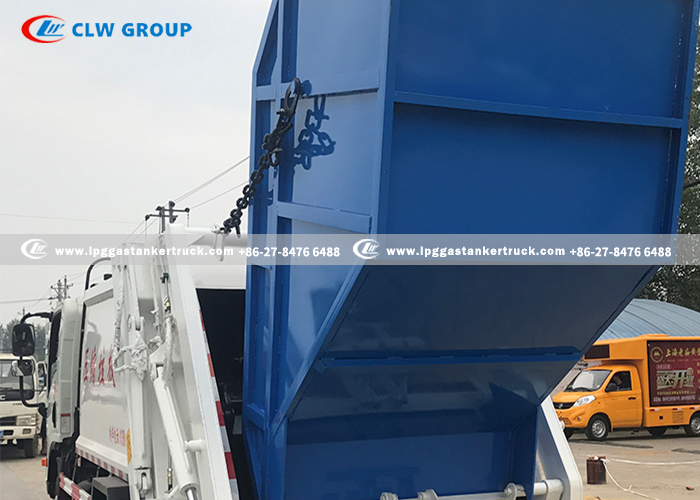

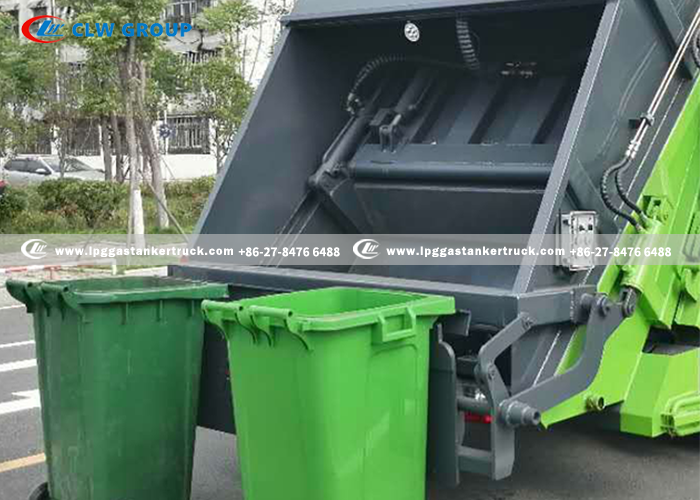

Hanging Bucket Tipping
Pneumatic cover and bucket flip

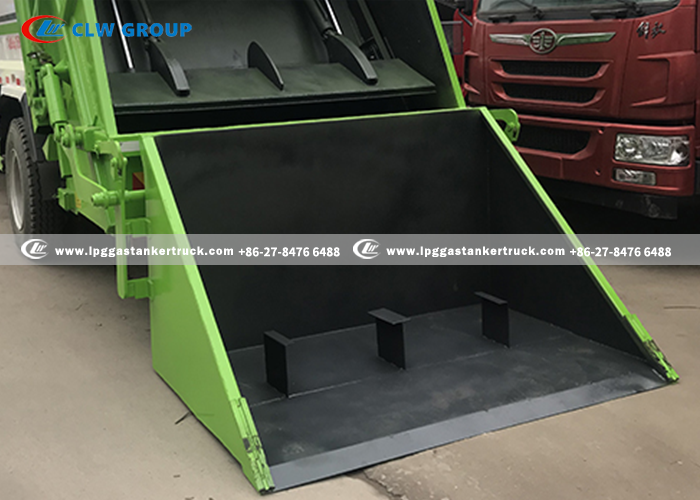

Triangle collection hopper
Swing Arm Bucket Rear Mechanism

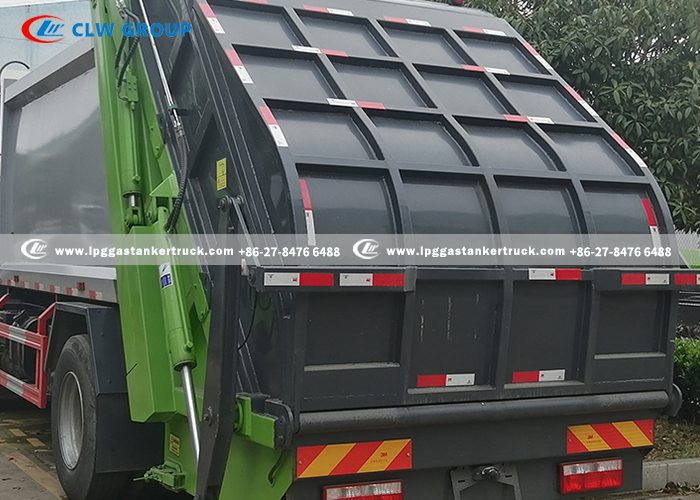

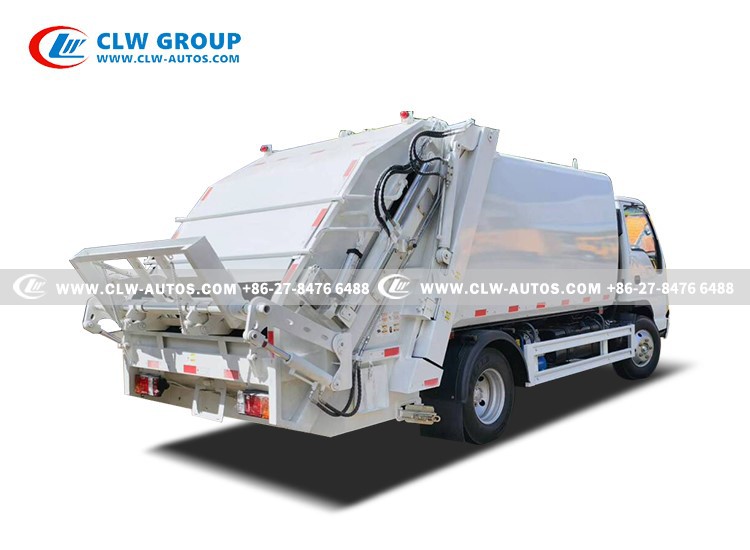

All sealing waste collection hopper
Feeding device of lifting structure
