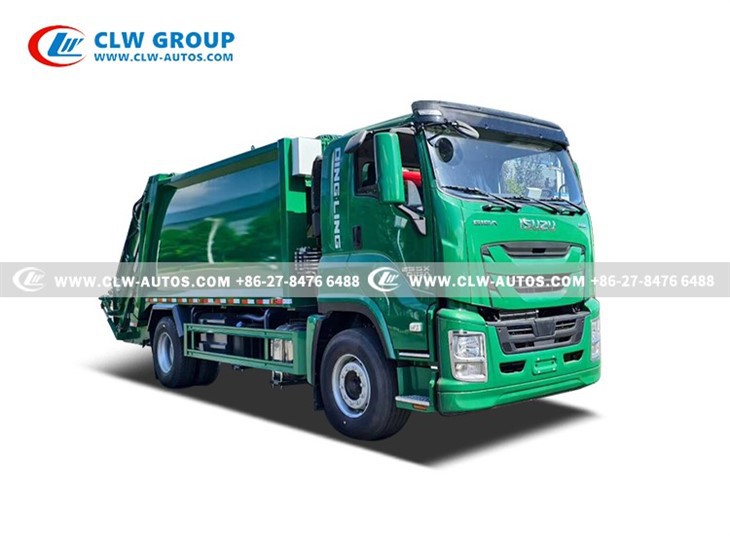

ISUZU 16m3 Compressed Garbage Truck
Drive Type: 4x2
Engine Power:205hp
Garbage Box Capacity:16m³
Garbage Box Thickness: Side 5mm, Bottom 5mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 16m3 compressed garbage truck in China. If you're going to buy high quality isuzu 16m3 compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.

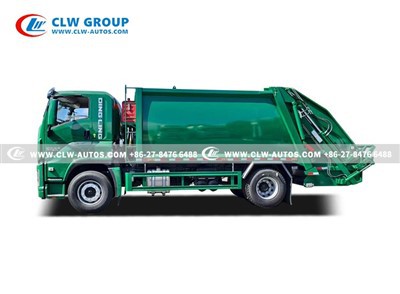

ISUZU FTR 4x2 6 Wheels16m3 Compacotor Garbage Truck
Products Description
1. Reliable and Robust Chassis Performance
- High-Efficiency Powertrain: Equipped with an Isuzu 4HK1 inline 4-cylinder diesel engine (5.2L displacement, 205 HP, 686 N·m torque), compliant with China VI emission standards, balancing power and eco-friendliness.
- Exceptional Load-Bearing Capacity: A 5,000mm wheelbase ensures operational stability and ample space for body installation. Front axle capacity: 4.5 tons; rear axle: 9 tons, providing a solid foundation for waste compression.
- Maneuverability and Accessibility: Air brakes with standard ABS ensure safety. Total vehicle length under 9 meters enables excellent turning radius for narrow streets.
2. Efficient and Intelligent Compression System
- Large-Capacity Body: Box volume of 10-12 m³, constructed with high-strength wear-resistant steel and optimized internal structure for increased load capacity.
- Advanced Compression Technology: Dual-cycle compression (horizontal pre-press + vertical compaction) with a compression ratio ≥ 1:3. Waste density reaches 0.6-0.8 t/m³, maximizing transport efficiency.
- Low-Noise Hydraulic System: Load-sensing technology enables on-demand oil supply, reducing energy consumption and noise. Key components use international-brand valves for reliability and longevity.
3. User-Centric and Safety-Focused Design
- Convenient Operation: Control panels installed in the cab and rear allow most operations without exiting the vehicle. Optional wireless remote control enhances safety and flexibility.
Multi-Layer Safety Protections:
- Loader Safety: Dual seals between the hopper and body prevent leakage. Automatic alarm and mechanical support rods prevent accidental lowering.
- Operational Safety: Interlock functions restrict compression if the vehicle is moving or the parking brake is disengaged.
- Adaptive Loading Mechanism: Compatible with 120L/240L plastic bins, 300L metal bins, and small dumpers. Adjustable lifter hooks accommodate varying container heights.
Functions & Applications
Garbage Collection
Urban Residential Areas
Automatic Loading Garbage
Large-scale Factory
Compactor Garbage
Community
Garbage Transfer and Dumping
Mines

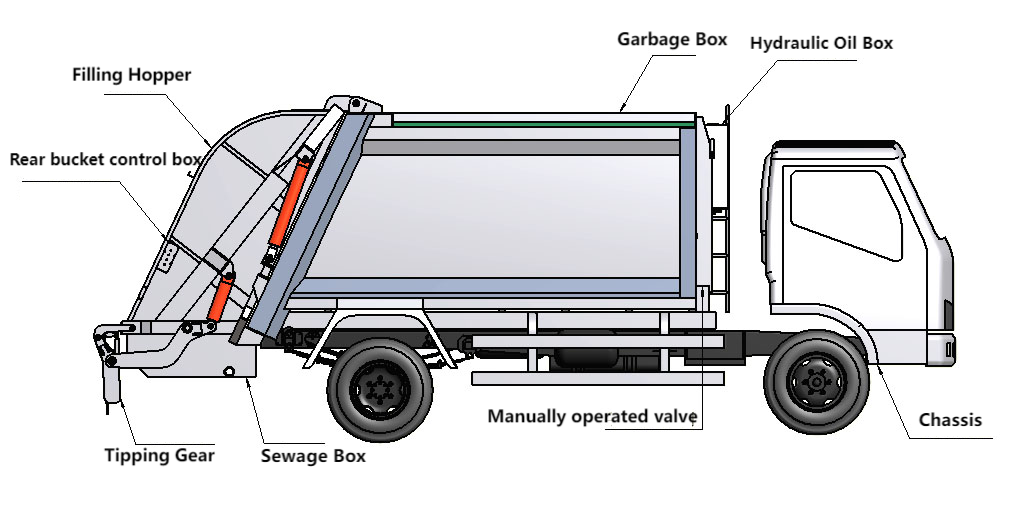

Compactor Garbage Truck Basic Structure
Products Video
Products Parameters
|
ISUZU FTR 16m³ Compressed Garbage Truck |
||
|
Chassis Model |
QL518 |
|
|
Driving Model |
4X2 |
|
|
Cab |
|
|
|
Wheel Base |
5800 mm |
|
|
Axle Loading (front/rear) |
6300 / 13000 kg |
|
|
External Dimensions (L x W x H) |
10560×2550×3280 mm |
|
|
Net weight (Kg) |
9870 |
|
|
Approach / Departure angle |
20/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Type |
ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
205Hp |
|
|
Emission standard |
Euro 2 |
|
|
Displacement |
5193 ml |
|
|
Gearbox |
|
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
295/80R22.5 |
|
|
6 Pcs with 1 spare tire |
||
|
Fuel box |
120L /steel material |
|
|
Garbage Truck Body(16m3) |
||
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 5mm, Bottom 6mm |
|
|
Garbage Container Size |
16 CBM |
|
|
Filling hopper volume |
1.5 CBM |
|
|
Sewage box of filling hopper |
500L |
|
|
Working rotation speed |
1400 r/min |
|
|
Idle Speed |
900 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤35 s |
|
|
Loading cycle time |
≤15 s |
|
|
Unloading cycle time |
≤55 s |
|
|
Oil pump displacement |
63 ml/r |
|
|
Hydraulic oil box size |
120 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
|
|

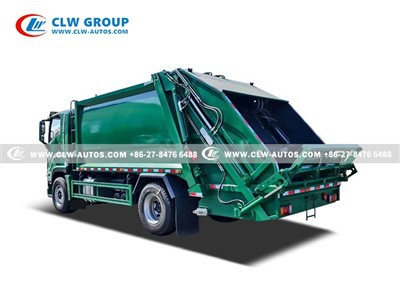

Products Photos

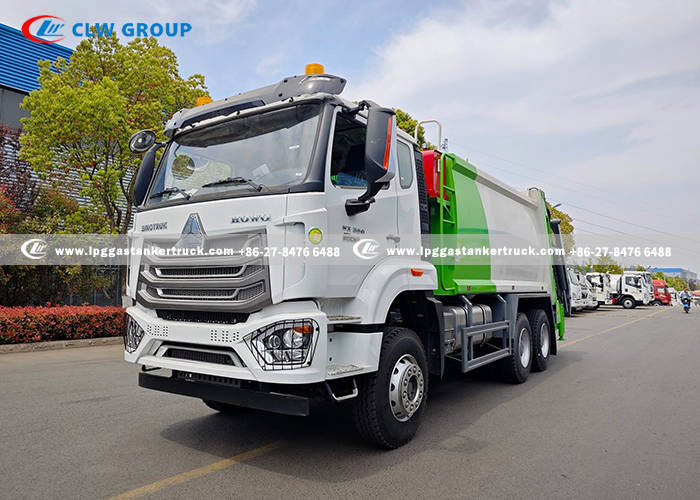

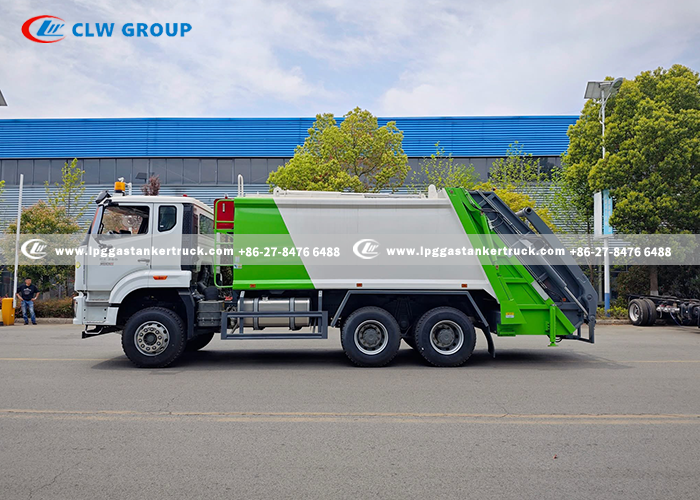

HOHAN NX Compressed Garbage Truck ☆With Swing Arm Mechanism
Optional Configuration
