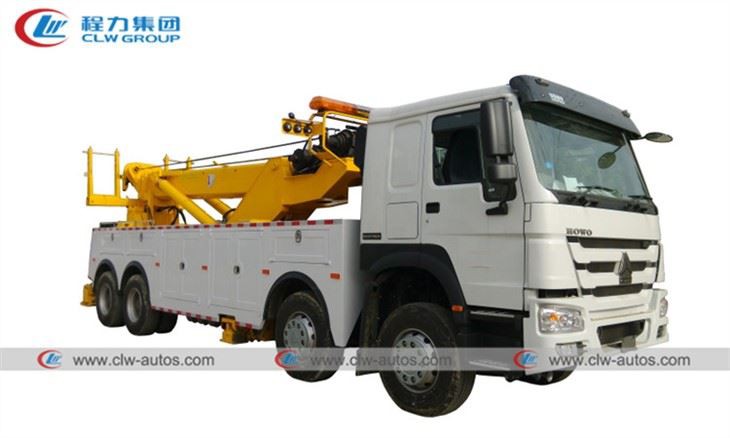

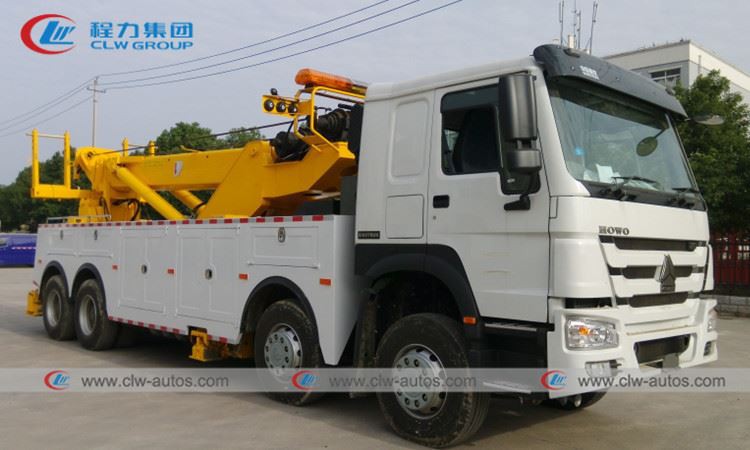

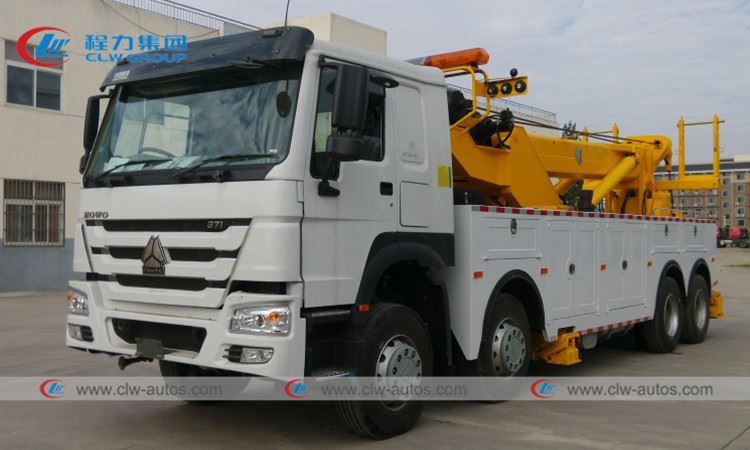

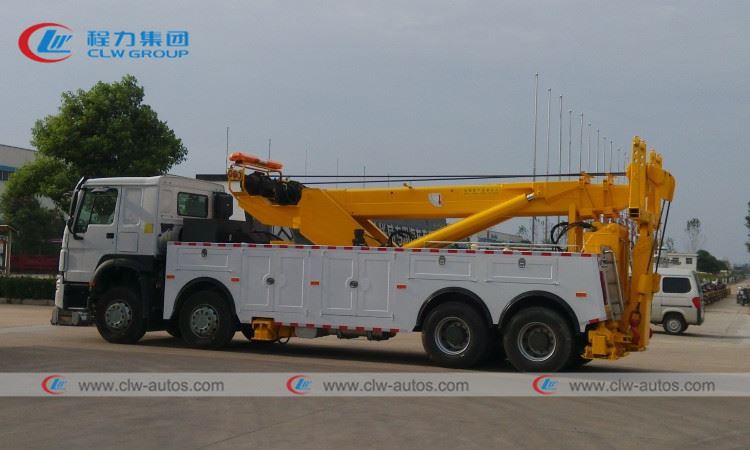

Sinotruk HOWO 360 Degree Rotation 30Tons Road Wrecker Recovery Truck
Sinotruk HOWO 8x4 Road Wrecker Recovery Truck Engine: 371hp. Crane: lifting capacity, 30Tons, 360 degree rotation. Two 15Tons Winches. Hoisting System:16Tons.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 360 degree rotation 30tons road wrecker recovery truck in China. If you're going to buy high quality sinotruk howo 360 degree rotation 30tons road wrecker recovery truck, welcome to get more information from our factory. For price consultation, contact us.
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.

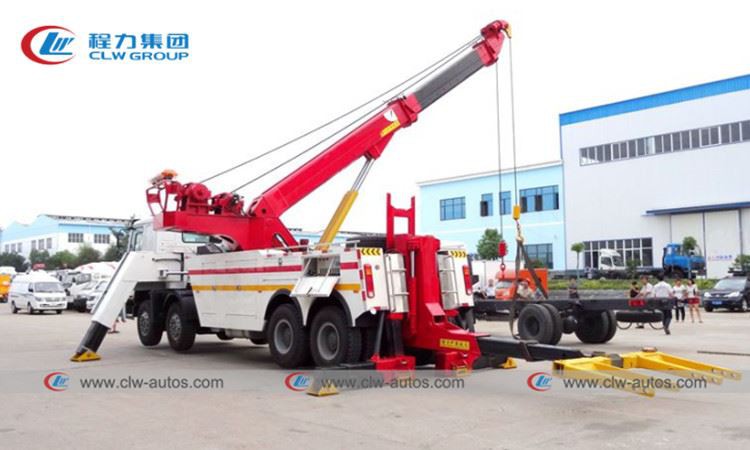

3. Lifting crane can be rotated by 360 degree.
4. Two Winches: each winch has 15 TONS capacity.
Cabin | Driving type 8x4, Right hand drive | |||
HOWO 76 cab, with air condition and one sleeper bed, 70°hydraulically tillable to the front as attached photo for ref. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | ||
Wheel base (mm) | 1800+4600+1350 | |||
Wheel track (front/rear) (mm) | 2022/1830/1830 | |||
Approach/Departure angle(°) | 16/18 | |||
Weight in KGS | Tare Weight | 24870 | ||
payload | 30000 | |||
Front axles loading capacity | HF9 2x9000 | |||
Rear axles loading capacity | HC16 2x16000 | |||
Engine | Brand | Sinotruk | ||
Model | WD615.47 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power（HP) | 371 | |||
Emission standard | Euro Ⅱ | |||
Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |||
Tire | 12R22.5 tubeless tire with one spare | |||
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
Steering | ZF8098 | |||
Oil tank | 400L | |||
Special Device For Wrecker System | ||||
Towing | Max Towing weight(kg) | 43000 | ||
Hoisting Organ | Max hoisting weight(kg) | 31000 | ||
Max Under-hoisting Capacity (kg) | 16000 | |||
Max Hoisting Weight under all extension(kg) | 7000 | |||
Max Under-hoist length (mm) | 2500 | |||
Extension Distance of oil Cylinder(mm) | 1630 | |||
Under hoisting work angle(°) | -10~85° | |||
Lifting Organ
| Max lifting capacity(kg) | 30000 | ||
Basic arm length(mm) | 5200 | |||
Total arm length(mm) | 11200 | |||
Telescope length(mm) | 6000 | |||
Max lifting high(mm) | 12000 | |||
Crane lifting angle | 5°~ 60° | |||
Crane rotation angle | 360°All Rotation | |||
Winch | Quantity | 2 | ||
Max. Pulling power | 15000kgs*2 | |||
Winch rated hoisting force(KN) | 150×2 | |||
Steel rope | 50M length， Φ22 | |||
Landing Leg | Distance between front legs(mm) | 6100 | ||
Distance between rear legs(mm) | 4000 | |||
Equipped | Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly | |||
The whole vehicle is equipped with two 150kn winches (hydraulic winch), 45m steel wire rope, three section hexagonal boom, three supporting arms:
The truck is used for towing and hoisting, the boom can rotate 360 degrees in all directions, and the advanced double hinge mechanism adopted USA technology, which can fold the bracket arm when the bracket arm is loaded; The section of the boom is hexagonal, and its strength and stability are much greater than that of the quadrilateral structure.
The maximum lifting mass is 30tons, the maximum lifting mass of full extension is 7T, the maximum hoist lifting mass is 16tons, and the maximum lifting height is 12000mm.
We have different capacity from 30Tons to 70tons lifting capacity 360 degree full rotation wrecker truck, for more information, please feel free to contact us.
