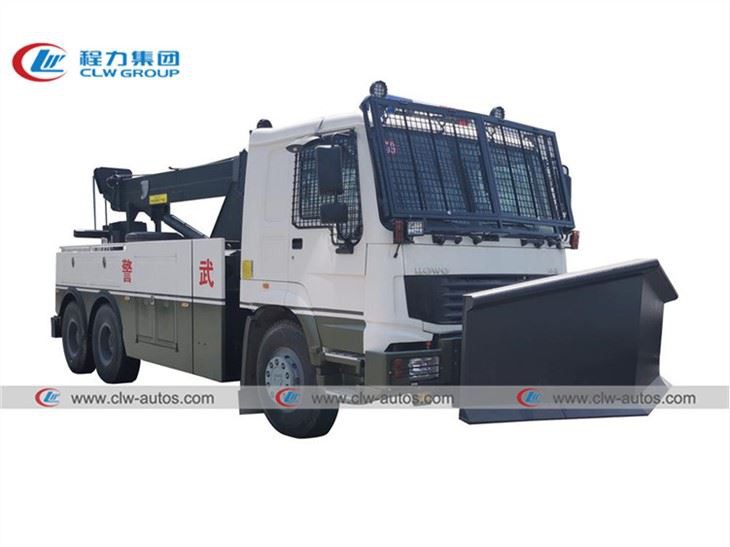

Anti Riot 20Ton Rotator Tow Truck
Anti Roit Design

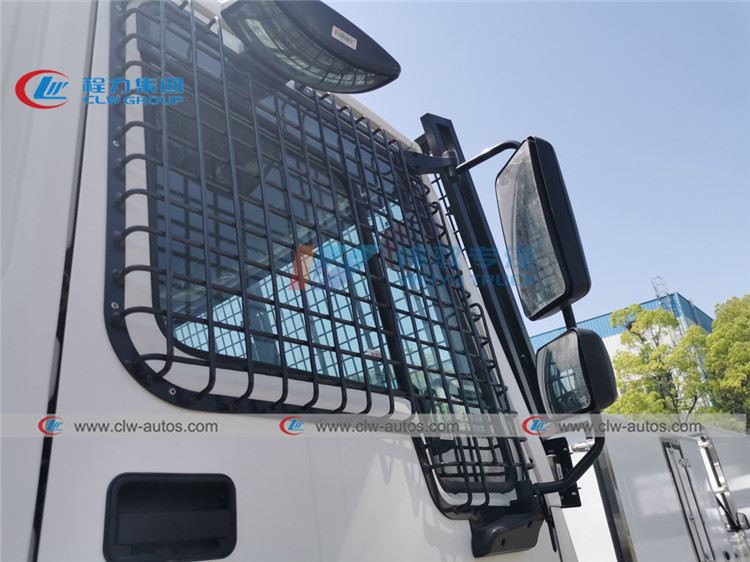

Steel Mesh Glass Window

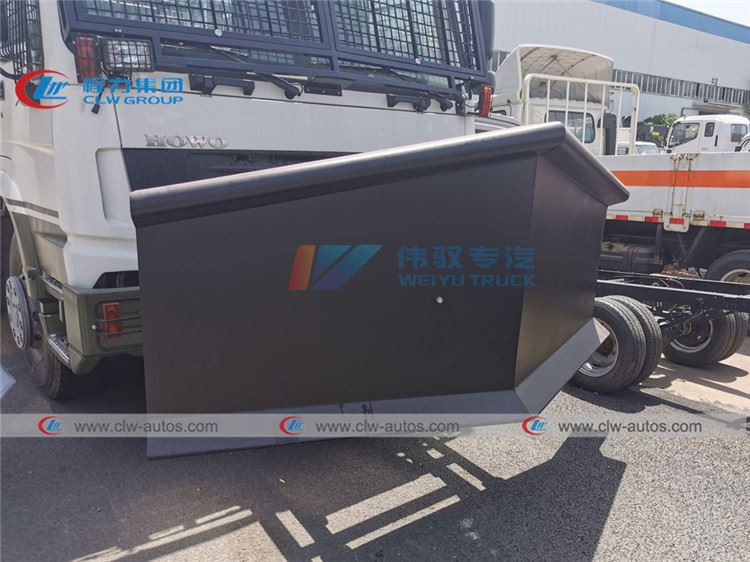

Heavy Duty Blade breaking out Road
20Ton Crane/Underlift
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of anti riot 20ton rotator tow truck in China. If you're going to buy high quality anti riot 20ton rotator tow truck, welcome to get more information from our factory. For price consultation, contact us.
Tow Truck Structure:
Chassis, Crane lifting device, lifting traction device, hydraulic system, electronic control system, truck body and toolbox, etc.
Function: multiple functions such as lifting, pulling and lifting traction, suitable for high-speed clearance of roads and urban roads.
20Ton Full Rotator Wrecker Tow Truck
Chassis configuration:
Ø Howo flat-topped luxury cab,
Ø Anti- Riot Steel Mesh on all glass windows.
Ø Anti-Rioat Heavy Duty Steel Blade to break out road block.
Ø Sinotruk 340 horsepower national four engine,
Ø Sinotruk 10-speed gearbox,
Ø 7 tons front axle, 16 tons double rear axle,
Ø 13.00R20 or 12R22.5 Tubless Tire,
Ø Original power take-off, air conditioner.
Upper Body Specification:

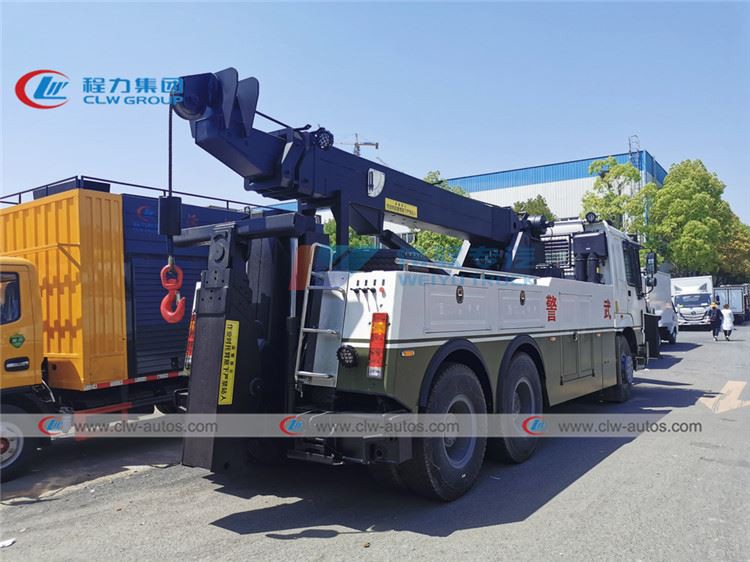

Ø 20Ton Hoisting Crane, Full Rotation Booms, 2 section arms,
Ø 2Unit 100KN hydraulic winch, with 40m steel wire rope,
Ø 20Ton Underlift with length in 2800mm.
Ø Double-sided linkage operating devices, front bumpers with counterweights,
Ø 3 rear working lights, 1 hand washing box,
Ø 1 set of U-shaped tire holding device, 5 pairs of fork holders, 1 pair of fork holders, 2 chain hooks, 1 long row of LED engineering lights, auxiliary light assembly 1 set, 1 set of auxiliary brake air pipe assembly.
Specification:
20TON Rotator Wrecker Tow Truck | |||
Product Name | Wrecker Tow Truck | Overall Size (mm)： | 10120×2500×3800 |
Chassis Model： | ZZ1257N5847E1 | GVW：(kg) | 25000 |
Curb Weight：(kg) | 21000(Kg) | Approach /Departure Angle(° ) | 14/14,14/12 |
Max Driving(km/h)： | 102 | Front /Rear Overhange(mm)： | 1500/1800,1500/2020 |
Emission Standard： | Euro 2 ~ Euro 6 | ||
Chassis Specification | |||
Model No.: | ZZ1257N5847E1 | Axle Loading | 7000/18000(2Unit) |
Axle: | 3 | Fuel Kind: | Diesel |
Wheel Base(mm)： | 5825+1350, 5800+1400, | Front Tracking(mm)： | 20,222,041 |
Cabin Allow： | 2,3 | Rear Tracking(mm)： | 1830/1830 |
Tire Number： | 10 | Leaf Spring： | 10/12,4/12,4/5,10/-,4/- |
Tire Size： | 12.00R20 16PR/ | ||
Vehicle description: | "The corresponding relationship between the lifting weight (kg) and the number of passengers (person) in the cab is 3870/2, 3805/3. | ||
Engine parameters | |||
Engine Model | Engine Manufacture | Displacement（ml） | Power（kw） |
D10.34-50 | Sinotruk | 9726 | 249 |

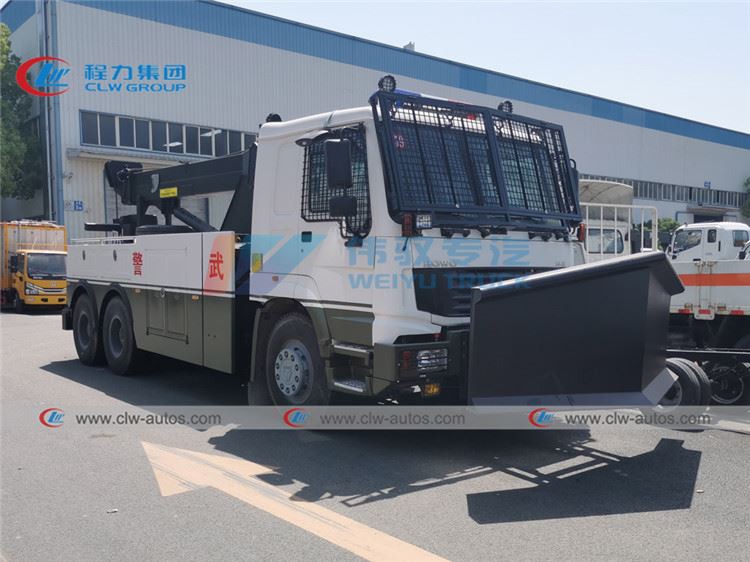

Reference Photos:
Hydraulic system:
The flat-type wrecker truck is fully hydraulically driven, and integrates multiple functions such as lifting, back loading, towing, and pulling. The hydraulic pipe joint adopts the imported card sleeve type rigid connector (Germany), which greatly reduces the oil leakage and oil leakage of the interface, and the service life can also be synchronized with the upper installation.
The reversing valve adopts imported multi-way reversing valve (Italy) and the installation method is optimized to ensure that the multi-way reversing valve can operate safely under various extreme conditions.
Cylinder:
Full use of imported sealing components (Germany, British and Italy's Stewart series), and adjust each sealing combination according to different cylinder structures, in order to achieve the most perfect state of the cylinder; the piston support ring is made of high-temperature and wear-resistant Imported materials, double support ring or large area single support ring structure is required to match the design.
In obstacle clearance operations, such as when the oil cylinder is subjected to large lateral forces, the high-standard support ring can ensure the stable operation of the oil cylinder and avoid damage caused by direct friction between the piston and the cylinder wall, the piston rod and the cylinder head; Effective and reliable guarantee.
Advantages of wrecker truck:
1. The main components (balance valve, multi-way valve, etc.) of the hydraulic system imported from international famous brands are used to provide an effective and reliable guarantee for the entire process of obstacle clearance.
2. Adopt plasma numerical control cutting machine, numerical control wire cutting machine, shearing machine to cut the material to ensure the high precision of the plate, produce various specifications of metal structural parts, gas shielded welding (automatic or manual welding), assembly line assembly, after multiple passes The inspection and testing line separately tests the various assemblies or special institutions of the wrecker to ensure that the factory products meet the design requirements;
3. Adopting the latest foreign technology of wrecker trucks, full computer graphic design, reasonable structure design, convenient use and maintenance, it is the most commonly used structure model in wrecker trucks.
