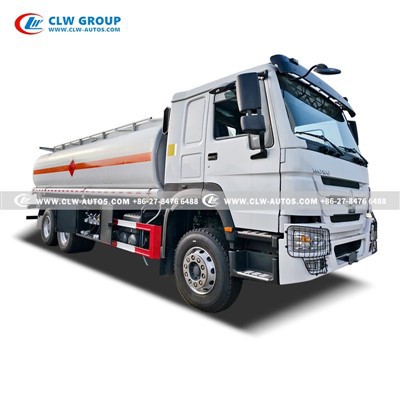

20m3 multi compartment oil tanker HOWO
Designed for African Markets
HOWO 20CBM fuel tanker
371hp
5 Compartment
SINOTRUK 6x4 fuel tanker for sale
Multi-compartment fuel bowser truck
Oil Tank Truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20m3 multi compartment oil tanker HOWO in China. If you're going to buy high quality 20m3 multi compartment oil tanker HOWO, welcome to get more information from our factory. For price consultation, contact us.
Product Descritions
20,000 Liters Fuel Tank Truck (5 Compartments) – Designed for African Markets
This 20,000-liter fuel tank truck with 5 compartments is specially designed for fuel transportation in African countries, combining reliability, safety, and adaptability to local road and climate conditions.
It is widely suitable for oil companies, fuel distributors, construction projects, mining sites, and logistics operators.
The vehicle adopts a SINOTRUK 6×4 chassis, left-hand drive, brand-new condition, ensuring strong load capacity and stable performance even on rough roads and long-distance operations.
🌍 Designed for African Countries
Specially designed for African countries such as Nigeria, Ghana, Kenya, Tanzania and Senegal.
Key Features
20 CBM fuel tank with 5 independent compartments
SINOTRUK heavy-duty 6×4 chassis, strong load capacity
Stable performance, easy maintenance
Suitable for fuel, diesel and other petroleum products
Designed for tough road and climate conditions
Basic Info
|
Chassis Model |
SINOTRUCK Left/ Right Hand Driving Type Optional |
|
Transmission Type |
Manual |
|
Emission Standard |
Euro 2 |
|
Load Capacity |
20-30t |
|
Power |
Diesel |
|
Drive Wheel |
6×4 |
|
Horsepower |
371HP |
|
Condition |
NEW |

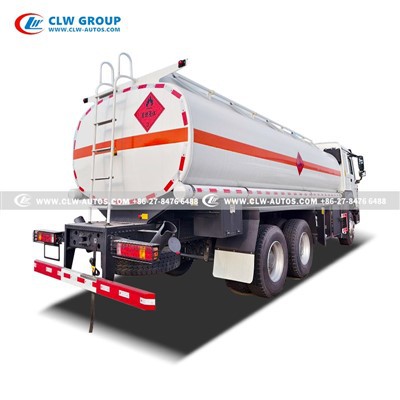

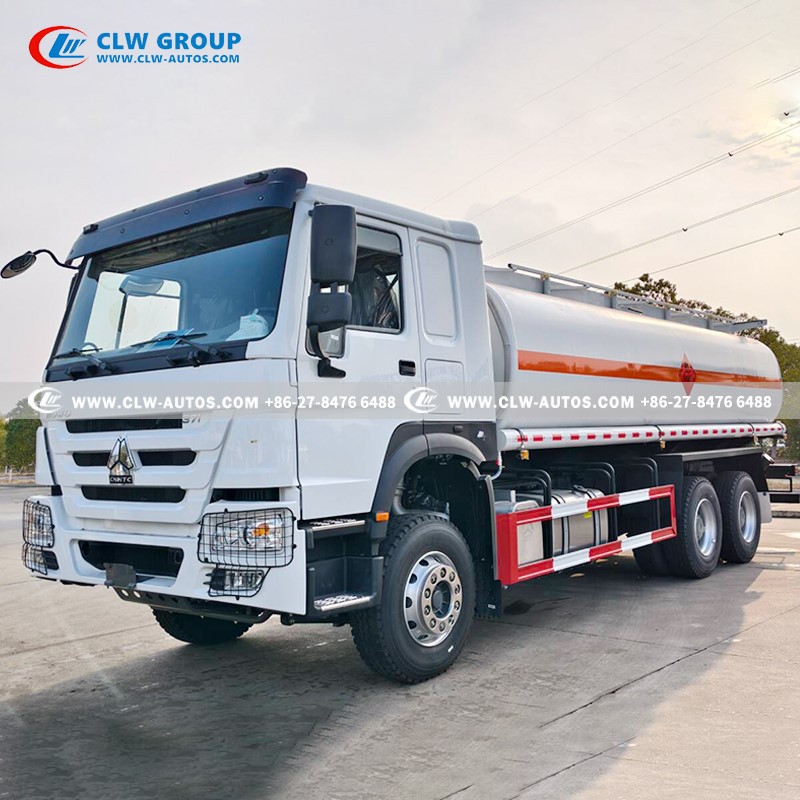

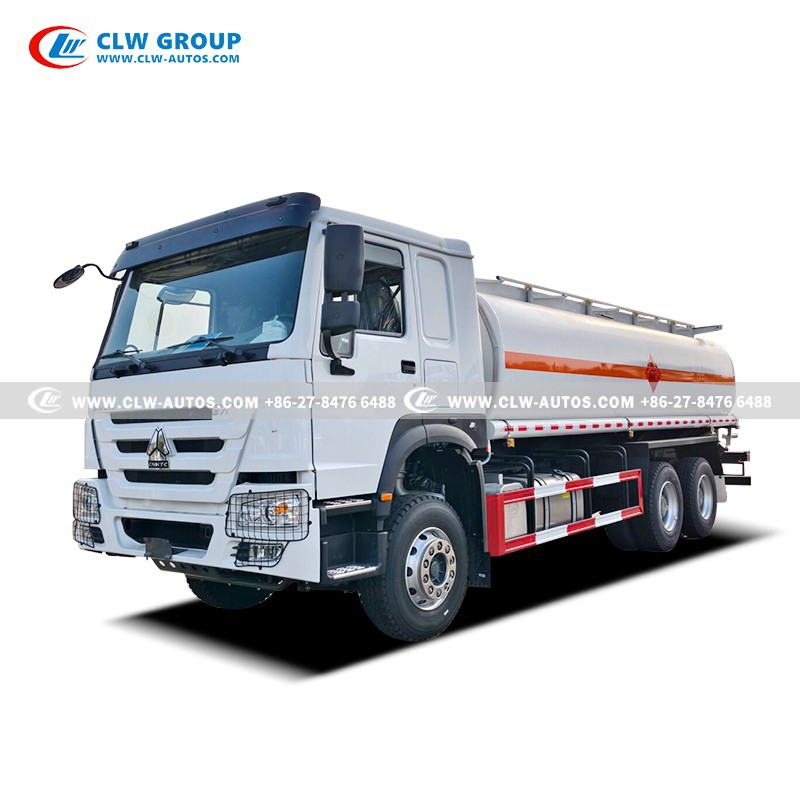

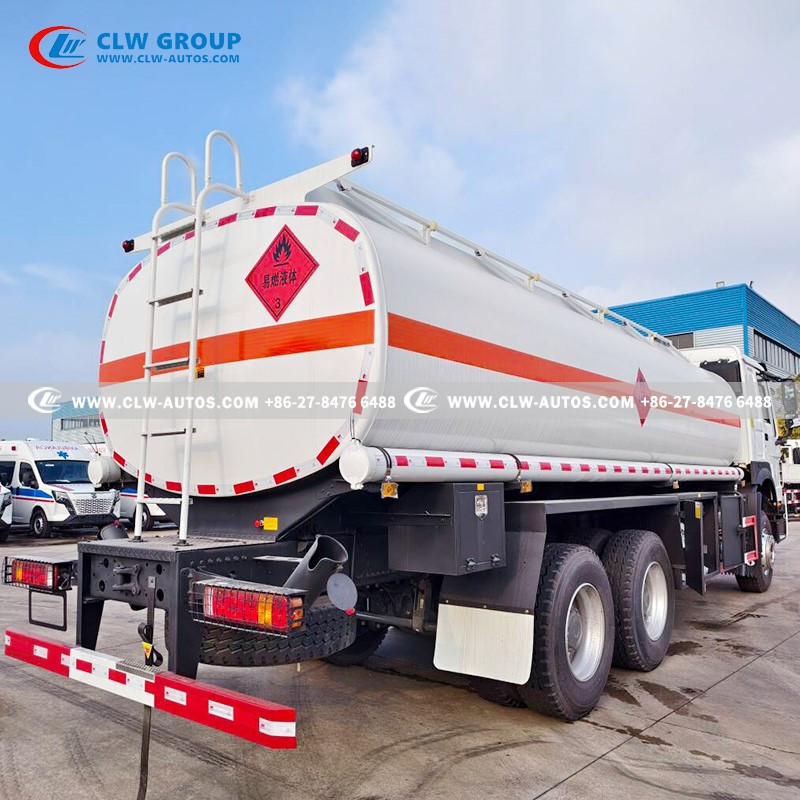

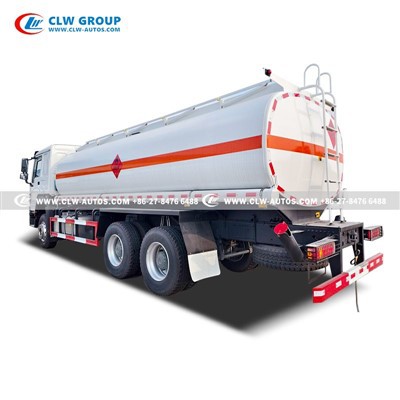

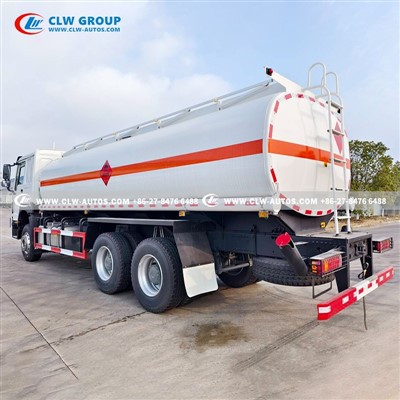

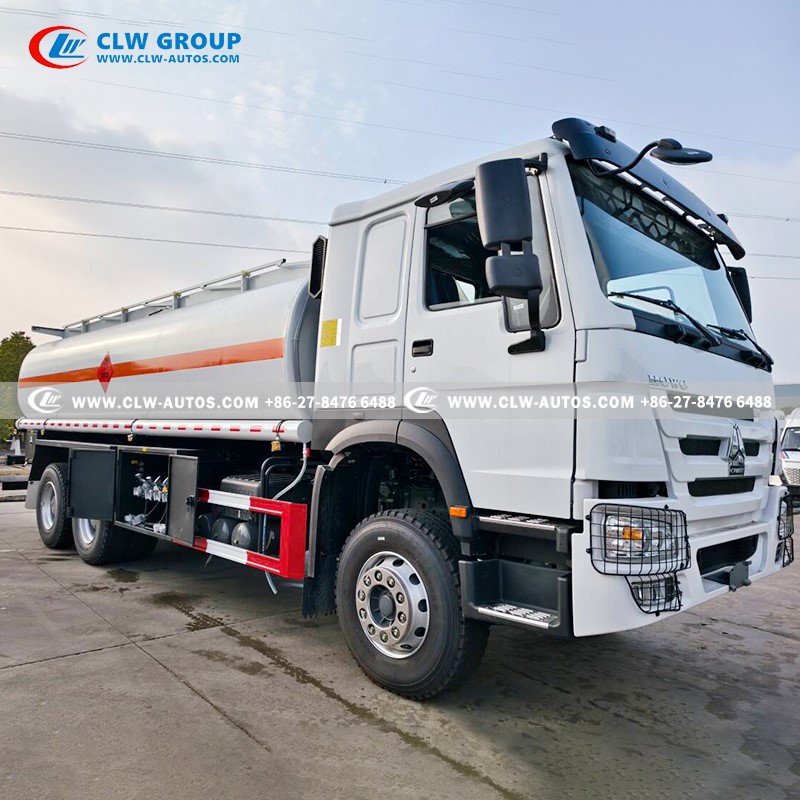

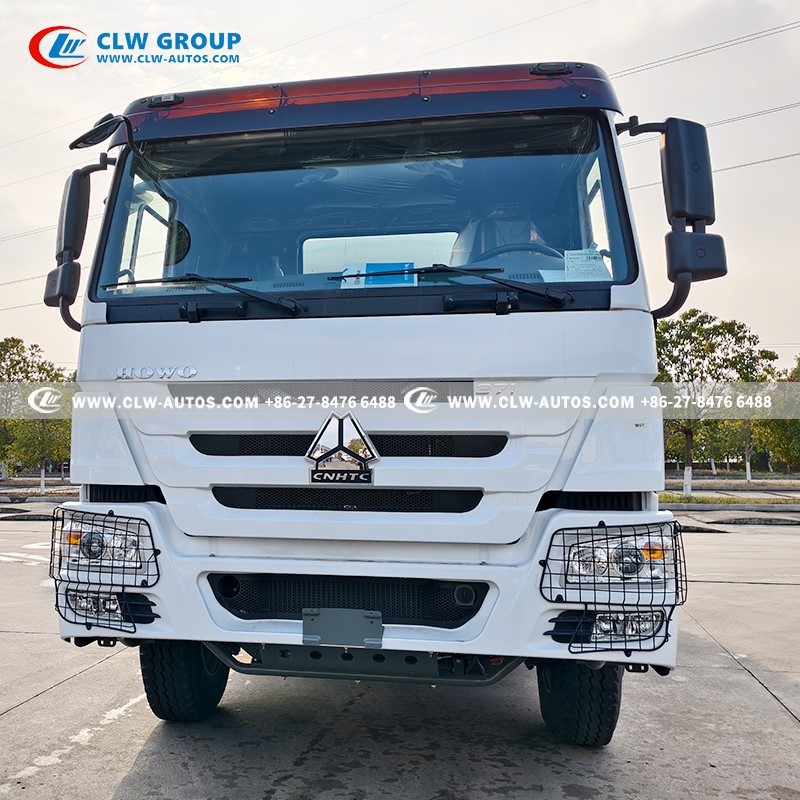

Reference Pictures
Products Parameter
|
Truck Chassis |
||
|
Condition |
New condition/Left hand drive/6x4 |
|
|
Chassis |
Brand |
SINOTRUK |
|
|
Gross Vehicle Weight (kg) |
25000 |
|
|
Loading Weight (kg) |
16370 |
|
|
Wheelbase(mm) |
4600+1350mm |
|
|
Dimensions(mm) |
9500X2550X3800 mm |
|
|
Front/Rear Axle loading(kg) |
7000kg/16000kg |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Max. driving speed(km/h) |
80 km/h |
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
12.00R20 (12R22.5, 315/80R22.5 optional), 10pcs with one spare tire |
|
|
Fuel box |
400L |
|
|
Transmission |
manual operation, HW19710, 10 forward and 2 reverse |
|
|
Cab |
Flat-top extended cab, manual windows, manual rearview mirrors, driver's seat with mechanical shock absorption. It can accommodate three people, With Air conditioner |
|
|
Engine |
Brand |
SINOTRUK |
|
|
Model |
WD615.47 |
|
|
Fuel type |
Diesel |
|
|
Displacement(ml) |
9.726 L |
|
|
Power(kw) |
273kw |
|
|
Horsepower(HP) |
371HP |
|
|
Max. Torque(N.m) |
1500N.m |
|
|
Cylinder number |
6-cylinder inline, direct injection design. |
|
|
Emission standard |
Euro II |
Upper & Equipment
|
Fuel tank |
Capacity(cbm) |
20 cbm |
|
Compartment Quantity |
5 compartments |
|
|
Compartment Volume |
5 m³ + 5 m³ + 4 m³ + 3 m³ + 3 m³ |
|
|
manhole |
5 |
|
|
Tank Material |
High-strength carbon steel Q235 (optional: aluminum alloy / stainless steel) |
|
|
Tank Structure |
Multi-compartment design with internal anti-wave baffles |
|
|
Safety Valve |
Bottom emergency shut-off valve (under-tank safety valve) |
|
|

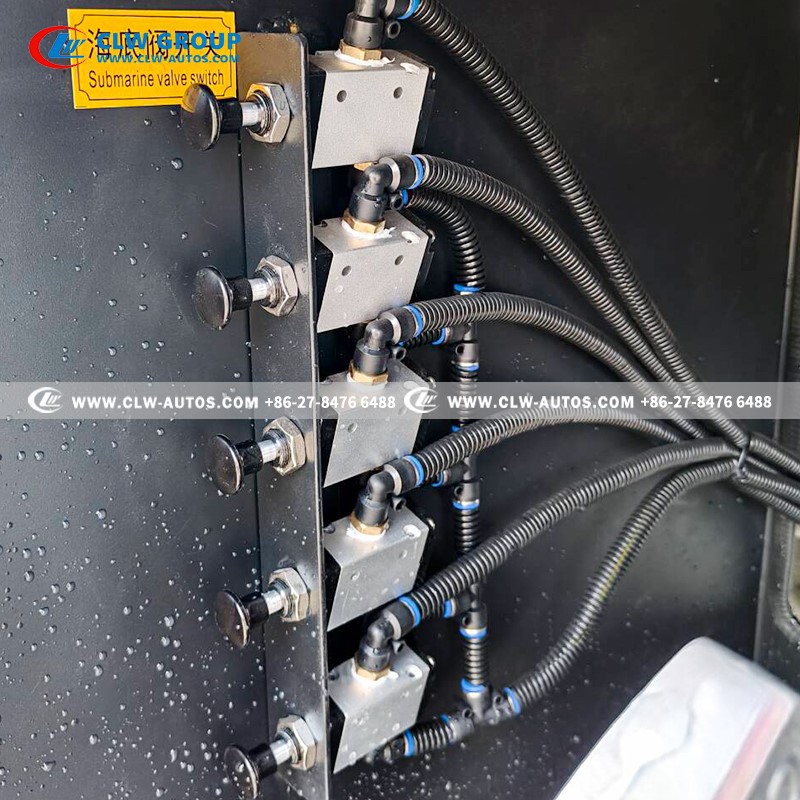

Valve Control |
Manual bottom valve control system |
|
|

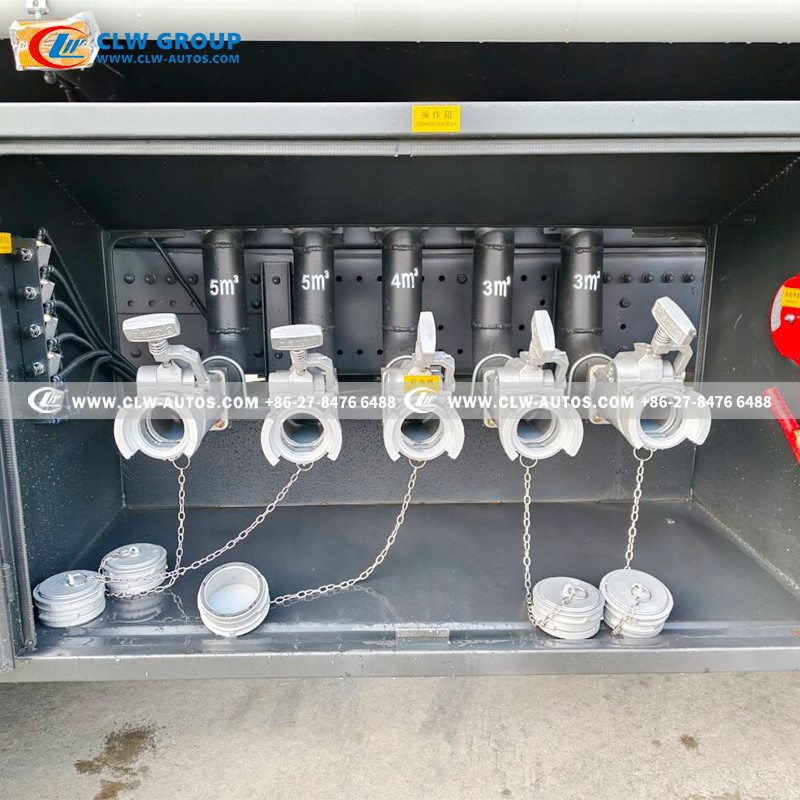

Discharging Outlet |
Flange-type unloading outlets |
|
|
Unloading System |
Independent unloading for each compartment |
|
|
Leakage Protection |
Reliable sealing system to prevent fuel leakage |
|
|
Anti-static System |
Static electricity grounding device |
|
|
Testing |
Leakage test and pressure test before delivery |
