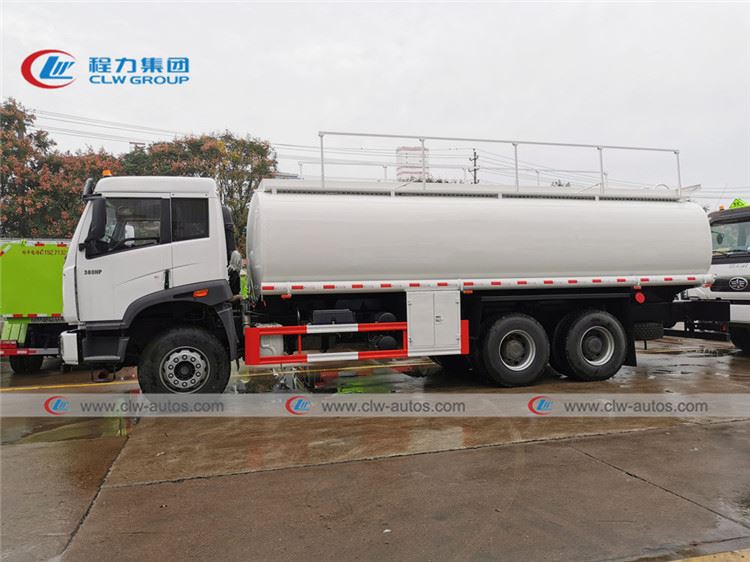

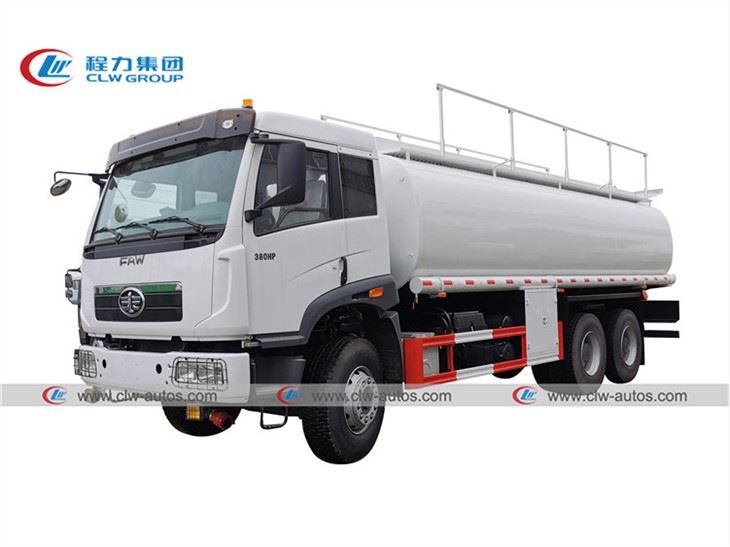

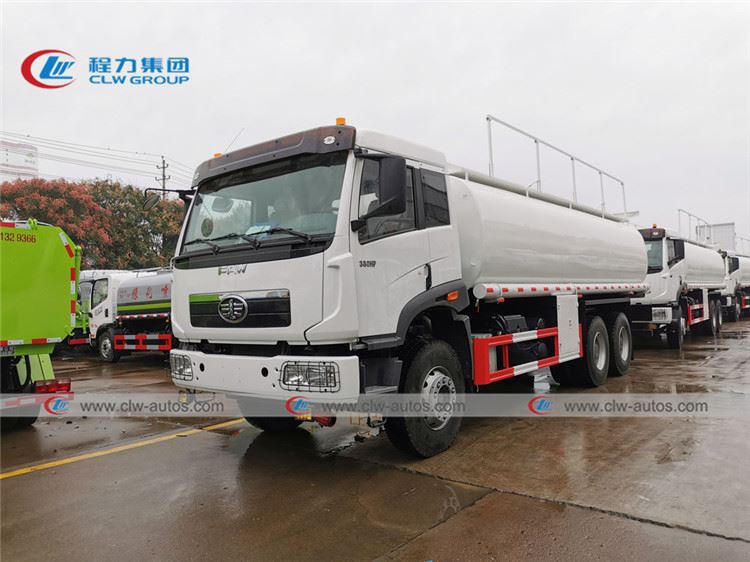

FAW 20Ton Dispenser Fuel Tank Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 20ton dispenser fuel tank truck in China. If you're going to buy high quality faw 20ton dispenser fuel tank truck, welcome to get more information from our factory. For price consultation, contact us.

FAW 20Ton Fuel Transport Truck

Transport medium: gasoline,

Medium Dnsity: 0.7 tons/m3,

Effective tank volume: 24.1 cubic meters,

Overall dimensions of the tank (mm) are: 7700 × 2480 × 1880.

Protective material: Q235A carbon steel,

Connection method: Welding connection is used for the left and right side and rear lower protection.

Rear protective section size (mm): 135×50,

Ground clearance of rear protection (mm): 520.

Only use chassis radial tires and chassis with ABS;

The front wheels of the car are equipped with disc brakes, front exhaust pipes,

Speed limit device with a speed limit of 79km/h.

Install a driving recorder with satellite positioning function, with ABS

The color of the vehicle is optional and the position of the text spraying can be changed.

Chassis:

• FAW XinDaWei,

• Wiechai 380HP Engine,

• FAST Gearbox 12 Forward & 2 Reverse,

• 7Ton Front Axle, 16Ton Rear Axle,

• 12R22.5 Tire.

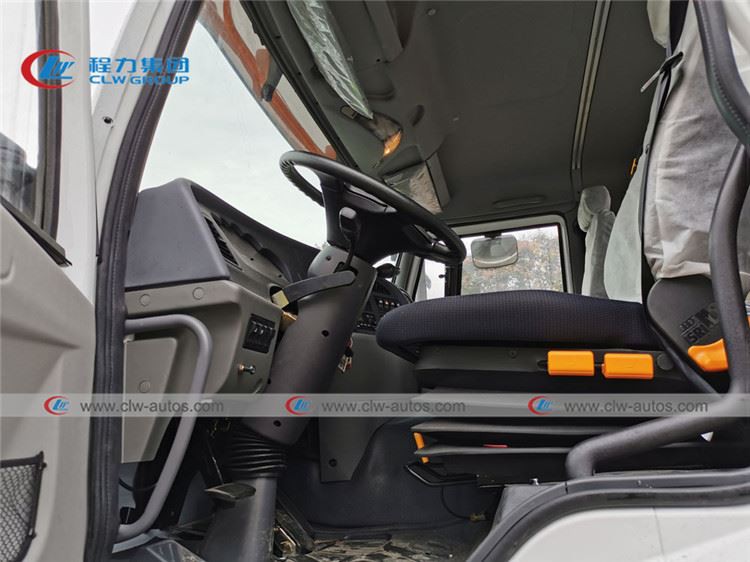

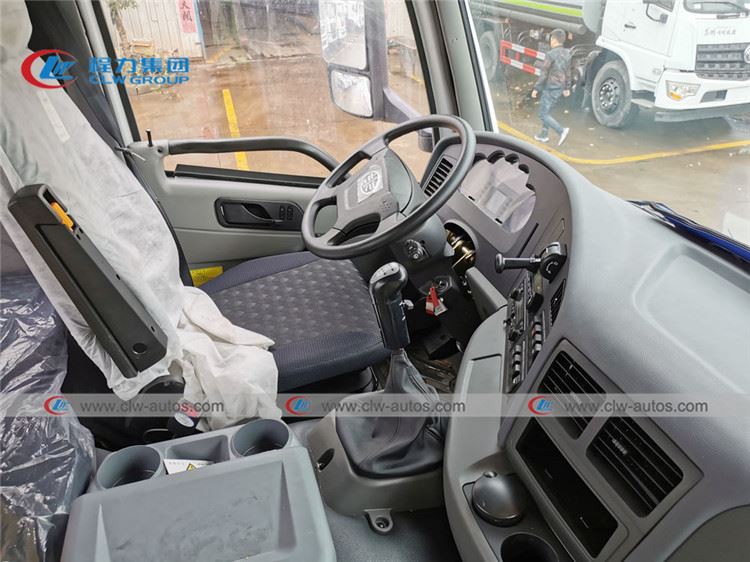

• Luxury Cabin, with Air Seat

Tank Body:

For Gasoline, diesel medium

A.      5MM high-quality Carbon Steel plate; the tank body is rolled into one-time,

B.      Square-circular tank body, water-expandable head,

C.      Corrugated wave breaker is installed every 2 meters inside the tank body, and the brake can reduce the tank body when fully loaded. It plays a role of safety protection against the impact of the truck bod.

D.     Fully automatic seamless welding, 100% passes the stringent requirements of liquid penetration, air pressure detection, and flaw detection, and a formal inspection report (tank inspection report) is issued.

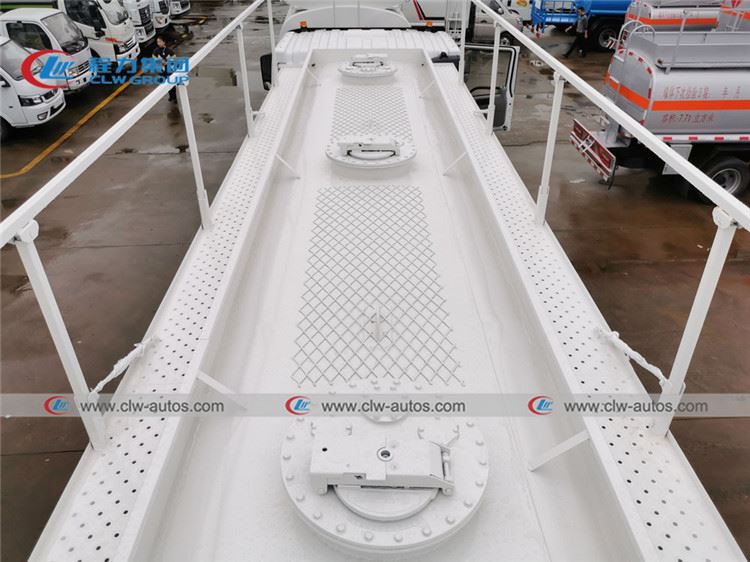

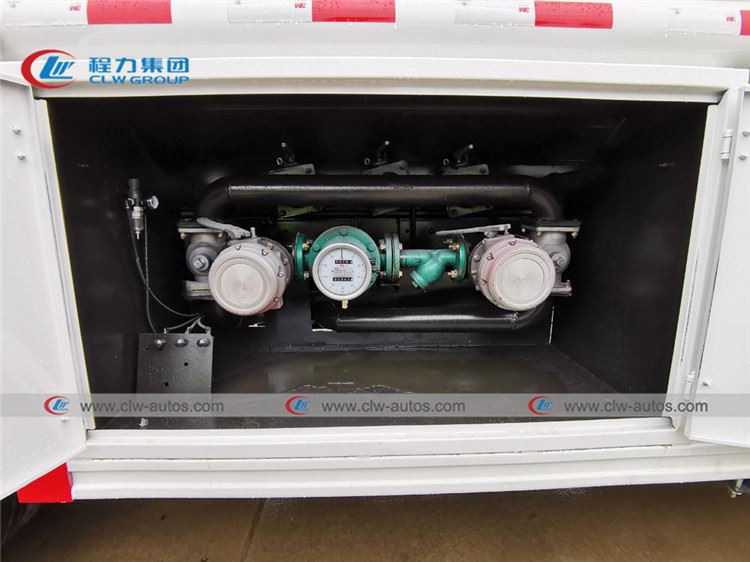

E.      The tank body is equipped with Shandong Qilu oil pump, the pump box is equipped with a European standard handle lock, a European standard tank port with a single breathing valve, a subsea valve, and two self-flowing valves.

F.       Equipped with two 2kg fire extinguishers, two oil pipelines the same length as the tank body, fire cap, grounding static wire, (safety first, prevention first!)

G.     Paint: Aluminum powder silver gray, flammable liquid paste, reflective signs, safety notices.

 Specification：

Truck Photo Detail:
