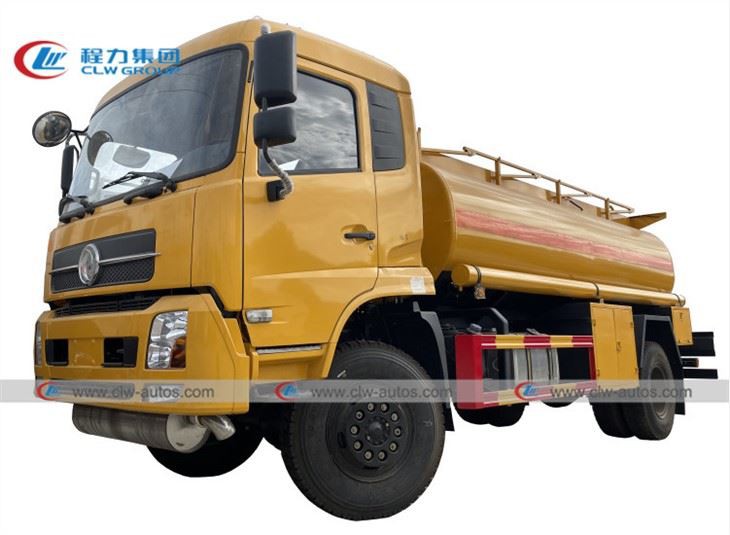

Dongfeng 4x2 10M3 Oil Delivery Tank Truck
Dongfeng 4x2 Oil Delivery Tank Truck Tank Volume: 10M3 , 10000Liters, 10CBM, 10 cubic meters.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 4x2 10m3 oil delivery tank truck in China. If you're going to buy high quality dongfeng 4x2 10m3 oil delivery tank truck, welcome to get more information from our factory. For price consultation, contact us.
Product description:
1. Fuel truck consists of tank car body, power take-off, self-flow valve, two oil pipes, fire extinguisher, ladder, gear oil pump, oil-resistant pipe, pipe network system and fire extinguisher.
2. The fuel tank body or is made by high-quality carbon steel sheet. The large-scale coiling machine is used for one-time forming made fuel tanker is more beautiful and the sealing performance is more excellent.
3. The shape of fuel tank is elliptical or trapezoidal, etc. The tank can be divided into single or multiple warehouses according to user requirements. In order to prevent corrosion, the outer surface of the can is coated with anti-rust paint and decorative paint.
4. The container indicator is installed in the middle of the fuel tank side. When adding oil to the tank or transferring oil to the outside, the inner volume of the tank can be directly indicated.
5, according to your needs, our technical man will made anti-corrosion treatment of tank car tanks, converted into chemical vehicles used to transport industrial chemical raw materials.
6, fuel tank truck optional computer tax control tanker, flow meter, ladder and other special configuration, the tank tail sprayed with high-quality reflective signs to provide security for your night driving.
Specification:
| Dongfeng tianjin 4x2 Diesel and gasoline fuel tanker truck with 10000L 10cbm 10m3 10KL tank | |||
| Item | unit | parameter | |
| Product Name | oil tanker truck | Vehicle Brand | CLW |
| Chassis brand | Dongfeng | ||
| Overall dimensions | mm | 8200×2500×3100 | |
| Fact cubage | L | 10000-15000 | |
| Net Weight | kg | 8400 | |
| Wheel base | mm | 4700 | |
| Approach/departure angle | ° | 11/23 | |
| Exhaust/hp | ml /kw | 5900/140 | |
| Max speed | km/h | 80 | |
| Tire specification | 10.00R20,10.00-20 | Engine type | B190-33 |
| Traction system | 6×2 | Transmission | 6 Forward,1 Reverse |
| Number of axles | 3 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 3,2 |
| Equipment | Can be divided into several bins, can choose oil pump, flow meter, level meter, refueling reel, filling machine, static line wheel, pneumatic bottom valve, AIP valve, preventing overflow valve, oil and gas recovery system. | ||
| Engine | Dongfeng Cummins Diesel Engine (Euro 3) | ||
| Production cycle | 15 days | ||
| Warranty | 12 month, from the date of supply | ||
| Superstructure | Tank Capacity | 10,000 Litres | |
| Tank Material | Carbon steel | ||
| Pump | Equipped for overhead delivery, 1000 litres / min | ||
| Suction Head | 6 m | ||
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | ||
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers..... | |||
| Optional | 1: Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... | ||
| 2: It can be divided into many compartments. | |||
3:Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge... | |||
| 4: Heat preservation & heating system could be added. | |||
| 5:Bottom loading system can be equipped. | |||

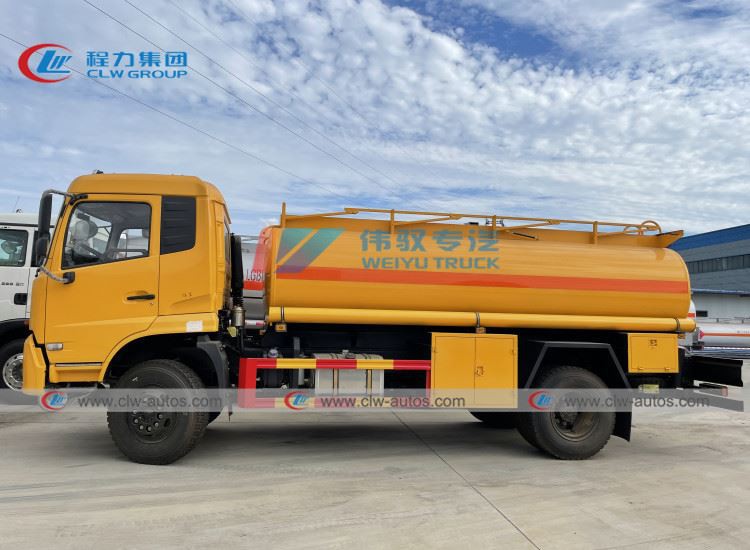

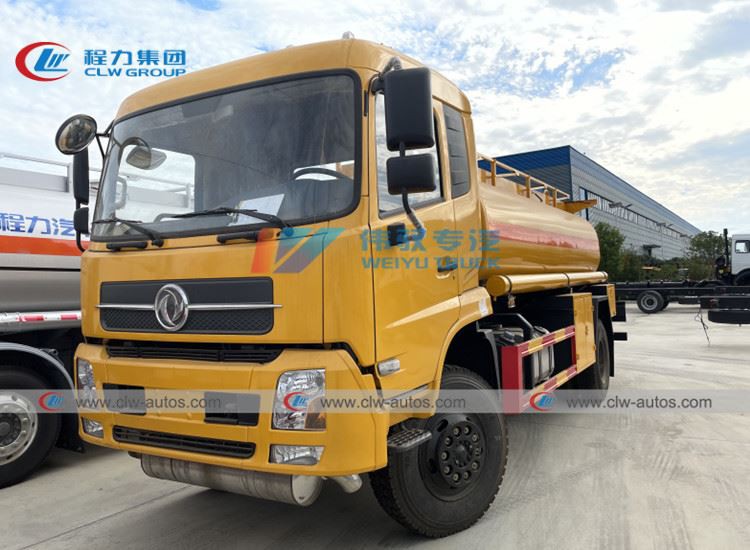

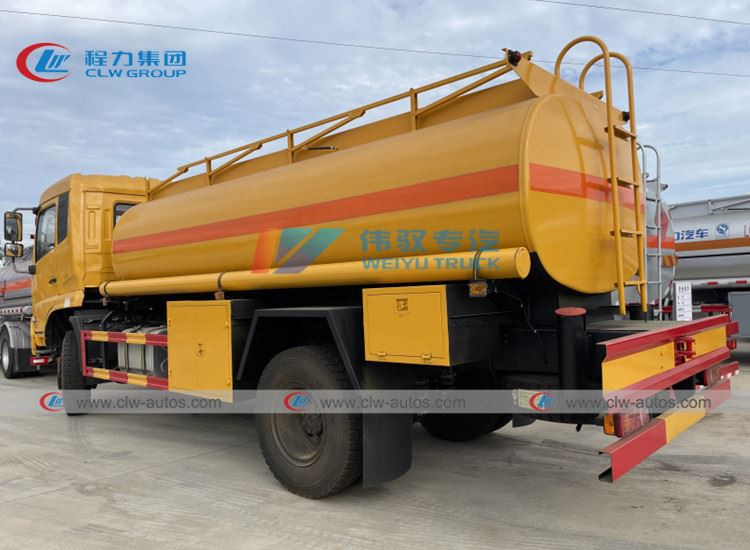

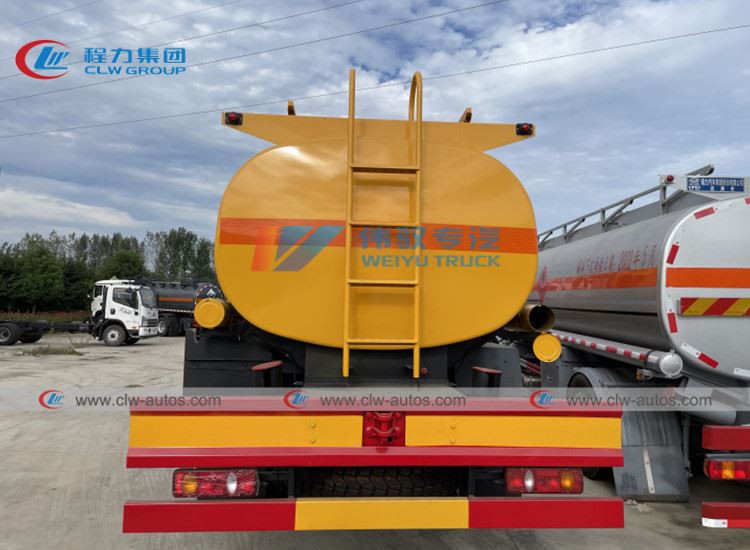

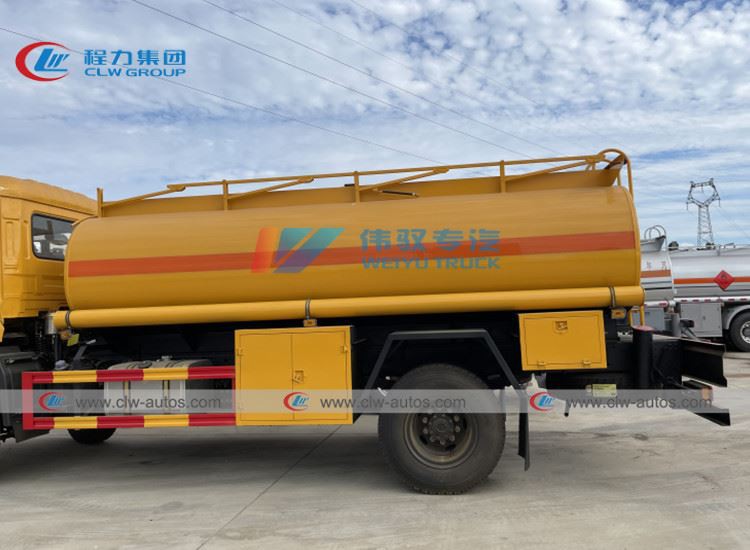

More detailed pictures:
