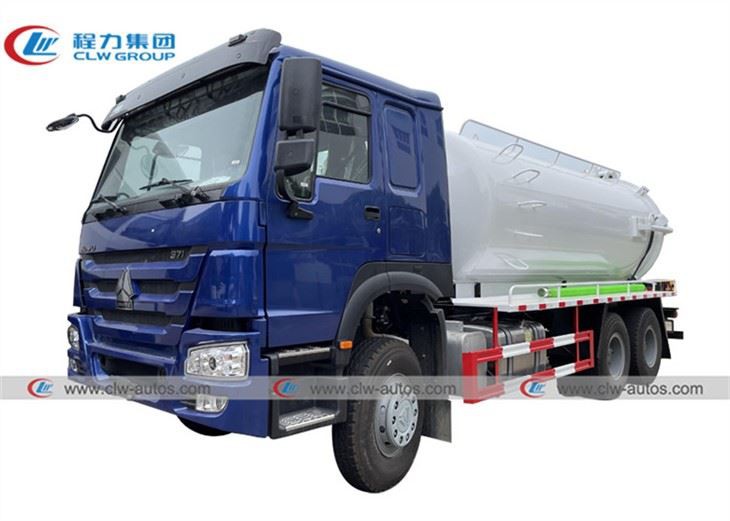

Sinotruk HOWO 6X4 15000liters Vacuum Sewage Suction Truck
Chassis brand: Howo Drive type: 6x4 left hand drive Function: Vacuum sewage suction Tank volume: 15,000Liters/15tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6x4 15000liters vacuum sewage suction truck in China. If you're going to buy high quality sinotruk howo 6x4 15000liters vacuum sewage suction truck, welcome to get more information from our factory. For price consultation, contact us.
SINOTRUK HOWO 6x4 15000Liters vacuum sewage suction truck
Product Description:
A vacuum truck or vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically
suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is
to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to
a treatment or disposal site, for example a sewage treatment plant.
A common material to be transport is septage (or more broadly: fecal sludge) which is human excreta mixed with water, e.g. from septic tanks and pit latrines. They also transport sewage sludge, industrial liquids, or slurries from animal waste from livestock facilities with pens.
Vacuum trucks can be equipped with a high pressure pump if they are used to clean out sewers from sand.
1.Equipped with special vacuum pump,equipped with power take off, transmission shaft, high pressure sewage tank,
pipe network, sewage pipe for observing and cleanout equipment,time for full sucktion<5min
2.The sewage suction truck special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure
gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3.The Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of
vacuum pump caused damage,optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing
(rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water.
Product Specifications:
| Vehicle name | SINOTRUK HOWO 6x4 371hp 15000Liters vacuum sewage suction truck | |
| Cabin | HW76 Cabin, with two seats and one bed, with Air Conditioner and electric window. | |
Engine | Model | WD615.47 |
| Horse Power (Hp/rpm) | 371/2200, Euro II Emission Standard | |
| Max.Toruqe(Nm/rpm) | 1460/1100-1500 | |
| Displacement L | 9.726 | |
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio:4.8. Option: 4.42 | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF8118, Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 12.00R20 | |
| Fuel Tank Capacity (L) | 400L Diesel Tank | |
| Kurb Weight (kg) | 12,500 | |
| Loading Capacity (kg) | 15,500 | |
| Overall Dimension(L*W*H)(mm) | 8950*2550*3250 | |
| Tank Capacity(L) | 15,000 | |
| Tank Material | Carbon Steel | |
| Nos of Compartment | 1 | |
| Vacuum Pump Model | Jurop PN106D | |
| Max Air Flow | 11000L/min | |
| Time to suction full tank | 12-15 mins | |
| Suction Depth | 8m | |
| Accessories | With Hydraulic Tank Hoist Lift System, Hydraulic Rear Tank Cover Opener, Suction Hose, Discharge Hose, Quick Release Connections (Male&Female) | |
| Wheelbase(mm) | 3800+1350 | |
| Max. Speed (km/h) | 80 | |

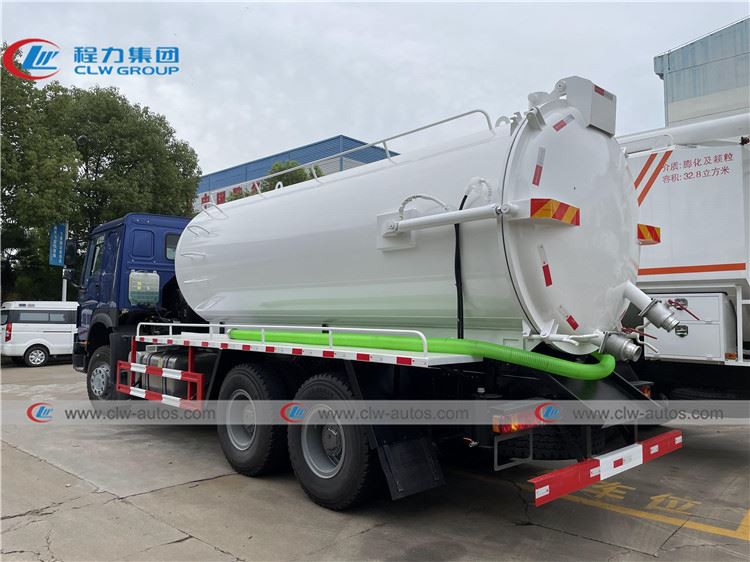

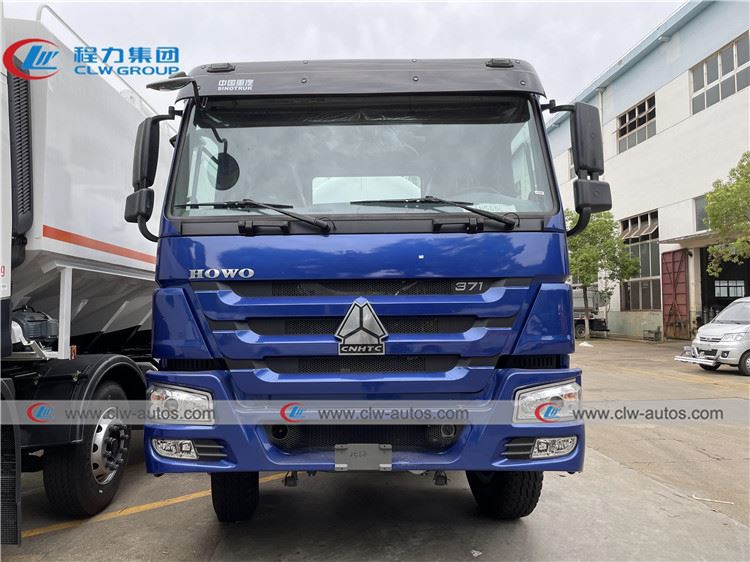

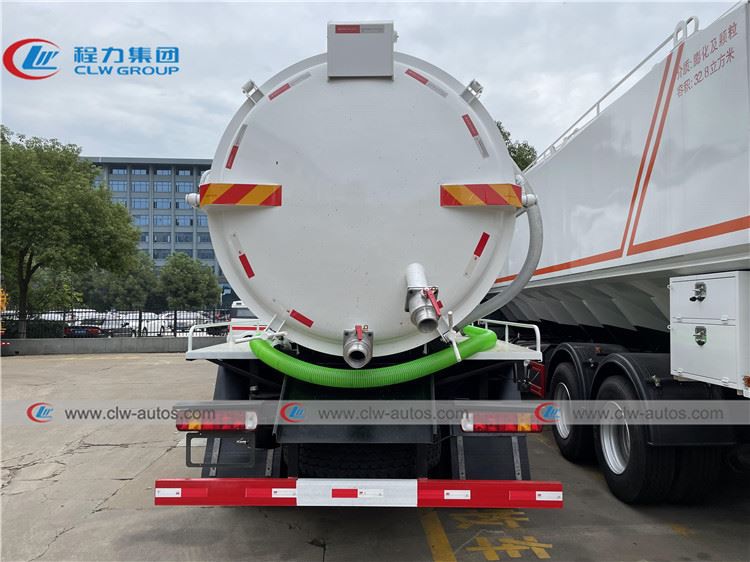

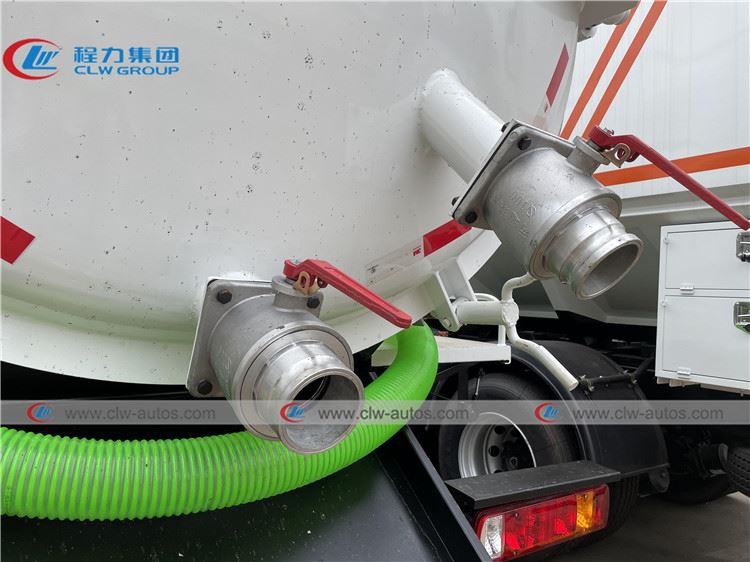

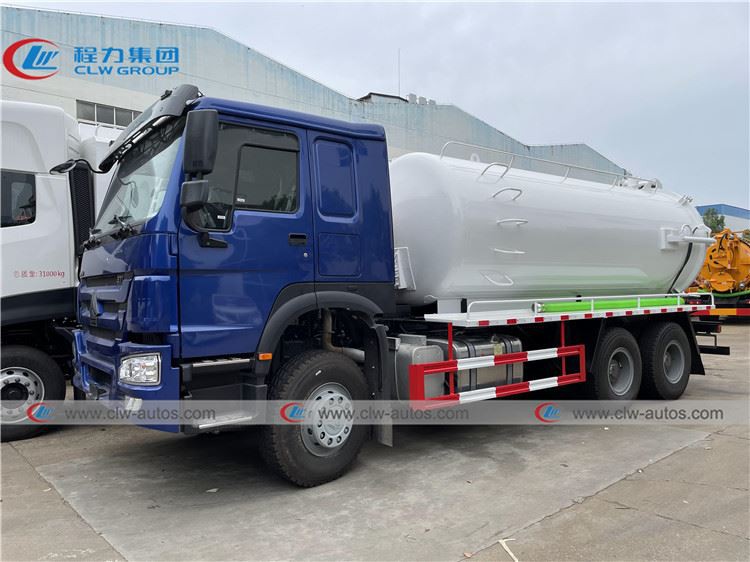

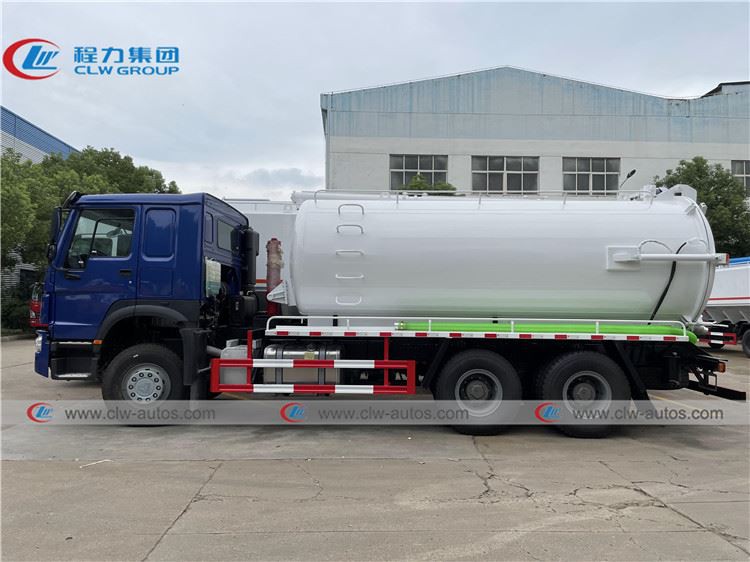

Product pictures
Key words: vacuum truck, sewage suction truck, sewer suction truck, septic suction truck, high-pressure sewer flushing vehicle
