SINOTRUK 10M3 Vacuum Sewer Suction Tanker Truck
Sinotruk vacuum tank truck
howo liquid disposal suction truck
howo 10t septic truck
Battioni Pagani Pompe MEC11000
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 10m3 vacuum sewer suction tanker truck in China. If you're going to buy high quality sinotruk 10m3 vacuum sewer suction tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Vacuum sewer suction truck(also called vacuum truck,septic truck,pumper truck,cesspit emptier truck,exhauster truck,sewage exhauster truck,honey sucker,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the high efficient sanitation type vehicle to collect,clean,remove and transport sludge, sewage,liquid waste,liquid disposal to avoid secondary pollution. Liquid sludge removal/Suction and discharge functions are performed by the VACUUM PUMP.
Feature
--Vacuum suction truck Tanker material optional for carbon steel Q345 or stainless steel 304;
--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;
-- Italy brand Battioni Pagani Pompe MEC11000,Jurop,Keiser Moro imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--horizontal suction distance: within 80 meters;
--Vertical suction depth:within 9 meters;
--High quality Sinotruk Howo 290HP truck chassis;
Pictures

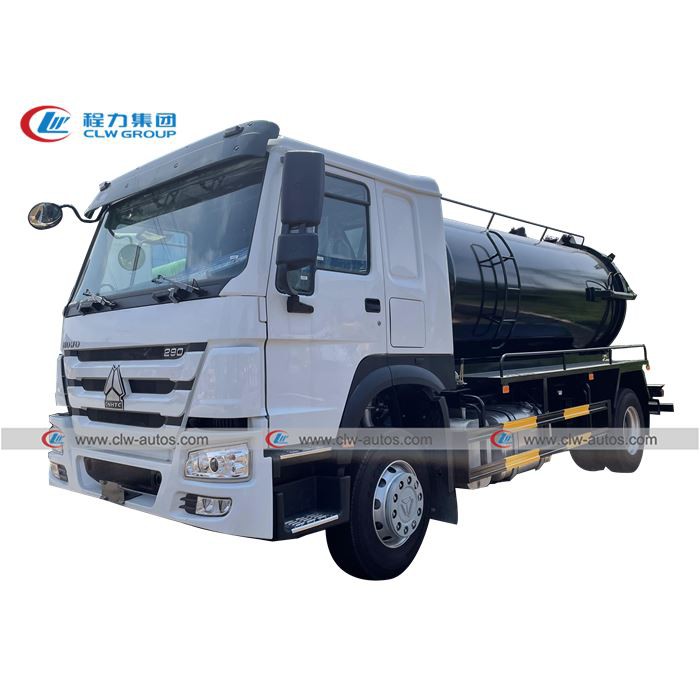

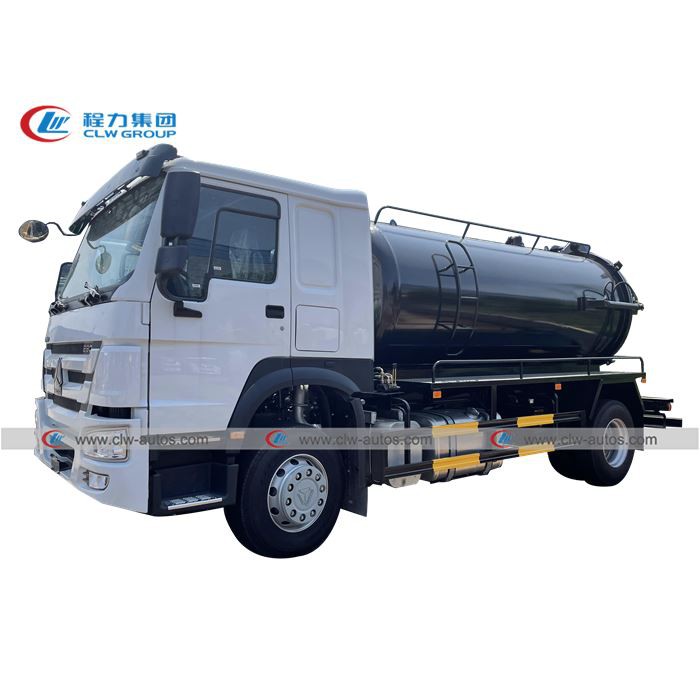

(front side view of Sinotruk howo 10tons vacuum sewer suction truck)

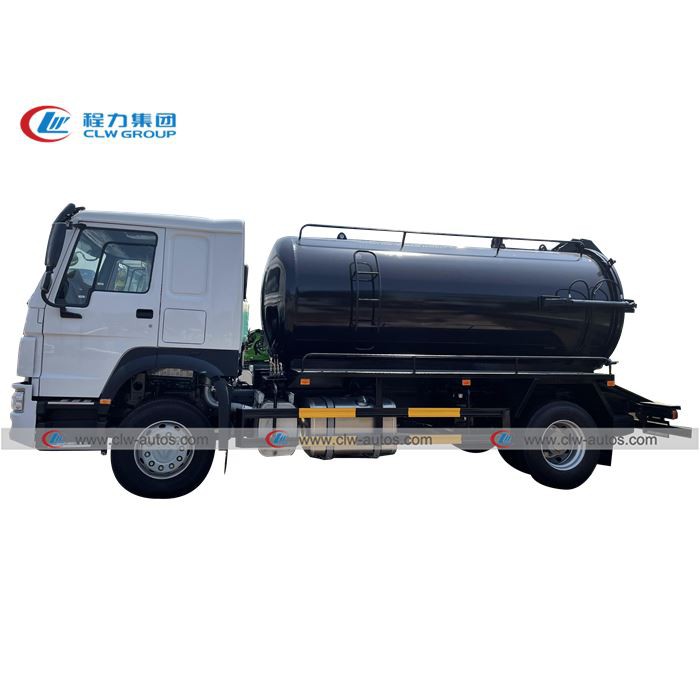

(Side view of Sinotruk howo 10tons vacuum sewage truck with BP MEC11000)

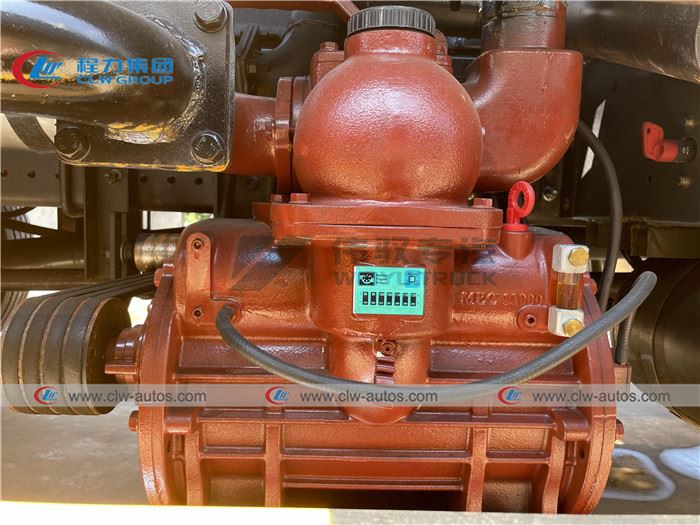

( Vacuum pump italy brand BP MEC11000)
Type | sewage suction truck |
Overall dimension | 8300*2496*3633mm |
Volume | 10 cbm/10m3/10,000Liters |
Drive model | 4X2 |
Emission | ERUO II/III/IV |
Horsepower | 266HP |
Power take-off | HW70 |
Vacuum pump | Imported from Italy BP MEC11000 |
Drive | Left hand driving or Right hand driving |
Front axle | HF9 |
Rear axle | HC16 |
Tyre | 12.00R20 |
Oil tank | 400L |
Cab | HW76 cab, one sleeper with A/C |
Color | Optional |
Tank volume(m3) | 18 |
Tank material | 6 mm good quality carbon steel ,round tank |
Vacuum pump | two high quality special vacuum pump, vertical suction lift is about 7-10m. |
Standard configuration | inspect window, one gravity mouth, cleaning apparatus,5 meter long suction pipe, oil-water separators, overflow valve, etc, |
Main function | With self-priming, self-discharging function, with dump function, rear door is controlled to open and close by hydraulic |
Option | Liquid full alarm device,water wash device |
