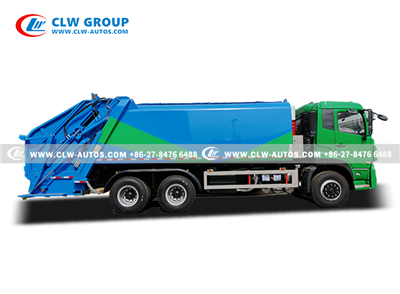

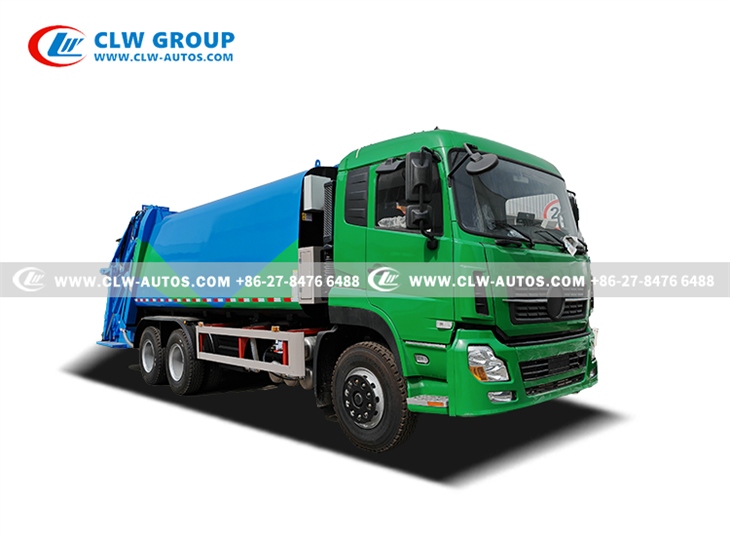

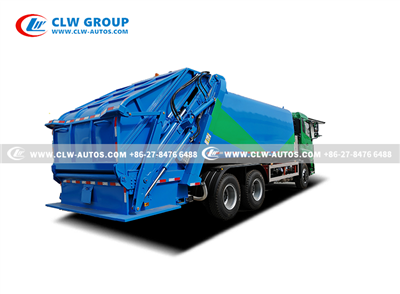

Dongfeng 20m3 Compactor Garbage Truck
Drive Type: 6x4
Engine Power:260hp
Garbage Box Capacity:20m³
Garbage Box Thickness: Side 5mm,Bottom 6mm
With Triangle Bucket Rear Tipping Mechaniam
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 20m3 compactor garbage truck in China. If you're going to buy high quality dongfeng 20m3 compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Dongfeng 20m3 Compactor Garbage Truck 10 Wheels With Triangle Bucket Rear Tipping Mechanism
Products Description
Garbage Compartment
- Large Compression Garbage Truck: Lightweight yet high-capacity. Fully sealed floor prevents sewage leakage.
- Standard Model: Mounted on sub-frame. Wastewater drains to collector tank to avoid corrosion and pollution.
Loading Hopper
- Composed of frame, rails, hopper, scraper, and slide plate. Hydraulic cylinders enable cyclic compression. Wear-resistant sliders protect rails.
- Acts as rear seal (lifted by cylinders). Built-in wastewater tank for drainage during unloading.
Bin Lifter
- Optional plastic/steel bin lifters, triangular hoppers, or swing arms. Hydraulic dual-cylinder operation with auto-lock. Must be retracted when driving.
Hydraulic System
- Electro-pneumatic controls activate cylinders and valves. Manual override available.
- Includes tank, gear pump, multi-valve, and balance valve. Powered by chassis PTO.
Products Video
Products Parameters
|
Dongfeng 20m3 Compactor Garbage Truck |
||
|
Chassis Model |
DFL125 |
|
|
Driving Model |
6 x 4 |
|
|
Cab |
|
|
|
Wheel Base |
4350+1350 mm |
|
|
Axle Loading (front/rear) |
5500 / 11500x2 kg |
|
|
External Dimensions (L x W x H) |
10260×2550×3280 mm |
|
|
Net weight (Kg) |
9820 |
|
|
Approach / Departure angle |
20/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
YC6A260 |
|
Type |
Yuchai diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
260Hp |
|
|
Emission standard |
Euro 2 |
|
|
Displacement |
7255 ml |
|
|
Max. Torque |
1000 N.m |
|
|
Gearbox |
|
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
10.00R20 |
|
|
10 Pcs with 1 spare tire |
||
|
Fuel box |
400L /steel material |
|
|
Garbage Truck Body(20m3) |
||
|
Tanker body material |
Quality high tensile Q235B carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 5mm, Bottom 6mm |
|
|
Garbage Container Size |
20 CBM |
|
|
Filling hopper volume |
1.5 CBM |
|
|
Sewage box of filling hopper |
500L |
|
|
Working rotation speed |
1400 r/min |
|
|
Idle Speed |
900 rpm |
|
|
Compaction ratio |
0.6-0.85T/m³ |
|
|
Compacting cycle time |
≤40 s |
|
|
Loading cycle time |
≤20 s |
|
|
Unloading cycle time |
≤60 s |
|
|
Oil pump displacement |
63 ml/r |
|
|
Hydraulic oil box size |
120 L |
|
|
System pressure |
20 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
|
|

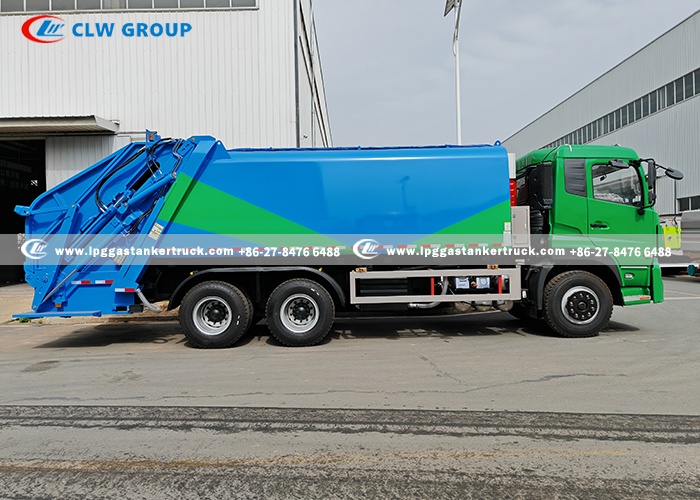

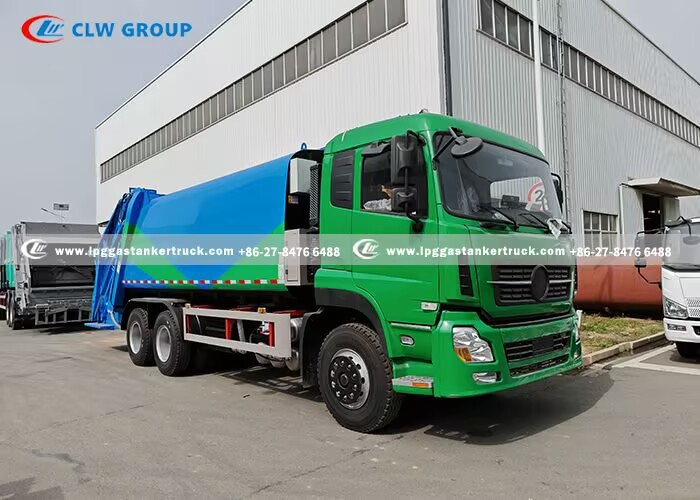

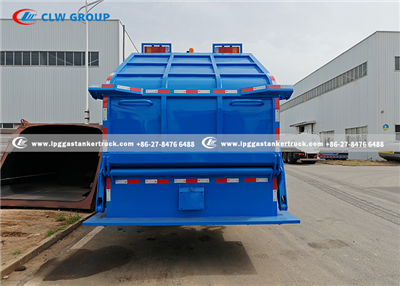

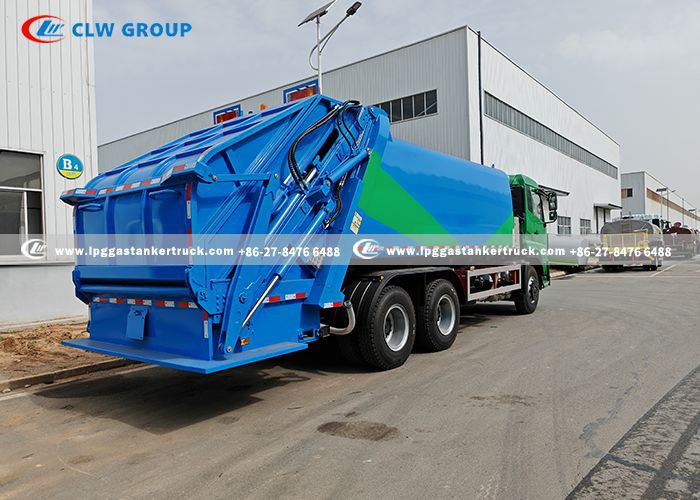

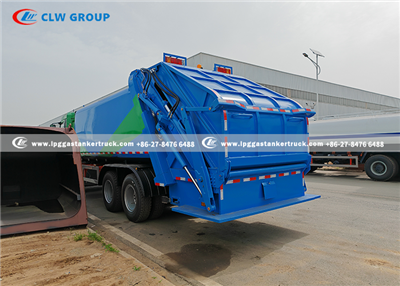

Products Photos
1. Superior Performance
- High Efficiency: Advanced dual-cycle compression technology ensures fast loading/unloading (industry-leading).
- Adaptive Loading: Compatible with 120L-660L bins (plastic/steel) via adjustable 4-link mechanism (±240mm height range).
- Leak-Proof Design: Dual-seal system + independent lock hooks prevent sewage leakage (special rubber seals).
- Eco-Friendly: Covered hopper reduces dust/odor during transport.
2. Premium Quality
- Durable Materials: Weather-resistant steel (garbage box) + hardened wear-resistant steel (hopper).
- Reliable Components: Branded hydraulic seals, proximity sensors, and low-noise proportional multi-valve.
- Robust Guardrail: One-piece stamped carbon steel side guards.
- Large Wastewater Tank: Optimized layout maximizes sewage capacity.
3. Safety Assurance
- Emergency Stop: Rear panel with emergency button + alarm for hopper movement warnings.
- Safety Labels: Clear operational guidance.
- Smart Control: Dual operation panels (cab/rear) enable one-person dumping without exiting.
- PLC Control: Automated engine power management reduces fuel consumption.
Reference Products

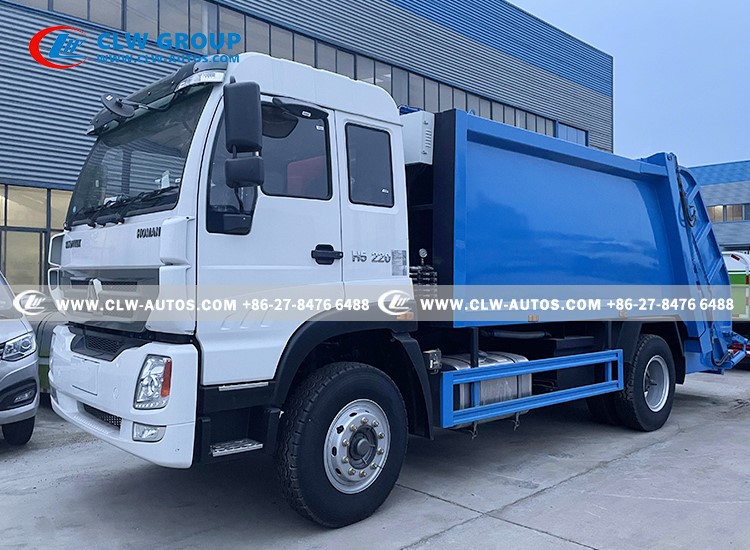

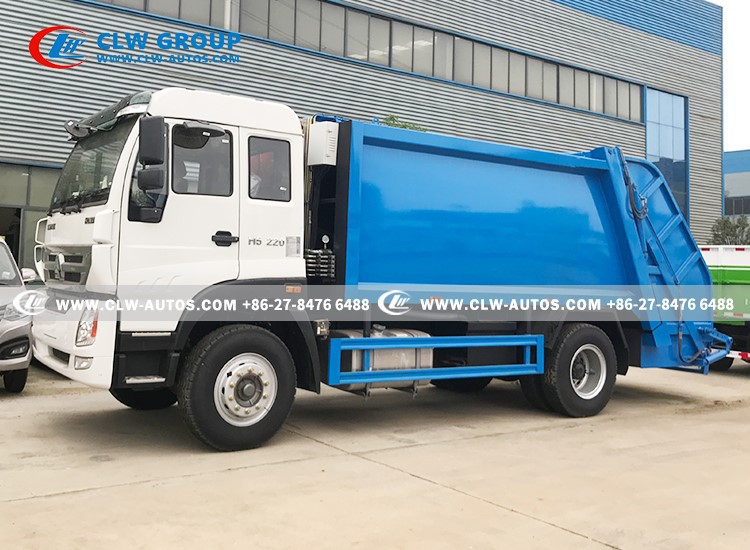

Sinotruk 4x2 Compressed Garbage Truck

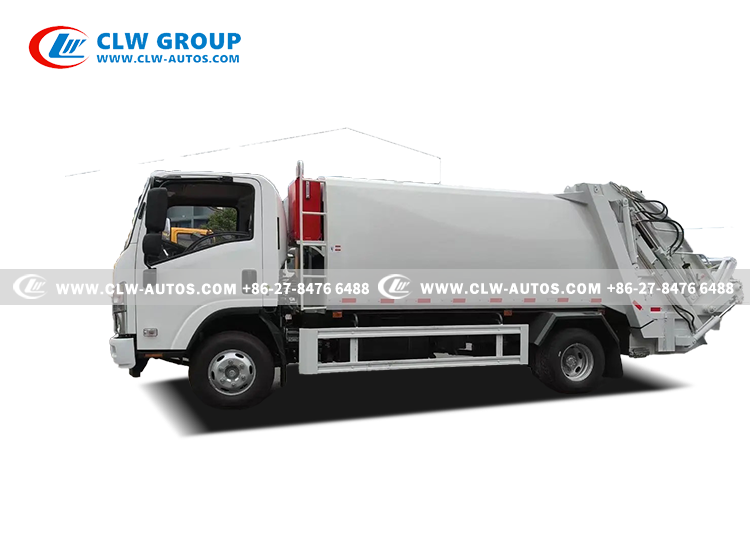

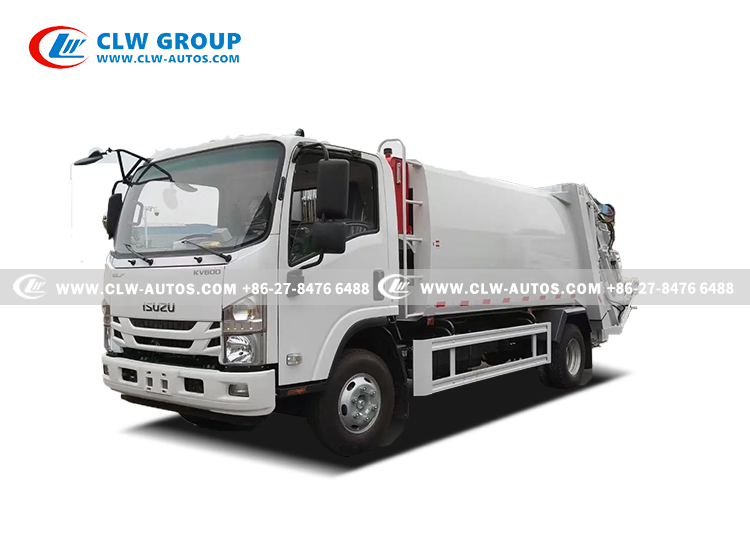

ISUZU 4X2 Compressed Garbage Truck
Optional Configurations
Hanging Bucket Tipping Mechanism
Manual/Pneumatic Sealing Lid Mechanism
Triangle Bucket Rear Tipping Mechanism
Sealed Floor Bucket Rear Tipping
Swing Arm Bucket Rear Tipping
Swing Arm Mechanism
