Sinotruck HoHan 18m3 Compressed Garbage Truck
Drive Type: 6x4
Engine Power:380hp
Garbage Box Capacity:18m³
Garbage Box Thickness: Side 5mm, Bottom 5mm
With Swing Arm Mechanism
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruck hohan 18m3 compressed garbage truck in China. If you're going to buy high quality sinotruck hohan 18m3 compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Sinotruk HOHAN 18m3 Compacotor Garbage Truck NX H77L 10 Wheels 6x4
Products Description
The compression garbage truck (hereinafter referred to as the garbage truck) is a special vehicle used for the collection, transportation and unloading of bagged, barreled and bulk domestic garbage in cities and towns. The garbage is pushed into the car box by the on-board garbage pusher, also known as the negative pressure mechanism, so that the garbage is distributed in the car box with a higher density and more evenly until it is full; the collection and transportation method of this garbage truck is currently widely used in the world. The functions of its special devices are all powered by the car engine and are realized manually or electronically through hydraulic mechanisms. The vehicle's box body, loader, also known as bucket body and sewage tank are all made of high-quality carbon steel plate fully sealed welded structure, which has the advantages of high strength, light weight and no secondary pollution.
Functions & Applications
Garbage Collection
Urban Residential Areas
Automatic Loading Garbage
Large-scale Factory
Compactor Garbage
Community
Garbage Transfer and Dumping
Mines
Compactor Garbage Truck Basic Structure
Products Video
Products Parameters
|
Sinotruk HOHAN 18m³ Compressed Garbage Truck |
||
|
Chassis Model |
ZZ125 |
|
|
Driving Model |
6 x 4 |
|
|
Cab |
|
|
|
Wheel Base |
4600+1350 mm |
|
|
Axle Loading (front/rear) |
9500 / 16000x2 kg |
|
|
External Dimensions (L x W x H) |
10560×2550×3280 mm |
|
|
Net weight (Kg) |
9870 |
|
|
Approach / Departure angle |
20/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
WP10.380E22 |
|
Type |
Weichai diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
380Hp |
|
|
Emission standard |
Euro 2 |
|
|
Displacement |
9726 ml |
|
|
Max. Torque |
1600 N.m |
|
|
Gearbox |
|
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
12R22.5 18PR |
|
|
10 Pcs with 1 spare tire |
||
|
Fuel box |
400L /steel material |
|
|
Garbage Truck Body(18m3) |
||
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 5mm, Bottom 6mm |
|
|
Garbage Container Size |
18 CBM |
|
|
Filling hopper volume |
1.5 CBM |
|
|
Sewage box of filling hopper |
500L |
|
|
Working rotation speed |
1400 r/min |
|
|
Idle Speed |
900 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤35 s |
|
|
Loading cycle time |
≤15 s |
|
|
Unloading cycle time |
≤55 s |
|
|
Oil pump displacement |
63 ml/r |
|
|
Hydraulic oil box size |
120 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
|
|

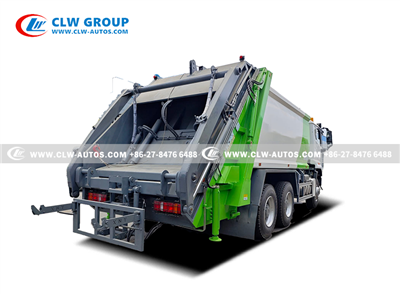

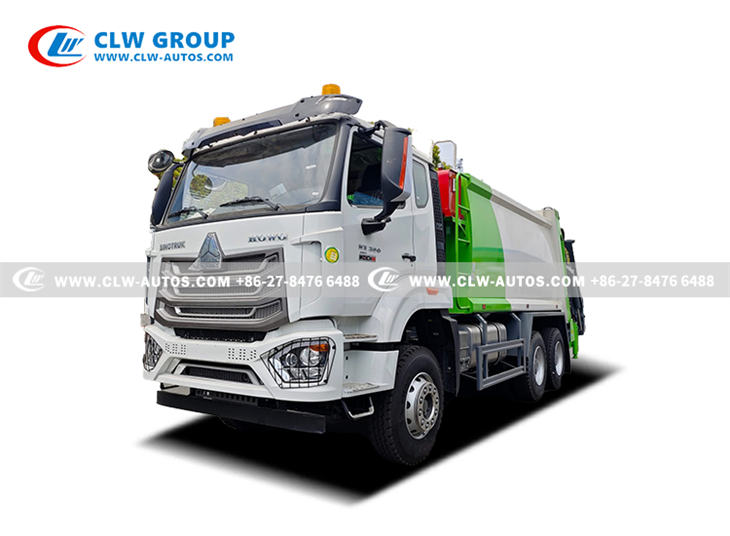

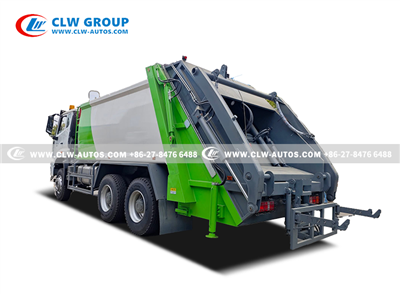

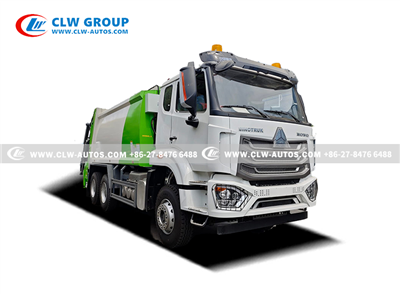

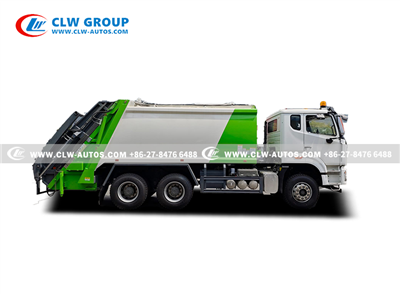

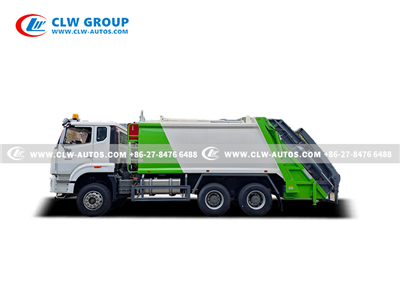

Products Photos
