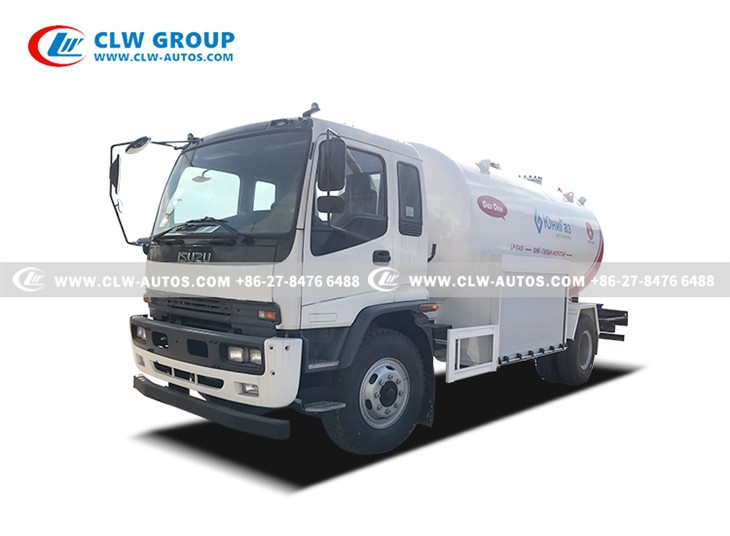

15 Cubic Meters ISUZU LPG Gas Filling Tanker Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 15 cubic meters isuzu lpg gas filling tanker truck in China. If you're going to buy high quality 15 cubic meters isuzu lpg gas filling tanker truck, welcome to get more information from our factory. For price consultation, contact us.

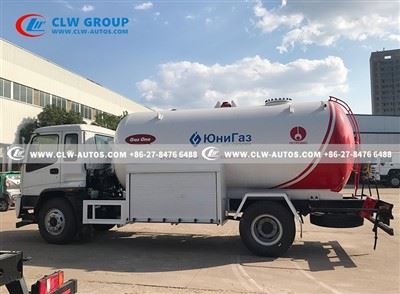

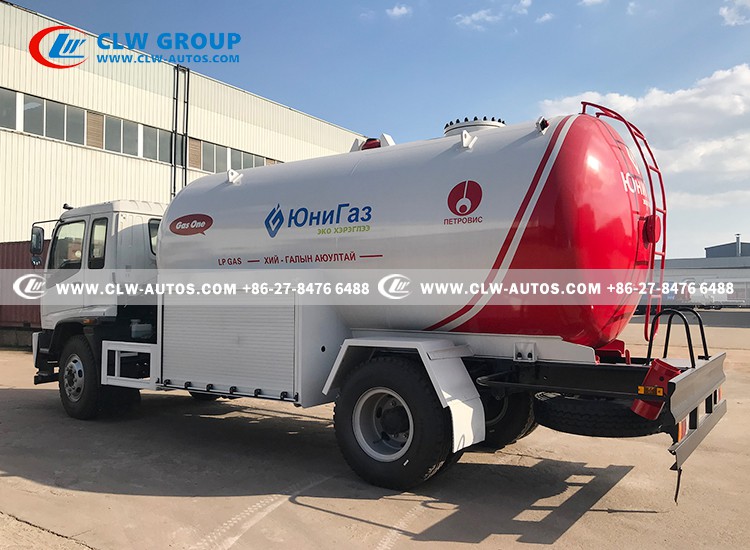

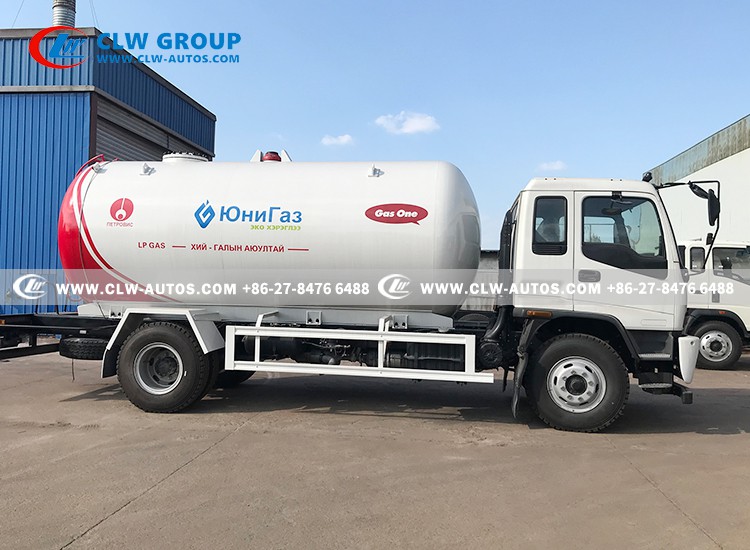

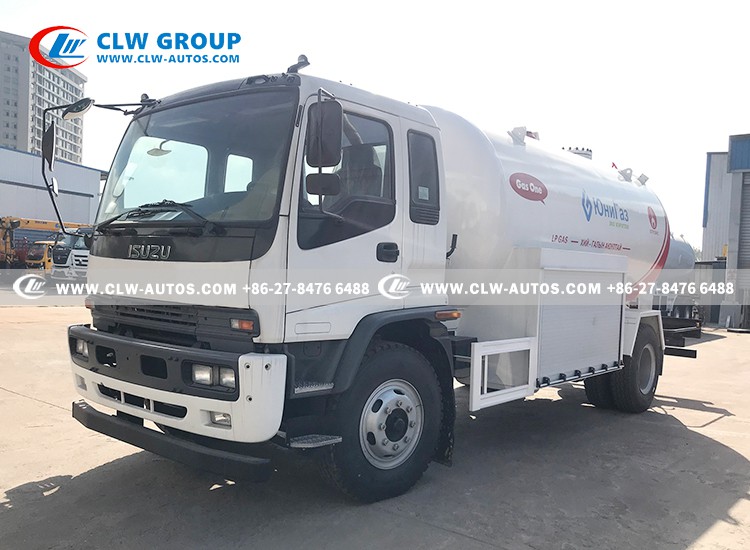

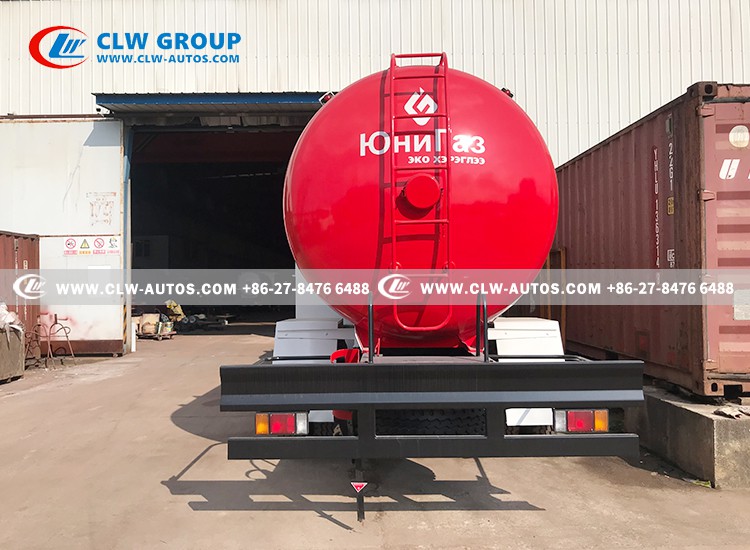

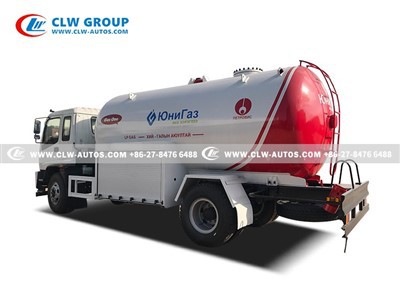

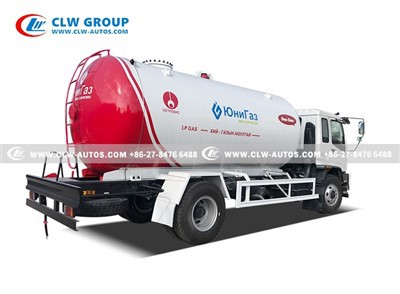

Above ISUZU FTR 205HP LPG Gas Filling Tanker Truck,also called mobile propane tanker truck,gaz refilling truck, lpg tanker truck with pump, butane transport truck, lpg bobtail,is customized for Mongolia client in Oct. 2023.

LPG gas filling truck is used for mobile delivering, transporting liquified petroleum gas/cooking gas/propane/butane gas. With equipped lpg pump, flow meter(lpg dispenser),filling reel and hose,lpg filling truck,you can use it for filling small hotel tanks and even start lpg cylinders filling business.







For quick inquiry

Main equipment

• 2" Flowmeter or single nozzle filling dispenser machine

• 2" USA corken pump Z2000 or Blackmer LGLD2 or Chinese brand vane Pump YQB15-5

• 15/30/40 meters Filling Hose Reel

• REGO Filling nozzle

• Rochester level gauge (optional)

• Radiator(optional)

• hydraulic oil box(optional)

• Stainless steel tool box (optional)







Optional gas bottling truck brand:

SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.





Optional size of ISUZU LPG bobtail truck

• 5000liters,5000L,5 cbm

• 8000liters,8000L,8 cbm

• 10,000liters,10000L,10cbm,

• 12,000liters,12,000L,12cbm,

• 15000 Liters,15000L,15cbm,

• 20cbm,20,000liters,20,000L

• 25cbm,25,000liters,25,000L

• 35cbm 35,000liters,35,000L





Available options for pump drive

• from truck’s PTO by hydraulic drive

• From truck’s PTO by shaft

• Electric motor-usually for lpg trailer

•



Main Truck Spec.

Stable ISUZU FTR/FVR chassis

with one sleeper

Left hand drive

Wheelbase 4500 /4700 mm

ISUZU Diesel Engine,4HK1-TC50,205HP

Gear box:MLD,6 speed forward and 1 reverse

Front axle 6.3 tons,Rear axle 13Tons

10.00R20 tires,6 pcs with one spare

Mounted with 15,000 liters LPG tank

10 mm thickness tank

Q345R,one of ASME standard material

Safety relief valve

2" vapour and liquid phase

Float ball Level gauge

•



















Specification of Truck Chassis
Chassis Model		QL1180VMFRY
Driving Model		4 X 2
Cab		Original ISUZU FTR cabin with one sleeper Left Hand Driving with air conditioner Central lock Electric window
Wheel Base		4500mm
Axle Loading (front/rear)		6300/13,000 kg
External Dimensions (L x W x H)		8800X2490X3250mm
Max. driving speed		95 km/h
Engine		Model	ISUZU engine 4HK1-TC50
		Type	4-cylinders in a line, turbo-charging and inter-cooling
		Horse Power	205Hp
		Max output power	151kW
		Emission standard	Euro V
		Displacement	5193ml
		Min. Fuel consumption at full load	≤210 g/kw.h
Gearbox		Manual type, MLD, 6 forwards & 1 reverse
Clutch		Reinforced diaphragm clutch
Tire		10.00R20, 6 pieces with 1 spare tire.
Fuel box		200L /steel material
LPG tank
Filling Medium	Liquefied Petroleum Gas
Working temperature	-40~50 ℃
Volume:	15,000Liters
Tank material:	Q345R
Tank diameter:	1900mm
Tank thickness:	10mm
End plate thickness:	10mm
Tank length:	As designed
Gas phase	Flange type,DN50/2” or according to customer request
Liquid Phase	Flange type,DN50/2” or according to customer request
Filling gas	Propane(LPG)
Working Pressure:	1.61Mpa
Design Pressure	1.71 Mpa
Testing pressure	2.21Mpa
Corrosion Allowance	1.0 mm
Refilling Accessory
Directly driven by PTO(easy for future maintenance)
LPG Pump	CORKEN PUMP Z2000GAEE
	Inlet 2” NPT and Outlet 2” NPT
	Max. RPM: 800
LPG Flow meter	TSC-50 model Showing filling volume Inlet/Outlet 2”/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer.
Filling hose	15M,retractable with REGO adapter
Level Gauge	Rochester level gauge
Safety Valve	Model No.			A412F-25-16
	Type			Built-in
	Nominal Pressure			2.5 Mpa
Safety return valve	1 PC
Pipeline safety valve	1 PC
Equipment and Valve Box	Located at side of LPG bobtail (opposite driver’s side) Strong design with rolling off cabinet
Manhole	DN450
Thermometer	1 pc WTQ-280
Pressure Gauge	2 pc YN-100T
Emergency shut off Valve	2 pcs with switch inside valve box and at rear of truck
Fender	Steel
Fire Extinguisher Holder	1 set
Static conductive tape	1 pc
