Howo 15Tons LPG Gas Tanker Truck
  • Howo 15Tons LPG Gas Tanker Truck
  • 15mt lpg truck03
  • lpg bobtail price1
  • lpg bobtail price2
  • lpg bobtail price4

Howo 15Tons LPG Gas Tanker Truck

15mt LPG truck
15tons lpg bobtail
Filling system:Corken Z2000 lpg pump,flow meter,filling nozzle
Market:LPG Truck for Nigeria,Zimbabwe,Kenya,Zambia,Tanzania,Congo

Send InquiryChat Now
Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 15tons lpg gas tanker truck in China. If you're going to buy high quality howo 15tons lpg gas tanker truck, welcome to get more information from our factory. For price consultation, contact us.



Howo 15Tons LPG Gas Tanker Truck

Description

15tons lpg gas truck(also called 15 tons lpg truck,15mt lpg truck,15tons lpg tanker truck,15tons gas truck,lpg distribution truck,gas distributor truck,lpg gas delivery truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tank truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks in stations,hotel and home use lpg cylinders.



  • Optional truck chassis brand:Sinotruk Howo,Dongfeng,FAW,ISUZU,FOTON,SHACMAN and other brands.

  • Popular LPG tanker size available: 5000liters,5000L,10,000liters,10000L,10cbm,10000liters 10000L,10cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L,34.5cbm,34500liters

  • Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

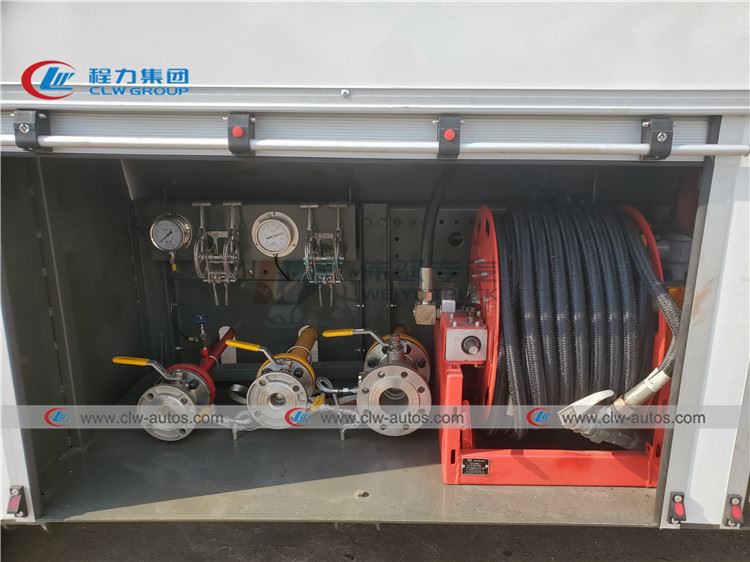

  • Main equipment : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

  • 1. Easy to fill LPG Gas to cylinder and small lpg tanks;
    2. Low Investments and low maintenance cost.
    3. Additionally available with Autogas filling station.

    4. Delivered product: LPG
    5.Temperature range: -15℃~50℃
    6.Design pressure: 16.1 Bar
    7. Flow rate: depending on the type of pump installed
    8.Tension: 380V/50Hz, 220V/50Hz



Pictures

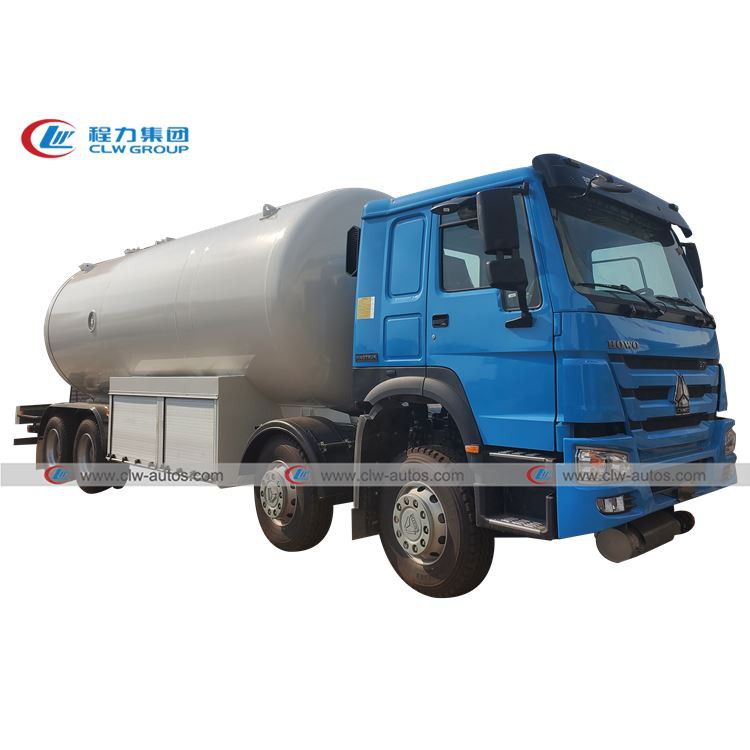

(Howo 15tons lpg gas tanker truck for refilling small lpg tank15mt lpg truck01

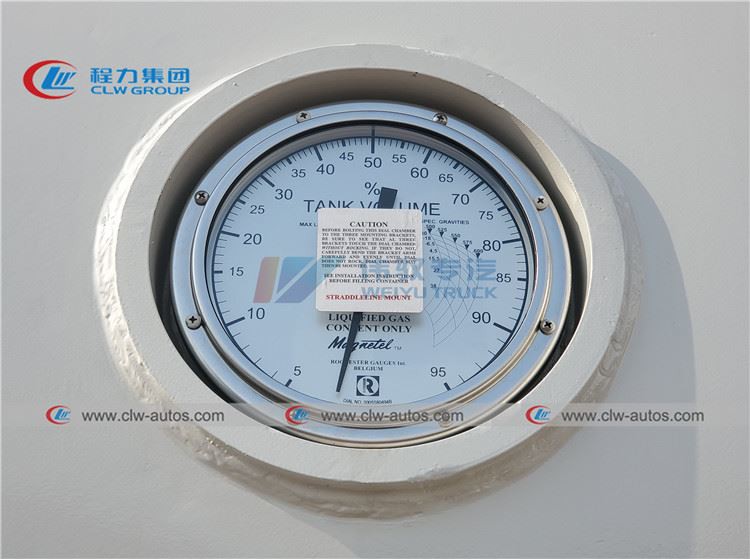

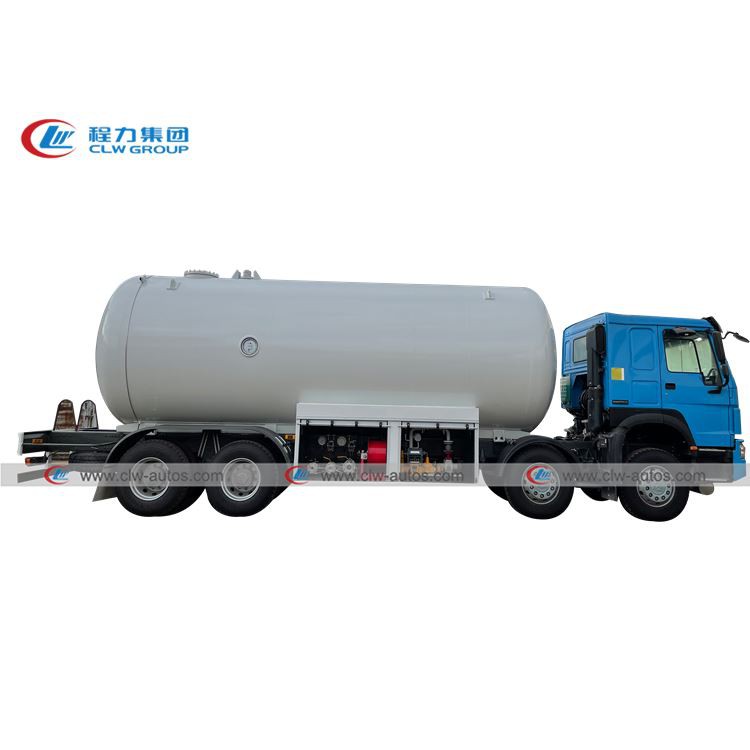

(Howo 15tons/15mt 35.5cbm LPG Gas truck with Rochester level gauge at tanker side )15mt lpg truck03




Specification

Item No.

Parameters

Overall Dimension

11800x2490x3690mm

Driving Model

Left hand drive or Right hand drive

Gross Vehicle Weight

31000 kg

Curb Weight

14910kg

Payload

15000kg~16000kg

Wheel Base

1800+4600+1350 mm

Front/rear Tread

2022/1830 mm

Approach/Departure Angle

16/19 degree

Front Axle

HF9,9000kgX2

Rear Axle

HC16,16000kgX2(Heavy duty design)

Engine

WD615.47,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling

Engine horsepower

371HP EUROII

Displacement

9760mL (Diesel)

Max Driving Speed

95 km/h

Gearbox

HW19710 with HW70 PTO

Cabin

Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner

Tire

12R22.5 (12 pcs with one spare)

Exhaust Pipe

At front of Cabin for safety

LPG tank

Volume:

35500iters

Tank material:

Q345R

Tank diameter:

2350mm

Tank thickness:

10mm

End plate thickness:

12mm

Tank length:

8960mm or as designed

Gas phase

Flange type,DN50/2” or according to customer request

Liquid Phase

Flange type,DN50/2” or DNDN80/3” or according to customer request

Filling gas

Propane(LPG)

Design Pressure:

1.61Mpa

Testing pressure

2.21Mpa

Refilling Accessory

Chinese LPG Pump

Chinese brand YQ15-5

Flow rate:15.5M3/H

10 Mpa inlet pressure

780 r/min for rotation speed

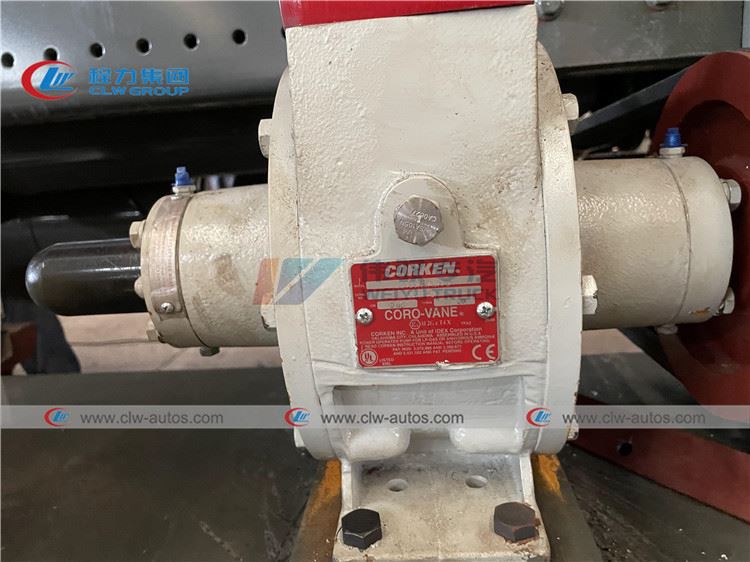

CORKEN LPG Pump(optional)

CORKEN pump Z2000EGAEE

Inlet 2” NPT and Outlet 2” NPT

Max. RPM:800

Radiator

1 pc(to avoid high temperature of hydraulic oil during operation)

Hydraulic motor

1 pc

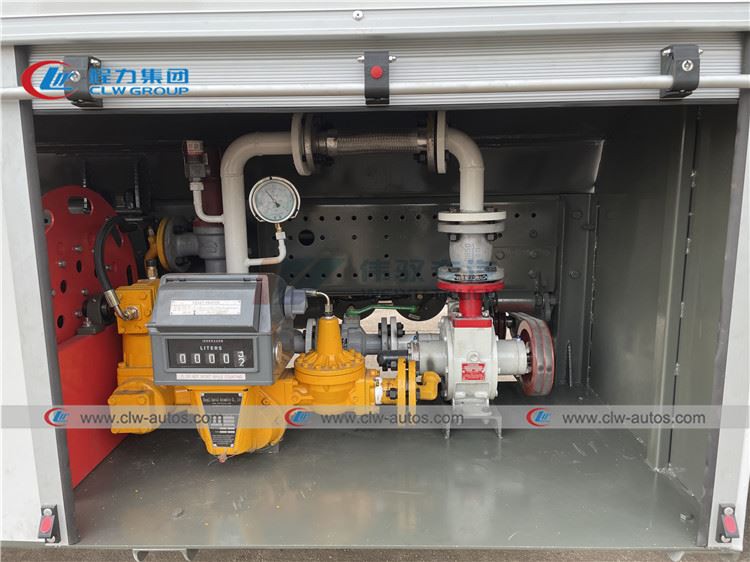

Flow meter

English remarks with printer for receipt

55~550 L/min

2500Kpa(25 Bar) max. Working pressure

Filling hose

15M~40 M

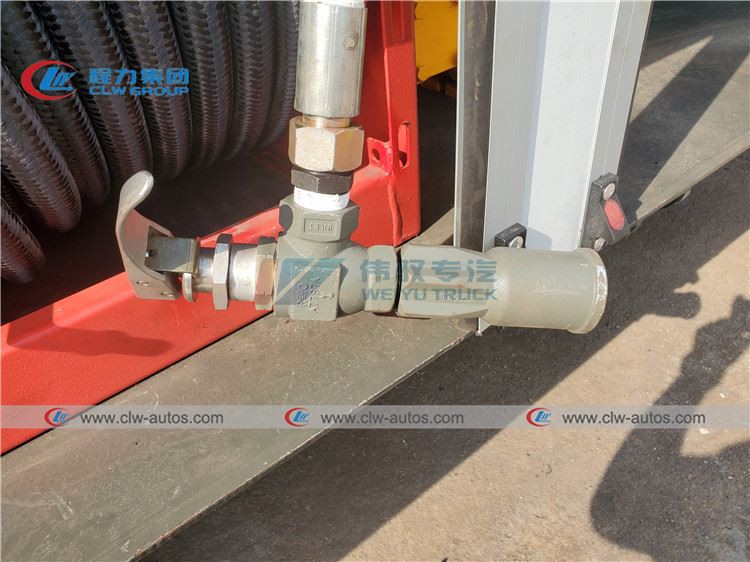

Filling nozzle(optional,not necessary )

REGO filling nozzle for small LPG tank

Or home cylinder filling nozzle

Level Gauge

Chinese Float Ball type,at the rear of tank

Safety Valve

1,DN80

Tool and Valve Box

Located at side of LPG bobtail

Thermometer

1pc

Pressure Gauge

2 pc

Emergency shut off Valve

3 pcs with witch inside valve box and at rear of truck

Fender

Steel

Fire Extinguisher Holder

2sets

Anti Static line

1 set
