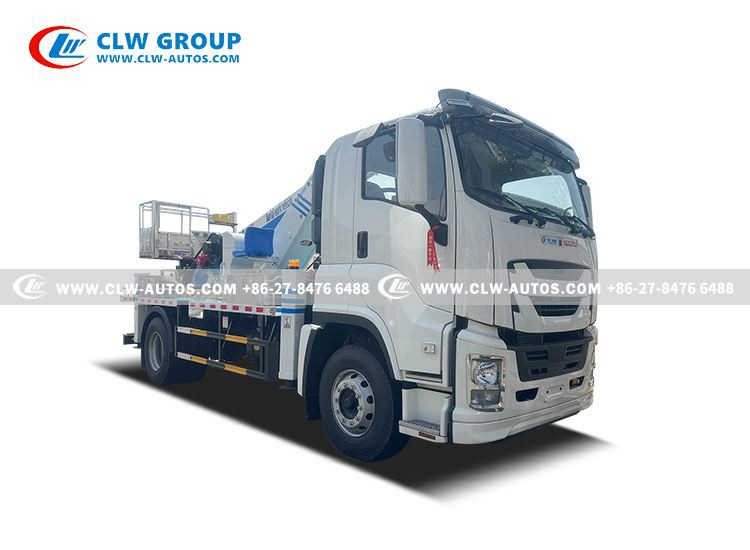

ISUZU Giga 22Meters Bucket Truck
Original ISUZU Chassis
Driving type:4x2
Engine power:205HP or 240HP
Max. working height:22Meters
Bucket loading capacity:250kgs
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 22meters bucket truck in China. If you're going to buy high quality isuzu giga 22meters bucket truck, welcome to get more information from our factory. For price consultation, contact us.
Brand New Japanese ISUZU GIGA 22M Bucket Truck
Factory Price For Sale
We are 100% Straight Factory Manufacturer in China with 100% Quality Assurance
Product Descriptions
- What is the bucket truck?
A bucket truck is simply a utility truck fitted with a hydraulic boom that has a man-carrying bucket at its end. The bucket helps keeps the worker safe as the boom lifts him up to where he can comfortably use his tools and safely perform his job. It is also known as aerial working truck, cherry picker truck, elevated work platform truck, boom lift truck, man lift truck, basket crane truck or hydraladder truck, bucket truck, which is widely used in municipal, electric power, street lights, advertising, communications, photography, landscape, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises and other industries installation and maintenance and climbing operations.
- Features of ISUZU 22m Bucket Truck:
1. Original ISUZU GIGA truck chassis, Japanese technology.
2. Four section telescopic boom, 360° rotation.
3. Four adjustable landing legs with large leg span and good stability.
4. Stainless steel bucket with maximum 250kg loading capacity.
5. Bucket will stay in balance level during working.
6. LCD dispaly to show the working condition of the boom.
- What bucket truck do we have?
1. Aerial working height:14m,16m,18m,20m,21m,22m,24m,26m,28m,29m,32m,45m
2. Chassis brand: ISUZU, FAW, FOTON, SINOTRUK, SHACMAN, DONGFENG,BEIBEN, JAC, JMC, KAMA, etc.
- For quick inquiry, please contact:
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
Product Parameters
| Overall Dimension |
8200×2060×3050mm
|
| Gross Vehicle Weight | 18000 kg |
| Curb weight | 6370 kg |
| Loading Weight | 2855 kg |
| Wheel Base | 3900mm |
| Cabin | 2 or 3 Passenger Allowed, with A/C |
| Engine | Diesel Engine 4KH1-TC60, 205 HP, Euro VI. |
| Gearbox | ISUZU MLD, Manual, 6 Forward & 1 Reverse Gear |
| Axle | 6.3 Ton Front Axle, 13 Ton Rear Axle |
| Tire | 295/80R22.5 18PR, 6 pieces with 1 spare tire |
| Working height | 22m/24m |
| Height of platform from ground |
≥20.3m
|
| Maximum operating range of the platform |
≥13m
|
| Platform operating range when perating height is maximum |
≥2m
|
| Platform operating height when operating range is maximum |
≥6m
|
| Maximum working angle of platform |
80°
|
| Landing leg |
4 landing legs. Front leg span:4190mm, Rear leg span: 4230mm
|
| Control system | Manual control and remote control system |
| Bucket Loading Capacity | 250kgs |
| Bucket Size | 1600*700*1000mm |

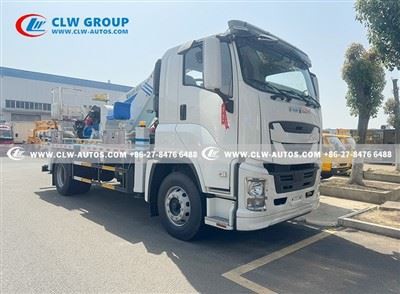

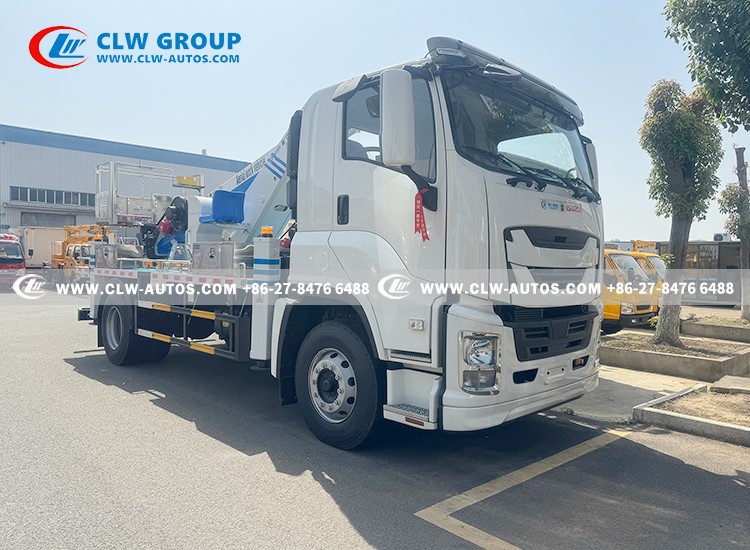

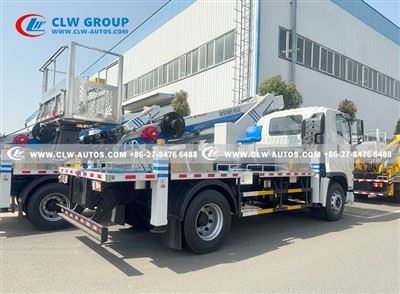

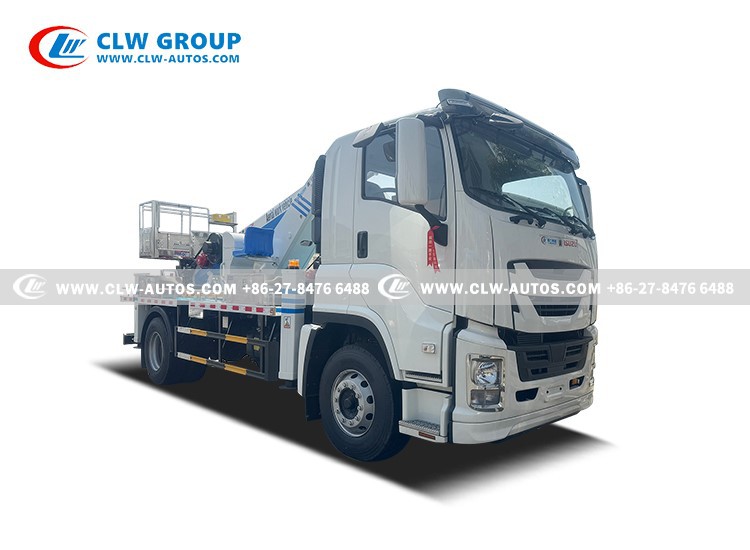

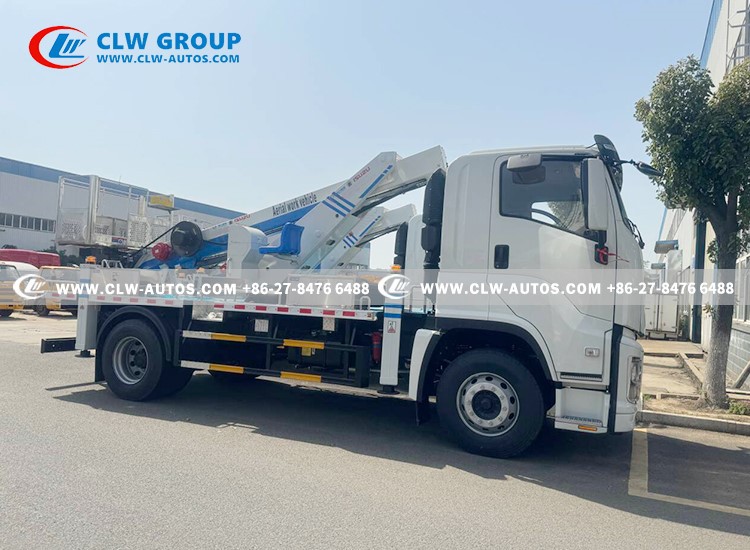

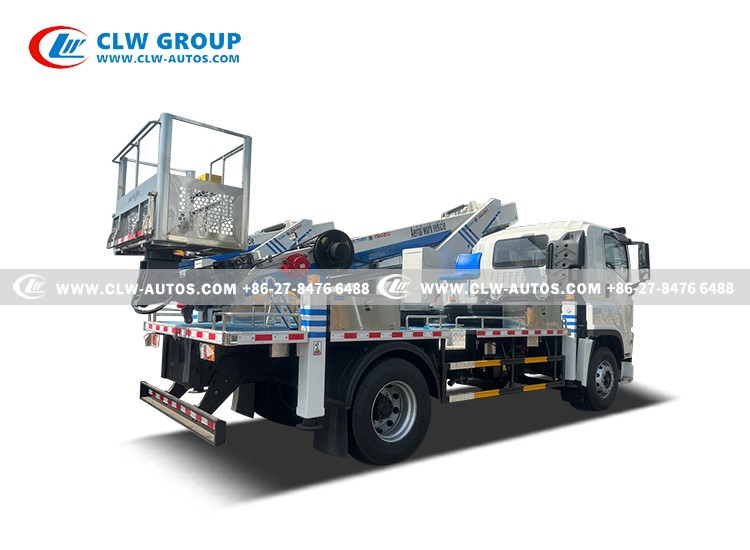

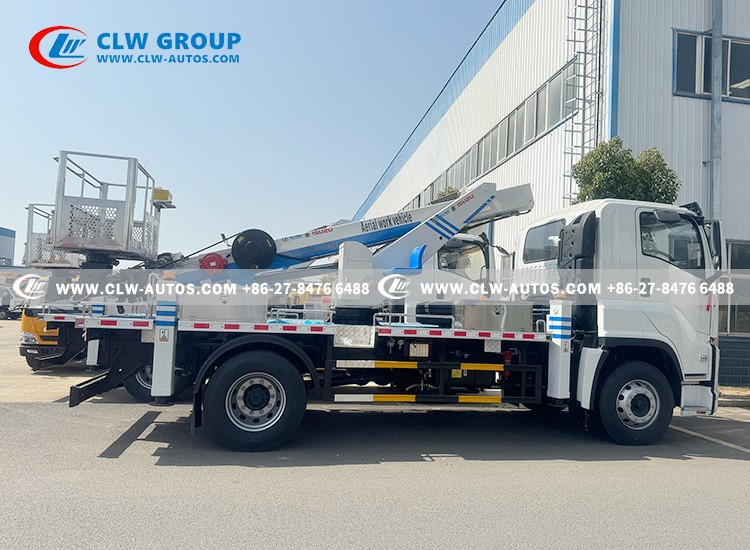

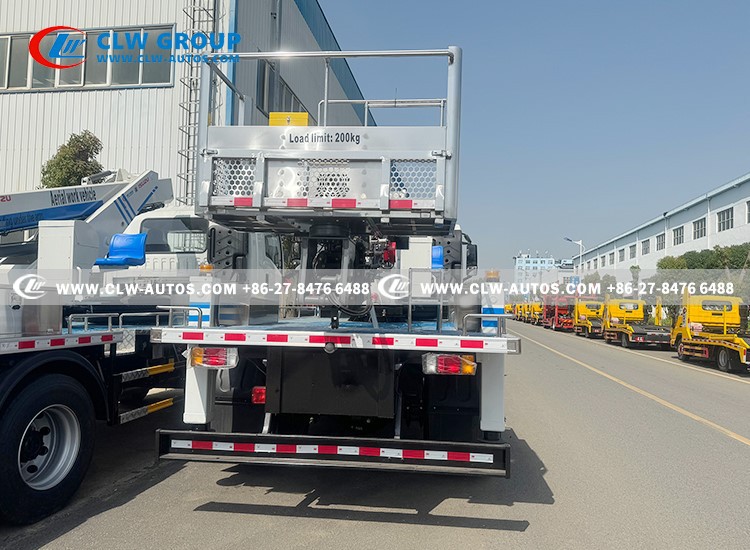

Product Pictures

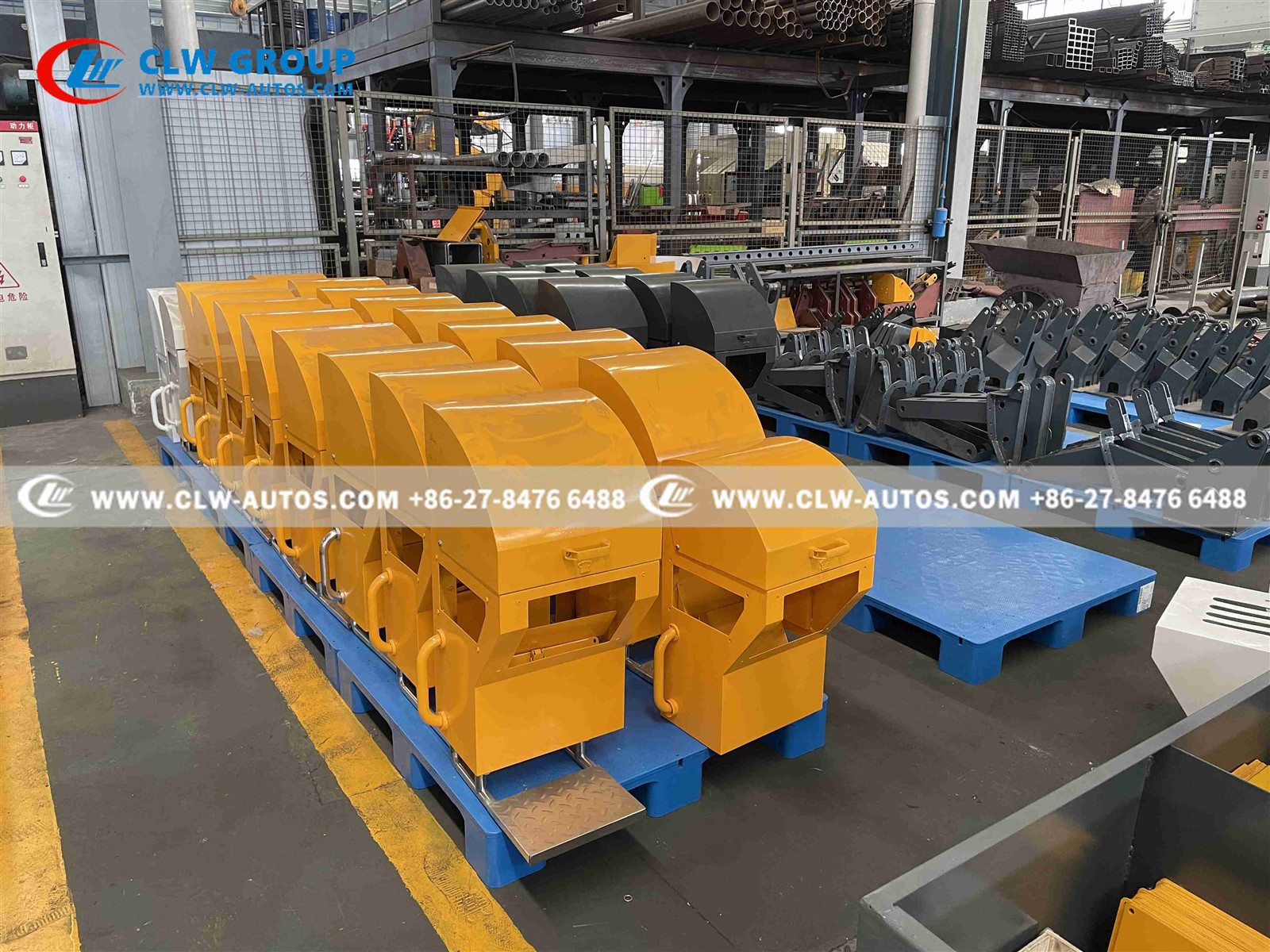

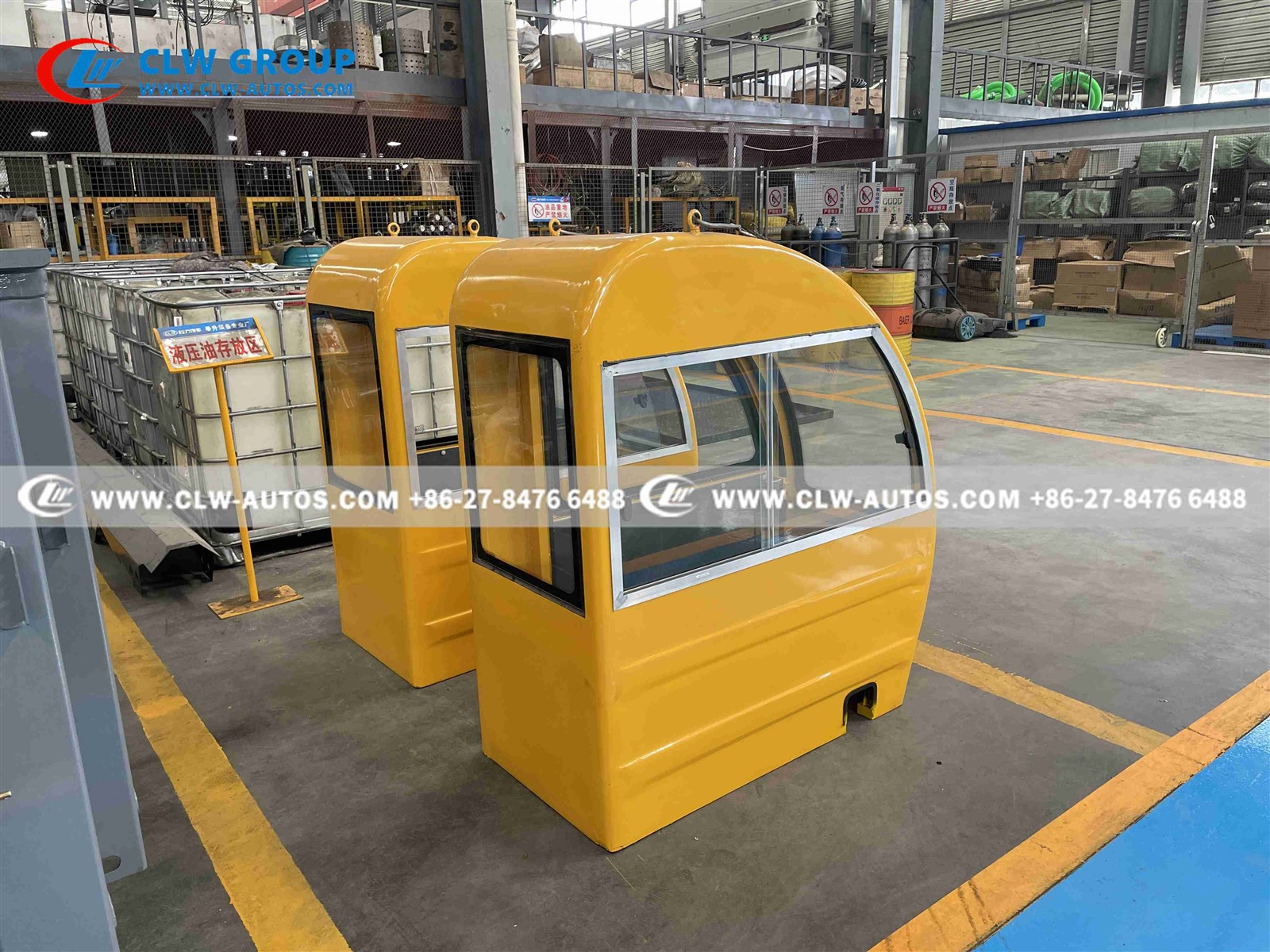

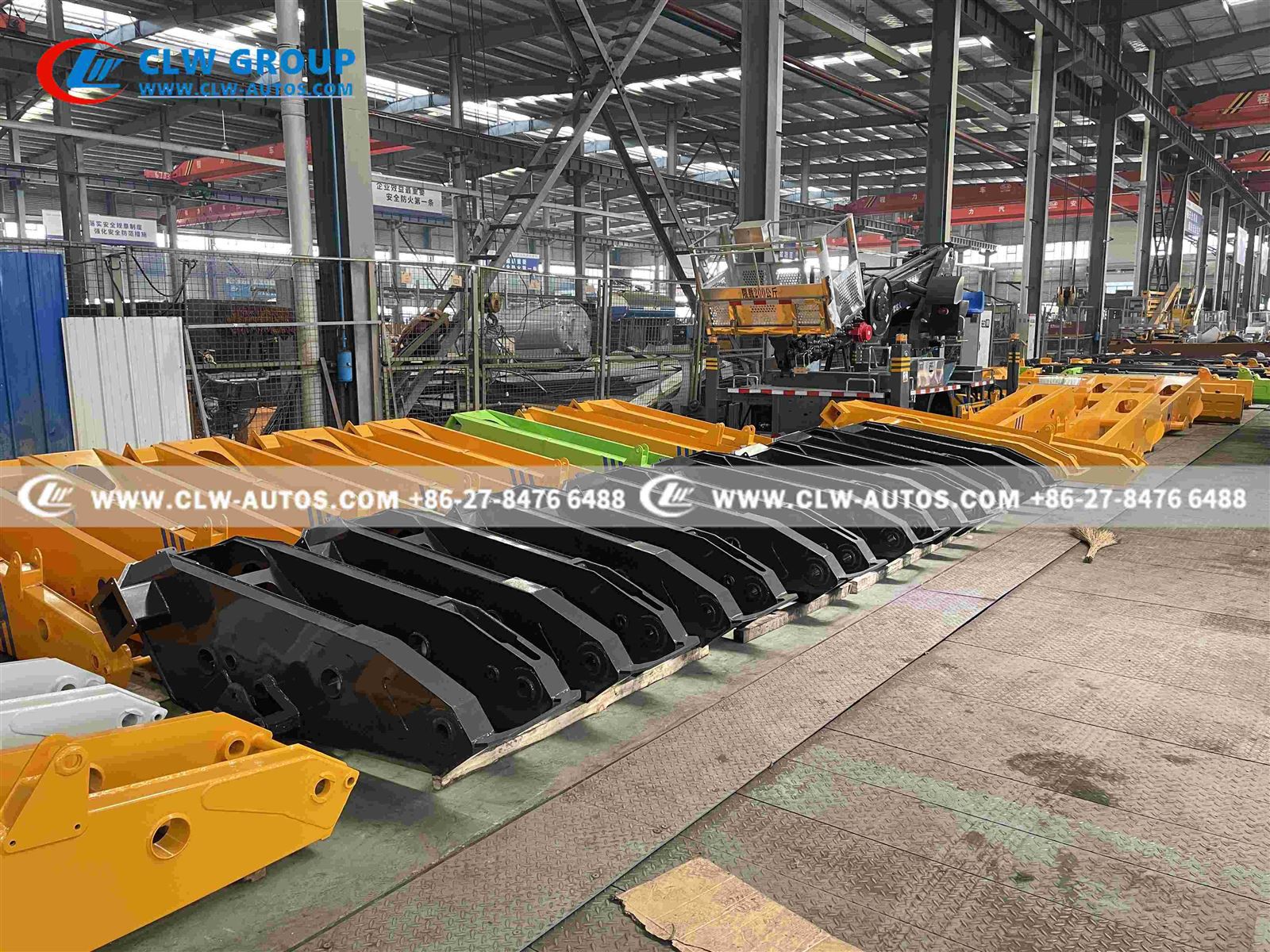

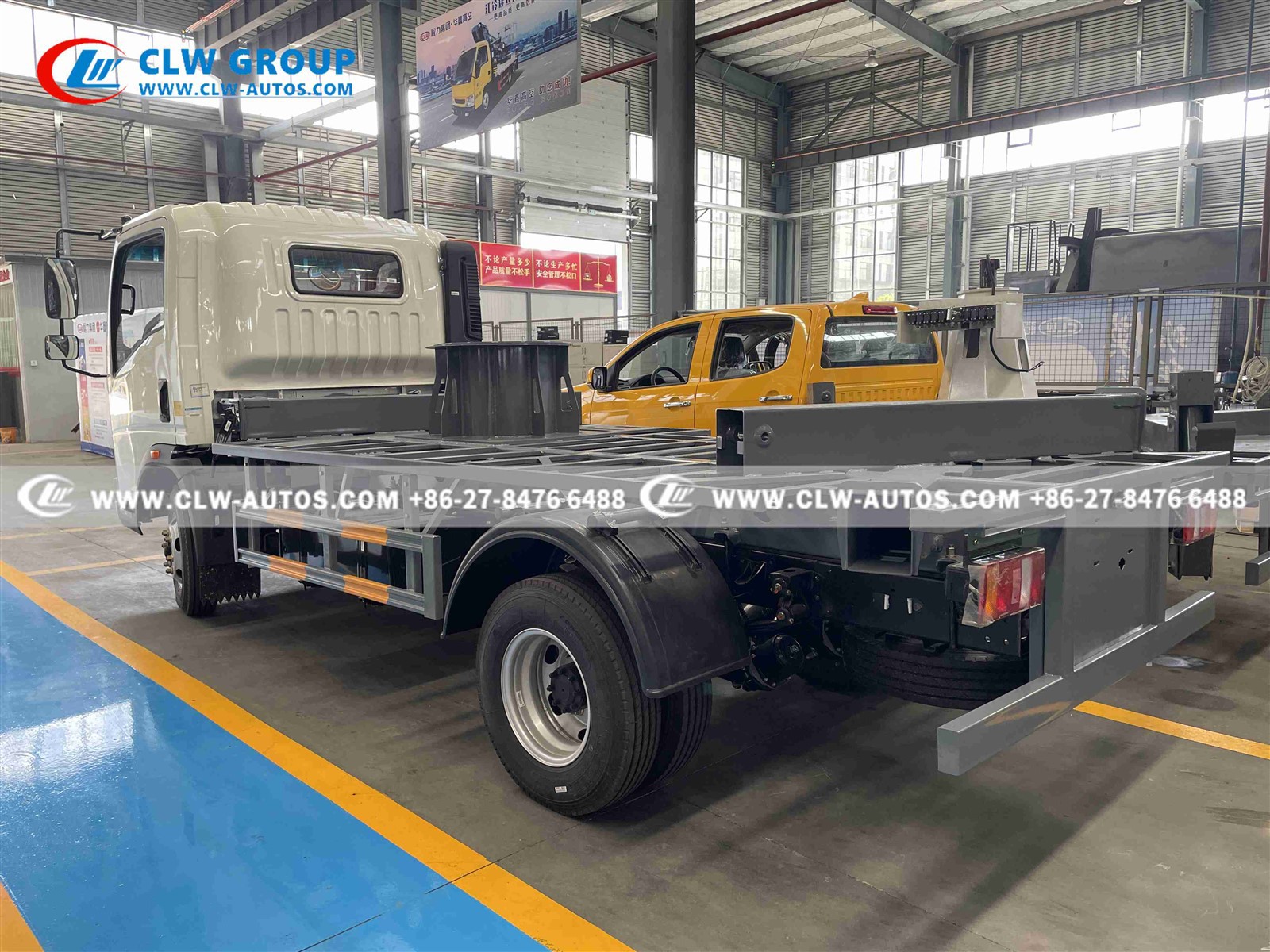

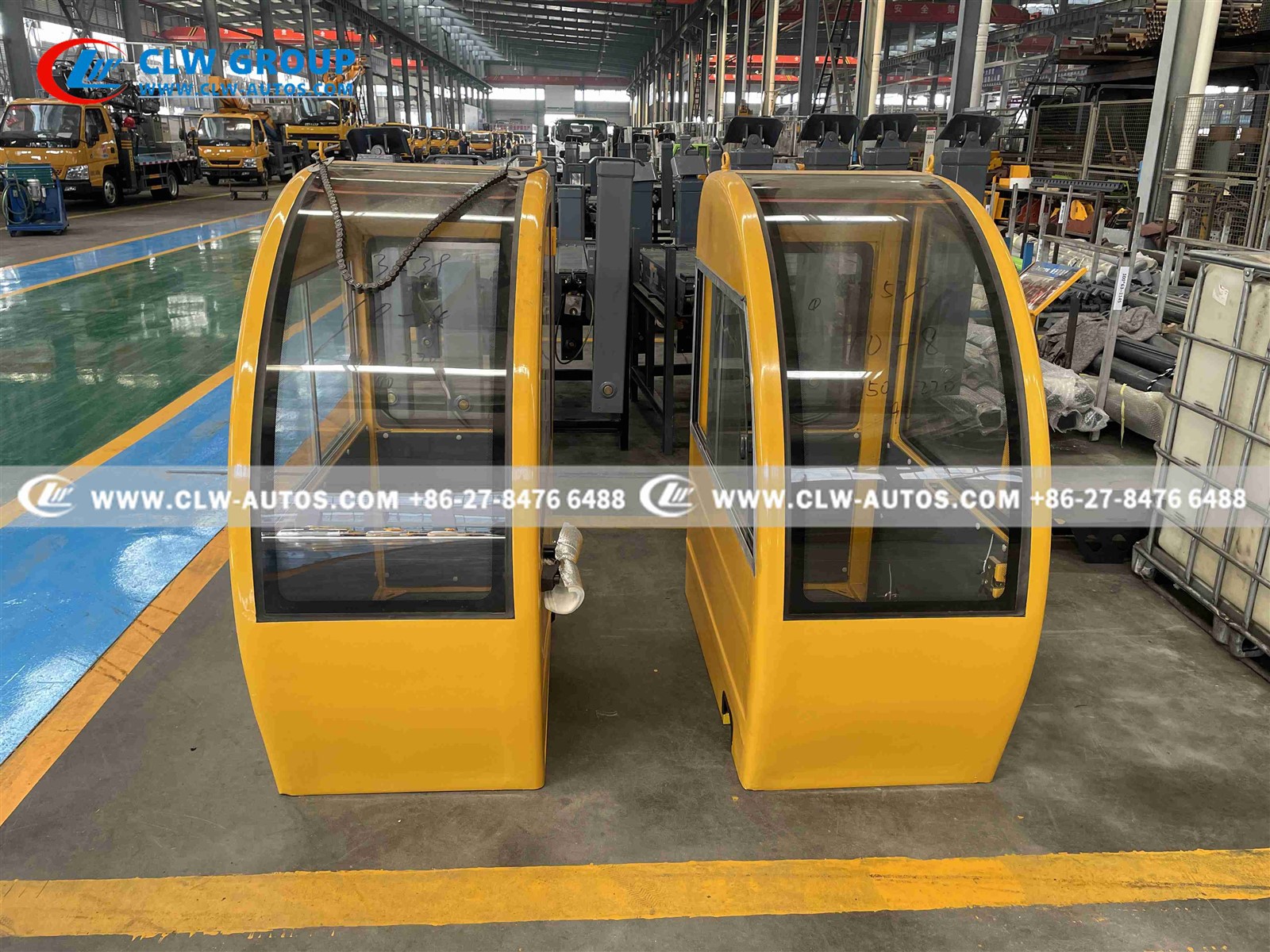

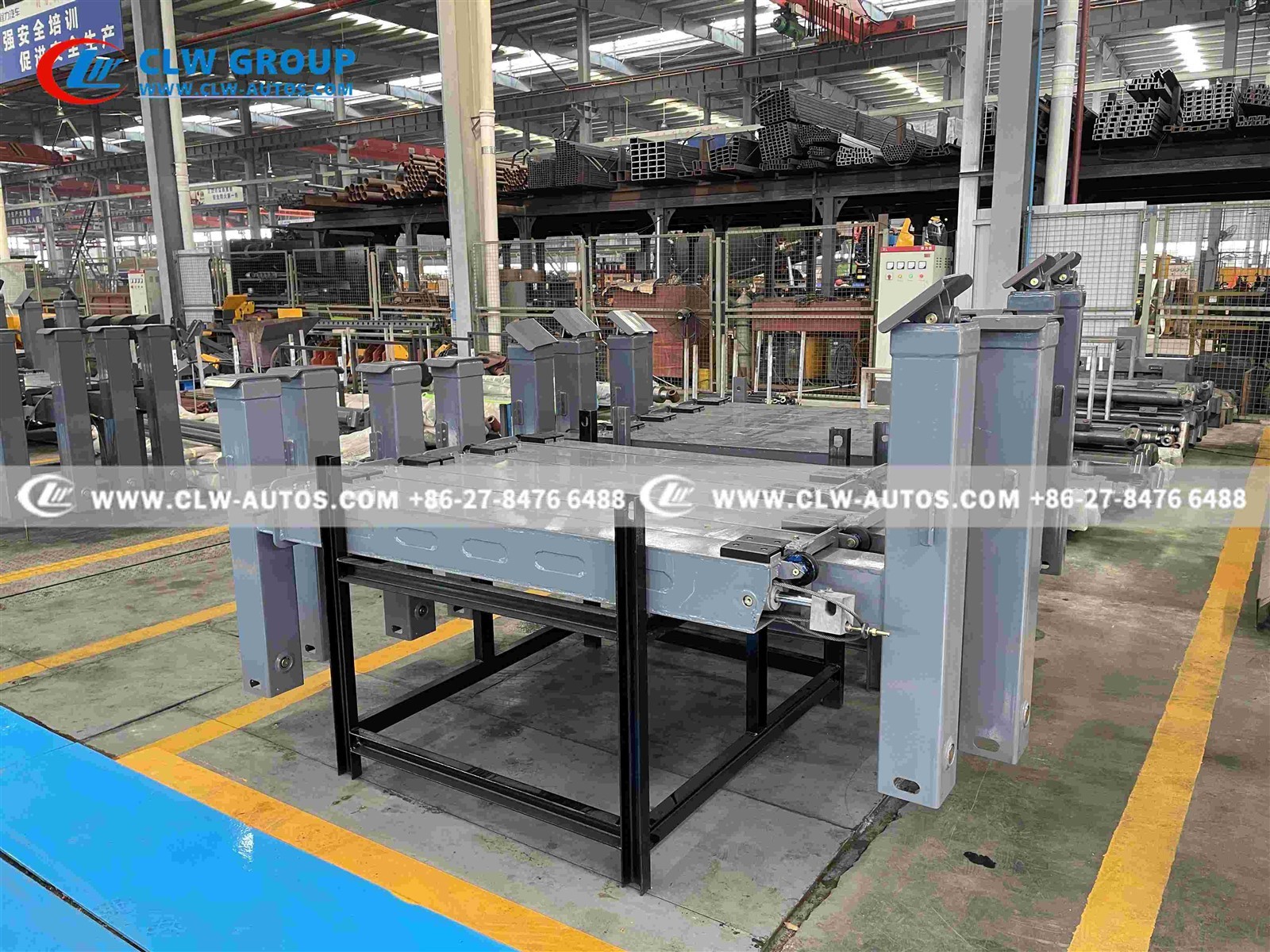

Our Workshop
